Abstract
-
The purpose of this study is to evaluate the effects of surface treatment and composition of reinforcement material on fracture strength of fiber reinforced composite inlay bridges.The materials used for this study were I-beam, U-beam TESCERA ATL system and ONE STEP(Bisco, IL, USA). Two kinds of surface treatments were used; the silane and the sandblast. The specimens were divided into 11 groups through the composition of reinforcing materials and the surface treatments.On the dentiform, supposing the missing of Maxillary second pre-molar and indirect composite inlay bridge cavities on adjacent first pre-molar disto-occlusal cavity, first molar mesio-occlusal cavity was prepared with conventional high-speed inlay bur.The reinforcing materials were placed on the proximal box space and build up the composite inlay bridge consequently. After the curing, specimen was set on the testing die with ZPC. Flexural force was applied with universal testing machine (EZ-tester; Shimadzu, Japan). at a cross-head speed of 1 mm/min until initial crack occurred. The data wasanalyzed using one-way ANOVA/Scheffes' post-hoc test at 95% significance level.Groups using I-beam showed the highest fracture strengths (p < 0.05) and there were no significant differences between each surface treatment (p > 0.05). Most of the specimens in groups that used reinforcing material showed delamination.
The use of I-beam represented highest fracture strengths (p < 0.05).
In groups only using silane as a surface treatment showed highest fracture strength, but there were no significant differences between other surface treatments (p > 0.05).
The reinforcing materials affect the fracture strength and pattern of composites inlay bridge.
The holes at the U-beam did not increase the fracture strength of composites inlay bridge.
I. INTRODUCTION
The property improvement of composites enables it to play an important role in indirect restoration. However, the improvement is not effectual unless the right reinforcing materials are used. There has been many reports1-6) in attempt to reinforce mechanical properties of fiber-reinforced composites (FRC) by using different types of fibers and positioning them differently. Recently, some studies reported1,2) that the positioning and adaptation of fiber influenced the load to initial and final failure and deflecting the specimen, and fiber slightly away from the tensile side improved the flexural properties. Lassila et al3) asserted that the fiber rich layer should be spread vertically in order to optimize the stiffness of FRC fixed partial dentures. The maximum effect of reinforcing should be obtained by applying the material right on the tensile side of the restoration. But clinically, the exposure of fiber can cause plaque to accumulate and this may lead the restoration to fail. Additionally in the case of fixed partial denture, clinical design and lab procedure turned out to be much more difficult than experimental design. For these reasons, there were limitations to positioning the reinforcing materials in FRC and proportion of those in restoration was considerably low. In order to take advantage of reinforcing materials with low quantity, the composition and position of reinforcing materials were optimized to transfer tensile stress from occlusion.
Another important factor affecting the mechanical properties of FRC is the adhesion between the reinforcing materials and surrounding composites. If there is not proper adhesion, the stress from occlusion could not be transferred to the reinforcing materials. Then the reinforcing materials would become a void and they might weaken the flexural strength of FRC.
Silane coupling agents have been widely used in dentistry to improve the bond of inorganic substances (glass, quartz etc) and the properties of composites. The silane has bifunctional groups, with one end (CH3O) reactive towards the silica and the other end reactive towards the resin matrix. Therefore, silane acts as a coupling agent, chemically reacting both with the silica and the resin matrix. As for silane, the most desirable application is on the monolayer, which is the most reactive property. If a multi-layer structure is formed in silane, cross-linking may occur and the chance of monomers making cross-links with the silane is reduced. Composites with silanated fillers represent superior mechanical properties than composites with non-silanated fillers. Recently, Alireza et al.7) reported surface treatment by silane coating, sandblasting, combination of silane coating and sandblasting significantly promoted the bond strength of resin cements to glass fiber posts. Debnath et al4) reported interfacial shear strengths glass/resin were greater for silanated specimens compared with unsilanated specimens.
Fracture of FRC due to external force may cause the resin composites matrix, reinforcing materials, or the interface to cracking. The cracking of FRC that occurred in the internal and external side can be evaluated by means of acoustic emission signals. At the point of clinically used FRC, an important parameter might be the initial failure of restoration. Before permanent deformation, damage and initial failure of restoration may induce or accelerate undesirable effects. Initial failure may consequently be a more sensitive or useful an indicator than ultimate strength for experimental strength evaluation and possible interpretation.
Actually, there are many kinds of reinforcing materials (U-beam, I-beam, bundle, mesh etc.), and combinations of the reinforcing materials that have been used. But there had been none of the study on the composition of reinforcing materials yet. The purpose of this study is to evaluate the effects of surface treatment and composition of reinforcement material on fracture strength of fiber reinforced composite inlay bridges.
II. MATERIALS AND METHODS
The experimental design was not aimed at hexahedral specimens but the clinical replicative specimens. A total of 83 fiber reinforced composite inlay bridges were made by one operator with hand instruments and Tescera ATL laboratory kit. All the laboratory procedures were guided by the manufacturer's instruction.
The materials used in this study was shown in Table 1. The reinforcing materials used in this study were quartz fiber in an epoxy matrix, which is in the shape of a U and a I (BISCO. Inc. IL, USA). The reinforcing materials were fabricated to meet the dimensions of the proximal box. After the fabrication, a U-beam with 3.0 mm in width, 2.0 mm in height, 10.0 mm in length was used.
The two I-beams that were used had different diameters; 1.8 mm and 1.4 mm. The I-beam with 1.8 mm diameter was used alone, whereas the one with 1.4 mm diameter was used with the U-beam. I-beams were fabricated only to the length 10.0 mm, and when it was used without the U-beam, two pieces of I-beams were inserted in the composites inlay bridge specimen.
Two kinds of surface treatments were applied; the silane and the sandblast. Porcelain primer (3-Methacryloxypropyl-trimethoxysilane) (BISCO. Inc. IL, USA) was used as a silane, and aluminum oxide that had a particle size of 25 - 50 µm was used for the sandblast (Renfert, Hilzingen, Germany). In addition, to evaluate the role of adhesion of reinforcing material to the composites, 3 holes were made at the U-beam for mechanical aid. Indirect composites system Tescera ATL and Tescera ATL composites that had shade A2 were used. ONE-STEP was used for the bonding agent. The specimens were divided into 11 groups according to the composition of reinforcing materials and surface treatments (Table 2).
On the dentiform, supposing the missing of Maxillary second pre-molar and indirect composites inlay bridge cavities on adjacent first premolar disto-occlusal cavity, first molar mesioocclusal cavity was prepared with conventional high-speed inlay bur. The depth of occlusal cavities were 2.0 mm and the dimension of proximal box was 4.0 × 2.0 × 1.5 mm (Figure 1).
Impression of dentiform was taken using light body rubber impression material. For composites inlay bridge. build up, the working dies were made with rubber impression and improved gypsum (GC, Leuven, Belgium). For fracture test, the testing dies were made with rubber impression and epoxy resin (Daeheung, Ansan, Korea). The epoxy testing dies were adjusted for fracture strength test.
Surface treatment of reinforcement materials was carried out as follows; Silane was applied twice continuously to the reinforcing material with a brush and left for 1 minute. Sandblast was performed perpendicularly with aluminum oxide (25 - 50 µm) with a distance of 1 cm for 5 seconds. After the sandblast, the reinforcing material was cleaned with ultrasonic unit in distilled water for 20 seconds. For the mechanical retention, 3 holes were made on the U-Beam with a high-speed round bur with a 1 mm diameter.
The control group was built up with the Tescera dentin, body, and incisal composites. The layer of the Dentin composites was made as thin as possible on the working die. When the layer was once built up, the specimen was cured in the light cup. Body composites were built up 3 times. Then the Incisal composites were built up to a thickness of about 0.5 - 1 mm. During the build up the body, incisal composites, and the saddle was foamed by a steel ball with a diameter of 4.16 mm to apply to the load. When the final build up of incisal composites was done, the specimen was cured in the heat cup. After curing, specimens were fabricated according to the eight landmarks, for standardization (Figure 2). Fabrication was done by using digital caliper, metal crown depth gauge, high speed polishing burs and soflex disc. Specimens were stored for 1 week in distilled water at room temperature. The composites inlay bridges were set on the testing die using zinc phosphate cement.
In the case of using the reinforcing materials, they were cleaned in acetone for 10 seconds. Silane was applied twice continuously to the reinforcing material with a brush and left for 1 minute. After the silane dried out, ONE-STEP was applied at the reinforcing material with a brush and was left for 20 seconds and blown with air and light cured. The reinforcing materials were placed in the proximal box space of the gypsum working die with using flowable composites (TESCERAFLO) and light cured. Composites inlay bridge was built up with the Tescera dentin, body, and incisal composites as mentioned previously. During the build up of the body and incisal composites, the saddle was foamed by a steel ball with a diameter of 4.16 mm to apply to the load. When the final build up of incisal composites was done, the specimen was cured in the heat cup. After the curing, specimens were fabricated according to the eight landmarks, for standardization (Figure 2). Specimens were stored for 1 week in distilled water at room temperature. The composites inlay bridges were set on the testing die by using zinc phosphate cement.
The specimens were placed on the testing zig of Universal testing machine (EZ-tester; Shimadzu, Japan), and put on the steel ball with a 4.16 mm diameter. And then flexural force was applied at a cross-head speed of 1 mm/min until initial crack occurred. The load-deflection curves were recorded with PC and recording software (WinAGS Lite).
The data was analyzed using one-way ANOVA/Scheffes'post-hoc test at 95% significance level.
III. RESULTS
The mean and standard deviation of the fracture strengths of each group were shown in Table 3.
Most of the groups showed higher strengths than the control group, but some groups showed a similar level (Figure 3). Groups using I-beam showed the highest fracture strengths and there were significant differences from the control group and the groups using a combination of the I and U beam (p < 0.05) (Figure 4). Although there was not a significant difference, groups using a combination of the I and U beam showed lower strength than singly using the U-beam. Groups using silane as surface treatment showed the highest fracture strength, but there were other significant differences among each surface treatment (p > 0.05) (Figure 5).
The main fracture pattern of the control group was vertical fracture. However, most of the specimens in groups that used reinforcing material showed delamination (Figure 6). Vertical fracture was occurred at the pontic tooth, but delamination was processed from marginal ridge to the occlusal cavity of abutment tooth obliquely (Figure 7a, 7b). There was definite difference between the fracture mode of the control and reinforcing groups. But, there was no difference of fracture occurrences between both of the first molar and the first premolar (Figure 8a, 8b).
IV. DISCUSSION
Following the minimal invasiveness principle, the composites inlay bridge could be useful when missing space is narrow or has intact adjacent teeth. The failure of composites inlay bridge is supposed to be a failure of tooth-restoration interface. However, in this study, as we want to see a fracture strength of composites inlay bridge itself, the condition of cementation was excluded.
The initial fracture could be acknowledged if following conditions were presented; 1) audible emissions caused by the generation of elastic waves by crack formation, 2) visible signs of fracture, 3) a sharp decline in the load-deflection curve.
Following the classification by Craig and Courtney17), there were three types of fracture mode that could occur while the FRC in a tension type test; those were instantaneous, statistical, and step wise failure. The patterns of initial failure in this study were primarily delamination that was represented running of crack from the occlusal cavity to the marginal ridge and most of those were classified statistical type that had a strain concentration distributed to a wide region may require further load to elongate the crack. Most of specimens in control group were showed vertical fracture and reinforcing groups were showed delamination. Although the fracture strengths of specimen were similar, there were definite different patterns of fracture between control and reinforcing groups.
Ozcan et al5) reported a large amount of resin composites surrounding the fiber at the connector area may decrease the strength. And they also reported in a restoration with small box dimensions, the transmittance of the force was more in the FRC restoration. Volumetric analysis of the groups used different reinforcing materials at the box space; I-beam 63.61%, the I and U beam 47.52%, U-beam 28.27%. However, following the previous results, the group using only the I-beam showed a significantly higher strength whereas even the group using a combination of the I and U beam showed lower strength than using U-beam alone. It seemed that the combination of reinforcing materials didn't work as one unit and there were interferences to transfer the stress between each reinforcing materials. In dental use there were limitations of applying the reinforcing materials. As the limitations of application, the reinforcing materials were placed only in a box space and consequently those were placed at the center of the restoration.
Generally, the higher the degree of monomer conversion, the better the mechanical properties of the composites restoration. The higher degree of conversion could be achieved by increasing either polymerization temperature or light intensity. At the point of shade of composites, the lighter shade it was, the higher rate of conversion it had. A2 shade was chosen for that reason. The higher polymerization temperature increases monomer movement resulting in a higher degree of conversion of C=C bonds of the functional groups of the monomers and lowers the residual monomer content. Tescera ATL was adopted the effect of pressure and high temperature. The chamber pressure was 70psi and when applying heat cup the temperature went to 130℃. All the laboratory procedures were guided by the manufacturer's instruction.
The silane should be made a monolayer on the reinforcing material as if it was formed in multi-layers, the strength of bond between composites and reinforcing materials would be reduced. Many of the previous reported studies4,7) concluded that silane surface treatment was to improve the adhesion between reinforcing materials and resin composites. But, in this study, although treatment of silane presented highest fracture strength, there were not significant differences with other surface treatments. To the reinforcing materials used in this study, manufacture had made the silane treatment on the surface help adhesion. The results can be explained on account of the following reasons. First of all, the additionally applied silane interfered with the adhesion and the sandblast peeled off the surface treatment which the manufacturer had made. Finally, the silane treatment that was applied after the sandblast could not adequately compensate the silane that was peeled off. Additionally, mechanical aid by making the retention holes did not make any differences.
V. CONCLUSION
Within the limitations of the study, the following conclusions were made;
The use of I-beam represented highest fracture strengths (p < 0.05).
In groups only using silane as a surface treatment showed highest fracture strength, but there were no significant differences between other surface treatments (p > 0.05).
The reinforcing materials affect the fracture strength and pattern of composites inlay bridge.
The holes at the U-beam did not increase the fracture strength of composites inlay bridge.
- 1. Ellakwa AE, Shortall AC, Shehata MK, Marquis PM. The influence of fibre placement and position on the efficiency of reinforcement of fibre reinforced composite bridgework. J Oral Rehabil. 2001;28(8):785-791.ArticlePubMed
- 2. Dyer SR, Lassila LV, Jokinen M, Vallittu PK. Effect of fiber position and orientation on fracture load of fiber-reinforced composite. Dent Mater. 2004;20(10):947-955.ArticlePubMed
- 3. Lassila LV, Vallittu PK. The effect of fiber position and polymerization condition on the flextural properties of fiber-reinforced composite. J Contemp Dent Pract. 2004;5(2):14-26.
- 4. Debnath S, Wunder SL, McCool JI, Baran GR. Silane treatment effects on glass/resin interfacial shear strengths. Dent Mater. 2003;19(5):441-448.ArticlePubMed
- 5. Ozcan M, Breuklander MH, Vallittu PK. The effect of box preparation on the strength of glass fiber-reinforced composite inlay-retained fixed partial dentures. J Prosthet Dent. 2005;93(4):337-345.ArticlePubMed
- 6. Göhring TN, Roos M. Inlay-fixed partial dentures adhesively retained and reinforced by glass fibers: clinical and scanning electron microscopy anlysis after five years. Eur J Oral Sci. 2005;113(1):60-69.PubMed
- 7. Sahafi A, Peuzfeldt A, Asmussen E, Gotfredsen K. Bond strength of resin cement to dentin and to surface-treated posts of titanium alloy, glass fiber, and zirconia. J Adhes Dent. 2003;5(2):153-162.PubMed
- 8. Rosentritt M, Behr M, Handel G. Fixed partial dentures: all-ceramics, fibre-reinforced composites and experimental systems. J Oral Rehabil. 2003;30(9):873-877.ArticlePubMedPDF
- 9. Suh BI. New concepts and technology for processing of indirect composites. Compend Contin Educ Dent. 2003;24(8):40-42.
- 10. Ibbetson R. Clinical consideration for adhesive bridge-work. Dent Update. 2004;31: 254-265.ArticlePubMed
- 11. Goracci C, Tavares AU, Fabianelli A, Monticelli F, Raffaelli O, Cardoso PC, Tay F, Ferrari M. The adhesion between fiber posts and root canal walls: comparison between microtensile and push-out bond strength measurements. Eur J Oral Sci. 2004;112(4):353-361.ArticlePubMed
- 12. Goracci C, Raffaelli O, Monticelli F, Balleri B, Bertieeli E, Ferrari M. The adhesion between prefabricated FRC posts and composite resin cores: microtensile bond strength with and without post-silanization. Dent Mater. 2005;21(5):437-444.PubMed
- 13. Ellakwa AE, Shortall AC, Marquis PM. Influence of different techniques of laboratory construction on the fracture resistance of fiber-reinforced composite (FRC) bridges. J Contemp Dent Pract. 2004;5(4):1-13.Article
- 14. Soares CJ, Martins LR, Pfeifer JM, Giannini M. Fracture resistance of teeth restored with indirect-composite and ceramic inlay systems. Quintessence Int. 2004;35(4):281-286.PubMed
- 15. Giordano R. Fiber reinforced composite resin systems. General Dentistry. 2000;48: 244-249.PubMed
- 16. Minesaki Y, Suzuki S, Kajihara H, Tanaka T. Effect of reinforcement methods on the resin-bonded fixed partial dentures using a composite denture tooth as a pontic: in vitro evaluation. J Adhes Dent. 2003;5: 225-234.PubMed
- 17. Craig WH, Courtney TH. On the tension test as a means of characterizing fiber composite failures mode. J Mater Sci. 1975;10: 1119-1126.ArticlePDF
- 18. Edelhoff D, Spiekermann H, Yildirim M. Metal-free inlay-retained fixed partial dentures. Quintessence Int. 2001;32(4):269-281.PubMed
- 19. Zammarieh E. Three unit metal-free inlay bridge. J Dent Technol. 2000;17(6):21-25.PubMed
- 20. Isidor F, Stokholm R. Resin-bonded prostheses for posterior teeth. J Prosthet Dent. 1992;68(2):239-243.PubMed
- 21. Lowe E, Rego NA. Posterior restoration using laboratory-fabricated composite resin. Pract Periodontics Aesthet Dent. 2000;12(3):279-283.PubMed
- 22. Shannon A. Fiber-reinforced composite bridge inlay-toinlay Technique. Dentistry today. 1997;16(11):48-53.
- 23. Smales RJ, Berekally TL, Webster DA. Predictions of resin-bonded bridge survivals, comparing two statistical models. J Dent. 1993;21(3):147-149.ArticlePubMed
- 24. Ziada HM, Benington IC, Orr JF. Photoelastic stress analysis in resin bonded bridge design. Eur J Prosthodont Restor Dent. 1995;3(5):217-222.PubMed
- 25. Markus SJ. An indirect/direct combined approach for reinforced fixed bridge. J N J Dent Assoc. 1994;65(1):23-26.
- 26. Ali A, Cassidy M, Gilmour A. Resin-bonded bridges: 2 Treatment planning, clinical cases and failures. Dent update. 1992;19: 82-87.PubMed
- 27. Creugers NH. Resin-bonded bridges. A status report for the american journal of dentistry. Am J Dent. 1991;4(5):251-255.PubMed
- 28. Terry DA, Touati B. Clinical considerations for aesthetic laboratory-fabricated inlay/onlay restorations: a review. Pract Proced Aesthet Dent. 2001;13(1):51-58.PubMed
- 29. Alex G. Consideration for the successful placement of laboratory-processed, indirect composite restorations. Compend Contin Educ Dent. 2003;24: 43-37.
- 30. Olin PS, Hill EM, Donahue JL. Clinical evaluation of resin-bonded bridges: a retrospective study. Quintessence Int. 1991;22(11):873-877.PubMed
- 31. Blank JT. Scientifically based rationale and protocol for use of modern indirect resin inlays and onlays. J Esthet Dent. 2000;12(4):195-208.ArticlePubMed
REFERENCES
Figure 5
The silane showed highest fracture strengths. To make holes did not affect the fracture strengths.
Figure 8a
Typical load-deflection curve of Control group. Sharp decline of curve represent the initial crack point.
Tables & Figures
REFERENCES
Citations
Citations to this article as recorded by
- Esthetic rehabilitation of single anterior edentulous space using fiber-reinforced composite
Hyeon Kim, Min-Ju Song, Su-Jung Shin, Yoon Lee, Jeong-Won Park
Restorative Dentistry & Endodontics.2014; 39(3): 220. CrossRef
ePub Link
Cite
XML DownloadThe effect of reinforcing methods on fracture strength of composite inlay bridge
Figure 1

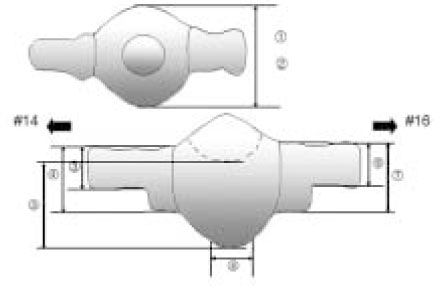

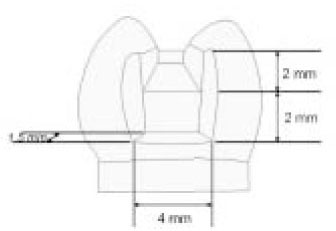

Dimension of indirect composites inlay bridge cavity.
Figure 2

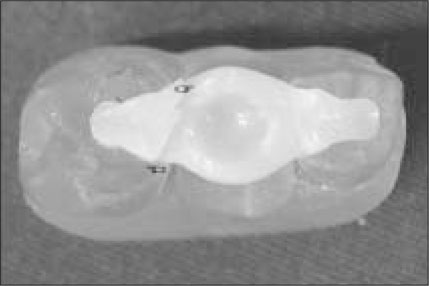

8 Landmarks on Tescera inlay bridge specimen.
Figure 3

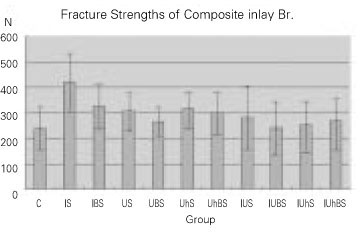

Most of reinforcing groups had higher fracture strengths than the control group.
Figure 4

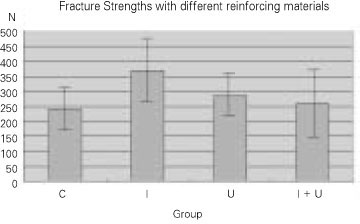

The group using I-beam showed highest fracture strength.
Figure 5

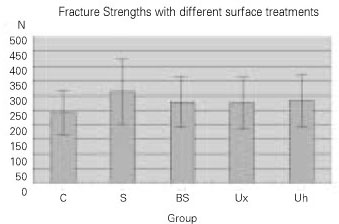

The silane showed highest fracture strengths. To make holes did not affect the fracture strengths.
Figure 6

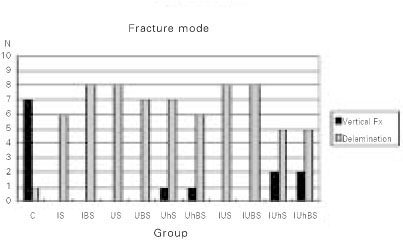

Except the control, most of groups showed delamination with fracture mode.
Figure 7a

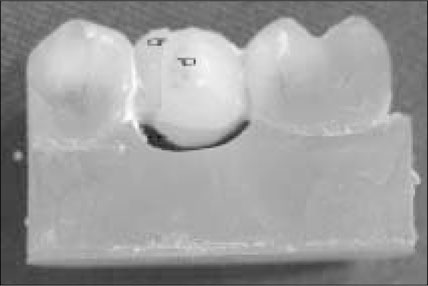

Vertical fracture on the pontic tooth area.
Figure 7b
Delamination from marginal ridge to the occlusal floor of abutment tooth obliquely.
Figure 8a

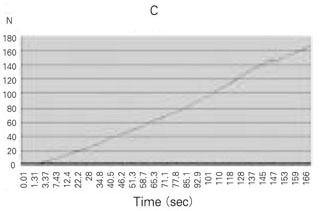

Typical load-deflection curve of Control group. Sharp decline of curve represent the initial crack point.
Figure 8b

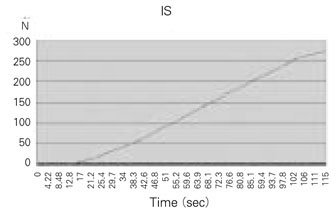

Typical load-deflection curve of reinforcing groups. Sharp decline of curve representthe initial crack point.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7a
Figure 7b
Figure 8a
Figure 8b
The effect of reinforcing methods on fracture strength of composite inlay bridge

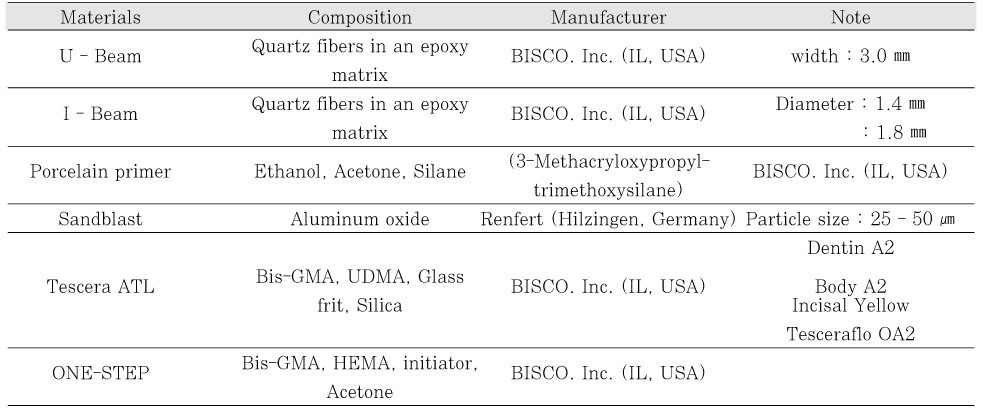

Materials used in this study
Experimental groups classification by reinforcing material and surface treatment
Fracture strength (N) of experimental group (mean ± S.D)
Table 1
Materials used in this study
Table 2

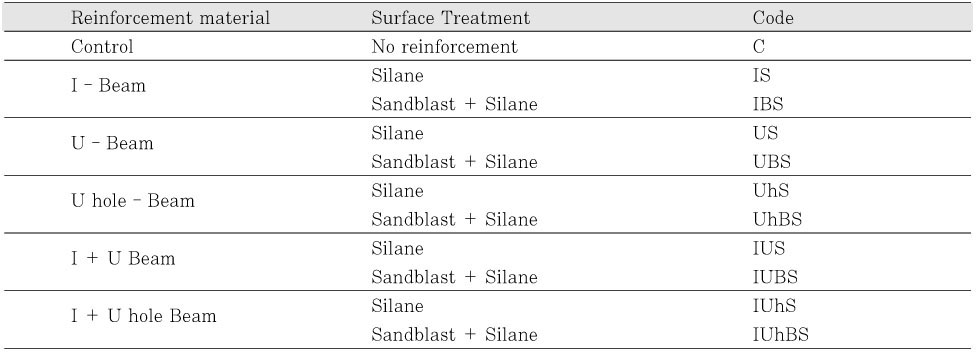

Experimental groups classification by reinforcing material and surface treatment
Table 3

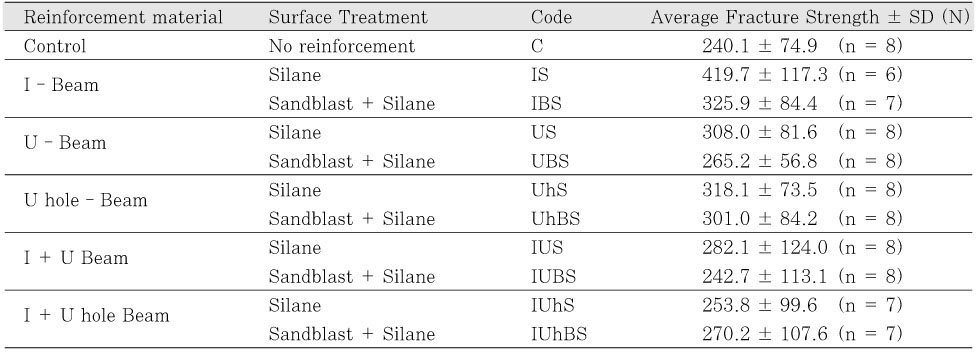

Fracture strength (N) of experimental group (mean ± S.D)
