KACD
Articles
- Page Path
- HOME > Restor Dent Endod > Volume 39(1); 2014 > Article
-
Research Article
Evaluation of softening ability of Xylene & Endosolv-R on three different epoxy resin based sealers within 1 to 2 minutes - an
in vitro study - Pratima Ramakrishna Shenoi, Gautam Pyarelal Badole, Rajiv Tarachand Khode
-
2014;39(1):-23.
DOI: https://doi.org/10.5395/rde.2014.39.1.17
Published online: January 20, 2014
Department of Conservative Dentistry & Endodontics, VSPM's Dental College & Research Center, Nagpur, India. JFIF d d Ducky d qhttp://ns.adobe.com/xap/1.0/ |er˭|I|-fGK.rΛp8XV1%K6mvG+tc+qE &ǸC_Nm:l=_/m5^[dߌڇ.c<%:)tQ$Ow~-aY;UJ >=F)2[nk؆?훐 M=l6[4(O.]2#-H^n#->&mp5~Fӛ+|| S,xag% qkEUzUgæBhߕP(7]kFnq?֖Cpru Z6*rEڊtS|*tI*E}7R<,nUU֫^I7Q*mSly%rdȓd8hE<9oHhMfNSRj[i7D[Rj݊+kდq{"$$H?p \̅S?㭻;t~ R߁ )^/>Qj`yt[w ԛ;² ~+ ߔ_ YW~|o] ?x^ᯛ `ʼn;g)T@vWn]>&4l p+$D̢1l|ȨF%-} .9[}w~
ԠLM9hСablfe&QoW !s ?wjLK?s7yO>(=C~_nyǜu? v 3vyo oI@qV-jeES^[9WoSܝh"l2C1a͔CiJ@3:Pճw= /7ovuk+\V;lDgն <[A+r X~d;m!_s8ݖ;;.0llUC+?i#_crʙ1~C.\q u l8Hܶ2m`ܻM3Tov|Bs rɵ"oLS-
DКw=Tv@f '6|YlD͓Y%-#Ѯo%:&!3o%\J<02;K87>^vgƓ# ;ݝmz^Y6=PS39U%~
&f#
}o!muH; ʲŇ˷yvP+&.7e[3'vR4Yj̗IZ`e˽3o[WU{
m[sUbۋZǾۆl6~9'V*.\S2<Sd*zY[aŶ`]C$n.v^Ʌ
dng>ەZ,Mmϑ :n6nϦezW qUJ4! ۇ4R! =>>F n|Q[{pRO 17ƕ~._I ''00k=b՛o}Osðc2'o\3}ݭQ^ 2 . R1yKȣtAݿ-u ܾw!`?1Whn|gzU o[ECWwjUIן)^h#1ɭ!/Z
np;o;ΗŻkXs."6E`Z1
עӐ9Kl8qd q} 2Stt;#j>;խabONŗ=fwP1j)l6J̶|gV 2`y/0E˛6+ԫ1?
6}KW c\KoKͨ2ۅFws*TԞLיuDx .kCzWXhy۶gLu|%TnupǺl-S* P RaLnT+c+*xl.v!.U=|; !_L̎뱚U=4hm:ٯ"y)$:>%(n}X'p[ȴ
^˒4kƓmzDx
\
'Nq amP7nyN݅=
- Correspondence to Rajiv Tarachand Khode, BDS. Post Graduate Student, Department of Conservative Dentistry & Endodontics, VSPM's Dental College & Research Center, Nagpur, Maharashtra, India 440019. TEL, +919730271428; FAX, +91-7104-306202; rajiv.khode@gmail.com
• Received: August 28, 2013 • Accepted: November 27, 2013
©Copyights 2014. The Korean Academy of Conservative Dentistry.
This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.
- 1,156 Views
- 8 Download
- 11 Crossref
Abstract
-
Objectives This study evaluated the efficacy of Endosolv-R and Xylene in softening epoxy resin based sealer after 1 to 2 min exposure.
-
Materials and Methods Sixty Teflon molds (6 mm × 1.5 mm in inner diameter and depth) were equally divided into 3 groups of 20 each. AH 26 (Dentsply/De Trey), AH Plus (Dentsply/De Trey), Adseal (Meta-Biomed) were manipulated and placed in the molds allotted to each group and allowed to set at 37℃ in 100% humidity for 2 wk. Each group was further divided into 2 subgroups according to the solvents used, i.e. Xylene (Lobachemie) and Endosolv-R (Septodont). Specimens in each subgroup were exposed to respective solvents for 1 and 2 min and the corresponding Vicker's microhardness (HV) was assessed. Data was analysed by Mauchly's test and two-way analysis of variance (ANOVA) with repeated measures, and one-way ANOVA.
-
Results Initial hardness was significantly different among the three sealers with AH Plus having the greatest and Adseal having the least. After 2 min, Xylene softened AH Plus and Adseal sealer to 11% and 25% of their initial microhardness, respectively (p < 0.001), whereas AH 26 was least affected, maintaining 89.4% of its initial microhardness. After 2 min, Endosolv-R softened AH 26, AH Plus and Adseal to 12.7, 5.6 and 8.1% of their initial microhardness, respectively (p < 0.001).
-
Conclusions Endosolv-R was a significantly more effective short term softener for all the tested sealers after 2 min whereas Xylene was an effective short term softener against AH plus and Adseal but less effective against AH 26.
Introduction
Teeth with pulpal and periradicular involvement are commonly treated with root canal treatment. Although success rate of endodontic treatment is up to 86 to 93%, failure in endodontic treatment can be expected.1 The main causes of endodontic failure are insufficient cleaning, inadequate obturation, untreated or missed out root canals, lack of efficient hermetic sealing and survival of bacteria.2 These make nonsurgical endodontic retreatment necessary. For effective results, retreatment requires thorough debridement of former root canal filling materials including sealers.3 Debridement especially in resin based sealers that strongly adhere to the root canal dentin is more difficult.4,5 The root canal filling material in bulk can be easily removed with hand and rotary instrument leaving small amount of residue attached to the root canal dentin. Recently, Duncan and Chong have suggested the use of solvents to remove this root canal residue.5 The aim of this study was to evaluate the softening ability of two solvents Xylene & Endosolv-R on three Epoxy resin based endodontic sealers that will facilitate their effective mechanical removal.
Materials and Methods
Three epoxy resin based root canal sealers, AH 26 (Group I, Dentsply/De Trey, Konstanz, Germany), AH Plus (Group II, Dentsply/De Trey) and Adseal (Group III, Meta-Biomed, Cheongwon, Korea) were tested. Composition of each sealer is described in Table 1. A well of 6 × 1.5 mm in diameter and depth, respectively, was prepared in each of sixty Teflon disks of 12 × 2 mm in diameter and height, respectively. These sixty molds were randomly and equally divided into three groups, each containing 20 Teflon molds (n = 20). Each sealer was then mixed according to the manufacturer's instructions and placed into the well of the mold. The sealer specimens were then allowed to set for 2 weeks at 37℃ and 100% humidity. The design of the sealer specimen was such that only one surface of the specimen was exposed to solvent. Twenty set sealer specimens in each group were further randomly and equally divided into two subgroups (n = 10) based on solvents to which they were exposed to Xylene (Subgroup A, Lobachemie, Mumbai, India) and Endosolv-R (Subgroup B, Septodont, Cedex, France).
Initial Vicker's microhardness (HV) of each fully set sealer specimens were calculated using a Mitutoyo microhardness testing machine (Instrument No. 810-117E, Mitutoyo, New Delhi, India) with a Vicker's microhardness indenter. The indenter was applied at three predetermined points on the specimen surface with the load of 10 grams for 10 seconds. The indentations in the sample surface were measured under 100 times magnification with the microscope attached to the same machine. The mean of three was taken for each sample.
Each sealer specimen was then immersed in a petridish containing the corresponding solvent (i.e. Xylene and Endosolv-R) for 1 minute. Each specimen was then retrieved from the solvent and air dried. At this point of time, the microhardness of each sealer specimen was reassessed by similar procedure as mentioned above. Each sealer specimen was then again exposed to corresponding solvents for additional 1 minute. (i.e. totally 2 minutes.) and similar procedure to evaluate microhardness was followed as mentioned above. In this way ten sealer specimens from each group were tested for reduction in Vicker's microhardness (HV) after 1 and 2 minutes of exposure to solvent.
Vicker's microhardness (HV) for each sealer at initial stage, after 1 and 2 minutes exposure to solvents was summarized (Tables 2 and 3) in terms of means and standard deviations. Reduction in the microhardness of each sealer at one and two minutes was expressed as percentage with reference to the respective initial hardness. To determine the effect of solvents and sealer types on the microhardness according to time, two-way analysis of variance (ANOVA) with repeated measures was performed. The assumption of sphericity was assessed using Mauchly's test. Additionally, to determine the significance of difference in the mean hardness across groups at each time point, one-way ANOVA was used followed by Tuckey's post-hoc pairwise comparison. The analysis was performed using SPSS 16.0 (SPSS INC., Chicago, IL, USA) software.
Results
The descriptive statistics in terms of mean and standard deviation were obtained for each sealer type according to time, for each solvent Xylene and Endosolv-R (Tables 2 and 3). It was evident that the mean Vicker's hardness reduced significantly with time for all sealer and solvent combinations. However, their extent of reduction was different. To assess the statistical relevance of change in the hardness due to sealer type and solvent exposure, two-way ANOVA with repeated measures was performed independently for two solvents.
Mauchly's sphericity test for each of the three effects in the model i.e. two main effects (group and time) and the interaction effect (group x time) revealed that the assumption of sphericity was met by group (p = 0.32) and hence no correction of F-ratios was required. However, time and interaction violated the assumption (p < 0.05). The estimate of sphericity (ε) for these effects were 0.543 and 0.385 respectively, and hence Greenhouse-Geisser correction was referred for degrees of freedom of F-statistics. The results of ANOVA revealed that there was a highly significant main effect of groups (F(2,18) = 591.48, p < 0.0001) when exposed to Xylene. The main effect of time was also highly significant (F(1.08,9.77) = 2,760.26, p < 0.0001), indicating that the marginal mean hardness (HV) was different at three time points. The interaction effect was significant (F(1.54,13.86) = 1,115.52, p < 0.0001) indicating that the hardness (HV) attained at different time points depends on the type of sealer material when exposed to Xylene (Table 2). Exposure time of Xylene had a noticeable effect on AH Plus followed by Adseal (Figure 1).
Mauchly's sphericity test revealed that the two main effects, i.e. group and time as well as the interaction effect (group x time) met the assumption of sphericity with p values 0.729, 0.389 and 0.174 (p > 0.05), respectively. Hence, there was no need of any correction of F-ratios. The ANOVA revealed that the main effect of groups was highly significant (F(2,18) = 114.44, p < 0.0001). The main effect of time was also highly significant (F(2,18) = 11,208, p < 0.0001) indicating that the marginal mean of hardness (HV) was different at three time points. The interaction effect (group x time) was also significant (F(4,36) = 51.22, p < 0.0001) suggesting the dependency of hardness (HV) of sealer type exposed to Endosolv-R and time (Table 3, Figure 2). The mean Vicker's microhardness (HV) at different time points for AH 26 was higher than that of Adseal. However, AH Plus contributed mainly to the interaction effect. Mean hardness (HV) for this sealer when exposed to Endosolv-R was higher than that for other two sealers. However, after two minutes exposure, the mean hardness (HV) for AH Plus dropped remarkably with a mean of 9.23 ± 0.44 (94.4% reduction) and was very close to that of Adseal (9.88 ± 1.20). In short, the effect of Endosolv-R exposure to AH Plus was noticeable after two minutes.
The above analyses revealed that AH Plus sealer exposed to either of the solvents had the maximum reduction in the mean hardness (HV) as compared to other two sealers, and in particular, the effect is pronounced for Endosolv-R exposure to AH Plus. Additionally, one-way ANOVA in subgroup A suggested that mean initial hardness (HV) differed significantly across three groups. Similar was the observation after 1 and 2 minutes. Further, also in subgroup B, the mean initial hardness (HV) differed significantly in three groups, and the finding was consistent after 1 minute. However, after 2 minutes, the mean hardness (HV) of group I differed significantly than groups II and III, while the means of groups II and III showed no significant difference.
Discussion
For endodontic retreatment to be successful, it is necessary to completely remove all previous obturation material.3,6 An ideal root canal sealer should be easily removed if retreatment is necessary to allow access for antimicrobial agent and medicament to all root canal ramification.7 Shin et al. advocated the use of Gates Glidden and Profile systems for retrieval of resin based root canal sealer.8 Recently, Duncan and Chong suggested many methods for removal of root filling materials including use of the hand files, rotary files, ultrasound, heated pluggers and solvents.5 Hand and rotary instruments are commonly being used for effective removal of root canal fillings.2,3 The bulk of these filling materials can be removed within 2 to 3 minutes, but still remnants of gutta percha and sealer remains commonly attached to root canal dentin.6,9 With better sealing and bonding, resin based root canal sealers are of interest to many clinicians.4,10,13 The complete debridement of the remnants of resin based sealers that strongly attaches to the dentin is prolonged tedious task. So to remove these fillings and sealer out of the fins and aberration of root canal systems, literature has suggested 'wicking action' is necessary which can be provided by solvents.5,11,12 Therefore, it will be helpful to use solvents along with hand and rotary files to remove root canal debris.
Three epoxy resin based sealers, AH plus, AH 26, and Adseal were used because they are mechanically harder and more difficult to remove than zinc oxide euginol based ones.5,10,13 Lee et al. have mentioned that resin based sealers attach more strongly to both dentine and gutta percha as compared to zinc oxide euginol and calcium hydroxides based ones.10 Mamootil et al. have stated that resin-based sealers have deeper and more consistent penetration into dentinal tubules than other sealers both in vitro and in vivo.15 Further microleakage has been found to be least in the case of resin based sealers.16 Cho et al. have also mentioned in their study that the bond strength of final restoration was the least affected in case of resin based sealers than the zinc oxide euginol root canal sealer.17 Kim et al. have stated that resin based sealers (AH 26, EZ fill and AD Seal) are more biocompatible and have advantage in terms of radiopacity.18
In paint industries, solvents are often used to soften resin coating materials on paints to allow their easy removal.19 Thus solvents used in removal of paints can be considered in root canal retreatment for removal of strongly adhering resin based sealers from root canal walls.19 Chloroform and Xylene as a solvent for root canal sealer have been studied, but U.S. Food and Drug Administration has banned chloroform due to its potential for carcinogenicity and cytotoxicity.5,19-21 Use of D-Limonene (Refined Orange Oil) in endodontics is becoming popular due to its confirmed biocompatibility, safety, and noncarcinogenic property, but Martos et al. and Mushtaq et al. have mentioned that the performance of orange oil as a solvent was inferior to xylene and chloroform.22-24 Because of concerns about Chloroform, clinicians and researchers have developed a renewed interest in finding an alternative solvent. Xylene is chlorinated hydrocarbon commonly considered as gutta percha solvent.25 It may also soften or dissolve the sealers and could potentially facilitate their mechanical removal.19 Use of Endosolv-R for removal of resin based sealer has suggested by Cohen, Duncan and Chong.5,11 It contains 66.5 grams of formamide and 33.5 grams of phenyl ethylic alcohol.26
In this study, only one surface of sealer was exposed to solvent to simulate the root canal conditions. Softening was defined as reduction in hardness that resulted from exposure to solvent.19 After 1 minute, Xylene was most effective against AH Plus (86.1%) followed by Adseal (65.1%) sealer and least effective against AH 26 (8.5%). After 1 minute, Endosolv-R was most effective against Adseal (69.2%) followed by AH 26 (62.5%) and AH plus (61.4%) (p < 0.001). After 2 minutes, Xylene was most effective against AH Plus (89.1%) followed by Adseal (75.1%) sealer but least effective against AH 26 (10.6%). These results are in partial agreement with the study of Kfir et al.19 After 2 minutes, Endosolv-R was most effective against AH plus (94.4%) followed by Adseal (91.9%) and AH 26 (87.3%) (p < 0.001). In other words, after 2 minutes of exposure Endosolv-R has been found to be a more effective short term softner for all the three sealers and its effect was more pronounced in case of AH plus.
Setting of epoxy resin sealers involves polymerization and cross linking of their monomers, resulting in 3D lattice.19 This set polymer is unaffected by saline or water. Hydrophobic organic solvents such as Xylene and Endosolv-R may have the ability to penetrate this 3D lattice resulting in swelling of the lattice and reduction in strength and hardness.19 Thus softening occurs that facilitates their removal by scrubbing effect provided by files.19 Ramzi et al. have stated that Endosolv-R combined with rotary files has most effectively removed filling materials from the root canals, especially in the apical third.6 Vranas et al. have reported that Endosolv-R has significant softening effect on resorcinol-formalin pastes after 2 minutes.4,25 Gambrel et al. concluded in their probe penetration study that softening effect of Endosolv-R after 20 minutes was superior to other tested solvents.4,26 Shokubinejad et al. mentioned that Endosolv-R does not affect the bond strength of newer obturation materials with root canal dentin whereas Laxmi Narayan et al. showed that Xylene causes significant reduction in enamel and dentin microhardness and thus may reduce the bond strength of newer endodontic sealers.27,28
Also, by Occupational Safety and Health Administration (OSHA) guidelines, Xylene causes irritation of eyes and mucous membranes, gastrointestinal distress and toxic hepatitis when ingested, chemical pneumonitis, hemorrhages in air spaces when inhaled, cytotoxic reaction when extruded periapically.5,20,29 However Chutich et al. have suggested that the amount of Xylene periapically extruded was too small to cause toxicity.30 Even less information regarding biocompatibility of Endosolv-R is available and it has been suggested to have fetotoxic properties.31 However, results mentioned in this study may vary in in vivo conditions based on setting characteristics of sealer in root canal system and availability of solvents to the sealer in curved & ramified canals.
Conclusions
Within the limitations of this study, it can be concluded that after 2 minutes, Endosolv-R was a significantly more effective short term softener than Xylene for all the tested sealers, and thus Endosolv-R can be viewed as a better substitute of Chloroform for softening and removing of epoxy resin based sealers.
Acknowledgement
Our sincere thanks to Parth Metallurgical Services Pvt. Ltd., Nagpur, India and MDS Bioanalytics Pvt. Ltd., Nagpur, India for their kind cooperation while conducting this study.
- 1. Rubino GA, Akisue E, Nunes BG, Gavini G. Solvency capacity of gutta-percha and resilon using chloroform, eucalyptol, orange oil or xylene. J Health Sci Inst 2012;30:22-25.
- 2. Hülsmann M, Bluhm V. Efficacy, cleaning ability and safety of different rotary NiTi instruments in root canal retreatment. Int Endod J 2004;37:468-476.ArticlePubMed
- 3. Kfir A, Tsesis I, Yakirevich E, Matalon S, Abramovitz I. The efficacy of five techniques for removing root filling material: microscopic versus radiographic evaluation. Int Endod J 2012;45:35-41.ArticlePubMed
- 4. Punitha PG, Shashikala K. Evaluation of adaptation of resin based sealers Epiphany, AH plus and AH 26 to the root canal dentin by scanning electron microscope. Indian J Stomatol 2011;2:207-211.
- 5. Duncan HF, Chong BS. Removal of root filling materials. Endod Topic 2008;19:33-57.Article
- 6. Ramzi H, Shokouhinejad N, Saghiri MA, Samieefard A. Efficacy of three different methods in the retreatment of root canals filled with Resilon/Epiphany SE. Iran Endod J 2010;5:161-166.PubMedPMC
- 7. Grossman . Grossman's endodontic practice. 12th ed. New Delhi: Wolters Kluwer; 2010. p. 278-307.
- 8. Shin SJ, Lee Y, Park JW. Evaluation of retrievability using a new soft resin based root canal filling material. J Korean Acad Conserv Dent 2006;31:323-329.Article
- 9. Taşdemir T, Yildirim T, Celik D. Comparative study of removal of current endodontic fillings. J Endod 2008;34:326-329.ArticlePubMed
- 10. Lee KW, Williams MC, Camps JJ, Pashley DH. Adhesion of endodontic sealer to dentin and gutta-percha. J Endod 2002;28:684-688.PubMed
- 11. Cohen S, Hargreaves K. Chapter 25. Nonsurgical endodontic retreatment. In: Roda RS, Gettleman BH, editors. Pathways of the pulp. 9th ed. Atlanta: Mosby; 2005. p. 944-1010.
- 12. In: Ruddle CJ, editor. Nonsurgical retreatment of endodontic failures: treatment concepts and considerations. Endodontic therapy. update 2013 May 22]. November 2001;1-9]. https://www.endoruddle.com/tc2pdf/12/NSRCTFailures_Nov2001.pdf.
- 13. Bodrumlu E, Uzun O, Topuz O, Semiz M. Efficacy of 3 techniques in removing root canal filling material. J Can Dent Assoc 2008;74:721.PubMed
- 14. Jainaen A, Palamara JE, Messer HH. Push-out bond strengths of the dentine-sealer interface with and without a main cone. Int Endod J 2007;40:882-890.ArticlePubMed
- 15. Mamootil K, Messer HH. Penetration of dentinal tubules by endodontic sealer cements in extracted teeth and in vivo. Int Endod J 2007;40:873-881.ArticlePubMed
- 16. Jang JA, Kim HL, Her MJ, Lee KW, Yu MK. Effect of moisture on sealing ability of root canal filling with different types of sealer through the glucose penetration model. J Korean Acad Conserv Dent 2010;35:335-343.Article
- 17. Cho JY, Jin MU, Kim YK, Kim SK. The Influence of AH-26 and zinc oxide-eugenol root canal sealer on the shear bond strength of composite resin to dentin. J Korean Acad Conserv Dent 2006;31:147-152.Article
- 18. Kim CK, Ryu HW, Chang HS, Lee BD, Min KS, Hong CU. Evaluation of the radiopacity and cytotoxicity of resinous root canal sealers. J Korean Acad Conserv Dent 2007;32:419-425.Article
- 19. Kfir A, Rosenberg E, Tamse A, Tsesis I. Can epoxy resin-based endodontic sealers be softened within 1-2 min? An in vitro study with chloroform and xylene. Endod Pract Today 2012;6:189-194.
- 20. Hansen MG. Relative efficiency of solvents used in endodontics. J Endod 1998;24:38-40.ArticlePubMed
- 21. Erdemir A, Adanir N, Belli S. In vitro evaluation of the dissolving effect of solvents on root canal sealers. J Oral Sci 2003;45:123-126.ArticlePubMed
- 22. Vajrabhaya LO, Suwannawong SK, Kamolroongwarakul R, Pewklieng L. Cytotoxicity evaluation of gutta-percha solvents: Chloroform and GP-Solvent (limonene). Oral Surg Oral Med Oral Pathol Oral Radiol Endod 2004;98:756-759.ArticlePubMed
- 23. Martos J, Bassotto AP, González-Rodríguez MP, Ferrer-Luque CM. Dissolving efficacy of eucalyptus and orange oil, xylol and chloroform solvents on different root canal sealers. Int Endod J 2011;44:1024-1028.ArticlePubMed
- 24. Mushtaq M, Masoodi A, Farooq R, Yaqoob Khan F. The dissolving ability of different organic solvents on three different root canal sealers: in vitro study. Iran Endod J 2012;7:198-202.PubMedPMC
- 25. Vranas RN, Hartwell GR, Moon PC. The effect of endodontic solutions on resorcinol-formalin paste. J Endod 2003;29:69-72.ArticlePubMed
- 26. Gambrel MG, Hartwell GR, Moon PC, Cardon JW. The effect of endodontic solution on resorcinol-formalin paste in teeth. J Endod 2005;31:25-29.PubMed
- 27. Shokouhinejad N, Sabeti MA, Hasheminasab M, Shafiei F, Shamshri AR. Push-out bond strength of resilon/epiphany self-etch to intraradicular dentin after retreatment: a preliminary study. J Endod 2010;36:493-496.ArticlePubMed
- 28. Jacob S, Lakshmi Narayann L. Effect of Chloroform, Xylene and halothane on enamel and dentin micro-hardness of human teeth. Endodontol 2000;12:3-6.Article
- 29. U.S. Department of Labor: Occupational safety and health guideline for Xylene. update 2013 May 22]. Available from: http://www.osha.gov.
- 30. Chutich MJ, Kaminski EJ, Miller DA, Lautenschlager EP. Risk assessment of the toxicity of solvents of gutta-percha used in endodontic retreatment. J Endod 1998;24:213-216.ArticlePubMed
- 31. Spécialités Septodont: Endosolv. Product for removing canal fillings. update 2013 May 22]. Available from: http://www.septodont.ca/sites/default/files/Endosol%20E%20R.pdf.
REFERENCES
Figure 2
Mean Vicker's microhardness (HV) of three sealers exposed to Endosolv-R at three time points.
Table 2
Mean and standard deviation of Vicker's microhardness (HV; n = 10) of root canal sealers after exposure to Xylene
For each sealer type (column), superscripted small letters indicate statistically significant difference in mean microhardness upon exposure to Xylene (p < 0.05) with time. Superscripted capital letters indicate statistically significant difference in mean hardness across groups. Values in the brackets indicate percentage reduction in the microhardness with reference to initial hardness.
Table 3
Mean and standard deviation of Vicker's microhardness (HV; n = 10) of root canal sealers after exposure to Endosolv-R
For each sealer type (column), superscripted small letters indicate statistically significant difference in mean microhardness upon exposure to Endosolv-R (p < 0.05) with time. Superscripted capital letters indicate statistically significant difference in mean hardness across groups. Values in the brackets indicate percentage reduction in the microhardness with reference to initial hardness.
Tables & Figures
REFERENCES
Citations
Citations to this article as recorded by
- Comparative evaluation of retreatability of three different bioceramic sealers using xylene in root canal retreatment – An in vitro cone-beam computed tomography analysis
Neha Dhananjay Singh, Rashmi Nair, Neetu Maurya, Riya Jain, Arpit R. Kumbhare, Labdhi Maloo
Journal of Conservative Dentistry and Endodontics.2025; 28(7): 687. CrossRef - Influência do protocolo de remoção de resíduos de cimentos à base de resina epóxi sobre a interface de adesão com o adesivo universal, utilizado na estratégia condiciona-e-lava
Paulo Firmino Da Costa Neto, Mariana Bena Gelio, Elisângela Maria Pereira De Souza, Jardel Camilo do Carmo Monteiro, Adirson Jorge Júnior, Thais Piragine Leandrin, José Roberto Cury Saad, Milton Carlos Kuga
Cuadernos de Educación y Desarrollo.2023; 15(5): 4802. CrossRef - Comparative evaluation of the effectiveness of various solvents on dissolving efficacy of gutta percha- An in vitro- study
Syed Manzoor Ul Haq Bukhari, Sheeeban Rashid, Rahil Bhat
International Dental Journal of Student's Research.2023; 11(3): 121. CrossRef - Bonding effects of cleaning protocols and time-point of acid etching on dentin impregnated with endodontic sealer
Tatiane Miranda Manzoli, Joissi Ferrari Zaniboni, João Felipe Besegato, Flávia Angélica Guiotti, Andréa Abi Rached Dantas, Milton Carlos Kuga
Restorative Dentistry & Endodontics.2022;[Epub] CrossRef - Dissolving efficacy of xylene on epoxy resin-based and bioceramic-based root canal sealers
Cindy Willie
Scientific Dental Journal.2022; 6(1): 32. CrossRef - A comparative evaluation of removal of gutta percha using two retreatment file system: An in vitro study
Shruthi Mary Sunil, Balakrishnan Rajkumar, Vishesh Gupta, Akanksha Bhatt, Pragyan Paliwal
IP Indian Journal of Conservative and Endodontics.2020; 5(2): 53. CrossRef - Use of Resin Solvent as a Facilitator for Removal of Resin Composite Restoratives by Influencing their Mechanical Properties: Is this Possible?
Inas A Elghandour
Journal of Operative Dentistry & Endodontics.2019; 4(1): 1. CrossRef - Effect of the calcium silicate‐based sealer removal protocols and time‐point of acid etching on the dentin adhesive interface
Jéssika Mayhara Pereira Morais, Keli Regina Victorino, Wilfredo Gustavo Escalante‐Otárola, Keren Cristina Fagundes Jordão‐Basso, Regina Guenka Palma‐Dibb, Milton Carlos Kuga
Microscopy Research and Technique.2018; 81(8): 914. CrossRef - Persistence of Residues after Endodontic Retreatment related to the Obturation Technique and to the Solvent
Matheus Coelho Bandéca, Milton C Kuga, Keren CF Jordão-Basso, Mateus R Tonetto, Arturo J Aranda-Garcia, Fernando A Vázquez-Garcia, Suellen NL Lima, Jardel C do Carmo Monteiro
World Journal of Dentistry.2017; 8(1): 41. CrossRef - Retreatability of different endodontic sealers using chemical solvents
M.F. Obeid, M.M. Nagy
Tanta Dental Journal.2015; 12(4): 286. CrossRef - Do the Sealer Solvents Used Affect Apically Extruded Debris in Retreatment?
Burhan Can Çanakçi, Ozgur Er, Asiye Dincer
Journal of Endodontics.2015; 41(9): 1507. CrossRef
ePub Link
Cite
XML DownloadEvaluation of softening ability of Xylene & Endosolv-R on three different epoxy resin based sealers within 1 to 2 minutes - an in vitro study

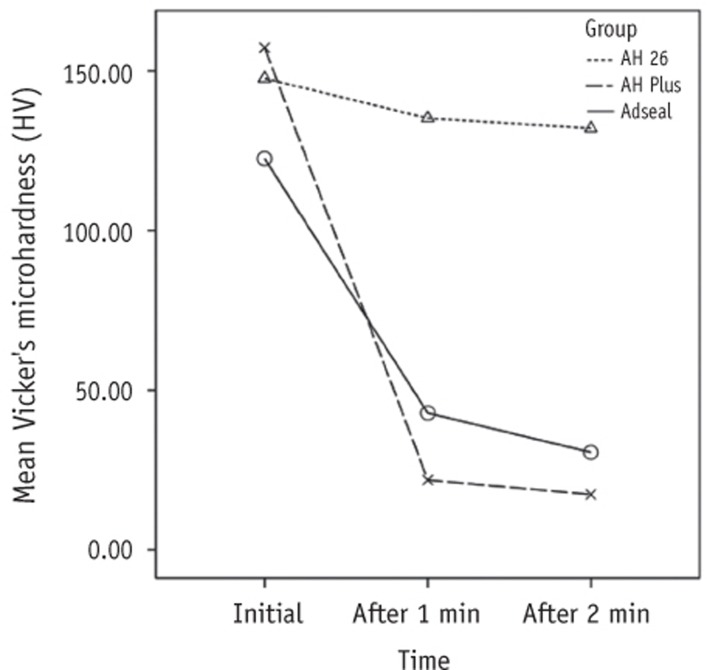

Figure 1 Mean Vicker's microhardness (HV) of three sealers exposed to Xylene at three time points.

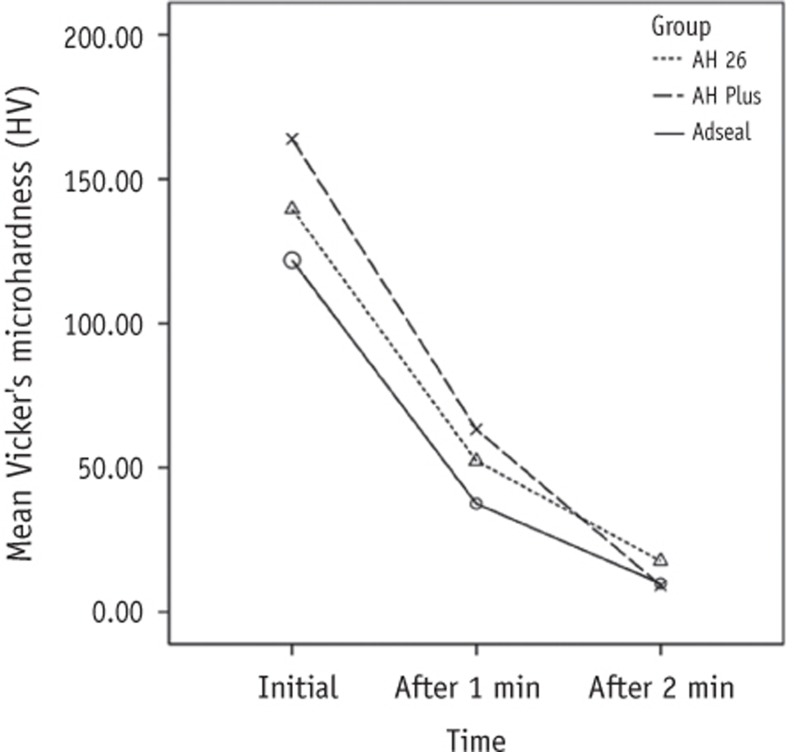

Figure 2 Mean Vicker's microhardness (HV) of three sealers exposed to Endosolv-R at three time points.
Figure 1
Figure 2
Evaluation of softening ability of Xylene & Endosolv-R on three different epoxy resin based sealers within 1 to 2 minutes - an in vitro study
Composition of three resin-based root canal sealers
Mean and standard deviation of Vicker's microhardness (HV; n = 10) of root canal sealers after exposure to Xylene
For each sealer type (column), superscripted small letters indicate statistically significant difference in mean microhardness upon exposure to Xylene (p < 0.05) with time. Superscripted capital letters indicate statistically significant difference in mean hardness across groups. Values in the brackets indicate percentage reduction in the microhardness with reference to initial hardness.
Mean and standard deviation of Vicker's microhardness (HV; n = 10) of root canal sealers after exposure to Endosolv-R
For each sealer type (column), superscripted small letters indicate statistically significant difference in mean microhardness upon exposure to Endosolv-R (p < 0.05) with time. Superscripted capital letters indicate statistically significant difference in mean hardness across groups. Values in the brackets indicate percentage reduction in the microhardness with reference to initial hardness.

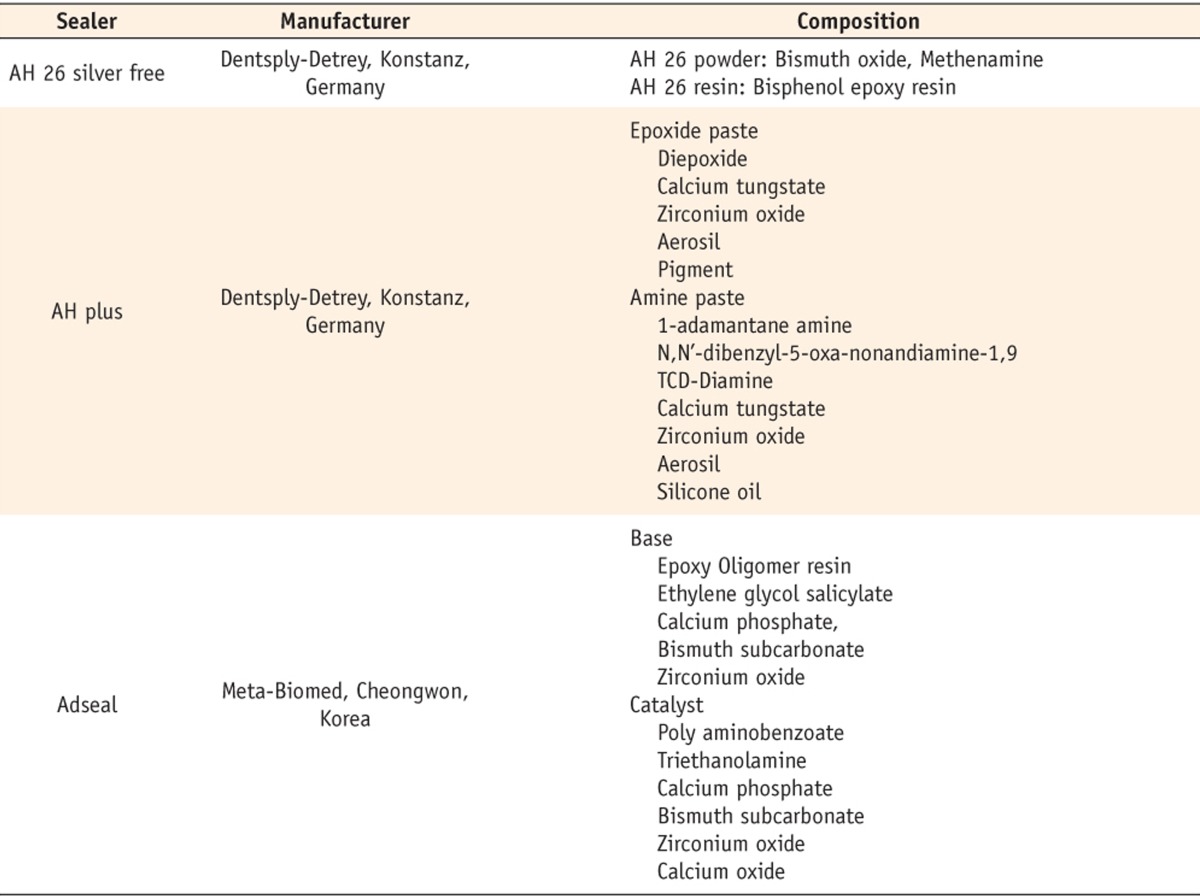

Table 1 Composition of three resin-based root canal sealers

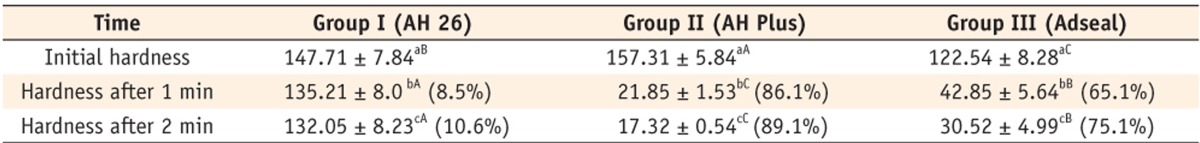

Table 2 Mean and standard deviation of Vicker's microhardness (HV; n = 10) of root canal sealers after exposure to Xylene
For each sealer type (column), superscripted small letters indicate statistically significant difference in mean microhardness upon exposure to Xylene (

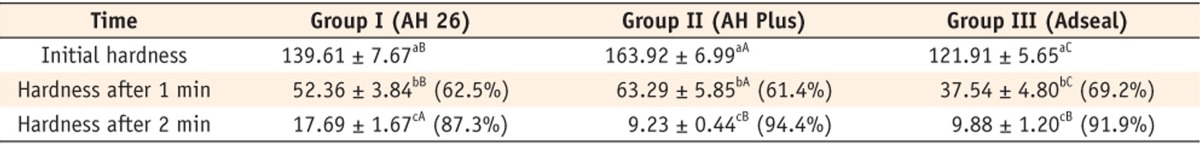

Table 3 Mean and standard deviation of Vicker's microhardness (HV; n = 10) of root canal sealers after exposure to Endosolv-R
For each sealer type (column), superscripted small letters indicate statistically significant difference in mean microhardness upon exposure to Endosolv-R (
