A study of contraction shrinkage of composite resins and ormocers with various curing times

Yeon-Chung Chung; Kyung-San Min; Hae-Hyoung Lee; Kyung-Mo Cho; Yong-Bum Cho

doi:10.5395/JKACD.2003.28.4.326

Articles

Page Path: HOME > Restor Dent Endod > Volume 28(4); 2003 > Article

Original Article A study of contraction shrinkage of composite resins and ormocers with various curing times: Yeon-Chung Chung, Kyung-San Min, Hae-Hyoung Lee, Kyung-Mo Cho, Yong-Bum Cho; 2003;28(4):-333.
DOI: https://doi.org/10.5395/JKACD.2003.28.4.326
Published online: July 31, 2003

Department of Conservative Dentistry, School of Dentistry, Dankook University, Korea.

Corresponding author (raindrop@dku.edu)

182 Views
1 Download
3 Crossref

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

Ormocer has organic-inorganic compound polymers. One of advantages of ormocer is reduced polymerization shrinkage. The purpose of this study was to compare the amount of contraction shrinkage of composite resins and ormocers. Additionally, the time of each material when there is no further change of contraction shrinkage was analysed.

Four brands of composite resins (P-60, Surefil, Z-250 and Denfil) and two brands of ormocers (Definite and Admira) were used. 20 seconds, 40 seconds and 60 seconds of curing times were given. Contraction shrinkage of them were measured using a linometer for 80 seconds.

The effect of material and curing time to contraction shrinkage at the time of 80 seconds was analysed by two-way ANOVA. The effect of time to contraction shrinkage was analysed by one-way ANOVA, and the time when there was no further change of the contraction shrinkage was analysed. The results are as follows :
1. P-60, Definite, Z-250 and Denfil had no further change of contraction shrinkage from the time of 20 seconds, and Surefil and Admira had no further change of contraction shrinkage from the time of 10 seconds.
2. Statistical analysis revealed volumetric shrinkage varied among material (p<0.05). No significant difference of contraction shrinkage among different curing times was found, and there was no effect of interaction between materials and curing times to contraction shrinkage.
3. Definite and Admira showed the statistically same contraction shrinkage with those of Z-250 and P-60, which is higher than that of Surefil and lower than that of Denfil (p<0.05).
Keywords: Ormocer; Linometer; Definite; Admira

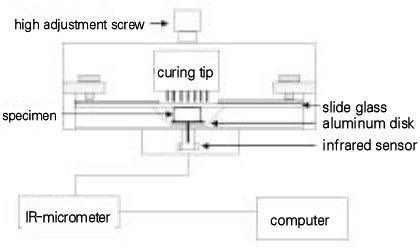

Fig. 1

Diagram of Linometer

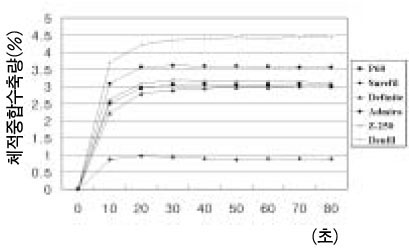

Fig. 2

Volumetric Contraction Shrinkage at Curing Time of 20 Seconds

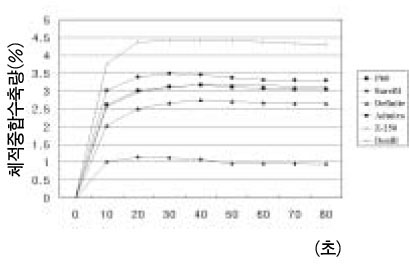

Fig. 3

Volumetric Contraction Shrinkage at Curing Time of 40 Seconds

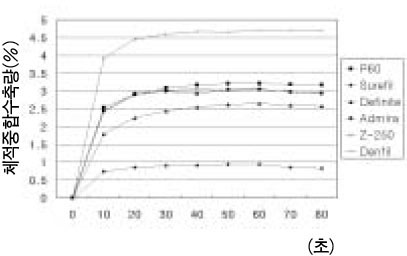

Fig. 4

Volumetric Conrtaction Shrinkage at Curing Time of 60 Seconds

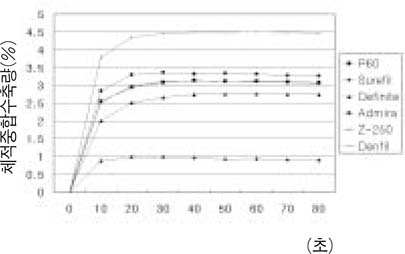

Fig. 5

Volumetric Contraction Shrinkage of Various materials Regardless of Curing Times

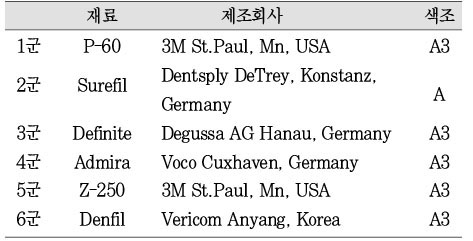

Table 1

Experiment Materials

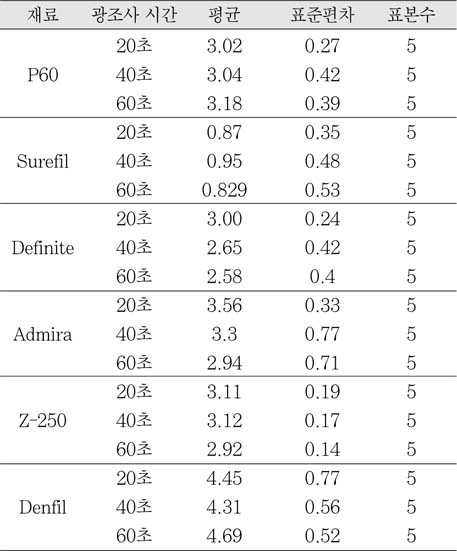

Table 2

Volumetric Contraction shrinkage after 80 Seconds with Various Curing Times

(%)

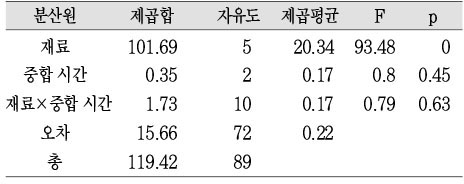

Table 3

Variance Analysis of Volumetric Contraction Shrinkage after 80 Seconds with Various Curing Times

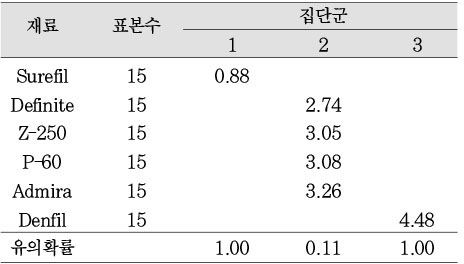

Table 4

95% Scheffe Test of Volumetric Contraction Shrinkage of Various Materials (p<.05)

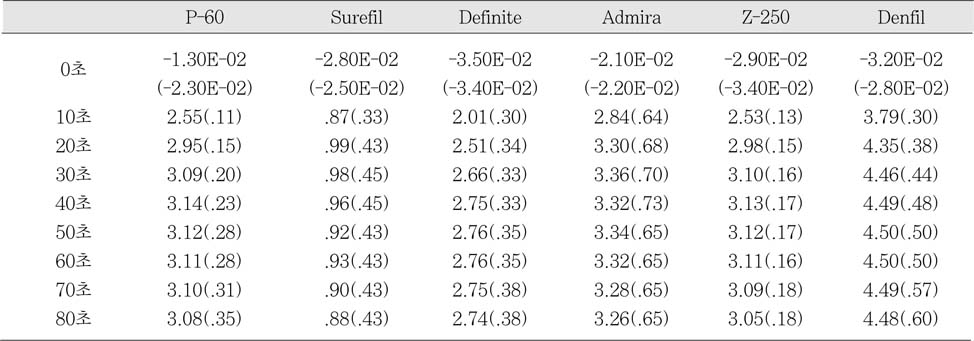

Table 5

Volumetric Contraction Shirinkage of Various Materials with Time (Standard Deviation) (%)

REFERENCES

1. Sakaguchi RL, Peters MCRB, Nelson SR, Douglas W, Poort HW. Effects of polmerization contraction in composite restorations. J Dent. 1992;20: 178-182.PubMed
2. Attin T, Buchalla W, Kielbassa AM, Helwig E. Curing shrinkage and volumetric changes of resin-modified glass ionomer restorative materials. Dent Mater. 1995;11: 359-362.Article PubMed
3. Tobolsky AV, Leonard R, Roexer GP. Use of polymerizable ring compounds in constant volume polymerizations. J Polym Sci. 1948;3: 604-611.Article
4. Feilzer AJ, De Gee AJ, Davidson CL. Curing contraction of composites and glassionomer cements. J Prosthet Dent. 1988;59: 297-300.Article PubMed
5. Carvalho RM, Pereira JC, Yoshiyama M, Pashley DH. A review of polymerization contraction The influence of stress development versus stress relief. Oper Dent. 1996;21: 17-24.PubMed
6. Suliman AA, Boyer DB, Lakes RS. Cusp movement in premolars resulting from composite polymerization shrinkage. Dent Mater. 1993;9: 6-10.Article PubMed
7. Hickma J, Jacobsen PH. Finite element analysis of dental polymeric restorations. Clin Mater. 1991;7: 39-46.Article
8. Degussa dental research technical manual of Definite. 1998 09;Unpublished paper.
9. Iga M, Takeshige F, Ui T, Torii M, Tsuchitani Y. The relationship between polymerization shrinkage and the inorganic filler content of light-cured coomposites. Dent Mater J. 1991;10: 38-45.
10. Bandyopadhyay S. A study of the volumetric setting shrinkage of some dental materials. J Biomed Mater Res. 1982;16: 135-144.Article PubMed
11. Hay JN, Shortall AC. Polymerization contraction and reaction kinetics of three chemically activated restorative resins. J Dent. 1988;16: 172-176.Article PubMed
12. Patel MP, Braden M, Davy KWM. Polymerization shrinkage of methacrylate esters. Biomaterials. 1987;8: 53-79.Article PubMed
13. Watts DC, Cash AJ. Determination of polymerization shrinkage kinetics in visible-light-cured materials: methods development. Dent Mater. 1991 10;7: 281-287.Article PubMed
14. de Gee AF, Feilzer AJ, Davidson CL. True linear polymerization shrinkage of unfilled resins and composites determined with a linometer. Dent Mater. 1993;9: 11-14.Article PubMed
15. Smith DL, Schoonover IG. Direct filling resins dimensional changes resulting from polymerization shrinkage and water sorption. J Am Dent Assoc. 1953;46: 540-544.PubMed
16. Feilzer AJ, de Gee AJ, Davidson CL. Increased wall to wall curing contraction in thin bonded resin layers. J Dent Res. 1989;68: 48-50.Article PubMed PDF
17. Park SH, Krejci I, Lutz F. Microhardness of resin composites polymerized by plasma arc or conventional visible light curing. Oper Dent. 2002;27: 30-37.PubMed
18. Miki IGA, Fimio T, Takashi U, Mitsuo Y, Yasushiko T. The relationship between polymerization shrinkage measured by a modified dilatometer and the inorganic filler content of light-cured composites. Dent Mater J. 1991;10(1):38-45.Article
19. Dauvillier BS, Aarnts M, Feilzer AJ. Developments in shrinkage control of adhesive restoratives. J Esthet Dent. 2000;12: 291-299.Article PubMed
20. Venhoven BA, de Gee AJ, Davidson CL. Polymerization contraction and conversion of light-curing Bis-GMA based methacrylate resins. Biomaterials. 1993;14: 871-875.Article PubMed
21. Miyazaki M, Hinoura K, Onose H, Moore BK. Effect of filler content of light-cured composites on bond strength to bovine dentine. J Dent. 1991;19: 301-303.Article PubMed
22. Asmussen E. Composite restorative resins. Composition versus wall to wall polymerization contraction. Acta Odontol Scand. 1975;33: 337-344.Article
23. Perry R, Kugel G, Leinfelder K. One year clinical evaluation of Surefil packable composite. Compend Contin Educ Dent. 1999 06;20(6):544-550. 552-553.PubMed
24. Chen HY, Manhart J, Hickel R, Kunzelmann KH. Polymerization contraction stress in light-cured packable composite resins. Dent Mater. 2001;17: 253-259.Article PubMed
25. Freedman G. Condensable composites: the new paradigm in amalgam alternatives. Dent Today. 1998;17(10):72-74.
26. Davidson CL, de Gee AJ. Relaxation of polymerization contraction stresses by flow in dental composites. J Dent Res. 1984;63: 146-148.Article PubMed PDF
27. Koran P, Kurschner R. Effect of sequential versus continuous irradiation of a light-cured resin composite on shrinkage, viscosity, adhesion and degree of polymerization. Am J Dent. 1998;11: 17-22.PubMed
28. Dennison J, Yaman P, Seir R, Hamilton J. Effect of variable light intensity on composite shrinkage. J Prosthet Dent. 2000;84: 499-505.Article PubMed
29. Davidson CL, Feilzer AJ. Polymerization shrinkage and polymerization shrinkage stress in polymer-base restoratives. J Dent. 1997;25: 435-440.PubMed
