- Research Article Influence of a glide path on the dentinal crack formation of ProTaper Next system
- Sevinç Aktemur Türker1, Emel Uzunoğlu2
-
Restorative Dentistry & Endodontics 2015;40(4):286-289.
DOI: https://doi.org/10.5395/rde.2015.40.4.286
Published online: September 2, 2015
1Department of Endodontics, Faculty of Dentistry, Bülent Ecevit University, Zonguldak, Turkey.
2Department of Endodontics, Faculty of Dentistry, Hacettepe University, Ankara, Turkey.
- Correspondence to Sevinç Aktemur Türker, DDS, PhD. Assistant Professor, Department of Endodontics, Faculty of Dentistry, Bülent Ecevit University, Kozlu 67600, Zonguldak, Turkey. TEL, +03722613639; FAX, +03722613400; sevincaktemur@hotmail.com
• Received: May 11, 2015 • Accepted: July 24, 2015
©Copyrights 2015. The Korean Academy of Conservative Dentistry.
This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.
- 16 Views
- 0 Download
Abstract
-
Objectives The aim was to evaluate dentinal crack formation after root canal preparation with ProTaper Next system (PTN) with and without a glide path.
-
Materials and Methods Forty-five mesial roots of mandibular first molars were selected. Fifteen teeth were left unprepared and served as controls. The experimental groups consist of mesiobuccal and mesiolingual root canals of remaining 30 teeth, which were divided into 2 groups (n = 15): Group PG/PTN, glide path was created with ProGlider (PG) and then canals were shaped with PTN system; Group PTN, glide path was not prepared and canals were shaped with PTN system only. All roots were sectioned perpendicular to the long axis at 1, 2, 3, 4, 6, and 8 mm from the apex, and the sections were observed under a stereomicroscope. The presence/absence of cracks was recorded. Data were analyzed with chi-square tests with Yates correction.
-
Results There were no significant differences in crack formation between the PTN with and without glide path preparation. The incidence of cracks observed in PG/PTN and PTN groups was 17.8% and 28.9%, respectively.
-
Conclusions The creation of a glide path with ProGlider before ProTaper Next rotary system did not influence dentinal crack formation in root canals.
Introduction
Creating a manual or mechanical glide path was shown to be the first step for safer use of nickel titanium (Ni-Ti) rotary instrumentation because this procedure prevents fracture, shaping aberrations, and torsion of instruments.1,2 Additionally, creating a glide path is recommended to reduce the risk of taper lock and frictional forces to the canal walls especially in curved canals.3,4
Several path-finding rotary systems are available for use in creating a glide path. The new ProGlider (PG) Ni-Ti rotary instrument for mechanical pre-flaring was recently introduced by Dentsply Maillefer. It is manufactured from M-Wire Ni-Ti alloy to enhance flexibility and cyclic fatigue resistance as claimed by the manufacturer. The system consists of a single instrument, with variable progressive taper. The PG instrument is available with 21, 25, and 31 mm length and tip size 16 with a taper of 0.02 at the tip of the file.
Numerous studies have investigated the effects of different path-finding systems on root canal anatomy preservation, remaining dentin thickness, and separation incidence of instruments.3,5,6,7,8 It was reported that glide path preparation reduced root canal modifications, canal aberrations, excessive dentin removal, and separation incidence.3,5,7,8 However, in some previous studies it was found that creation of a glide path did not influence the apical canal transportation in curved root canals.6,7
Furthermore, several studies have investigated the dentinal damage associated with different Ni-Ti rotary instruments.9,10,11,12 Thus far, there is no research dealing with the effect of glide path on creating dentinal damage during root canal preparation with rotary Ni-Ti instruments. Therefore, the aim of this study was to investigate the dentinal crack formation after using ProTaper Next (PTN) system with and without the newly introduced path-finding system (PG).
Materials and Methods
Mandibular first molars with similar lengths and curvatures of 25 - 35° were selected from the collection of teeth that had been extracted for reasons unrelated to this study and kept in distilled water until use. Canal curvature angles of the teeth were measured according to the method described by Schäfer et al.13 All the external root surfaces were inspected with transmitted light and a stereomicroscope to exclude those with any pre-existing craze lines or cracks. According to these criteria, 45 mandibular first molar teeth were selected. The distal roots with the respective part of the crown were sectioned at the furcation level by using a low-speed saw (Isomet, Buehler Ltd, Lake Bluff, IL, USA). For each sample, a size 10 K-type file was progressed through the root canal until it was visible at the apex, and the working length of the canal was determined to be 1 mm short from this point. During root canal preparation, a reference point was determined and care was taken to provide the same position of rubber stops to ensure stable working length on each sample. A silicon impression material was used to coat the external root surface to simulate the periodontal ligament space. All the roots then were embedded in autopolymerizing acrylic blocks. Fifteen teeth were left unprepared as the control group and remaining 30 teeth were assigned into two experimental groups.
Group PG/PTN, a glide path was prepared with a size 16 ProGlider instrument. Then root canals were instrumented with ProTaper Next files (Dentsply Maillefer, Ballaigues, Switzerland) in the sequence of X1 and X2 at a rotational speed of 300 rpm and 200 g/cm torque according to the manufacturer's instructions. The instruments were used up to the working length.
Group PTN, glide path was not prepared. The root canals were instrumented with ProTaper Next files up to size 25 (X2) using the instrument order specified by the manufacturer as described in PG/PTN group.
The rotary file systems were used with an electrical motor (X-Smart, Dentsply Maillefer) and a 16:1 reduction handpiece. Each instrument was used in 3 canals. The root canals were irrigated with 2 mL of 1% NaOCl solution after each instrument change. After preparation, the specimens were rinsed with 5 mL of distilled water.
The roots were horizontally sectioned at 1, 2, 3, 4, 6, and 8 mm from the apex using a low-speed saw (Isomet, Buehler Ltd) under water-cooling. To avoid any artifacts by dehydration, the teeth were kept moist in distilled water during all the experimental procedures. All slices were observed under a stereomicroscope (Olympus SZ-CTV, Olympus, Tokyo, Japan) at ×20 magnification and pictures were taken. All root canal preparations were performed by one operator and the assessment of each cross section was performed by another examiner who was blinded in respect to all experimental groups. In each group, a total of 90 slices were examined for cracks. To define crack formation, two categories were made as 'no crack' and 'crack'. 'No crack' was defined as root dentine without cracks either at internal or external surface of the root. 'Crack' was defined as all lines observed on the slice that either extended from the root canal lumen to the dentin or from the outer root surface into the dentin (Figure 1).14
The results were expressed as the number and percentage of cracked roots in each group. The Chi-square test with Yates correction was used to determine for difference between groups. P value of less than 0.05 was considered statistically significant for all tests. Statistical analyses were performed using SPSS 19.0 software (SPSS, Inc., Chicago, IL, USA).
Results
The numbers of roots with cracks for all groups are shown in Table 1. No cracks were observed in the control group. When considering the crack formation in total sections, crack formation was found to be 17.8% in PG/PTN group, while 28.9% was observed in PTN group. However, there were no significant differences between the two experimental groups (p = 0.134). Regarding the different section levels (1, 2, 3, 4, 6, and 8 mm), no significant difference was found between the experimental groups at any level.
Discussion
Creating a glide path provides several advantages such as preserving original canal anatomy, less canal aberrations, less postoperative pain, less separation rates of Ni-Ti rotary instruments and avoiding excessive instrument binding in the canal.1,2,3,4,15,16,17 The possibility of dentinal defects may increase due to the excessive instrument binding and the maximum contact between the file and dentin. Thus, the present study aimed to evaluate the crack formation of the PTN system both with and without a glide path by using the PG system.
In the present study, a newly introduced pathfinding system ProGlider was used to create glide path. It has a size 16 with a taper of 0.02 at the tip of the file. It consists of one file with a variable progressive taper. It is manufactured by using M-Wire Ni-Ti alloy to enhance its flexibility and its cyclic fatigue resistance of the files. It is recommended by the manufacturer to use PG for creating a glide path before instrumentation with the PTN system. The methodology used was based on previous researches.14,18,19 The biological width was simulated and the crowns corresponding to mesial roots were kept intact to simulate clinical conditions where the interference of cervical dentin could induce unwanted tension or resistance.5
This study revealed that dentinal cracks occurred independent of creating the glide path. The incidence of cracks was observed in 17.8% and 28.9% of root in PG/PTN and PTN groups, respectively. Regarding the crack formation, there was no significant difference between glide path versus no glide path groups. This might be attributed to the cross-sectional design and innovative M-Wire Ni-Ti technology for PTN system. ProTaper Next files exhibit a rectangular cross-section design for superior strength and an exceptional asymmetric rotary motion that improves the file's canal shaping effectiveness according to the manufacturer. This manufacturing process provides greater flexibility and greater resistance to cyclic fatigue for the system.5 Moreover, PTN system has off-centered rectangular design that generates a swaggering motion, which decreases the screw effect, dangerous taper lock, and torque on any given file by minimizing the contact between the file and the dentin.20 It can be speculated that as a result of the reduction in the contact area between the file and canal system, lower defects may occur because of lower frictional forces to canal walls.
In the literature, there were limited studies available regarding the crack formation of PTN system.20,21,22 Capar et al. reported cracks in 28%, Karataş et al. reported cracks in 33.3%, whereas Çiçek et al. reported in 64.44% of roots instrumented with the PTN system.20,21,22 These contradictory results may be attributed to a number of reasons, and the most likely one might be related to the type of teeth included. Unlike the present study, single rooted teeth were selected in those studies.20,21 Moreover, Capar et al. performed a glide path via a size 15 K type file before instrumentation with ProTaper Next files in mandibular premolar teeth, whereas Karataş et al. and Çiçek et al. did not mention any glide path preparation before instrumentation in mandibular central incisors and mandibular molar, respectively.20,21,22
Conclusions
Within the limitations of this in vitro study, the creation of the glide path before ProTaper Next rotary system did not influence dentinal crack formation in root canals. Further studies should be conducted to evaluate the effect of glide path created with different type of path-finding systems on crack formation.
-
Conflict of Interest: No potential conflict of interest relevant to this article was reported.
ARTICLE INFORMATION
- 1. Berutti E, Cantatore G, Castellucci A, Chiandussi G, Pera F, Migliaretti G, Pasqualini D. Use of nickel-titanium rotary PathFile to create the glide path: comparison with manual preflaring in simulated root canals. J Endod 2009;35:408-412. ArticlePubMed
- 2. Patiño PV, Biedma BM, Liébana CR, Cantatore G, Bahillo JG. The influence of a manual glide path on the separation rate of NiTi rotary instruments. J Endod 2005;31:114-116. ArticlePubMed
- 3. Berutti E, Paolino DS, Chiandussi G, Alovisi M, Cantatore G, Castellucci A, Pasqualini D. Root canal anatomy preservation of WaveOne reciprocating files with or without glide path. J Endod 2012;38:101-104. ArticlePubMed
- 4. Berutti E, Negro AR, Lendini M, Pasqualini D. Influence of manual preflaring and torque on the failure rate of ProTaper rotary instruments. J Endod 2004;30:228-230. PubMed
- 5. Elnaghy AM, Elsaka SE. Evaluation of root canal transportation, centering ratio, and remaining dentin thickness associated with ProTaper Next instruments with and without glide path. J Endod 2014;40:2053-2056. ArticlePubMed
- 6. Uroz-Torres D, González-Rodriguez MP, Ferrer-Luque CM. Effectiveness of a manual glide path on the preparation of curved root canals by using Mtwo rotary instruments. J Endod 2009;35:699-702. ArticlePubMed
- 7. Zanette F, Grazziotin-Soares R, Flores ME, Camargo Fontanella VR, Gavini G, Barletta FB. Apical root canal transportation and remaining dentin thickness associated with ProTaper Universal with and without PathFile. J Endod 2014;40:688-693. ArticlePubMed
- 8. Ehrhardt IC, Zuolo ML, Cunha RS, De Martin AS, Kherlakian D, Carvalho MC, Bueno CE. Assessment of the separation incidence of mtwo files used with preflaring: prospective clinical study. J Endod 2012;38:1078-1081. PubMed
- 9. Bier CA, Shemesh H, Tanomaru-Filho M, Wesselink PR, Wu MK. The ability of different nickel-titanium rotary instruments to induce dentinal damage during canal preparation. J Endod 2009;35:236-238. ArticlePubMed
- 10. Yoldas O, Yilmaz S, Atakan G, Kuden C, Kasan Z. Dentinal microcrack formation during root canal preparations by different NiTi rotary instruments and the self-adjusting file. J Endod 2012;38:232-235. ArticlePubMed
- 11. Hin ES, Wu MK, Wesselink PR, Shemesh H. Effects of self-adjusting file, Mtwo, and ProTaper on the root canal wall. J Endod 2013;39:262-264. ArticlePubMed
- 12. Liu R, Kaiwar A, Shemesh H, Wesselink PR, Hou B, Wu MK. Incidence of apical root cracks and apical dentinal detachments after canal preparation with hand and rotary files at different instrumentation lengths. J Endod 2013;39:129-132. PubMed
- 13. Schäfer E, Diez C, Hoppe W, Tepel J. Roentgenographic investigation of frequency and degree of canal curvatures in human permanent teeth. J Endod 2002;28:211-216. ArticlePubMed
- 14. Shemesh H, Bier CA, Wu MK, Tanomaru-Filho M, Wesselink PR. The effects of canal preparation and filling on the incidence of dentinal defects. Int Endod J 2009;42:208-213. ArticlePubMed
- 15. Pasqualini D, Bianchi CC, Paolino DS, Mancini L, Cemenasco A, Cantatore G, Castellucci A, Berutti E. Computed micro-tomographic evaluation of glide path with nickel-titanium rotary PathFile in maxillary first molars curved canals. J Endod 2012;38:389-393. ArticlePubMed
- 16. Pasqualini D, Mollo L, Scotti N, Cantatore G, Castellucci A, Migliaretti G, Berutti E. Postoperative pain after manual and mechanical glide path: a randomized clinical trial. J Endod 2012;38:32-36. PubMed
- 17. Ha JH, Park SS. Influence of glide path on the screwin effect and torque of nickel-titanium rotary files in simulated resin root canals. Restor Dent Endod 2012;37:215-219. ArticlePubMedPMC
- 18. Kansal R, Rajput A, Talwar S, Roongta R, Verma M. Assessment of dentinal damage during canal preparation using reciprocating and rotary files. J Endod 2014;40:1443-1446. ArticlePubMed
- 19. Arslan H, Karataş E, Capar ID, Ozsu D, Doğanay E. Effect of ProTaper Universal, Endoflare, Revo-S, HyFlex coronal flaring instruments, and Gates Glidden drills on crack formation. J Endod 2014;40:1681-1683. ArticlePubMed
- 20. Capar ID, Arslan H, Akcay M, Uysal B. Effects of ProTaper Universal, ProTaper Next, and HyFlex instruments on crack formation in dentin. J Endod 2014;40:1482-1484. PubMed
- 21. Karataş E, Gündüz HA, Kirici DÖ, Arslan H, Topçu MÇ, Yeter KY. Dentinal crack formation during root canal preparations by the twisted file adaptive, ProTaper Next, ProTaper Universal, and WaveOne Instruments. J Endod 2015;41:261-264. ArticlePubMed
- 22. Çiçek E, Koçak MM, Sağlam BC, Koçak S. Evaluation of microcrack formation in root canals after instrumentation with different NiTi rotary file systems: a scanning electron microscopy study. Scanning 2015;37:49-53. ArticlePubMed
REFERENCES
Figure 1

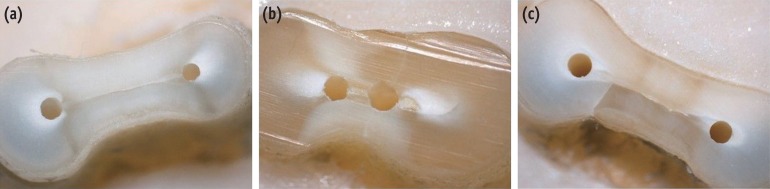

Representative stereomicroscopic images of the root cross-sections. (a) 'no crack'; (b) and (c) 'crack' formation.
Table 1

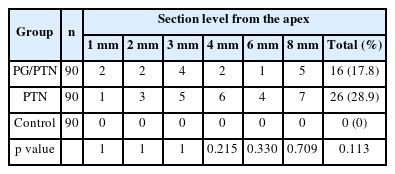

Number of specimens with cracks at different cross-section levels and their percentages within each group
Tables & Figures
REFERENCES
Citations
Citations to this article as recorded by
ePub Link
Cite
XML DownloadInfluence of a glide path on the dentinal crack formation of ProTaper Next system
Figure 1 Representative stereomicroscopic images of the root cross-sections. (a) 'no crack'; (b) and (c) 'crack' formation.
Figure 1
Influence of a glide path on the dentinal crack formation of ProTaper Next system
Number of specimens with cracks at different cross-section levels and their percentages within each group
| Group | n | Section level from the apex | ||||||
|---|---|---|---|---|---|---|---|---|
| 1 mm | 2 mm | 3 mm | 4 mm | 6 mm | 8 mm | Total (%) | ||
| PG/PTN | 90 | 2 | 2 | 4 | 2 | 1 | 5 | 16 (17.8) |
| PTN | 90 | 1 | 3 | 5 | 6 | 4 | 7 | 26 (28.9) |
| Control | 90 | 0 | 0 | 0 | 0 | 0 | 0 | 0 (0) |
| p value | 1 | 1 | 1 | 0.215 | 0.330 | 0.709 | 0.113 | |
Numbers in the parentheses are the percentages of the specimens with cracks out of 90 total samples in each group.
PG, ProGlider; PTN, ProTaper Next.
Table 1 Number of specimens with cracks at different cross-section levels and their percentages within each group
Numbers in the parentheses are the percentages of the specimens with cracks out of 90 total samples in each group. PG, ProGlider; PTN, ProTaper Next.
