Physical properties of novel composite using Portland cement for retro-filling material

Sang-Jin Lee; Ok-In Cho; Jiwan Yum; Jeong-Kil Park; Bock Hur; Hyeon-Cheol Kim

doi:10.5395/JKACD.2010.35.6.445

Articles

Page Path: HOME > Restor Dent Endod > Volume 35(6); 2010 > Article

Basic Research Physical properties of novel composite using Portland cement for retro-filling material: Sang-Jin Lee, DDS, MS, Ok-In Cho, DDS, MS, Jiwan Yum, DDS, MS, Jeong-Kil Park, DDS, PhD, Bock Hur, DDS, PhD, Hyeon-Cheol Kim, DDS, PhD; 2010;35(6):-452.
DOI: https://doi.org/10.5395/JKACD.2010.35.6.445
Published online: November 30, 2010

Department of Conservative Dentistry, Pusan National University School of Dentistry, Yangsan, Korea.

Correspondence to Hyeon-Cheol Kim, DDS, PhD. Associate Professor, Department of Conservative Dentistry, Pusan National University School of Dentistry, 3-3 Beomeo-ri, Mulgeum, Yangsan, Korea 626-810. TEL, +82-55-360-5222; FAX, +82-55-360-5214; golddent@pusan.ac.kr

• Received: June 4, 2010 • Revised: August 24, 2010 • Accepted: August 30, 2010

165 Views
1 Download
2 Crossref

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

Objectives
The aim of this study was to compare apical sealing ability and physical properties of MTA, MTA - AH-plus mixture (AMTA) and experimental Portland cement - Epoxy resin mixture (EPPC) for a development of a novel retro-filling material.
Materials and Methods
Forty-nine extracted roots were instrumented and filled with gutta-percha. Apical root was resected at 3 mm and the retro-filling cavity was prepared for 3 mm depth. Roots were randomly divided into 3 groups of 15 roots each. The retro-filling was done using MTA, AMTA, and EPPC as the groups divided. Four roots were used as control groups. After setting in humid condition for 24 hours, the roots were immersed in 1% methylene blue dye solution for 72 hours to test the apical leakage. After immersion, the roots were vertically sectioned and photos were taken to evaluate microleakage. Setting times were measured with Vicat apparatus and digital radiographs were taken to evaluate aluminum equivalent thickness using aluminum step wedge. The results of microleakage and setting time were compared between groups using one-way ANOVA and Scheffe's post-hoc comparison at the significance level of 95%.
Results
AMTA and EPPC showed less microleakage than MTA group (p < 0.05). AMTA showed the highest radio-opacity than other groups and the novel EPPC showed 5 mm aluminum thickness radio-opacity. EPPC showed the shortest initial and final setting times than other groups while the MTA showed the longest (p < 0.05).
Conclusions
Under the condition of this study, the novel composite using Portland cement-Epoxy resin mixture may useful for retro-filling with the properties of favorable leakage resistance, radio-opacity and short setting time.
Keywords: Epoxy resin; MTA; Portland cement; Radio-opacity; Retro-filling; Setting time

Figure 1

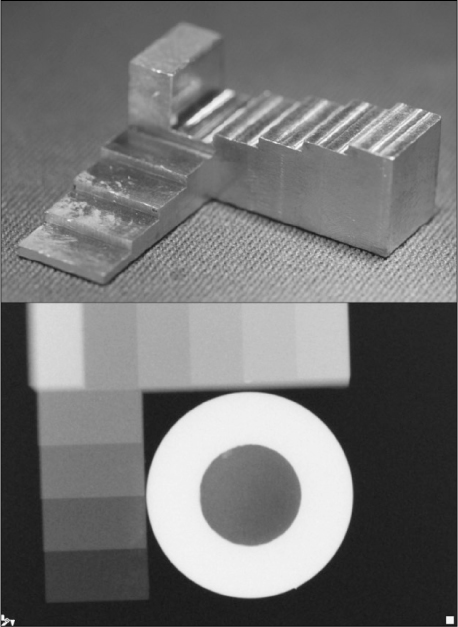

Aluminum step-wedge used in this study and representative digital radiograph image.

Figure 2

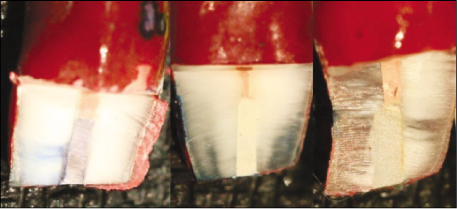

Representative samples from each group with dye leakage score. MTA specimen shows leakage with score 2 and AMTA and EPPC specimens show no leakage.

MTA, mineral trioxide aggregate; AMTA, AH-plus mixture; EPPC, epoxy resin mixture.

Figure 3

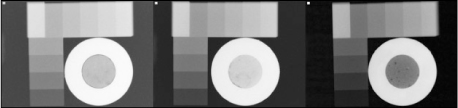

Representative samples of radiograph from each group with aluminum step wedge (Left; MTA with 6 mmAl, Mid; AMTA with 10 mmAl, and Right; EPPC with 5 mmAl).

MTA, mineral trioxide aggregate; AMTA, AH-plus mixture; EPPC, epoxy resin mixture.

Table 1

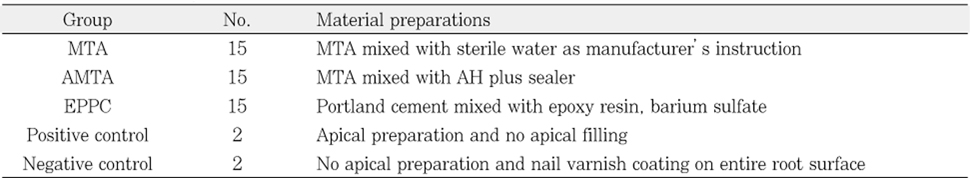

Experimental groups

MTA, mineral trioxide aggregate; AMTA, AH-plus mixture; EPPC, epoxy resin mixture.

Table 2

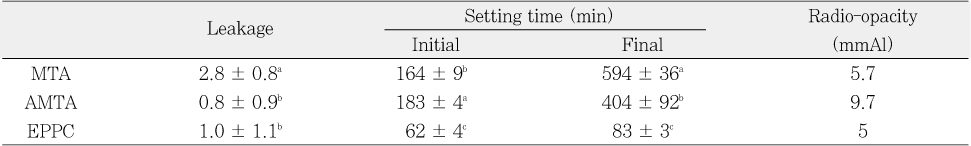

Leakage score, setting time (min) and aluminum equivalent radio-opacity (mmAl)

MTA, mineral trioxide aggregate; AMTA, AH-plus mixture; EPPC, epoxy resin mixture.

^a,b,c; Different superscripts means significant differences between groups in vertical row (p < 0.05).

REFERENCES

1. Torabinejad M, Watson TF, Pitt Ford TR. Sealing ability of a mineral trioxide aggregate when used as a root end filling material. J Endod. 1993;19: 591-595.Article PubMed
2. Camilleri J, Pitt Ford TR. Mineral trioxide aggregate: a review of the constituents and biological properties of the material. Int Endod J. 2006;39: 747-754.Article PubMed
3. Ford TR, Torabinejad M, Abedi HR, Bakland LK, Kariyawasam SP. Using mineral trioxide aggregate as a pulp-capping material. J Am Dent Assoc. 1996;127: 1491-1494.Article PubMed
4. Salako N, Joseph B, Ritwik P, Salonen J, John P, Junaid TA. Comparison of bioactive glass, mineral trioxide aggregate, ferric sulfate, and formocresol as pulpotomy agents in rat molar. Dent Traumatol. 2003;19: 314-320.Article PubMed
5. Bakland LK. Management of traumatically injured pulps in immature teeth using MTA. J Calif Dent Assoc. 2000;28: 855-858.Article PubMed
6. Witherspoon DE, Ham K. One-visit apexification: technique for inducing root-end barrier formation in apical closures. Pract Proced Aesthet Dent. 2001;13: 455-460.PubMed
7. Holden DT, Schwartz SA, Kirkpatrick TC, Schindler WG. Clinical outcomes of artificial root-end barriers with mineral trioxide aggregate in teeth with immature apices. J Endod. 2008;34: 812-817.Article PubMed
8. Banchs F, Trope M. Revascularization of immature permanent teeth with apical periodontitis: new treatment protocol? J Endod. 2004;30: 196-200.Article PubMed
9. Camilleri J. The physical properties of accelerated Portland cement for endodontic use. Int Endod J. 2008;41: 151-157.Article PubMed
10. Islam I, Chng HK, Yap AU. Comparison of the physical and mechanical properties of MTA and portland cement. J Endod. 2006;32: 193-197.Article PubMed
11. Chng HK, Islam I, Yap AU, Tong YW, Koh ET. Properties of a new root-end filling material. J Endod. 2005;31: 665-668.Article PubMed
12. Torabinejad M, Hong CU, McDonald F, Pitt Ford TR. Physical and chemical properties of a new root-filling material. J Endod. 1995;21: 349-353.PubMed
13. Sluyk SR, Moon PC, Hartwell GR. Evaluation of setting properties and retention characteristics of mineral trioxide aggregate when used as a furcation perforation repair material. J Endod. 1998;24: 768-771.Article PubMed
14. Wiltbank KB, Schwartz SA, Schindler WG. Effect of Selected Accelerants on the Physical Properties of Mineral Trioxide Aggregate and Portland Cement. J Endod. 2007;33: 1235-1238.Article PubMed
15. Ber BS, Hatton JF, Stewart GP. Chemical modification of proroot mta to improve handling characteristics and decrease setting time. J Endod. 2007;33: 1231-1234.PubMed
16. Asgary S, Shahabi S, Jafarzadeh T, Amini S, Kheirieh S. The properties of a new endodontic material. J Endod. 2008;34: 990-993.Article PubMed
17. American Society for Testing and Materials. Standard test method for time of setting of hydraulic cement by Vicat needle. ASTM C191-04. 2004;West Conshohocken, PA: American Society for Testing and Materials.
18. Huang TH, Shie MY, Kao CT, Ding SJ. The effect of setting accelerator on properties of mineral trioxide aggregate. J Endod. 2008;34: 590-593.Article PubMed
19. Ding SJ, Kao CT, Shie MY, Hung C Jr, Huang TH. The physical and cytological properties of white MTA mixed with Na₂HPO₄ as an accelerant. J Endod. 2008;34: 748-751.Article PubMed
20. Ber BS, Hatton JF, Stewart GP. Chemical modification of ProRoot MTA to improve handling characteristics and decrease setting time. J Endod. 2007;33: 1231-1234.PubMed
21. Kogan P, He J, Glickman GN, Watanabe I. The effects of various additives on setting properties of MTA. J Endod. 2006;32: 569-572.Article PubMed
22. Hsieh SC, Teng NC, Lin YC, Lee PY, Ji DY, Chen CC, Ke ES, Lee SY, Yang JC. A novel accelerator for improving the handling properties of dental filling materials. J Endod. 2009;35: 1292-1295.Article PubMed
23. Whitworth JM, Baco L. Coronal leakage of sealer-only backfill: an in vitro evaluation. J Endod. 2005;31: 280-282.Article PubMed
24. Leyhausen G, Heil J, Reifferscheid G, Waldmann P, Geurtsen W. Genotoxicity and cytotoxicity of the Epoxy resin based root canal sealer AH plus. J Endod. 1999;25: 109-113.PubMed
25. Scarparo RK, Grecca FS, Fachin EV. Analysis of tissue reactions to methacrylate resin-based, epoxy resin-based, and zinc oxide-eugenol endodontic sealers. J Endod. 2009;35: 229-232.Article PubMed
26. Al-Hiyasat AS, Tayyar M, Darmani H. Cytotoxicity evaluation of various resin based root canal sealers. Int Endod J. 2010;43: 148-153.Article PubMed
27. De Almeida WA, Leonardo MR, Tanomaru Filho M, Silva LA. Evaluation of apical sealing of three endodontic sealers. Int Endod J. 2000;33: 25-27.Article PubMed
28. Oguntebi BR, Shen C. Effect of different sealers on thermoplasticized Gutta-percha root canal obturations. J Endod. 1992;18: 363-366.PubMed
29. Kim JC, Kim MR, Ko HJ, Won KY. Apical microleakage of MTA with 4-META/MMA & TBB resin as a root-end filling material. J Korean Acad Conserv Dent. 2009;34: 371-376.Article
30. Coomaraswamy KS, Lumley PJ, Hofmann MP. Effect of bismuth oxide radioopacifier content on the material properties of an endodontic Portland cement-based (MTA-like) system. J Endod. 2007;33: 295-298.Article PubMed
31. Ribeiro DA, Duarte MA, Matsumoto MA, Marques ME, Salvadori DM. Biocompatibility in vitro tests of mineral trioxide aggregate and regular and white Portland cements. J Endod. 2005;31: 605-607.Article PubMed
32. Islam I, Chng HK, Yap AU. Comparison of the physical and mechanical properties of MTA and portland cement. J Endod. 2006;32: 193-197.PubMed
33. Chang SW, Yoo HM, Park DS, Oh TS, Bae KS. Ingredients and cytotoxicity of MTA and 3 kinds of Portland cements. J Korean Acad Conserv Dent. 2008;33: 369-376.Article
34. American Society for Testing and Materials. Standard test method for time of setting of hydraulic-cement paste by Gillmore needles. ASTM C266-03. 2003;West Conshohocken, PA: American Society for Testing and Materials.
35. International Organization for Standardization. Dental root canal sealing materials. ISO 6876:2001(E). 2001;Geneva, Switzerland: International Organization for Standardization.
36. Watts JD, Holt DM, Beeson TJ, Kirkpatrick TC, Rutledge RE. Effects of pH and mixing agents on the temporal setting of tooth-colored and gray mineral trioxide aggregate. J Endod. 2007;33: 970-973.Article PubMed
37. Fridland M, Rosado R. Mineral trioxide aggregate (MTA) solubility and porosity with different water-to-powder ratios. J Endod. 2003;29: 814-817.Article PubMed
38. Dammaschke T, Gerth HU, Züchner H, Schäfer E. Chemical and physical surface and bulk material characterization of white ProRoot MTA and two Portland cements. Dent Mater. 2005;21: 731-738.PubMed
39. Saliba E, Abbassi-Ghadi S, Vowles R, Camilleri J, Hooper S, Camilleri J. Evaluation of the strength and radiopacity of Portland cement with varying additions of bismuth oxide. Int Endod J. 2009;42: 322-328.Article PubMed
40. Camilleri J. Hydration mechanism of mineral trioxide aggregate. Int Endod J. 2007;40: 462-470.PubMed

Tables & Figures

Figure 1

Aluminum step-wedge used in this study and representative digital radiograph image.

Figure 2

Representative samples from each group with dye leakage score. MTA specimen shows leakage with score 2 and AMTA and EPPC specimens show no leakage.

MTA, mineral trioxide aggregate; AMTA, AH-plus mixture; EPPC, epoxy resin mixture.

Figure 3

Representative samples of radiograph from each group with aluminum step wedge (Left; MTA with 6 mmAl, Mid; AMTA with 10 mmAl, and Right; EPPC with 5 mmAl).

MTA, mineral trioxide aggregate; AMTA, AH-plus mixture; EPPC, epoxy resin mixture.

Table 1

Experimental groups

MTA, mineral trioxide aggregate; AMTA, AH-plus mixture; EPPC, epoxy resin mixture.

Table 2

Leakage score, setting time (min) and aluminum equivalent radio-opacity (mmAl)

MTA, mineral trioxide aggregate; AMTA, AH-plus mixture; EPPC, epoxy resin mixture.

^a,b,c; Different superscripts means significant differences between groups in vertical row (p < 0.05).

REFERENCES

1. Torabinejad M, Watson TF, Pitt Ford TR. Sealing ability of a mineral trioxide aggregate when used as a root end filling material. J Endod. 1993;19: 591-595.Article PubMed
2. Camilleri J, Pitt Ford TR. Mineral trioxide aggregate: a review of the constituents and biological properties of the material. Int Endod J. 2006;39: 747-754.Article PubMed
3. Ford TR, Torabinejad M, Abedi HR, Bakland LK, Kariyawasam SP. Using mineral trioxide aggregate as a pulp-capping material. J Am Dent Assoc. 1996;127: 1491-1494.Article PubMed
4. Salako N, Joseph B, Ritwik P, Salonen J, John P, Junaid TA. Comparison of bioactive glass, mineral trioxide aggregate, ferric sulfate, and formocresol as pulpotomy agents in rat molar. Dent Traumatol. 2003;19: 314-320.Article PubMed
5. Bakland LK. Management of traumatically injured pulps in immature teeth using MTA. J Calif Dent Assoc. 2000;28: 855-858.Article PubMed
6. Witherspoon DE, Ham K. One-visit apexification: technique for inducing root-end barrier formation in apical closures. Pract Proced Aesthet Dent. 2001;13: 455-460.PubMed
7. Holden DT, Schwartz SA, Kirkpatrick TC, Schindler WG. Clinical outcomes of artificial root-end barriers with mineral trioxide aggregate in teeth with immature apices. J Endod. 2008;34: 812-817.Article PubMed
8. Banchs F, Trope M. Revascularization of immature permanent teeth with apical periodontitis: new treatment protocol? J Endod. 2004;30: 196-200.Article PubMed
9. Camilleri J. The physical properties of accelerated Portland cement for endodontic use. Int Endod J. 2008;41: 151-157.Article PubMed
10. Islam I, Chng HK, Yap AU. Comparison of the physical and mechanical properties of MTA and portland cement. J Endod. 2006;32: 193-197.Article PubMed
11. Chng HK, Islam I, Yap AU, Tong YW, Koh ET. Properties of a new root-end filling material. J Endod. 2005;31: 665-668.Article PubMed
12. Torabinejad M, Hong CU, McDonald F, Pitt Ford TR. Physical and chemical properties of a new root-filling material. J Endod. 1995;21: 349-353.PubMed
13. Sluyk SR, Moon PC, Hartwell GR. Evaluation of setting properties and retention characteristics of mineral trioxide aggregate when used as a furcation perforation repair material. J Endod. 1998;24: 768-771.Article PubMed
14. Wiltbank KB, Schwartz SA, Schindler WG. Effect of Selected Accelerants on the Physical Properties of Mineral Trioxide Aggregate and Portland Cement. J Endod. 2007;33: 1235-1238.Article PubMed
15. Ber BS, Hatton JF, Stewart GP. Chemical modification of proroot mta to improve handling characteristics and decrease setting time. J Endod. 2007;33: 1231-1234.PubMed
16. Asgary S, Shahabi S, Jafarzadeh T, Amini S, Kheirieh S. The properties of a new endodontic material. J Endod. 2008;34: 990-993.Article PubMed
17. American Society for Testing and Materials. Standard test method for time of setting of hydraulic cement by Vicat needle. ASTM C191-04. 2004;West Conshohocken, PA: American Society for Testing and Materials.
18. Huang TH, Shie MY, Kao CT, Ding SJ. The effect of setting accelerator on properties of mineral trioxide aggregate. J Endod. 2008;34: 590-593.Article PubMed
19. Ding SJ, Kao CT, Shie MY, Hung C Jr, Huang TH. The physical and cytological properties of white MTA mixed with Na₂HPO₄ as an accelerant. J Endod. 2008;34: 748-751.Article PubMed
20. Ber BS, Hatton JF, Stewart GP. Chemical modification of ProRoot MTA to improve handling characteristics and decrease setting time. J Endod. 2007;33: 1231-1234.PubMed
21. Kogan P, He J, Glickman GN, Watanabe I. The effects of various additives on setting properties of MTA. J Endod. 2006;32: 569-572.Article PubMed
22. Hsieh SC, Teng NC, Lin YC, Lee PY, Ji DY, Chen CC, Ke ES, Lee SY, Yang JC. A novel accelerator for improving the handling properties of dental filling materials. J Endod. 2009;35: 1292-1295.Article PubMed
23. Whitworth JM, Baco L. Coronal leakage of sealer-only backfill: an in vitro evaluation. J Endod. 2005;31: 280-282.Article PubMed
24. Leyhausen G, Heil J, Reifferscheid G, Waldmann P, Geurtsen W. Genotoxicity and cytotoxicity of the Epoxy resin based root canal sealer AH plus. J Endod. 1999;25: 109-113.PubMed
25. Scarparo RK, Grecca FS, Fachin EV. Analysis of tissue reactions to methacrylate resin-based, epoxy resin-based, and zinc oxide-eugenol endodontic sealers. J Endod. 2009;35: 229-232.Article PubMed
26. Al-Hiyasat AS, Tayyar M, Darmani H. Cytotoxicity evaluation of various resin based root canal sealers. Int Endod J. 2010;43: 148-153.Article PubMed
27. De Almeida WA, Leonardo MR, Tanomaru Filho M, Silva LA. Evaluation of apical sealing of three endodontic sealers. Int Endod J. 2000;33: 25-27.Article PubMed
28. Oguntebi BR, Shen C. Effect of different sealers on thermoplasticized Gutta-percha root canal obturations. J Endod. 1992;18: 363-366.PubMed
29. Kim JC, Kim MR, Ko HJ, Won KY. Apical microleakage of MTA with 4-META/MMA & TBB resin as a root-end filling material. J Korean Acad Conserv Dent. 2009;34: 371-376.Article
30. Coomaraswamy KS, Lumley PJ, Hofmann MP. Effect of bismuth oxide radioopacifier content on the material properties of an endodontic Portland cement-based (MTA-like) system. J Endod. 2007;33: 295-298.Article PubMed
31. Ribeiro DA, Duarte MA, Matsumoto MA, Marques ME, Salvadori DM. Biocompatibility in vitro tests of mineral trioxide aggregate and regular and white Portland cements. J Endod. 2005;31: 605-607.Article PubMed
32. Islam I, Chng HK, Yap AU. Comparison of the physical and mechanical properties of MTA and portland cement. J Endod. 2006;32: 193-197.PubMed
33. Chang SW, Yoo HM, Park DS, Oh TS, Bae KS. Ingredients and cytotoxicity of MTA and 3 kinds of Portland cements. J Korean Acad Conserv Dent. 2008;33: 369-376.Article
34. American Society for Testing and Materials. Standard test method for time of setting of hydraulic-cement paste by Gillmore needles. ASTM C266-03. 2003;West Conshohocken, PA: American Society for Testing and Materials.
35. International Organization for Standardization. Dental root canal sealing materials. ISO 6876:2001(E). 2001;Geneva, Switzerland: International Organization for Standardization.
36. Watts JD, Holt DM, Beeson TJ, Kirkpatrick TC, Rutledge RE. Effects of pH and mixing agents on the temporal setting of tooth-colored and gray mineral trioxide aggregate. J Endod. 2007;33: 970-973.Article PubMed
37. Fridland M, Rosado R. Mineral trioxide aggregate (MTA) solubility and porosity with different water-to-powder ratios. J Endod. 2003;29: 814-817.Article PubMed
38. Dammaschke T, Gerth HU, Züchner H, Schäfer E. Chemical and physical surface and bulk material characterization of white ProRoot MTA and two Portland cements. Dent Mater. 2005;21: 731-738.PubMed
39. Saliba E, Abbassi-Ghadi S, Vowles R, Camilleri J, Hooper S, Camilleri J. Evaluation of the strength and radiopacity of Portland cement with varying additions of bismuth oxide. Int Endod J. 2009;42: 322-328.Article PubMed
40. Camilleri J. Hydration mechanism of mineral trioxide aggregate. Int Endod J. 2007;40: 462-470.PubMed

Citations

Citations to this article as recorded by

Comparison of Setting Time, Compressive Strength, Solubility, and pH of Four Kinds of MTA
Jing-Ling Che, Jae-Hwan Kim, Seon-Mi Kim, Nam-ki Choi, Hyun-Joo Moon, Moon-Jin Hwang, Ho-Jun Song, Yeong-Joon Park
Korean Journal of Dental Materials.2016; 43(1): 61. CrossRef
Biological Effects and Washout Resistance of a Newly Developed Fast-setting Pozzolan Cement
Yoorina Choi, Su-Jung Park, Seoung-Hoon Lee, Yun-Chan Hwang, Mi-Kyung Yu, Kyung-San Min
Journal of Endodontics.2013; 39(4): 467. CrossRef

CanvasJS.com

ePub Link

Cite

CITE: export Copy Download Format; Close

Download Citation

Download a citation file in RIS format that can be imported by all major citation management software, including EndNote, ProCite, RefWorks, and Reference Manager.

Format:

RIS — For EndNote, ProCite, RefWorks, and most other reference management software
BibTeX — For JabRef, BibDesk, and other BibTeX-specific software

Include:

Citation for the content below
Citation and abstract for the content below

Physical properties of novel composite using Portland cement for retro-filling material

J Korean Acad Conserv Dent. 2010;35(6):445-452. Published online November 30, 2010

DOI: https://doi.org/10.5395/JKACD.2010.35.6.445

XML Download

Figure

Related articles

Physicochemical properties of a calcium aluminate cement containing nanoparticles of zinc oxide

Physical properties of novel composite using Portland cement for retro-filling material

Figure 1 Aluminum step-wedge used in this study and representative digital radiograph image.

Figure 2 Representative samples from each group with dye leakage score. MTA specimen shows leakage with score 2 and AMTA and EPPC specimens show no leakage. MTA, mineral trioxide aggregate; AMTA, AH-plus mixture; EPPC, epoxy resin mixture.

Figure 3 Representative samples of radiograph from each group with aluminum step wedge (Left; MTA with 6 mmAl, Mid; AMTA with 10 mmAl, and Right; EPPC with 5 mmAl). MTA, mineral trioxide aggregate; AMTA, AH-plus mixture; EPPC, epoxy resin mixture.

Figure 1

Figure 2

Figure 3

Physical properties of novel composite using Portland cement for retro-filling material

Table 1

Experimental groups

MTA, mineral trioxide aggregate; AMTA, AH-plus mixture; EPPC, epoxy resin mixture.

Table 2

Leakage score, setting time (min) and aluminum equivalent radio-opacity (mmAl)

MTA, mineral trioxide aggregate; AMTA, AH-plus mixture; EPPC, epoxy resin mixture.

^a,b,c; Different superscripts means significant differences between groups in vertical row (p < 0.05).

Table 1 Experimental groups

MTA, mineral trioxide aggregate; AMTA, AH-plus mixture; EPPC, epoxy resin mixture.

Table 2 Leakage score, setting time (min) and aluminum equivalent radio-opacity (mmAl)

MTA, mineral trioxide aggregate; AMTA, AH-plus mixture; EPPC, epoxy resin mixture.

^a,b,c; Different superscripts means significant differences between groups in vertical row (p < 0.05).
