The effect of solvent evaporation of dentin adhesive on bonding efficacy

Min-Woo Cho; Ji-Yeon Kim; Duck-Su Kim; Kyoung-Kyu Choi

doi:10.5395/JKACD.2010.35.5.321

Articles

Page Path: HOME > Restor Dent Endod > Volume 35(5); 2010 > Article

Basic Research The effect of solvent evaporation of dentin adhesive on bonding efficacy: Min-Woo Cho, DDS, PhD, Ji-Yeon Kim, DDS, PhD, Duck-Su Kim, DDS, PhD, Kyoung-Kyu Choi, DDS, PhD; Journal of Korean Academy of Conservative Dentistry 2010;35(5):321-334.
DOI: https://doi.org/10.5395/JKACD.2010.35.5.321
Published online: September 30, 2010

Division of Dentistry, Department of Conservative Dentistry, Graduate of Kyung Hee University, Seoul, Korea.

Correspondence to Kyoung-Kyu Choi, DDS, PhD. Professor, Division of Dentistry, Graduate school of Kyung Hee University, 1, Hoegi-dong, Dongdaemun-gu, Seoul, Korea 130-702. Tel, +82-2-958-9337; Fax, +82-2-960-5108; choikkyu@khu.ac.kr

• Received: April 28, 2010 • Revised: June 19, 2010 • Accepted: June 29, 2010

23 Views
0 Download

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

Objectives
The purpose of this study is to evaluate bonding efficacy by means of measuring the effect of remained solvent on Degree of conversion(DC) and µTBS and FE-SEM examination.
Materials and Methods
Two 2-step total etching adhesives and two single-step self etching adhesives were used in this study. First, volume weight loss of 4 dentin adhesives were measured using weighting machine in process of time in normal conditions and calculate degree of evaporation (DE). Reaction/reference intensity ratio were measured using micro-Raman spectroscopy and calculate DC according to DE. Then 2 experimental groups were prepared according to air-drying methods (under, over) and control group was prepared to manufacturer's instruction. Total 12 groups were evaluated by means of micro tensile bond strength and FE-SEM examination.
Results
Degree of evaporation (DE) was increased as time elapsed but different features were observed according to the kind of solvents. Acetone based adhesive showed higher DE than ethanol and butanol based adhesive. Degree of conversion (DC) was increased according to DE except for S³ bond. In µTBS evaluation, bond strength was increased by additional air-drying. Large gaps and droplets were observed in acetone based adhesives by FE-SEM pictures.
Conclusions
Additional air-drying is recommended for single-step self etching adhesive but careful consideration is required for 2-step total etching adhesive because of oxygen inhibition layer. Evaporation method is carefully chose and applied according to the solvent type.
Keywords: Bonding efficacy; Degree of conversion; Degree of evaporation; Dentin adhesive; Raman spectroscopy; Residual solvent

REFERENCES

1. Kanca J. Effect of resin primer and surface wetness on resin composite bond strength to dentin. Am J Dent. 1992;5: 213-215.PubMed
2. Gwinnett AJ. Moist versus dry dentin: its effect on shear bond strength. Am J Dent. 1992;5: 127-129.PubMed
3. Kanca J. Improving bond strength through acid etching of dentin and bonding to wet dentin surfaces. J Am Dent Assoc. 1992;123: 35-43.Article PubMed
4. Pashley DH, Carvalho RM. Dentin permeability and dentin adhesion. J Dent. 1997;25: 355-372.PubMed
5. Van Meerbeek B, Perdigao J, Lambrechts P, Vanherle G. The clinical performance of adhesives. J Dent. 1998;26: 1-20.Article PubMed
6. Reis AF, Oliveria MT, Giannini M, de Goes MF, Rueggeberg FA. The effect of organic solvents on one-bottle adhesives' bond strength to enamel and dentin. Oper Dent. 2003;28: 700-706.PubMed
7. Jacobsen T, Soderholm KJ. Some effects of water on dentin bonding. Dent Mater. 1995;11: 132-136.Article PubMed
8. De Munck J, Van Landuyt K, Peumans M, Poitevin A, Lambrechts P, Braem M, Van Meerbeek B. A critical review of the durability of adhesion to tooth tissue: Methods and results. J Dent Res. 2005;84: 118-132.Article PubMed PDF
9. Ikeda T, De Munck J, Shirai K, Hikita K, Inoue S, Sano H, Lambrechts P, Van Meerbeek B. Effect of evaporation of primer components on ultimate tensile strengths of primer-adhesive mixture. Dent Mater. 2005;21: 1051-1058.Article PubMed
10. Carvalho RM, Mendonca JS, Santiago SL, Silveira RR, Garcia FC, Tay FR, Pashley DH. Effects of HEMA/solvent combinations on bond strength to dentin. J Dent Res. 2003;82: 597-601.PubMed
11. Tay FR, Gwinnett JA, Wei SH. Relation between water content in acetone/alcohol-based primer and interfacial ultrastructure. J Dent. 1998;26: 147-156.Article PubMed
12. Graham Solomons TW, Fryhle CB. Organic chemistry. 2004;8th edition. John Wiley & Sons, Inc..
13. Chappell RP, Cobb CM, Spencer P, Eick JD. Dentinal tubule anastomosis: a potential factor in adhesive bonding? J Prosthet Dent. 1994;72: 183-188.Article PubMed
14. Jacobsen T, Finger WJ, Kanehira M. Air-drying time of self-etching adhesives vs bonding efficacy. J Adhes Dent. 2006;8: 387-392.PubMed
15. Moszner N, Salz U, Zimmermann J. Chemical aspects of self-etching enamel-dentin adhesives: a systemic review. Dent Mater. 2005;21: 895-910.PubMed
16. Ikemura K, Tay FR, Hironaka T, Endo T, Pashley DH. Bonding mechanism and ultrastructural interfacial analysis of a single-step adhesive to dentin. Dent Mater. 2003;19: 707-715.Article PubMed
17. Furuse AY, Peutzfeldt A, Asmussen E. Effect of evaporation of solvents from one-step, self-etching adhesives. J Adhes Dent. 2008;10: 35-39.PubMed
18. Hiraishi N, Nishiyama N, Ikemura K, Yau JYY, King NM, Tagami J, Pashley DH, Tay FR. Water concentration in self-etching primers affects their aggressiveness and bonding efficacy to dentin. J Dent Res. 2005;84: 653-658.Article PubMed PDF
19. Chiba Y, Yamaguchi K, Miyazaki M, Tsubota K, Takamizawa T, Moore BK. Effect of air-drying time of single-application self-etching adhesives on dentin bond strength. Oper Dent. 2006;31: 233-239.PubMed
20. Loguercio AD, Loeblein F, Cherobin T, Ogliari F, Piva E, Reis A. Effect of solvent removal on adhesive properties of simplified etch-and-rinse systems and on bond strengths to dry and wet dentin. J Adhes Dent. 2009;213-219.
21. Takahashi A, Sato Y, Uno S, Pereira PN, Sano H. Effects of mechanical properties of adhesive resins on bond strength to dentin. Dent Mater. 2002;18: 263-268.Article PubMed
22. Yanagawa T, Finger WJ. Relationship between degree of polymerization of composite resin and bond strength to Gluma-treated dentin. Am J Dent. 1994;7: 157-160.PubMed
23. Giannini M, Arrais CAG, Vermelho PM, Reis RS, Santos LPS, Lrite ER. Effects of the solvent evaporation technique on the degree of conversion of one-bottle adhesive systems. Oper Dent. 2008;33: 149-154.PubMed
24. Ikeda T, De Munck J, Shirai K, Hikita K, Inoue S, Sano H, Lambrchts P, Van Meerbeek B. Effect of air-drying and solvent evaporation on the strength of HEMA-rich versus HEMA-free one-step adhesives. Dent Mater. 2008;24: 1316-1323.Article PubMed
25. Paul SJ, Leach M, Rueggeberg FA, Pashley DH. Effect of water content on the physical properties of model dentine primer and bonding resins. J Dent. 1999;27: 209-214.Article PubMed
26. Yiu CK, Pashley EL, Hiraishi N, King NM, Goracci C, Ferrari M, Carvalho RM, Pashley DH, Tay FR. Solvent and water retention in dental adhesive blends after evaporation. Biomaterials. 2005;26: 6863-6872.Article PubMed
27. Pianelli C, Devaux J, Bebelman S, Leloup G. The micro-Raman spectroscopy, a useful tool to determine the degree of conversion of light-activated composite resins. J Biomed Mater Res. 1999;48: 675-681.PubMed
28. Miyazaki M, Onose H, Iida N, Kazama H. Determination of residual double bonds in resin-dentin interface by Raman spectroscopy. Dent Mater. 2003;19: 245-251.Article PubMed
29. Zou Y, Armstrong SR, Jessop JL. Apparent conversion of adhesive resin in the hybrid layer, Part I: Identification of an internal reference for Raman spectroscopy and the effects of water storage. J Biomed Mater Res A. 2008;86(4):883-891.PubMed
30. Zou Y, Jessop JL, Armstrong SR. Apparent conversion of adhesive resin in the hybrid layer, Part II: In situ studies of the resin-dentin bond. J Biomed Mater Res A. 2009;89(2):355-362.Article PubMed
31. Cadenaro M, Breschi L, Rueggeberg FA, Suchko M, Grodin E, Agee K, Di Lenarda R, Tay FR, Pashley DH. Effects of residual ethanol on the rate and degree of conversion of five experimental resins. Dent Mater. 2009;25: 621-628.PubMed
32. Dickens SH, Cho BH. Interpretation of bond failure through conversion and residual solvent measurements and Weibull analyses of flexural and micro-tensile bond strength of bonding agents. Dent Mater. 2005;21: 354-364.PubMed
33. Hashimoto M, Tay FR, Svizero NR, de Gee AJ, Feilzer AJ, Sano H, Kaga M, Pashley DH. The effort of common errors on sealing ability of total-etching adhesives. Dent Mater. 2006;22: 560-568.PubMed
34. Choi KK. Adhesion and esthetic restoration. 2009;1st edition. Myungmun publishing Co..
35. Pashley DH, Carvalho RM, Tay FR, Agree KA, Lee KW. Solvation of dried dentin matrix by water and other polar solvents. Am J Dent. 2002;15: 97-102.PubMed
36. Van Landuyt KL, De Munck J, Snauwaert J, Coutinho E, Poitevin A, Yoshida Y, et al. Monomer-solvent phase separation in one-step self-etch adhesives. J Dent Res. 2005;84: 183-188.PubMed
37. Van Landuyt KL, Snauwaert J, De Munck J, Coutinho E, Poitevin A, Yoshida Y, et al. Origin of interfacial droplets with one-step adhesives. J Dent Res. 2007;86: 739-744.Article PubMed PDF
38. Maciel KT, Carvalho RM, Ringle RD, Preston CD, Russell CM, Pashley DH. The effect of acetone, ethanol, HEMA, air on the stiffness of human decalcified dentin matrix. J Dent Res. 1996;75: 1851-1858.Article PubMed PDF

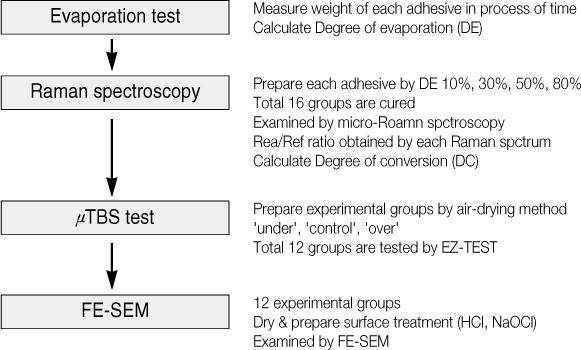

Figure 1

Flowchart of experiment.

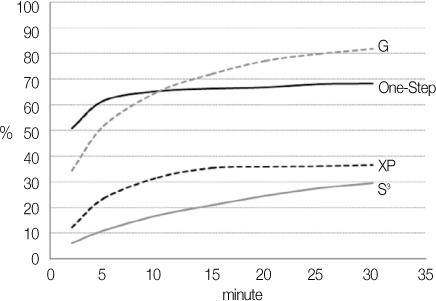

Figure 2

Comparison of DE for each adhesive.

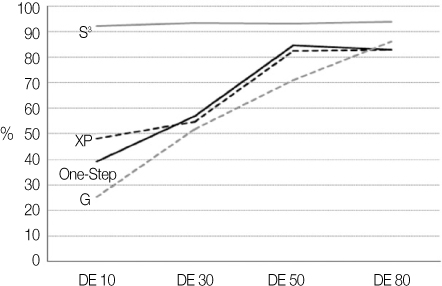

Figure 3

Comparison of DC for each adhesive according to DE.

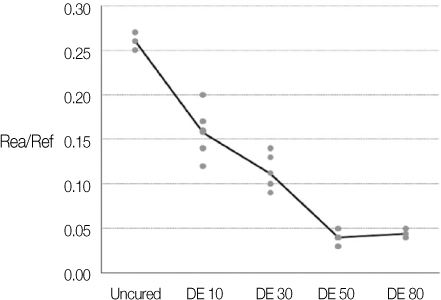

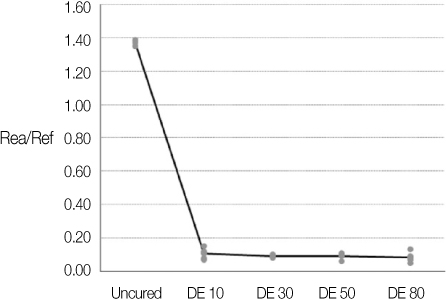

Figure 4

Rea/Ref ratio of One-Step.

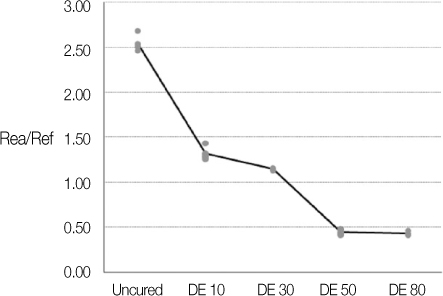

Figure 5

Rea/Ref ratio of XP bond.

Figure 6

Rea/Ref ratio of S³ bond.

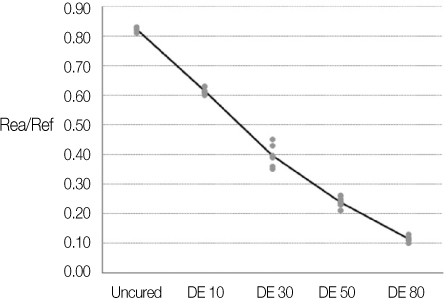

Figure 7

Rea/Ref ratio of G bond.

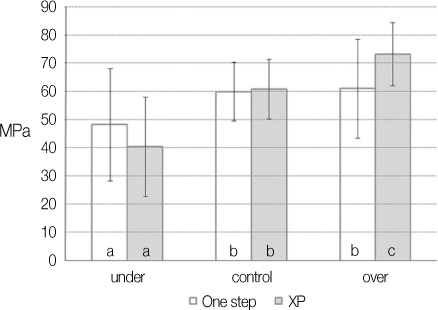

Figure 8

µTBS of experimental group (2-step total etching adhesive).

^*The same letters within graph are statistically not significant, ^*Error bar means SD.

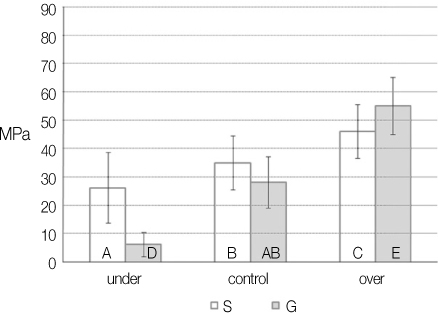

Figure 9

µTBS of experimental group (single-step self etching adhesive).

^*The same letters within graph are statistically not significant, ^*Error bar means SD.

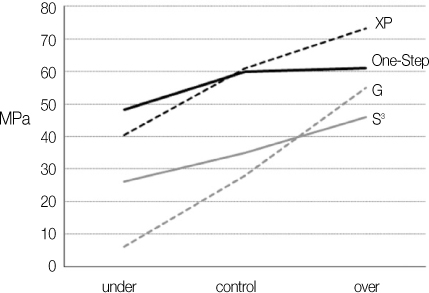

Figure 10

Comparison of µTBS for each experimental group.

Figure 11

One-Step under (×5,000).

Incomplete hybrid layer was observed (between vertical arrow). Resin tags were poorly formed (R, composite resin; D, dentin).

Figure 12

One-Step control (×5,000).

Complete hybrid layer and uniform resin tags could be noticed (R, composite resin; D, dentin; HL, hybrid layer).

Figure 13

One-Step over (×5,000).

Resin tags were well formed but adhesive resin was not certain. Notice continuous gap between composite resin and dentin (oblique arrows)(R, composite resin; D, dentin).

Figure 14

XP bond under (×5,000).

Resin tags were well formed. The thickness of adhesive resin was 2-3 µm and clearly distinct (between vertical arrow)(R, composite resin; D, dentin; A, adhesive resin).

Figure 15

XP bond control (×5,000).

Complete hybrid layer and uniform resin tags could be noticed (R, composite resin; D, dentin; HL, hybrid layer).

Figure 16

XP bond over (×5,000).

Complete hybrid layer and uniform resin tags could be noticed. adhesive resin was thinner than under group (R, composite resin; D, dentin; HL, hybrid layer).

Figure 17

S³ bond under (×5,000).

Hybrid layer was not certain but tight connection could be noticed. The small number of slender resin tags were observed (R, composite resin; D, dentin).

Figure 18

S³ bond control (×5,000).

The number of resin tags were slightly higher than under group but there was no clear difference between control and under group (R, composite resin; D, dentin).

Figure 19

S³ bond over (×5,000).

There was no clear difference between control and over group (R, composite resin; D, dentin).

Figure 20

G bond under (×5,000).

Large and continuous gap was formed (vertical arrows), droplets were formed in adhesive resin (oblique arrows) (R, composite resin; D, dentin; A, adhesive resin).

Figure 21

G bond control (×5,000).

Hybrid layer was not certain but tight connection could be noticed. The small number of resin tags were observed (R, composite resin; D, dentin).

Figure 22

G bond over (×5,000).

There was no clear difference between control and over group (R, composite resin; D, dentin).

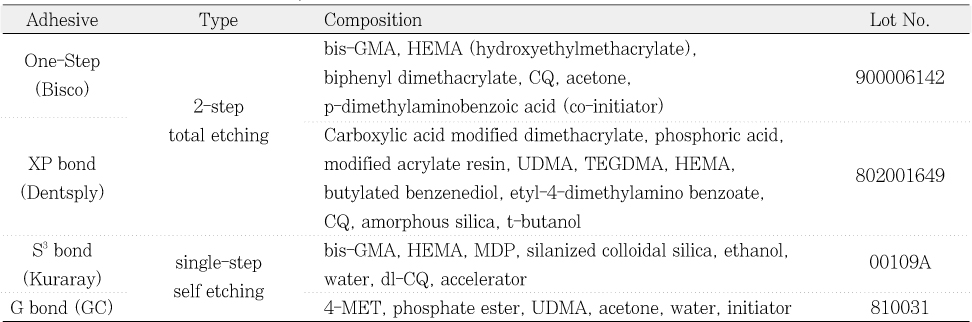

Table 1

Adhesives used in this study

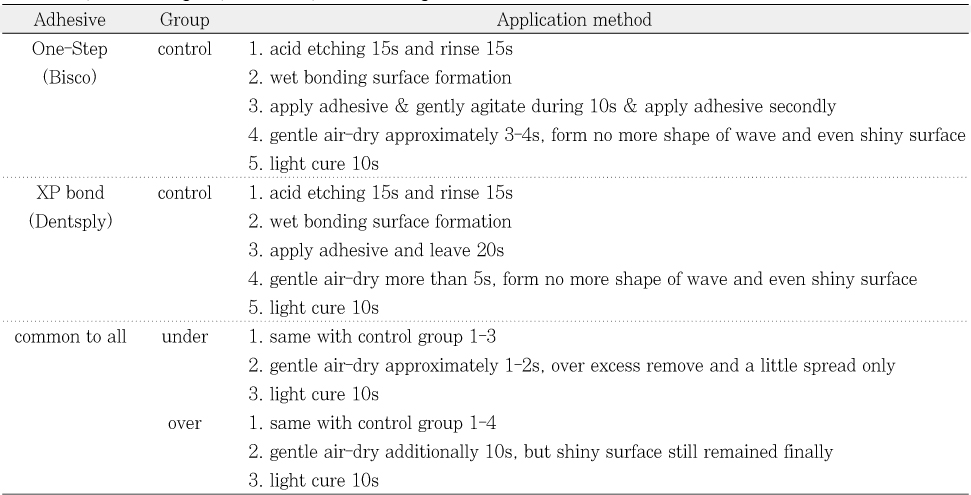

Table 2

Experimental groups of 2-step total etching adhesive

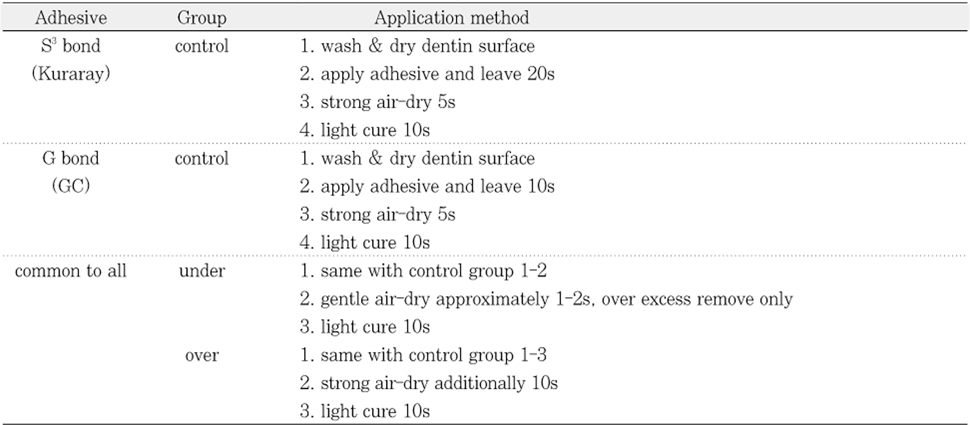

Table 3

Experimental groups of single-step self etching adhesive

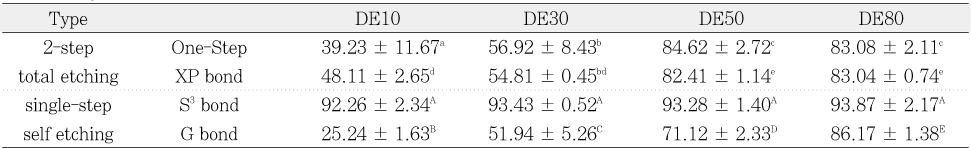

Table 4

Degree of evaporation (DE) of each adhesive (Mean ± SD, %)

Table 5

Degree of conversion (DC) of each adhesive (Mean ± SD, %)

^*The same superscript letters in each adhesive type are statistically not significant.

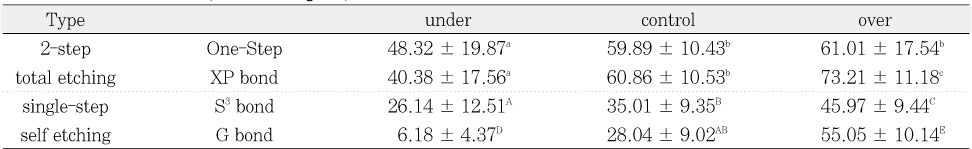

Table 6

µTBS for each experimental group (Mean ± SD, MPa)

^*The same superscript letters in each adhesive type are statistically not significant
