An evaluation of rotational stability in endodontic electronic motors

Se-Hee Park; Hyun-Woo Seo; Chan-Ui Hong

doi:10.5395/JKACD.2010.35.4.246

Articles

Page Path: HOME > Restor Dent Endod > Volume 35(4); 2010 > Article

Basic Research An evaluation of rotational stability in endodontic electronic motors: Se-Hee Park¹, Hyun-Woo Seo², Chan-Ui Hong³; Journal of Korean Academy of Conservative Dentistry 2010;35(4):246-256.
DOI: https://doi.org/10.5395/JKACD.2010.35.4.246
Published online: July 31, 2010

¹Department of Conservative Dentistry, College of Dentistry, Gangneung-Wonju National University, Wonju, Korea.

²Department of Pediatric Dentistry, College of Dentistry, Gangneung-Wonju National University, Wonju, Korea.

³Department of Conservative Dentistry, Plant Dental Hospital, Daejeon, Korea.

Corresponding Author: Se-Hee Park. Department of Conservative Dentistry College of Dentistry, Gangneung-Wonju National University, 123 Chibyon-dong Gangwon-do, Korea. Tel: +82-33-640-2760 Fax: +82-33-640-3103, drendo@gwnu.ac.kr

• Received: April 28, 2010 • Revised: May 12, 2010 • Accepted: June 11, 2010

20 Views
0 Download

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

The purpose of this study was to evaluate a rotational stability of endodontic electronic motors by comparing the changes of rotational speed, depending on the number of usages and with/without static load. Twelve new endodontic electronic motors were used in this study. Non contact type digital tachometer was used for measuring the rotational speed of handpiece. True RMS Multimeter was used for measuring the voltages and the electric currents. All measurements were recorded every 10 seconds during 10 minutes and repeated 9 times. Five repetition was done per each electronic motor. To statistical analysis, student t-test, repeated measures and Scheffe's post-hoc tests were performed. In the same motor group, there was no significant difference in all measurements. In all groups, there was no significant difference in the amount of rotational speed changes depending on the number of usages and with/without static load. In the limitation of this study, the results showed that all kinds of endodontic electronic motors in this study had an established rotational stability. Therefore they could be safely used in root canal treatment with a reliable maintenance of rotational speed, regardless of the number of usages and with/without load.
Keywords: Rotational stability; Electronic motor; Rotational speed; RPM; Endomate TC; X-Smart

REFERENCES

1. Schilder H. Cleaning and shaping the root canal. Dent Clin North Am. 1974;18: 269-296.Article PubMed
2. Skidmore AE, Bjorndal AM. Root canal morphology of human mandibular first molar. Oral Surg Oral Med Oral Pathol. 1971;32: 778-784.PubMed
3. Lim KC, Webber J. The effect of root canal preparation on the shape of the curved root canal. Int Endod J. 1985;18: 233-239.Article PubMed
4. Kessler JR, Peters DD, Lorton L. Comparison of the relative risk of molar root perforations using various endodontic instrumentation techniques. J Endod. 1983;9: 439-447.Article PubMed
5. Weine F, Kelly R, Lio P. The effect of preparation procedures on the original canal shape and on apical foramen shape. J Endod. 1975;1: 255-262.PubMed
6. Walia H, Brantely WA, Gerstein H. An initial investigation of the bending and torsional properties of nitinol root canal files. J Endod. 1988;14: 346-335.Article PubMed
7. Glossen CR, Haller RH, Dove SB, del Rio CE. A comparison of root canal preparations using Ni-Ti hand, Ni-Ti engine-driven, and K-flex endodontic instruments. J Endod. 1995;21: 146-151.Article PubMed
8. Serene TP, Adams JD, Saxena A. Nickel-titanium instruments: applications in endodontics. 1995;St. Louis: Mosby; 67-78.
9. Averbach RE, Kleier DJ. Endodontics in the 21st century: the rotary revolution. Compend Contin Educ Dent. 2001;22: 27-34.
10. Spili P, Parashos P, Messer HH. The impact of instrument fracture on outcome of endodontic treatment. J Endod. 2005;31: 845-850.Article PubMed
11. Parashos P, Gordon I, Messer HH. Factors influencing defects of rotary nickel-titanium endodontic instruments after clinical use. J Endod. 2004;30: 722-725.Article PubMed
12. Schilder H. Filling root canals in three dimensions. Dent Clin North Am. 1967;723-744.Article PubMed
13. Crump MC, Natkin E. Relationship of broken root canal instruments to endodontic case prognosis: a clinical investigation. J Am Dent Assoc. 1970;80: 1341-1347.Article PubMed
14. Hulsmann M, Schinkel I. Influence of several factors on the success or failure of removal of fractured instruments from root canals. Endod Dent Traumatol. 1999;15: 252-258.PubMed
15. Souter NJ, Messer HH. Complications associated with fractured file removal using an ultrasonic technique. J Endod. 2005;31: 450-452.Article PubMed
16. Sattapan B, Nervo GJ, Palamara JEA, Messer HH. Defect in rotary nickel-titanium files after clinical use. J Endod. 2000;26: 161-165.PubMed
17. Cohen S, Burns RC. Pathways of the pulp. 2002;8th ed. St. Louis: Mosby; 533-534.
18. Yared GM, Bou Dagher FE, Kulkarni GK. Influence of torque control motors and the operator's proficiency on ProTaper failures. Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 2003;96: 229-233.Article PubMed
19. Gabel WP, Hoen M, Steiman HR, Pink FE, Dietz R. Effect of rotational speed on nickel-titanium file distortion. J Endod. 1999;25: 752-754.Article PubMed
20. Seo MC, Jeon YJ, Kang In-Chol, Kim DJ, Hwang YC, Hwang IN, Oh WM. Effect of rotational speed of Protaper™ rotary file on the change of root canal configuration. J Korean Acad Conserv Dent. 2006;31: 179-184.Article
21. Dietz DB, Di Fiore PM, Bahcall JK, Lautenschlager EP. Effect of rotational speed on the breakage of nickel-titanium rotary files. J Endod. 2000;26: 68-71.Article PubMed
22. Shin JH, Baek SH, Bae KS, Lim SS, Yoon SH, Kim BH. A study of working efficiency and file deformation of GT rotary file in curved canals. J Korean Acad Conserv Dent. 2001;26: 418-435.
23. Poulsen WB, Dove SB, Del Rio CE. Effect of nickel-titanium engine-driven instrument rotational speed on root canal morphology. J Endod. 1995;21: 609-612.Article PubMed
24. Yared G, Kulkarni GK. Accuracy of the DTC torque control motor for nickel-titanium rotary instruments. Int Endod J. 2004;37: 399-402.Article PubMed
25. Yared G, Kulkarni GK. Accuracy of the Nouvag torque control motor for nickel-titanium rotary instruments. Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 2004;97: 499-501.PubMed
26. Yared G, Kulkarni GK. Accuracy of the TCM Endo III torque-control motor for nickel-titanium rotary instruments. J Endod. 2004;30: 644-645.Article PubMed
27. Operation manual of Endomate TC. NSK 10, 2005.
28. American National Standard/American Dental Association Specification No. 28 for root canal files and reamers, type K for hand use. ADA Professional Product Review. Rotary Endodontic Instruments: Laboratory Testing Methods 2006. 2002;Chicago: American Dental Association.
29. Mandel E, Adib-Yazdi M, Benhamou LM, Lachkar T, Mesgouez C, Sobel M. Rotary Ni-Ti ProFile systems for preparing curved canals in resin blocks: influence of operator on instrument breakage. Int Endod J. 1999;32: 436-443.Article PubMed
30. Yared GM, BouDagher FE, Machtou P. Influence of rotational speed, torque, and operator's proficiency on ProFile failures. Int Endod J. 2001;34: 47-53.Article PubMed PDF
31. Yared GM, Bou Dagher FE, Machtou P, Kulkarni GK. Influence of rotational speed, torque and operator proficiency on failure of Greater Taper files. Int Endod J. 2002;35: 7-12.Article PubMed
32. Gambarini G. Cyclic fatigue of nickel-titanium rotary instruments after clinical use with low- and high-torque endodontic motors. J Endod. 2001;27: 772-774.Article PubMed
33. Yared G, Sleiman P. Failure of ProFile instruments with air, high torque control and low torque control motors. Int Endod J. 2001;34: 471-475.PubMed
34. Pruett JP, Clement DJ, Carnes DL Jr. Cyclic fatigue testing of nickel titanium endodontic instruments. J Endod. 1997;23: 77-85.PubMed
35. Gambarini G. Cyclic fatigue of ProFile rotary instruments after prolonged clinical use. Int Endod J. 2001;34: 386-389.Article PubMed PDF
36. Yared GM, Bou Dagher FE, Machtou P. Cyclic fatigue of Profile rotary instruments after simulated clinical use. Int Endod J. 1999;32: 115-119.Article PubMed
37. Yared GM, Bou Dagher FE, Machtou P. Cyclic fatigue of Profile rotary instruments after clinical use. Int Endod J. 2000;33: 204-207.Article PubMed
38. Shin YM, Kim ES, Kim KM, Kum KY. Effect of surface defects and cross-sectional configuration on the fatigue fracture of NiTi rotary files under cycllc loading. J Korean Acad Conserv Dent. 2004;29: 267-272.
39. Kim JW, Ahn BD, Park SH, Shin HJ, Cho KM. Lifetime and fracture patterns of NiTi rotary files in molars. J Korean Acad Conserv Dent. 2005;30: 190-198.Article
40. Blum JY, Machtou P, Micallef JP. Location of contact areas on rotary Profile instruments in relationship to the forces developed during mechanical preparation on extracted teeth. Int Endod J. 1999;32: 108-114.PubMed
41. Thompson SA, Dummer PM. Shaping ability of Quantec Series 2000 rotary nickel-titanium instruments in simulated root canals. Part 1. Int Endod J. 1998;31: 259-267.Article PubMed
42. Thompson SA, Dummer PM. Shaping ability of ProFile.04 Taper Series 29 rotary nickel-titanium instruments in simulated root canals. Part 2. Int Endod J. 1997;30: 8-15.PubMed
43. Barbakow F, Lutz F. The Lightspeed preparation technique evaluated by Swiss clinicians after attending continuing education courses. Int Endod J. 1997;30: 46-50.Article PubMed
44. Yu JS, Han SC, Lee JY. The surface modification of Ti-based alloy with long cycle life for Ni/MH secondary battery. Trans. of the Korean Hydrogen and New Energy Society. 2000;11: 151-161.
45. Park CN. Characteristics and Research Trends of Ni/MH secondary battery. Bulletin of KIEEME. 1991;12: 28-33.
46. Berutti E, Negro AR, Lendini M, Pasqualini D. Influence of manual preflaring and torque on the failure rate of ProTaper rotary instruments. J Endod. 2004;30: 228-230.PubMed
47. Bahia MGA, Martins RC, Gonzalez BM, Buono VTL. Physical and mechanical characterization and the influence of cyclic loading on the behavior of nickel-titanium wires employed in the manufacture of rotary endodontic instruments. Int Endod J. 2005;38: 795-801.PubMed
48. Kobayashi C, Yoshioka T, Suda H. A new engine-driven canal preparation system with electronic canal measuring capability. J Endod. 1997;23: 751-754.Article PubMed
49. Li UM, Lee BS, Shih CT, Lan WH, Lin CP. Cyclic fatigue of endodontic nickel-titanium rotary instruments: static and dynamic tests. J Endod. 2002;28: 448-451.Article PubMed
50. Roane J, Sabala C, Duncanson M. The balanced force concept for instrumentation of curved canals. J Endod. 1985;11: 203-211.PubMed
51. Kyomen SM, Caputo AA, White SN. Critical analysis of the balanced force technique in endodontics. J Endod. 1994;20: 332-337.Article PubMed
52. Petka K. Implementing one-visit root canal therapy. Dent Today. 1998;17: 112-117.

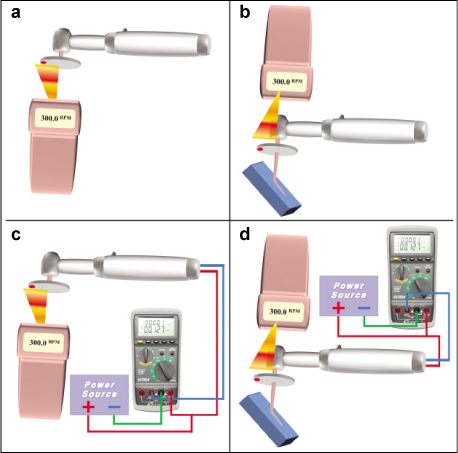

Figure 1

Diagram of measuring method.

a: Measurement of TECNIKA and AEU-25, under the unloading condition.

b: Measurement of TECNIKA and AEU-25, under the loading condition.

c: Measurement of X-Smart and Endomate TC, under the unloading condition.

d: Measurement of X-Smart and Endomate TC, under the loading condition.

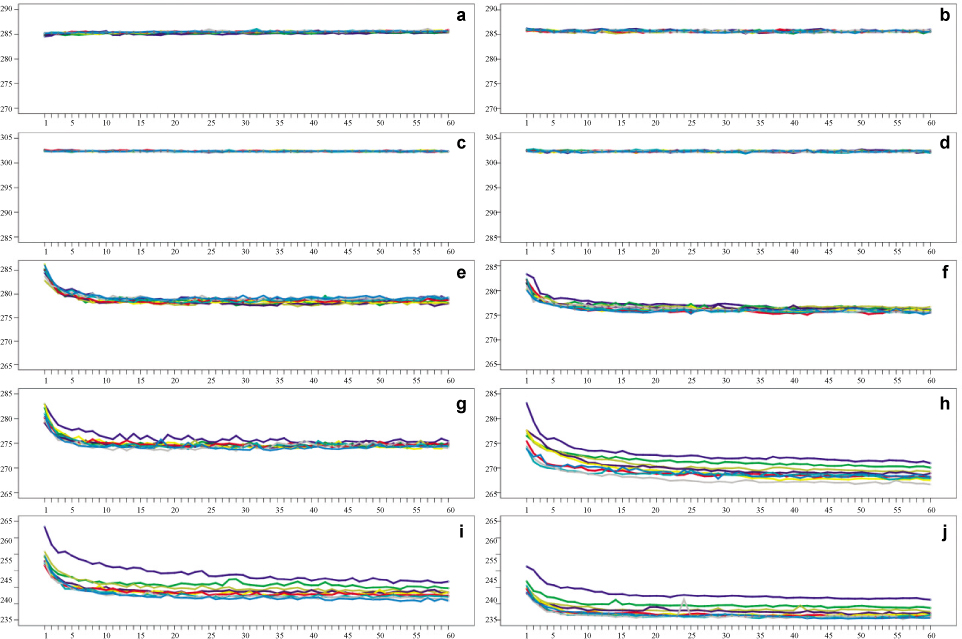

Figure 2

Actual rotational speed (rpm) of each electronic motors.

horizontal axis: The number of measuring times (× 10 seconds), vertical axis: Rotational speed (RPM).

a: Actual rotational speed of TECNIKA, under the unloading condition.

b: Actual rotational speed of TECNIKA, under the loading condition.

c: Actual rotational speed of AEU-25, under the unloading condition.

d: Actual rotational speed of AEU-25, under the loading condition.

e: Actual rotational speed of X-Smart (AC adapter), under the unloading condition.

f: Actual rotational speed of X-Smart (AC adapter), under the loading condition.

g: Actual rotational speed of X-Smart (Battery), under the unloading condition.

h: Actual rotational speed of X-Smart (Battery), under the loading condition.

i: Actual rotational speed of Endomate TC, under the unloading condition.

j: Actual rotational speed of Endomate TC, under the loading condition.

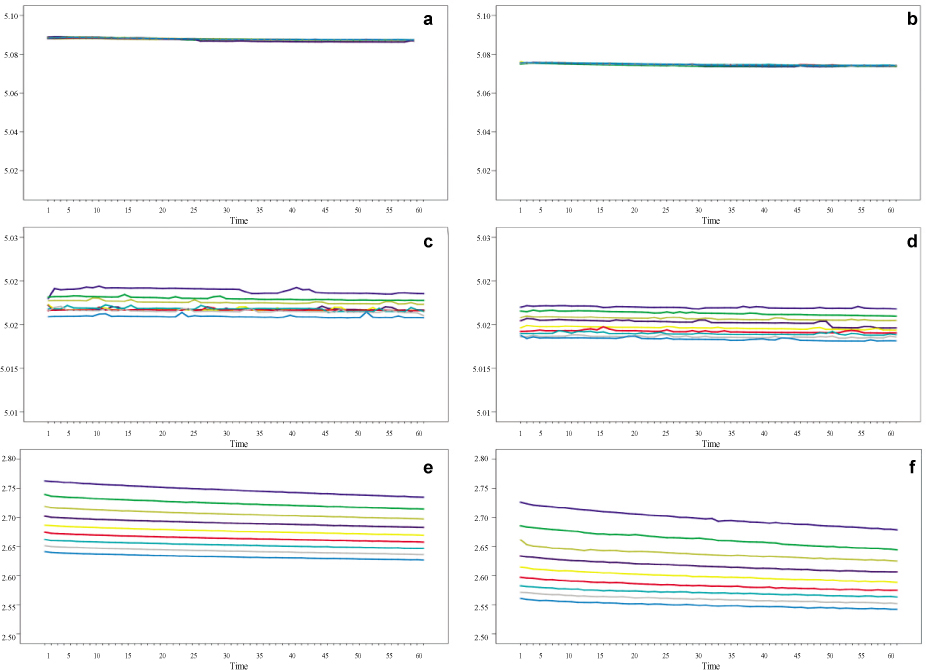

Figure 3

Actual DC voltage (V) depending on repeated using.

a: X-Smart (AC adapter) under the unloading condition.

b: X-Smart (AC adapter) under the loading condition.

c: X-Smart (Battery) under the unloading condition.

d: X-Smart (Battery) under the loading condition.

e: Endomate TC under the unloading condition.

f: Endomate TC under the loading condition.

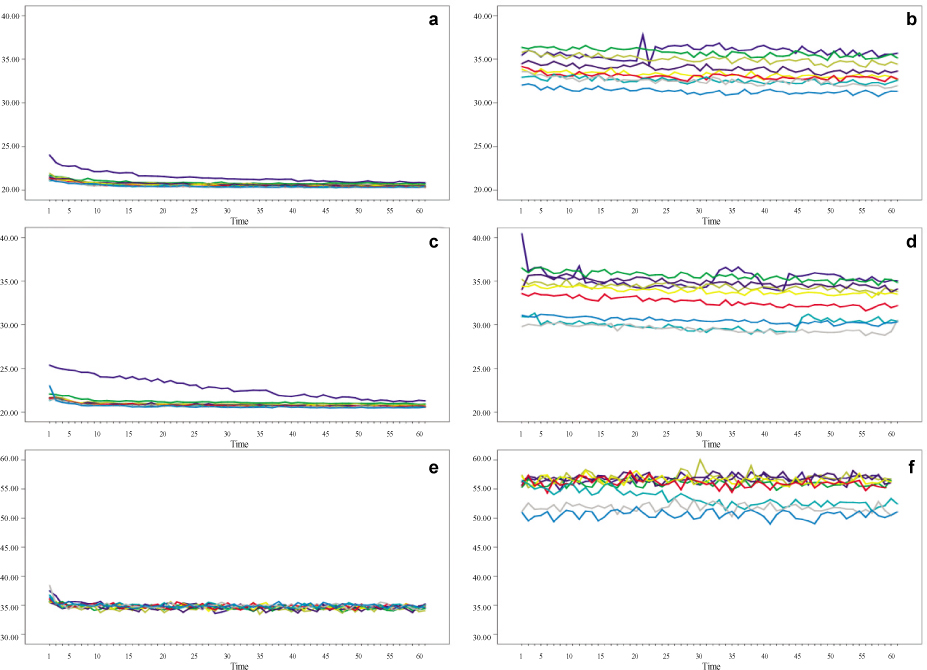

Figure 4

Actual DC current (mA) depending on repeated using.

a: X-Smart (AC adapter) under the unloading condition.

b: X-Smart (AC adapter) under the loading condition.

c: X-Smart (Battery) under the unloading condition.

d: X-Smart (Battery) under the loading condition.

e: Endomate TC under the unloading condition.

f: Endomate TC under the loading condition.

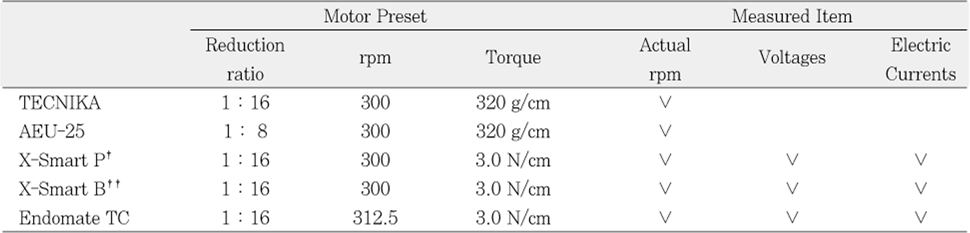

Table 1

Motor preset values and measured item

^†P: Power supplied from AC adapter

^††B: Power supplied from rechargeable battery

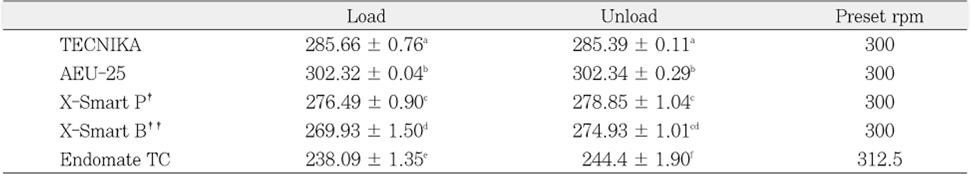

Table 2

Mean values (± standard deviation) of actual rotational speed

^†P: Power supplied from AC adapter

^††B: Power supplied from Rechargeable battery

Student t-test analysis, significantly different at p < 0.05.

The different letter means significant difference between groups.

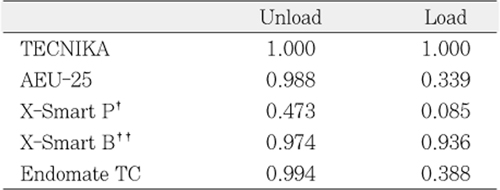

Table 3

P-values in changes of rotational speed in same kind of motors

^†P: Power supplied from AC adapter

^††B: Power supplied from Rechargeable battery

Repeated measure analysis, significantly different at p < 0.05.

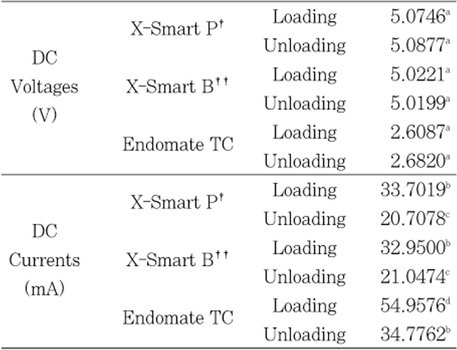

Table 4

Comparison of voltages and currents depending on repeated using and with/without loading

^†P: Power supplied from AC adapter

^††B: Power supplied from Rechargeable battery

Repeated measure analysis, significantly different at p < 0.05.

The different letter means significant difference between groups (p < 0.05).
