THE EFFICACY OF PROGRAMMED CRYO-PRESERVATION UNDER PRESSURE IN RAT PERIODONTAL LIGAMENT CELLS

Young-Eun Lee; Eui-Seong Kim; Jin Kim; Seung-Hoon Han; Seung-Jong Lee

doi:10.5395/JKACD.2009.34.4.356

Articles

Page Path: HOME > Restor Dent Endod > Volume 34(4); 2009 > Article

Original Article THE EFFICACY OF PROGRAMMED CRYO-PRESERVATION UNDER PRESSURE IN RAT PERIODONTAL LIGAMENT CELLS: Young-Eun Lee¹, Eui-Seong Kim¹, Jin Kim², Seung-Hoon Han³, Seung-Jong Lee^1,*; J Korean Acad Conserv Dent 2009;34(4):-363.
DOI: https://doi.org/10.5395/JKACD.2009.34.4.356
Published online: January 14, 2009

¹Department of Conservative Dentistry, College of Dentistry, Yonsei University

²Department of Oral Pathology, Oral Cancer Research Center, Yonsei University

³Department of Conservative Dentistry, Kangbuk Samsung Hospital

*Corresponding Author: Seung-Jong Lee, Department of Conservative Dentistry, College of Dentistry, Yonsei University, 250 Seongsan-ro Seodaemin-Ku, Seoul, 120-752, Korea, Tel: 82-2-2228-3148 Fax: 82-2-313-7575, E-mail sjlee@yuhs.ac

• Received: April 23, 2009 • Revised: June 16, 2009 • Accepted: June 22, 2009

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

102 Views
1 Download
3 Crossref

prev next

Full Article

Download PDF

Abstract
REFERENCES
참고문헌

Abstract

The purpose of this study was to evaluate the viability of periodontal ligament cells in rat teeth using slow cryo-preservation method under pressure by means of MTT assay and WST-1 assay. Eighteen teeth of Sprague-Dawley white female rats of 4 week-old were used for each group.

Both sides of the first and second maxillary molars were extracted as atraumatically as possible under Tiletamine anesthesia. The experimental groups were group 1 (Immediate control), group 2 (Cold preservation at 4°C for 1 week), group 3 (Slow freezing), group 4 (Slow freezing under pressure of 3 MPa). F-medium and 10% DMSO were used as preservation medium and cryo-protectant. For cryo-preservation groups, thawing was performed in 37°C water bath, then MTT assay and WST-1 assay were processed. One way ANOVA and Tukey method were performed at the 95% level of confidence. The values of optical density obtained by MTT assay and WST-1 were divided by the values of eosin staining for tissue volume standardization.

In both MTT and WST-1 assay, group 4 showed significantly higher viability of periodontal ligament cells than group 2 and 3 (p < 0.05), but showed lower viability than immediate control group.

By the results of this study, slow cryo-preservation method under pressure suggests the possibility for long term cryo-preservation of the teeth.
Keywords: periodontal ligament cell; MTT; WST-1; viability; pressure; cryo-preservation

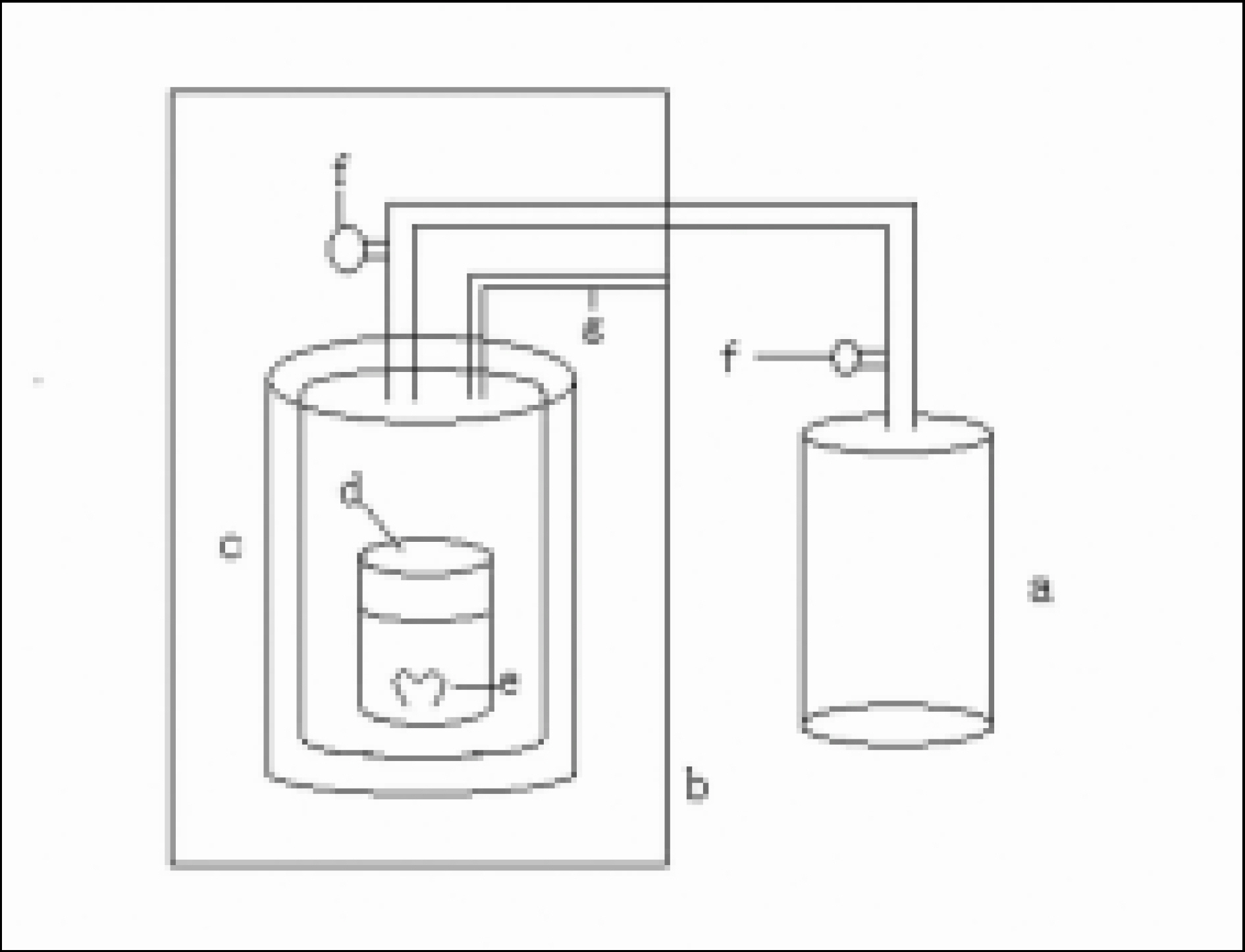

Figure 1.

Schematic diagram of program freezer with pressure vessel.

Oxygen container : 3MPa of pressure
Program freezer
Pressure bottle
2ml Cryotube: 1ml F medium + 10% DMSO
Tooth treated 10% DMSO
Pressure valve
Thermometer

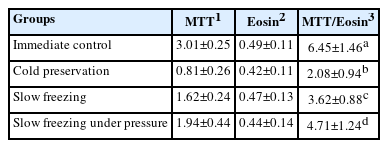

Table 1.

The averages and standard deviations of optical density of MTT.

Groups	MTT¹	Eosin²	MTT/Eosin³
Immediate control	3.01±0.25	0.49±0.11	6.45±1.46^a
Cold preservation	0.81±0.26	0.42±0.11	2.08±0.94^b
Slow freezing	1.62±0.24	0.47±0.13	3.62±0.88^c
Slow freezing under pressure	1.94±0.44	0.44±0.14	4.71±1.24^d

There were significant differences between groups with different subscripts(p<0.05).

The values of MTT¹ are proportional to the vitality of the cells.

The values of Eosin² are proportional to the area of the periodontal ligament cells.

So, the values of MTT/Eosin³ mean the vitality of the periodontal ligament cells per unit area.

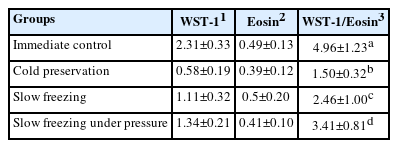

Table 2.

The averages and standard deviations of optical density of WST-1.

Groups	WST-1¹	Eosin²	WST-1/Eosin³
Immediate control	2.31±0.33	0.49±0.13	4.96±1.23^a
Cold preservation	0.58±0.19	0.39±0.12	1.50±0.32^b
Slow freezing	1.11±0.32	0.5±0.20	2.46±1.00^c
Slow freezing under pressure	1.34±0.21	0.41±0.10	3.41±0.81^d

There were significant differences between groups with different subscripts(p<0.05).

The values of WST-1¹ are proportional to the vitality of the cells.

The values of Eosin² are proportional to the area of the periodontal ligament cells.

So the values of WST-1/Eosin³ mean the vitality of the periodontal ligament cells per unit area.

REFERENCES

참고문헌

1. Schwartz O, Andreasen JO. Cryopreservation of mature teeth before replantation in monkeys(I). Effect of different cryopreservation agents and freezing devices. Int J Oral Surg 12(6):425-436. 1983.PubMed
2. Schwartz O, Andreasen JO, Greve T. Cryopreservation before replantation of mature teeth in monkeys(II). Effect of preincubation, different freezing and equilibration rates and endodontic treatment upon periodontal healing. Int J Oral Surg 14(4):350-361. 1985.PubMed
3. Kristerson L. Autotransplantation of human premolars. A clinical and radiographic study of 100 teeth. Int J Oral Surg 14(2):200-213. 1985.PubMed
4. Lindskog S, Blomlof L, Hammarstrom L. Repair of periodontal tissues in vivo and in vitro. J Clin Periodontol 10(2):188-205. 1983.Article PubMed
5. Melcher AH. Repair of wounds in the periodontium of the rat. Influence of periodontal ligament on osteogenesis. Arch Oral Biol 15(12):1183-1204. 1970.PubMed
6. Andreasen JO. Interrelation between alveolar bone and periodontal ligament repair after replantation of mature permanent incisors in monkeys. J Periodontal Res 16(2):228-235. 1981.Article PubMed
7. Kawata T. Tooth transplantation by teeth bank-approach to human-Hiroshima. Department of Orthodontics. Hiroshima University School of Dentistry; 2005.
8. Kaku M, Kamata H, Kawata T. Cryopreservation of PDL cells by use of program freezer with magnetic field for tooth banking. Dent Jpn 43:82-86. 2007.
9. Ahn HJ, Kim ES, Kim J, Kim DW, Kim KY, Lee CY, Lee SJ. Evaluation of viability of periodontal ligament cell in rat teeth-using slow cryoperservation method with magnetic field. J Kor Acad of Cons Dent 33(4):332-340. 2008.
10. Kim JW, Kim ES, Kim J, Lee SJ. Evaluation of periodontal ligament cell viability in rat teeth after frozen preservation using in-vivo MTT assay. J Kor Acad of Cons Dent 3(3):192-202. 2006.Article
11. Kim ES, Jeon IS, Kim JW, Kim J, Juhn HS, Lee SJ. An MTT-based method for quantification of periodontal ligament cell viability. Oral Dis 13(5):495-499. 2007.Article PubMed
12. Rubinsky B. Principles of low temperature cell preservation. Heart Fail Rev 8(3):277-284. 2003.PubMed
13. Schluter O, Urrutia Benet G, Heinz V, Knorr D. Metastable states of water and ice during pressure-supported freezing of potato tissue. Biotechnol Prog 20(3):799-810. 2004.PubMed
14. Zhu SM, Ramaswamy HS, Le Bail A. Ice crystal formation in gelatin gel during pressure shift versus conventional freezing. J of Food Engineering 66(1):69-76. 2005.Article
15. Kawasaki N, Hamamoto Y, Nakajima T, Irie K, Ozawa H. Periodontal regeneration of transplanted rat molars after cryopreservation. Arch Oral Biol 49(1):59-69. 2004.Article PubMed
16. Andreasen JO, Schwartz O. Atlas of replantation and transplantation of teeth. Mediglobe SA, Fribourg, Switzerland 1992.
17. Ashwood-smith MJ. Low temperature preservation of cells, tissues and organs. Pitman Medicals 19-45. 1980.
18. Farrant J. Water transport and cell survival in cryobiological procedures. Philos Trans R Soc Lond B Biol Sci 278(959):191-205. 1977.Article PubMed PDF
19. Nei T. Structure and function of frozen cells freezing patterns and post-thaw survival. J Microsc 112(2):197-204. 1978.Article PubMed
20. Shimada K. Effects of cryoprotective additives on intracellular ice formation and survival in very rapidly cooled HeLa cells. Contrib Inst Low Temp Sci Ser 19:49-69. 1977.
21. Mazur P, Leibo SP, Chu EH. A two-factor hypothesis of freezing injury. Evidence from Chinese hamster tissue-culture cells. Exp Cell Res 71(2):345-355. 1972.PubMed
22. Mazur P. Freezing of living cells: mechanisms and implications. Am J Physiol 247:125-142. 1984.Article PubMed
23. Gao D, Critser JK. Mechanisms of cryoinjury in living cells. ILAR J 41(4):187-196. 2000.Article PubMed
24. Inuzuka K, Unno N, Yamamoto N, Sagara D, Suzuki M, Nishiyama M, Konno H. Effect of hyperbarically oxygenated-perfluorochemical with university of Wisconsin solution on preservation of rat small intestine using an original pressure-resistant portable apparatus. Surgery 142(1):57-66. 2007.Article PubMed
25. Takahashi T, Kakita A, Takahashi YI, Sakamoto K, Yokoyama T, Fujiu S, Yamashina T, Tamaki Y, Takazawa R Muratsubaki. Funtional integrity of the rat liver after subzero preservation under high pressure. Transplant Proc 32(7):1634-1636. 2000.PubMed
26. Takahashi T, Kakita A, Takahashi Y, Yokoyama K, Sakamoto I, Yamashina S. Preservation of rat livers by supercooling under high pressure. Transplant Proc 33(1-2):916-919. 2001.Article PubMed
27. Pribenszky C, Molnar M, Cseh S, Solti L. Improving post-thaw survival of cryopreserved mouse blastocysts by hydrostatic pressure challenge. Anim Reprod Sci 87(1-2):143-150. 2005.Article PubMed
28. Pribenszky C, Du Y, Molnar M, Harnos A, Vajta G. Increased stress tolerance of matured pig oocytes after high hydrostatic pressure treatment. Anim Reprod Sci 106(1-2):200-207. 2008.Article PubMed
29. Du Y, Lin L, Schmidt M, Bogh IB, Kragh PM, Sorensen CB, Li J, Purup S, Pribenszky C, Molnar M, Kuwayama M, Zhang X, Yang H, Bolund L, Vajta G. High hydrostatic pressure treatment of porcine oocytes before handmade cloning improves developmental competence and cryosurvival. Cloning Stem Cells 10(3):325-330. 2008.PubMed
30. Abe F, Kato C, Horikoshi K. Pressure regulated metabolism in microorganisms. Trends Microbiol 7(11):447-453. 1999.Article PubMed
31. Aldridge BE, Bruner LJ. Pressure effects on mechanisms of charge transport across bilayer membranes. Biochim Biophys Acta 817(2):343-354. 1985.Article PubMed
32. Huang SY, Pribenszky C, Kuo YH. . The effect of hydrostatic pressure treatment on the protein profile of boar spermatozoa before and after freezing. Proceedings of the 6th International Conference on Boar Semen Preservation, Alliston, Ontario, Cananda p.I-34. 2007.Article
33. Kaarniranta K, Elo M, Sironen R, Lammi MJ, Goldring MB, Eriksson JE, Sistonen L, Helminen HJ. Hsp 70 accumulation in chondrocytic cells exposed to high continuous hydrostatic pressure coincides with mRNA stabilization rather than transcriptional activation. Proc Natl Acad Sci USA 95(5):2319-2324. 1998.PubMed PMC
34. Elo MA, Sironen RK, Karjalainen HM, Kaarniranta KK, Helminen HJ, Lammi MJ. Specific induction of heat shock protein 90 beta by high hydrostatic pressure. Biorheology 40(1-3):141-146. 2003.Article PubMed PDF
35. Du Y, Pribenszky C, Molnar M, Zhang X, Yang H, Kuwayama M, Pedersen AM, Villemoes K, Bolund L, Vajta G. High hydrostatic pressure: a new way to improve in vitro developmental competence of porcine matured oocytes after vitrification. Reproduction 135(1):13-17. 2008.Article PubMed
36. Fisher S, Maclean AA, Liu M, Cardella JA, Slutsky AS, Suga M, Moreira JF, Keshavjee S. Dynamic changes in apoptotic and necrotic cell death correlate with severity of ischemia-reperfusion injury in lung transplantation. Am J Respir Crit Care Med 162(5):1932-9. 2000.Article PubMed
37. Carlson MA. Technical note: assay of cell quantity in the fibroblast populated collagen matrix with a tetrazolium reagent. Eur Cell Mater 12:44-48. 2006.PubMed
38. Alotto D, Ariotti S, Graziano S, Verrua R, Stella M, Magliacani G, Castagnoli C. The role of quality control in a skin bank: tissue viability determination. Cell Tissue Bank 3(1):3-10. 2002.PubMed
