The canal system of mandibular incisors

Eun-Mi Rhim; Ho-Young Choi; Sang-Jin Park; Gi-Woon Choi

doi:10.5395/JKACD.2002.27.4.432

Articles

Page Path: HOME > Restor Dent Endod > Volume 27(4); 2002 > Article

Original Article The canal system of mandibular incisors: Eun-Mi Rhim, Ho-Young Choi, Sang-Jin Park, Gi-Woon Choi; Journal of Korean Academy of Conservative Dentistry 2002;27(4):432-440.
DOI: https://doi.org/10.5395/JKACD.2002.27.4.432
Published online: July 31, 2002

Department of Conservative Dentistry, College of Dentistry, Kyung Hee University, Korea.

19 Views
0 Download

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

The purpose of this study is to identificate root canal system including ideal access placement, root curvature, canal configuration, incidence of isthmus in mandibular incisors for success of endodontic treatment.

200 mandibular incisors were selected. The ideal access placement was determimed as follows. The teeth were radiographed from mesiodistal and buccolingual views using intraoral dental film. The image was divided into coronal, middle and apical third using the proximal film. Straight line access was determined by measuring the faciolingual canal width and placing points at midway point between the buccal and lingual wall at the junction of the middle and apical third and at the juntion of coronal and middle third of the root canal. A line was drawn connecting these two points extending through the crown of the tooth. The point at which the line crossed the external crown surface was recorded as facial, incisal, lingual. Degree of root curvature was determined by Schneider Protractor Method. Both section method and clearing method were used in this study. By section method, 100 mandibular incisors were embedded in clear resin and transeverse serial sectioned at 0.5, 1.0, 2.0, 3.0, 4.0, 5.0mm level from root apex. The resected surfaces were stained by methylene blue and examined under ×40 magnification with a stereomicroscope. By clearing method, 100 mandibular incisors were cleared in methysalicylate after decalcification with 10% nitric acid and evaluated under ×18 magnification with a stereomicroscope.

The results were as follows ;

1. 29% had the center of the plotted straight-line access facial to incisal edge, whereas 71% had straight-line access at the incisal edge. When incisal wear classified as extensive, the straight-line access was plotted on the incisal edge 95.5%. When incisal wear classified as slight/none, the straight-line access was plotted on the facial 65.9%.

2. Degree of curvature of main canal was straight or almost straight, and only 10% in buccolingual direction had a degree of curvature greater than 20 degrees and 5.5% in mesiodistal direction had.

3. In section method, canal configuration analysis showed that 51% of the specimen classified as type I, 27% as type II, 12% as type III, 10% as type IV. For thoses setions with two canals, the incidence of an isthmus was 26.7%, 64.3%, 79.2%, 96.3%, 97.4%, 97.6% at each level and highest in 3~5mm sections.

4. In clearing method, canal configuration analysis showed that 74% of the specimen classified as type I, 11% as type II, 6% as type III, 9% as type IV.

These results suggested that traditional access from lingual should be moved as far toward the incisal as possible to locate and debride the lingual canal and root canal system should be cleaned, shaped completely and obturated three dimensionally for successful endodontic treatment.

REFERENCES

1. Ingle JI, Barkland LK. Endodontics. 1994;4th ed. Williams & Wilkims; 95-96.
2. Miyashita M, Kasahara E, Yasuda E, et al. Root Canal System of the Mandibular Incisor. J Endod. 1997;23(8):479-484.Article PubMed
3. Benjamin KA, Dowson J. Incidence of two root canals in human mandibular incisor teeth. Oral Surg. 1974;38(1):122-126.Article PubMed
4. Pineda F. Roentgenographic investigation of the mesiobuccal root of the maxillary first molar. Oral Surg. 1973;36(2):253-260.Article PubMed
5. Weller RN, Niemczyk SP, Kim S. Incidence and Position of the Canal Isthmus. Part 1. Mesiobuccal Root of the Maxillary First Molar. J Endod. 1995;21(7):380-383.Article PubMed
6. Ingle JI, Barkland LK. Endodontics. 1994;4th ed. Williams & Wilkims; 116-119.
7. Beer R, Baumann MA, Kim S. Endodontology. 2000;1th ed. Thieme; 47.
8. Schneider SW. A comparison of canal preparations in straight and curved root canals. Oral Surg. 1971;32(2):271-275.Article PubMed
9. Weine FS. Endodontic Therapy. 1989;4th ed. Mosby; 239-243.
10. Mauger MJ, Waite RM, Alexander JB, Schindler WG. Ideal Endodontic Access in Mandibular Incisors. J Endod. 1999;25(3):206-207.Article PubMed
11. Janik JM. Access cavity preparation. Dent Clin North Am. 1984;28: 809-818.Article PubMed
12. Zillich RM, LaTurno SAL, Arbor A. Straight- line endodontic access to anterior teeth. Oral Surg. 1985;59: 418-419.Article PubMed
13. Weine FS, Kelly RF, Lio PJ. The effect of preparation procedure on original canal shape and on apical foramen shape. J Endod. 1975;1: 255-262.PubMed
14. Zmener O, Balbachan L. Effectiveness of nikel- titanium files for preparing curved root canals. Endod Dent Traumatol. 1995;11: 121-123.PubMed
15. Hession RW. Endodontic Morphology II - A Radiographic Analysis. Oral Surg. 1977;44: 610.PubMed
16. Baumann MA, Doll GM. Spatial Reproduction of the Root Canal System by Magnetic Resonance Microscopy. J Endod. 1997;23(1):49-51.Article PubMed
17. Robertson D, Leeb J, Mckee M, Brewer E. A clearing technique for the study of root canal system. J Endod. 1980;6(1):421-424.PubMed
18. Hasselgren G, Nellestam P, Bynum-Hasselgren RM. Teeth with Transparent Roots - An Improved Teaching Aid for Preclinical Endodontics. J Endod. 1987;13(3):126-127.Article PubMed
19. Kartal N, Yanikoglu FC. Root Canal Morphology of Mandibular Incisors. J Endod. 1992;18(11):562-564.Article PubMed
20. Rankien-Wilson RW, Herry P. The bifurcated root canal in lower anterior teeth. J Am Dent Assoc. 1965;70: 1162-1165.Article PubMed
21. Green D. Double canals in single roots. Oral Surg. 1973;35(5):689-696.PubMed
22. Vertucci FJ. Root canal anatomy of the human permanent teeth. Oral Surg. 1984;58(5):589-599.Article PubMed
23. Hsu YY, Kim S. The resected root surface: The issue of canal isthmus. Dent Clin North Am. 1997;41(3):529-540.PubMed
24. Senia ES, Marshall FJ, Rosen S. The solvent action of sodium hypochlorite on pulp tissue of extracted tissues. Oral Surg. 1971;31: 96.PubMed
25. Szajkis S, Tagger M. Periapical healing in spite of incomplete root canal debridement and filling. J Endod. 1983;9: 203-209.Article PubMed

Fig. 1

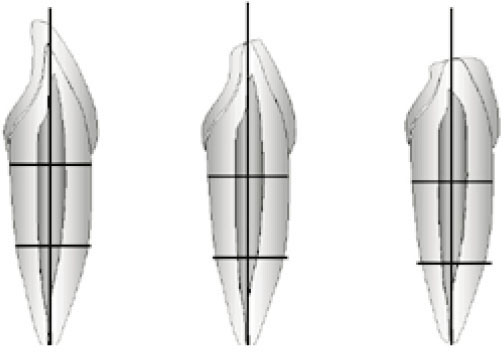

Ideal access placement and incisal wear

Fig. 2

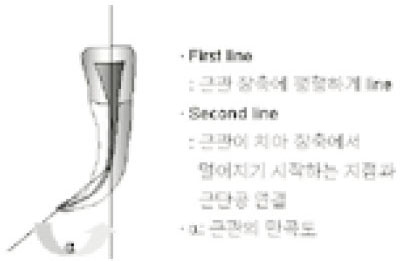

Schneider Protractor Method

Fig. 3

Representative Photograph of Type IV root canal at 1.0mm from root apex by section method (×40).

Fig. 4

Representative Photograph of Type IV root canal at 2.0mm from root apex by section method (×40).

Fig. 5

Representative Photograph of Type IV root canal at 3.0mm from root apex by section method (×40).

Fig. 6

Representative Photograph of Type IV root canal at 4.0mm from root apex by section method (×40).

Fig. 7

Representative Photograph of section with no isthmus(×40).

Fig. 8

Representative Photograph of section with partial isthmus(×40).

Fig. 9

Representative Photograph of section with complete isthmus(×40).

Fig. 10

Representative Photograph of Type I root canal by clearing method(×18).

Fig. 11

Representative Photograph of Type II root canal by clearing method(×18).

Fig. 12

Representative Photograph of Type III root canal by clearing method(×18).

Fig. 13

Representative Photograph of Type IV root canal by clearing method(×18).

Table 1

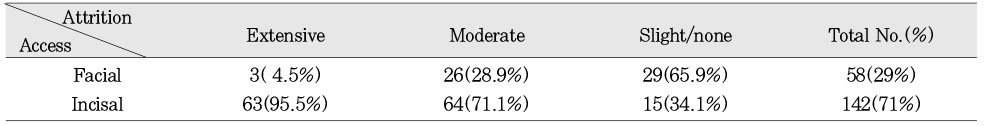

The Relationship between ideal access placement and incisal wear (n=200)

Table 2

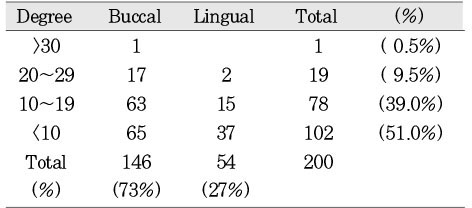

Degree and direction of curvature of main canal (n=200)

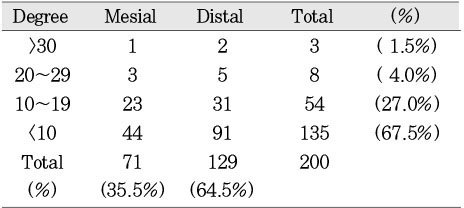

Table 3

Degree and direction of curvature of main canal (n=200)

Table 4

Number and frequency of root canal type in mandibular incisors by section method (n=100)

Table 5

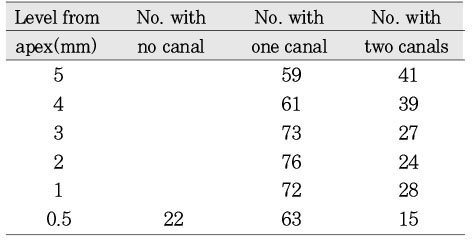

The Number of canals at each level (n=100)

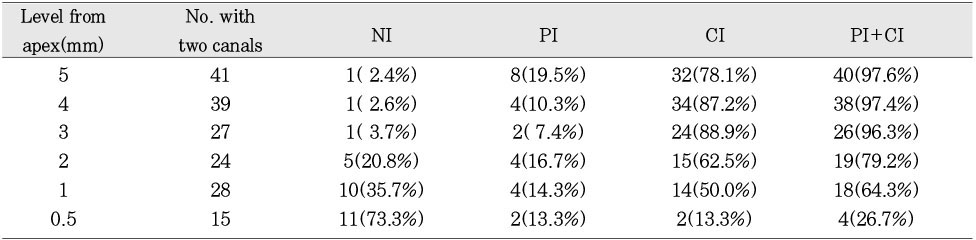

Table 6

The incidence of isthmus at each level in sections with two canals

NI: no isthmus PI: partial isthmus CI: complete isthmus

Table 7

Number and frequency of root canal type in mandibular incisors by clearing method (n=100)
