- Original Article Polymerization shrinkage, hygroscopic expansion and microleakage of resin-based temporary filling materials
- Nak Yeon Cho, In-Bog Lee
-
Journal of Korean Academy of Conservative Dentistry 2008;33(2):115-124.
DOI: https://doi.org/10.5395/JKACD.2008.33.2.115
Published online: March 31, 2008
Department of Consevative Dentistry, School of Dentistry, Seoul National University, Korea.
- Corresponding Author: In-Bog Lee. Department of Conservative Dentistry, School of Dentistry, Seoul National University, 275-1 Yeongeon-Dong, Jongno-Gu, Seoul 110-768, Korea. Tel: 82-2-2072-3953, Fax: 82-2-2072-3859, inboglee@snu.ac.kr
• Received: January 28, 2008 • Revised: March 5, 2008 • Accepted: March 6, 2008
Copyright © 2008 Korean Academy of Conservative Dentistry
- 16 Views
- 0 Download
Abstract
-
The purpose of this study was to measure the polymerization shrinkage and hygroscopic expansion of resin-based temporary filling materials and to evaluate microleakage at the interface between the materials and cavity wall.Five resin-based temporary filing materials were investigated: Fermit (Vivadent), Quicks (Dentkist), Provifil (Promedica), Spacer (Vericom), Clip (Voco). Caviton (GC) was also included for comparison. Polymerization shrinkage of five resin-based temporary filling materials was measured using the bonded disc method. For the measurement of hygroscopic expansion, the discs of six cured temporary filling materials were immersed in saline and a LVDT displacement sensor was used to measure the expansion for 7 days. For estimating of microleakage, Class I cavities were prepared on 120 extracted human molars and randomly assigned to 6 groups of 20 each. The cavities in each group were filled with six temporary filling materials. All specimens were submitted to 1000 thermo-cycles, with temperature varying from 5℃/55℃. Microleakage was determined using a dye penetration test.The results were as follows:
Fermit had significantly less polymerization shrinkage than the other resin-based temporary filling materials. Fermit (0.22 %) < Spacer (0.38 %) < Quicks (0.64 %), Provifil (0.67 %), Clip (0.67 %)
Resin-based temporary filling materials showed 0.43 - 1.1 % expansion in 7 days.
Fermit showed the greatest leakage, while Quicks exhibited the least leakage.
There are no correlation between polymerization shrinkage or hygroscopic expansion and microleakage of resin-based temporary filling materials.
- 1. Paul SJ, Scharer P. Effect of provisional cements on the bond strength of various adhesive bonding systems on dentine. J Oral Rehabil. 1997;24: 8-14.PubMed
- 2. Garber DA, Goldstein RE. Porcelain and composite inlays & onlays. 1994;Quintessence Publishing Co, Inc; 57-61.
- 3. Tulunoglu O, Uctasli MB, Ozdemir S. Coronal microleakage of temporary restorations in previously restored teeth with amalgam and composite. Oper Dent. 2005;30(3):331-337.PubMed
- 4. Deveaux E, Hildelbert P, Neut C, Romond C. Bacterial microleakage of Cavit, IRM, TERM, and Fermit : a 21-day in vitro study. J Endod. 1999;25(10):653-659.ArticlePubMed
- 5. Mayer T, Eickholz P. Microleakage of temporary restorations after thermocycling and mechanical loading. J Endod. 1997;23(5):320-322.ArticlePubMed
- 6. Anderson RW, Powell BJ, Pashley DH. Microleakage of three temporary endodontic restorations. J Endod. 1988;14(10):497-501.PubMed
- 7. Bobotis HG, Anderson RW, Pashley DH, Pantera EA. A microleakage study of temporary restorative materials used in endodontics. J Endod. 1989;15(12):569-572.ArticlePubMed
- 8. Uctasli MB, Tinaz AC. Microleakage of different types of termporary restorative materials used in endodontics. J Oral Sci. 2000;42(2):63-67.PubMed
- 9. Hosoya N, Cox CF, Arai T, Nakamura J. The walking bleach procedure: an in vitro study to measure microleakage of five temporary sealing agents. J Endod. 2000;26(12):716-718.ArticlePubMed
- 10. Noguera AP, McDonald NJ. A comparative in vitro coronal microleakage study of new endodontic restorative materials. J Endod. 1990;6(11):523-527.
- 11. Watts DC, Cash AJ. Determination of polymerization shrinkage kinetics in visible-light-cured materials: methods development. Dent Mater. 1991;281-287.ArticlePubMed
- 12. Lee IB, Cho BH, Son HH, Um CM. The effect of consistency, specimen geometry and adhesion on the linear polymerization shrinkage measurement of light cured composites. Dent Mater. 2006;2(11):1071-1077.
- 13. Campos PEGA, Sampaio Filho HR, Barceleir MO. Occlusal loading evaluation in the cervical intergrity of class II cavities filled with composite. Oper Dent. 2005;(6):727-732.
- 14. de Gee AJ, Feilzer AJ, Davidson CL. True linear polymerization shrinkage of unfilled resins and composite determined with a linometer. Dent Mater. 1995;9: 11-14.
- 15. Davidson CL, Feilzer AJ. Polymerization shrinkage and polymerization shrinkage stress in polymer-based restoratives. J Dent. 1997;25: 435-440.ArticlePubMed
- 16. Scotti R, Ciocca L, Baldissara P. Microleakage of temporary endodontic restorations in overdenture tooth abutments. Int J Prosthodont. 2002;15: 479-482.PubMed
- 17. Jacquot BM, Panighi MM, Steinmetz P, G'sell C. Evaluation of temporary restorations' microleakage by means of electrochemical impedance measurements. J Endod. 1996;22(11):586-589.ArticlePubMed
- 18. Teplitsky PE, Meimaris IT. Sealing ability of Cavit and TERM as intermediate restorative materials. J Endod. 1988;14(6):278-282.PubMed
- 19. Lee YC, Yang SF, Hwang YF, Chueh LH, Chung KH. Microleakage of endodontic temporary restorative materials. J Endod. 1993;19: 516-520.ArticlePubMed
- 20. Widerman FH, Eames WB, Serene TP. The physical and biological properties of Cavit. JADA. 1971;82: 378-382.PubMed
- 21. Webber RT, del Rio CE, Brady JM, Segall RO. Sealing quality of a temporary filling material. Oral Surg. 1978;46: 123-130.ArticlePubMed
- 22. Uranga A, Blum JY, Esber S, Parahy E, Prado C. A comparative study of four coronal obturation materials in endodontic treatment. J Endod. 1999;25(3):178-180.PubMed
- 23. Qvist V. The effect of mastication on marginal adaptation of composite restorations in vivo. J Dent Res. 1983;62: 904-906.ArticlePubMedPDF
REFERENCES
Figure 2

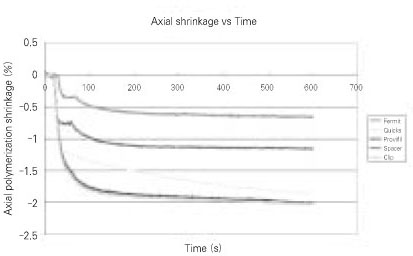

Representative curves of axial polymerization shrinkage of temporary filling materials as a function of time.
Figure 4

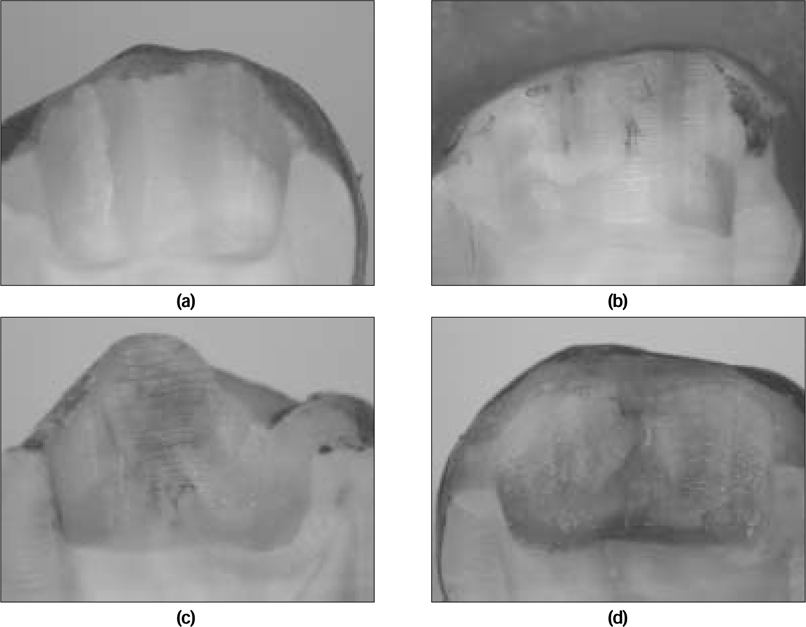

The representative pictures for different microleakage patterns.
(a) Score 0: no leakage
(b) Score 1: leakage up to half of the cavity depth
(c) Score 2: leakage in the entire cavity depth without reaching the pulpal wall
(d) Score 3: leakage in the entire cavity depth even reaching the pulpal wall
Figure 5

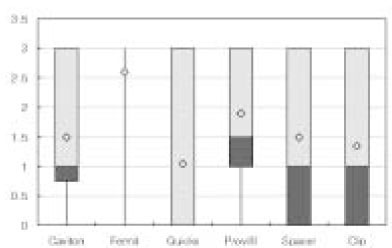

Boxplot display of mean and median leakage score for each group.
The plot illustrates a summary of the microleakage scores based on the median, quartiles, and extreme values. The box represents the interquartile range which contains the 50% of values, the whiskers represent the highest and lowest microleakage values and the bold black line across the box indicates the median microleakage scores. The mark ◇ represents the mean microleakge scores.
Table 2
Calculated linear polymerization shrinkage (%) of temporary filling materials
The numbers in parenthesis are S.D.
Same superscript letters mean that there is no statistical difference.
Calculated linear shrinkage = measured axial shrinkage ×(1/3)
Tables & Figures
REFERENCES
Citations
Citations to this article as recorded by
ePub Link
Cite
XML DownloadPolymerization shrinkage, hygroscopic expansion and microleakage of resin-based temporary filling materials
Figure 1

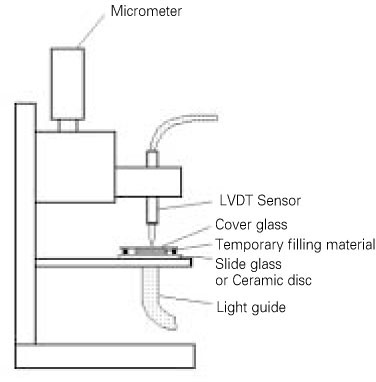

Structure of an instrument to measure axial polymerization shrinkage.
Figure 2
Representative curves of axial polymerization shrinkage of temporary filling materials as a function of time.
Figure 3-a

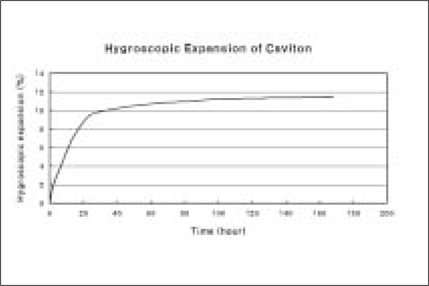

Hygroscopic expansion of Caviton as a function of time.

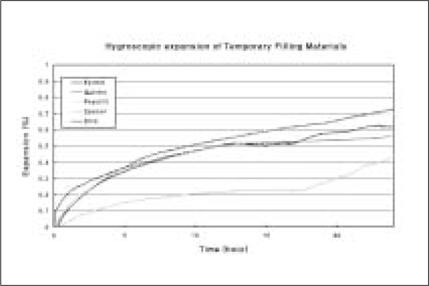

Figure 3-b
Initial hygroscopic expansion of temporary resin materials as a function of time.
Figure 4
The representative pictures for different microleakage patterns.
(a) Score 0: no leakage
(b) Score 1: leakage up to half of the cavity depth
(c) Score 2: leakage in the entire cavity depth without reaching the pulpal wall
(d) Score 3: leakage in the entire cavity depth even reaching the pulpal wall
Figure 5
Boxplot display of mean and median leakage score for each group.
The plot illustrates a summary of the microleakage scores based on the median, quartiles, and extreme values. The box represents the interquartile range which contains the 50% of values, the whiskers represent the highest and lowest microleakage values and the bold black line across the box indicates the median microleakage scores. The mark ◇ represents the mean microleakge scores.
Figure 1
Figure 2
Figure 3-a
Figure 3-b
Figure 4
Figure 5
Polymerization shrinkage, hygroscopic expansion and microleakage of resin-based temporary filling materials
Materials used in this study
Calculated linear polymerization shrinkage (%) of temporary filling materials
The numbers in parenthesis are S.D.
Same superscript letters mean that there is no statistical difference.
Calculated linear shrinkage = measured axial shrinkage ×(1/3)
Hygroscopic expansion (%) of temporary filling materials at 24 hr and 7 days
The numbers in parenthesis are S.D.
Same superscript letters mean that there is no statistical difference.
Number of specimens in each score and mean microleakage score

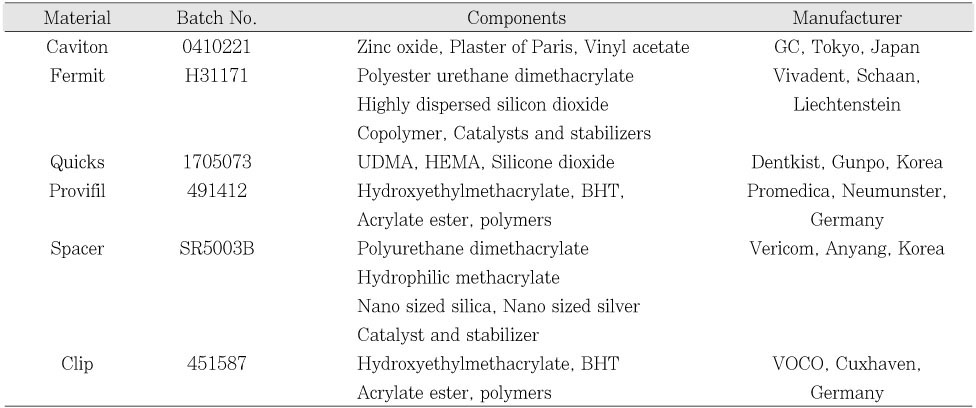

Table 1
Materials used in this study

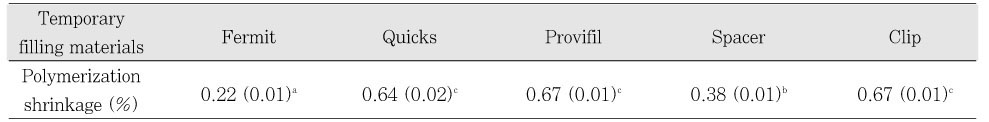

Table 2
Calculated linear polymerization shrinkage (%) of temporary filling materials
The numbers in parenthesis are S.D. Same superscript letters mean that there is no statistical difference. Calculated linear shrinkage = measured axial shrinkage ×(1/3)

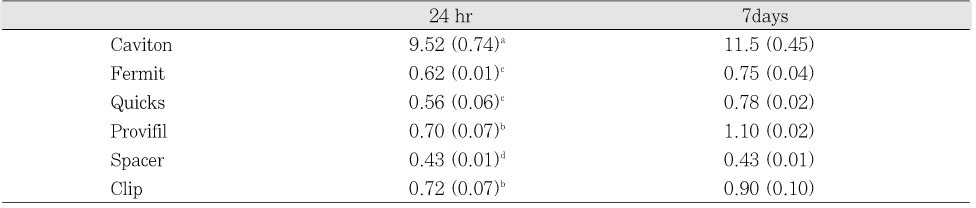

Table 3
Hygroscopic expansion (%) of temporary filling materials at 24 hr and 7 days
The numbers in parenthesis are S.D. Same superscript letters mean that there is no statistical difference.

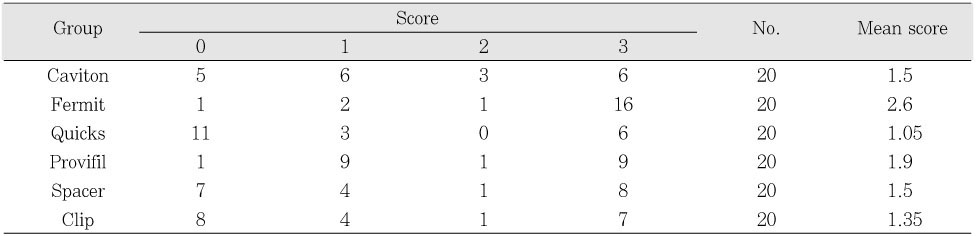

Table 4
Number of specimens in each score and mean microleakage score
