Effect of light intensity on the polymerization rate of composite resin using real-time measurement of volumetric change

Sung-Ho La; In-Bog Lee; Chang-Keun Kim; Byeong-Hoon Cho; Kwang-Won Lee; Ho-Hyun Son

doi:10.5395/JKACD.2002.27.2.135

Articles

Page Path: HOME > Restor Dent Endod > Volume 27(2); 2002 > Article

Original Article Effect of light intensity on the polymerization rate of composite resin using real-time measurement of volumetric change: Sung-Ho La, In-Bog Lee, Chang-Keun Kim^*, Byeong-Hoon Cho, Kwang-Won Lee^**, Ho-Hyun Son; 2002;27(2):-141.
DOI: https://doi.org/10.5395/JKACD.2002.27.2.135
Published online: March 31, 2002

Department of Conservative Dentistry, College of Dentistry, Seoul National University, Korea.

^*Department of Chemical Engineering, Chung-Ang University, Korea.

^**Department of Conservative Dentistry, College of Dentistry, Chonbuk National University, Korea.

138 Views
0 Download
1 Crossref

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

Objectives
The aim of this study is to evaluate the effect of light intensity variation on the polymerization rate of composite resin using IB system (the experimental equipment designed by Dr. IB Lee) by which real-time volumetric change of composite can be measured.
Methods
Three commercial composite resins [Z100(Z1), AeliteFil(AF), SureFil(SF)] were photopolymerized with Variable Intensity Polymerizer unit (Bisco, U.S.A.) under the variable light intensity (75/150/225/300/375/450mW²) during 20 sec. Polymerization shrinkage of samples was detected continuously by IB system during 110 sec and the rate of polymerization shrinkage was obtained by its shrinkage data. Peak time(P.T.) showing the maximum rate of polymerization shrinkage was used to compare the polymerization rate.
Results
Peak time decreased with increasing light intensity(p<0.05). Maximum rate of polymerization shrinkage increased with increasing light intensity(p<0.05). Statistical analysis revealed a significant positive correlation between peak time and inverse square root of the light intensity (AF:R=0.965, Z1:R=0.974, SF:R=0.927). Statistical analysis revealed a significant negative correlation between the maximum rate of polymerization shrinkage and peak time(AF:R=-0.933, Z1:R=-0.892, SF:R=-0.883), and a significant positive correlation between the maximum rate of polymerization shrinkage and square root of the light intensity (AF:R=0.988, Z1:R=0.974, SF:R=0.946).
Discussion and Conclusions
The polymerization rate of composite resins used in this study was proportional to the square root of light intensity. Maximum rate of polymerization shrinkage as well as peak time can be used to compare the polymerization rate. Real-time volume method using IB system can be a simple, alternative method to obtain the polymerization rate of composite resins.
Keywords: Composite Resin; Volumetric Shrinkage; Rate of Polymerization; Light Intensity; IB system

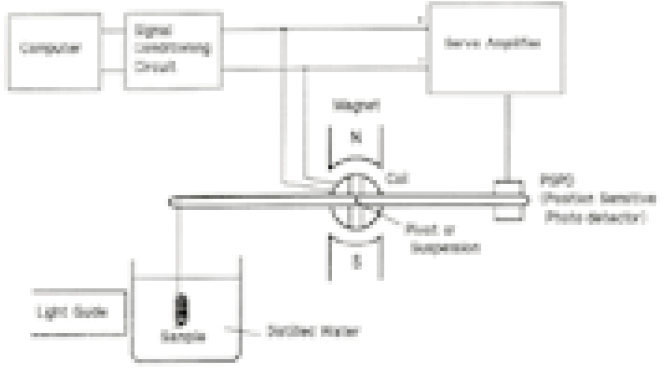

Fig. 1

System configuration of IB system16)

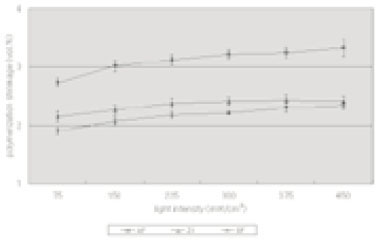

Fig. 2

Final volumetric polymerization shrinkage (vol.%) of composite resins according to light intensity. The shrinkage values were measured for 110sec (n=10).

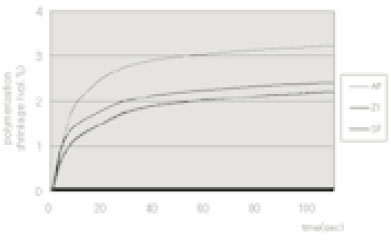

Fig. 3

Polymerization shrinkage of AF, Z1 and SF under 300mW/cm² as a function of time (vol.%).

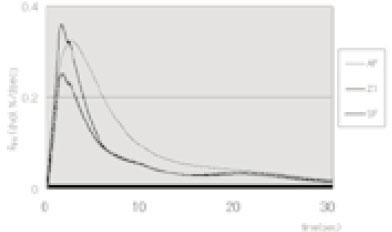

Fig. 4

Rate of polymerization shrinkage of AF, Z1 and SF under 300mW/cm² as a function of time (R_ps : dvol.%/dsec).

R_ps:rate of polymerization shrinkage.

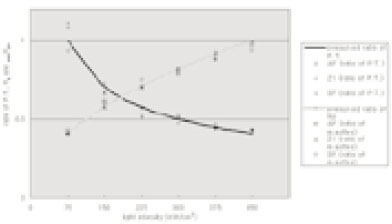

Fig. 5

Presumed ratio of P.T. & R_p and ratio of experimental P.T. & _maxR_p.

P.T.:peak time

R_p:rate of polymerization

_maxR_ps:maximum rate of polymerization shrinkage

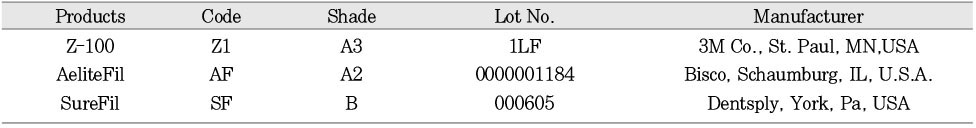

Table 1

Composite resins used in this study.

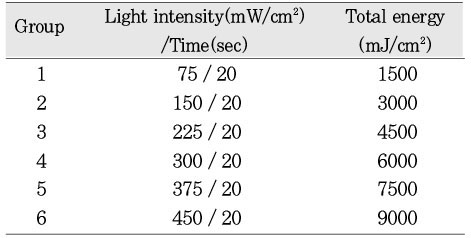

Table 2

The experimental groups according to light intensity.(n=10)

Table 3

Maximum rate of polymerization shrinkage (_maxR_ps; dvol.%/ dsec) determined in the experiment.

(The numbers in the parenthesis are standard deviations.)

Table 4

Peak time(sec) determined in experiment.

(The numbers in the parenthesis are standard deviations.)

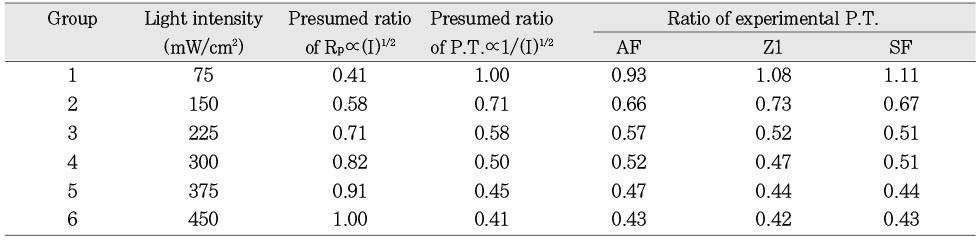

Table 5

Presumed ratio of R_p and P.T. and ratio of experimental P.T.

P.T.:peak time

R_p:rate of polymerization

REFERENCES
