The effect of cyanate methacrylate on the shear bond strengths to dentin

Hyang-Kyung Kim; Kyung-Kyu Choi; Gi-Woon Choi; Sang-Jin Park

doi:10.5395/JKACD.2007.32.3.236

Articles

Page Path: HOME > Restor Dent Endod > Volume 32(3); 2007 > Article

Original Article The effect of cyanate methacrylate on the shear bond strengths to dentin: Hyang-Kyung Kim, Kyung-Kyu Choi, Gi-Woon Choi, Sang-Jin Park; Journal of Korean Academy of Conservative Dentistry 2007;32(3):236-247.
DOI: https://doi.org/10.5395/JKACD.2007.32.3.236
Published online: May 31, 2007

Department of Conservative Dentistry, Division of Dentistry, Graduate of Kyung Hee University, Korea.

Corresponding Author: Sang-Jin Park. Department of Conservative Dentistry, Division of Dentistry, Graduate of Kyung Hee University, 1, Hoegi Dong, Dongdaemun Gu, Seoul, Korea, 130-702. Tel: 82-2-958-9335, psangjin@khu.ac.kr

• Received: March 21, 2007 • Revised: April 24, 2007 • Accepted: April 30, 2007

14 Views
0 Download

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

The purpose of this study was to evaluate the effects of cyanate methacylate on the shear bond strengths to bovine dentin surfaces as a dentin primers.

Seven experimental adhesives were made with different mass fraction of Isocyanatoetylmethacrylate (IEM), 40wt% HEMA (Wako Pure Chemical Industries Osaka, Japan), 0.6% camphoroquinone, 0.4% amine and ethanol as balance. dentin bonding agents (0, 2, 4, 6, 8, 10, 12%) were made and applied on the surface of bovine dentin specimens of 7 experimental groups.

Shear bond strengths were measured using a universal testing machine (Instro 4466).

To identify the ratio and modes of cohesive failures, microscopic examinationn was performed. The ultra-structure of resin tags were observed under scanning electron microscope.

The results were as follows ;

1) A higher shear bond strengths (33.62 _MPa) in group 8% of Cyanate methacrylate to dentin were found, but there were no statistically significancy between Groups (p > 0.05).

2) The higher ratio of cohesive failures mode in group 2, 6, an 10% could be seen than that in any other groups.

3) A shorter resin tags were observed in all experimental groups.

This could be resulted that the preventing from the cyanate methacrylate penetrate into dentin owing to reacting it with dentin collagen.

Therefore the resin tags were shorter in lengths.

Whether the higher bonding strengths of dentin bonding agents can be affected was not been assured with statistic results.

The results indicated that the relation between tensile strengths of the dentin adhesives to bovine dentin and resin tags formed into the dentin could not affected.

The main reason of increasing the shear bond strength to bovine dentin in experimental groups could not be assured.
Keywords: Dentin primer; Isocyanate methacrylate; Shear bond strength; Resin tag; Cohesive failures; Collagen

REFERENCES

1. Buonocore MG. A simple method of increasing the adhesion of acrylic filling materials to enamel surfaces. J Dent Res. 1955;34: 849-853.Article PubMed PDF
2. Bowen RL, Cobb EN, Rapson JE. Adhesive bonding of various materials to hard tooth tissues: improvement in bond strength to dentin. J Dent Res. 1982;61: 1070-1076.PubMed
3. Hulmes DJ, Wess TJ, Prockop DJ, Fratzl P. Radial packing, order, and disorder in collagen fibrils. Biophys J. 1995;68: 1661-1670.Article PubMed PMC
4. Nakabayashi N, Pashley DH. Hybridization of dental hard tissues. 1998;Quintessence Publishing Co.; 1-107.
5. Van Meerbeek B, Perdigao J, Lambrechts P, Vanherle G. The clinicabonding to dentin with ferrous chloride primers and tri-n-butyl borane l performance of adhesives. J Dent. 1998;26: 1-20.PubMed
6. Taira Y, Matsumura H, Yoshida K, Tanaka T, Atsuta M. Adhesive-initiated luting agents. J Dent Res. 1996;75: 1859-1864.Article PubMed PDF
7. Sensi LG, Lopes GC, Monterio S Jr, Baratieri LN, Vieira LC. Dentin bond strength of self-etching primers/adhesives. Oper Dent. 2005;30: 63-68.PubMed
8. Watanabe I, Nakabayashi N, Pashley DH. Bonding to ground dentin by a phenyl-p self-etching primer. J Dent Res. 1994;73: 1212-1220.Article PubMed PDF
9. Taira Y, Matsumura H, Yoshida K, Tanaka T, Atsuta M. Adhesive bonding to dentin with ferrous chloride primers and tri-n-butylborane-initiated luting agents. J Dent Res. 1996;75: 1859-1864.Article PubMed PDF
10. Taira Y, Matsumura H, Atsuta M. Use of 2-isocyanatoethyl methacrylate and iron(II) perchlorate for bonding tri-n-butylborane-initiated luting agents to dentin. Eur J Oral Sci. 1998;106: 887-891.Article PubMed PDF
11. Taira Y, Matsumura H, Yoshida K, Kamada K, Tanaka T, Atsuta M. Metal chloride primers for bonding dentine with tri-n-butyl borane-initi-ated luting agents. J Dent. 1998;26: 603-608.PubMed
12. Munksgaard EC, Inc M, Asmussen E. Dentin-polymer bond promoted by Gluma and various resins. J Dent Res. 1985;64: 1409-1411.Article PubMed PDF
13. Nakabayashi N, Nakamura M, Yasuda N. Hybrid layer as a dentin bonding mechanism. J Esthet Dent. 1991;3: 133-138.Article PubMed
14. De Munck J, Vargas M, Iracki J, Van Landuyt K, Poitevin A, Lambrechts P, Van Meerbeek B. One-day bonding effectiveness of new self-etch adhesives to bur-cut enamel and dentin. Oper Dent. 2005;30(1):39-49.PubMed
15. Chappelow CC, Power MD, Bowels CQ, Miller RG, Pinzino CS, Eick JD. Novel priming and crosslinking systems for use with isocyanato-methacrylate dental adhesives. Dent Mater. 2000;16: 396-405.PubMed
16. Antonucci JM, Brauer GM, Termini DJ. Isocyanato urethane methacrylates derived from hydroxyethyl methacrylate. J Dent Res. 1980;59: 35-43.Article PubMed PDF
17. Stackhouse JA Jr, Kristol DS, Von Hagen S, Rao G. Effect of substrate condition and substituted phenols and methacrylates on toluene diisocyanate/dentin bond strengths. J Biomed Mater Res. 1989;23: 81-90.Article PubMed
18. Chappelow CC, Byerley TJ, Pinzino CS, Millich F, Eick JD. Design and development of isocyanatoacrylates as dental adhesives. J Dent Res. 1996;75: 761-767.Article PubMed PDF
19. Lee CH, Brauer GM. Oligomers with pendant isocyanate groups as adhesives for dentin and other tissues. J Dent Res. 1989;68: 484-488.PubMed
20. Brauer GM, Lee CH. Oligomers with pendant isocyanate groups as tissue adhesives : II Adhesion to bone and other tissues. J Biomed Mater Res. 1989;23: 753-763.Article PubMed
21. Asmussen E, Munksgaard EC. Bonding of restorative resins to dentin by means of methacryloylchloride and methacryloyl-R-isocyanate. Scand J Dent Res. 1983;91: 153-155.Article PubMed
22. Vanherle Guido, Smith Dennis C. Posterior composite resin dental restorative materials. 1985;Amsterdam: Peter Szulc pulblishing co.
23. Byerley TJ, Chappelow CC, Chappell RP, Millich F, Eick JD. Isocyanatoacrylate, A new class of dental adhesives. J Dent Res. 1991;70: 363-370.
24. Nishida K, Yamauchi J, Wada T, Hosoda H. Development of a new bonding system. J Dent Res. 1993;72: 137. (IADR Abstracts) No. 267.
25. Ferrari M, Davidson CL. Sealing perfomance of Scotchbond Multi-purpose-Z100 in Class II restorations. Am J Dent. 1996;145-149.
26. Tay FR, Gwinnett AJ, Pang KM, Wei SHY. Micromorphological relationship of the resin-dentin interface following a total etch technique in vivo using a dentinal bonding system. Quintessence Int. 1995;26: 63-70.
27. Tay FR, Gwinnett AJ, Wei SHY. The overwet Phenomenon : An optical, micro-morphological study of surface moisture in the acid-conditioned, resin-dentin interface. Am J Dent. 1996;9: 43-48.PubMed
28. Tay FR, Gwinnett AJ, Wei SHY. The overwet Phenomenon : An transmission electronical micro-morphological study of surface moisture in the acid-conditioned, resin-dentin interface. Am J Dent. 1996;9: 161-166.PubMed
29. Swift EJ Jr, Triolo PT. Bond strength of Scotchbond Multipurpose to moist dentin and enamel. Am J Dent. 1992;5: 318-320.PubMed
30. Ferrari M, Davidson CL. In vivo resin dentin interdiffusion and tag formation with lateral branches of two adhesive systems. J Prosthet Dent. 1996;76: 250-253.Article PubMed
31. Pashley DH, Livingston MJ, Greenhill JD. Regionl resistances to fluid flow in human dentin in vitro. Arch Oral Biol. 1978;23: 807-810.PubMed
32. Holtan JR, Nystrom GP, Phelps RA, Anderson TB, Becker WS. Influence of different etchants and etching times on shear bond strength. Oper Dent. 1995;20: 94-99.PubMed
33. Nikaido T, Burrow MF, Tagami J, Takatsu T. Effect of pulpal pressure on adhesion of resin composite to dentin; Bovine serum versus saline. Quintessence Int. 1995;26: 221-226.PubMed
34. Reis A, Grandi V, Carlotto L, Borotoli G, Patzlaff R, Rodriguues Accorinte Mde L, Dourado Logguercio A. Effect of smear layer thickness and acidity of self-etching solution on early and long-term bonding strength to dentin. J Dent. 2005;33: 549-559.PubMed
35. Kenshima S, Resi A, Uceda-Gomez N, Tancredo Lde, Filho LE, Nogueira FN, Loguercio AD. Effect of smear layer thickness and pH of self-etching adhesives on the bond strength and gap formation to dentin. J Adhes Dent. 2005;7: 117-126.PubMed
36. Tani C, Finger WJ. Effect of smear layer thickness on bond strength medicated by three all-in-one self-etching priming adhesives. J Adhes Dent. 2002;4: 283-289.PubMed
37. Tay FR, Carvalho R, Sano H, Pashley DH. Effect of smear layers on the bonding of a self-etching primer to dentin. J Adhes Dent. 2000;2: 99-116.PubMed
38. Sano H, Takatsu T, Giucchi B, Russel CM, Pashley DH. Tensile properties of resin-infiltrated deminerized human dentin. J Dent Res. 1995;74: 1093-1102.Article PubMed PDF
39. Sano H, Takatsu T. Giucleakage with the hybrid layer. Oper Dent. 1995;20: 18-25.PubMed
40. Burrow MF, Tagami J, Hosoda H. The long term durability of bond strengtrhs to dentin. Bull Tokyo Med Dent Univ. 1993;40: 173-191.PubMed
41. Eliades GC, Caputo AA, Vougiouklakis GJ. Composition, wetting, properties and bond strength with dentin of 6 new dentin adhesives. Dent Mater. 1985;1: 170-176.Article PubMed
42. Gwinnett AJ. Quantitative contribution of resin infiltration/hybridization to dentin bonding. Am J Dent. 1993;6: 7-9.PubMed

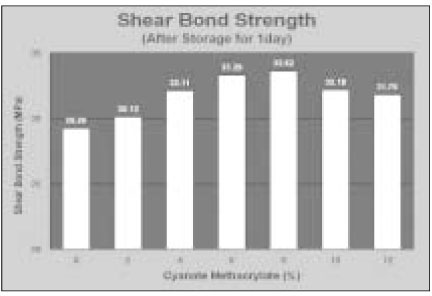

Figure 1

Shear bond strengths between seven experimental groups.

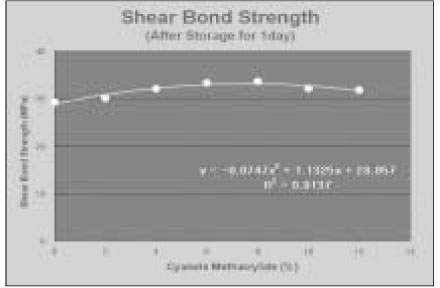

Figure 2

Result of linear regression analysis in seven experimental groups in shear bond strengths.

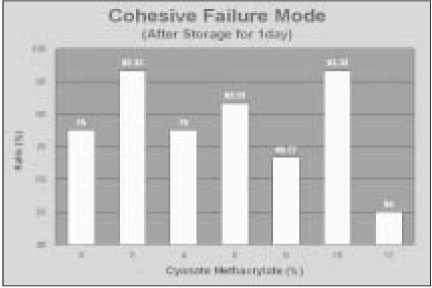

Figure 3

Cohesive fracture ratio of seven experimental groups.

Figure 4

Scanning electron micrograph of resin tags : (a) group 0, (b) group 2, (c) group 4, (d) group 6, (e) group 8, (f) group 10, (g) group 12, × 800 ; Great bundle of resin tags are shown in group 0 to group 6, which are similar patterns but resin infiltration is limited in group 10 and 12.

Figure 5

Scanning electron micrograph showing the resin tags, × 2,000 (a) group 0; a great number of resin tags are intangled and cross-linked each other (b) group 12; resin tags are blunt and shortened. some of canaliculi are shown between tags.

Figure 6

Scanning electron micrograph showing the hybrid layers in group 0% and 12%. × 3,000.

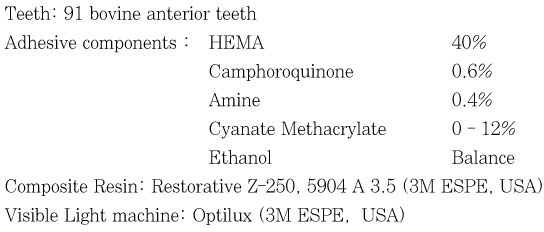

Table 1

Materials and chemical characteristics of experimental bonding agents used in this study

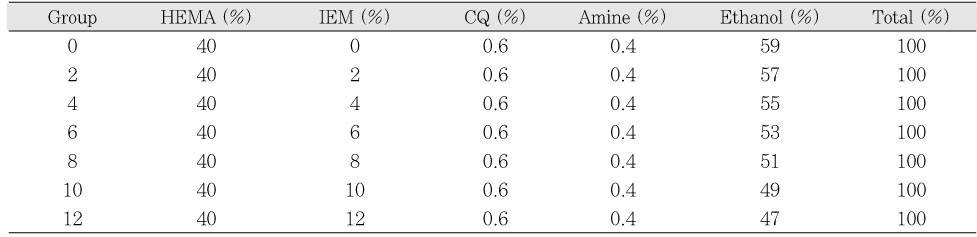

Table 2

Experiment groups by dentin bonding agents used in this study (unit : weight %)

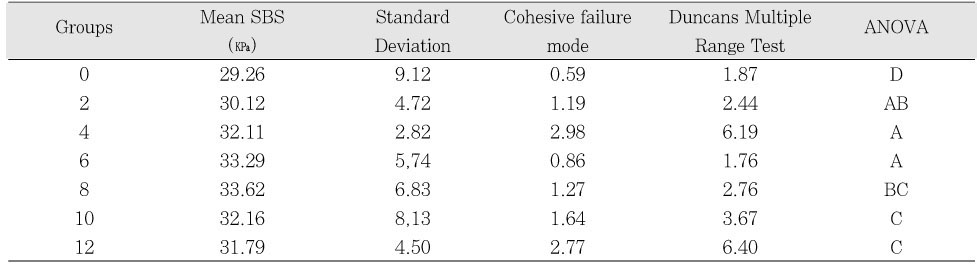

Table 3

Shear bond strengths (_{kP_a}) and cohesive failure modes in seven experimental groups

※ Duncan's Group means that there is no statistical differences between groups marked with same letter.
