EVALUATION ON THE ABRASION RESISTANCE OF A SURFACE SEALANT

Soo-Mee Kim; Sae-Hee Han; Young-Gon Cho

doi:10.5395/JKACD.2007.32.3.180

Articles

Page Path: HOME > Restor Dent Endod > Volume 32(3); 2007 > Article

Original Article EVALUATION ON THE ABRASION RESISTANCE OF A SURFACE SEALANT: Soo-Mee Kim¹, Sae-Hee Han², Young-Gon Cho^3,*; Journal of Korean Academy of Conservative Dentistry 2007;32(3):180-190.
DOI: https://doi.org/10.5395/JKACD.2007.32.3.180
Published online: January 14, 2007

¹Department of Dentistry, College of Medicine, Seonam University

²Dental Center, Chung Ang University Hospital

³Department of Conservative Dentistry, College of Dentistry, Chosun University

*Corresponding Author: Young-Gon Cho, Department of Conservative Dentistry, College of Dentistry, Chosun University 421 Seosuk-dong, Dong-gu, Gwangju, Korea, 501-825 Tel: 82-62-220-3840, 3845 Fax: 82-62-232-9064 E-mail: ygcho@chosun.ac.kr

• Received: January 3, 2007 • Revised: January 27, 2007 • Accepted: March 9, 2007

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

24 Views
0 Download

prev next

Full Article

Download PDF

Abstract
REFERENCES
참고문헌

Abstract

The purpose of this study was to evaluate the abrasion resistance of surface penetrating sealant which was applied on a composite resin restoration and to provide proper time to reapply sealant on composite resin surface.

Two hundred rectangular specimens, sized 8 × 3 × 2 mm, were made of Micronew (Bisco, Inc., Schaumburg, IL, U.S.A) and divided into two groups; F group (n = 10) was finished with coarse and medium grit of Sof-Lex discs and BisCoverwas applied B group (n = 190) after finishing with discs. B group was again subdivided into nineteen subgroups. From B-1 group to B-18 group were subjected to toothbrush abrasion test using a distilled water-dentifrice slurry and toothbrush heads. B-IM group was not subjected to toothbrush abrasion test.
Average surface roughness (Ra) of each group was calculated using a surface roughness tester (Surfcorder MSE-1700: Kosaka Laboratory Ltd., Tokyo, Japan). A representative specimen of each group was examined by FE-SEM (S-4700: Hitachi High Technologies Co., Tokyo, Japan). The data were analysed using cluster analysis, paired t-test, and repeated measure ANOVA. The results of this study were as follows;
1. Ra of F group was 0.898 ± 0.145 μm and B-IM group was 0.289 ± 0.142 μm. Ra became higher from B-1 group (0.299 ± 0.48 μm) to B-18 group (0.642 ± 0.313 μm).
2. Final cluster center of Ra was 0.361 μm in cluster 1 (B-IM ∼ B-7), 0.511 μm in cluster 2 (B-8 ∼ B-14) and 0.624 μm in cluster 3 (B-15 ∼ B-18). There were significant difference among Ra of three clusters.
3. Ra of B-IM group was decreased 210.72% than Ra of F group. Ra of B-8 group and B-15 group was increased 35.49% and 51.35% respectively than Ra of B-IM group.
4. On FE-SEM, B-IM group showed the smoothest resin surface. B-8 group and B-15 group showed vertically shallow scratches, and wide and irregular vertical scratches on composite resin surface respectively.
Within a limitation of this study, finished resin surface will be again smooth and glazy if BisCover would be reapplied within 8 to 14 months after applying to resin surface.
Keywords: Abrasion resistance; Resin surface sealant; Toothbrush abrasion test; Surface roughness; Finishing method; Polishing instrument

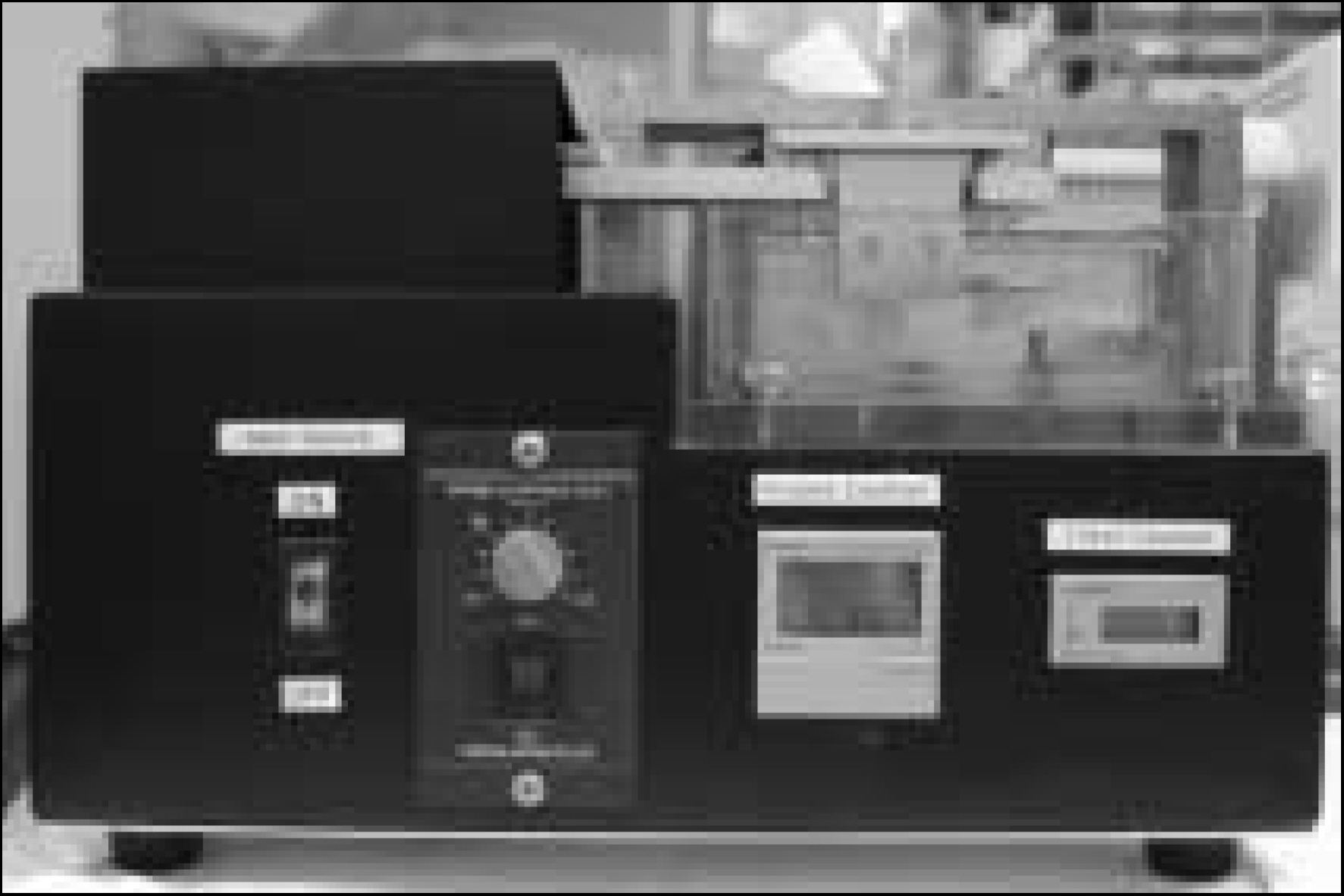

Figure 1.

Tooth abrasive machine used in this study.

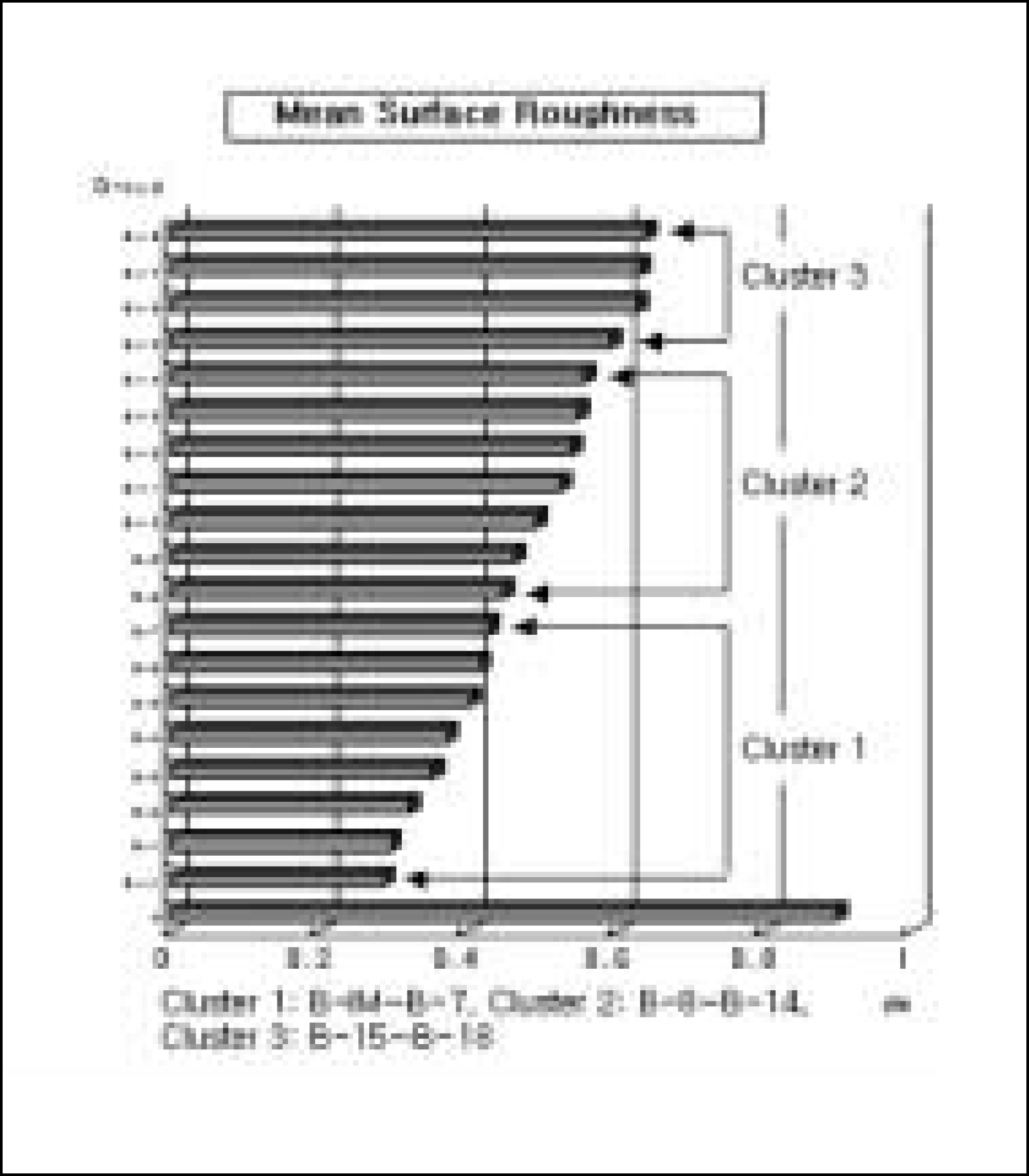

Figure 2.

Histogram for mean surface roughness value and cluster of each group.

Figure 3.

F Group (× 500).

Figure 4.

B-IM Group (× 500).

Figure 5.

B-8 Group (× 500).

Figure 6.

B-15 Group (× 500).

Figure 7.

B-18 Group (× 500).

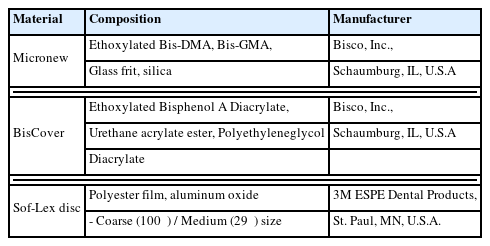

Table 1.

Materials used in this study

Material	Composition	Manufacturer
Micronew	Ethoxylated Bis-DMA, Bis-GMA,	Bisco, Inc.,
Micronew	Glass frit, silica	Schaumburg, IL, U.S.A

BisCover	Ethoxylated Bisphenol A Diacrylate,	Bisco, Inc.,
	Urethane acrylate ester, Polyethyleneglycol	Schaumburg, IL, U.S.A
	Diacrylate

Sof-Lex disc	Polyester film, aluminum oxide	3M ESPE Dental Products,
Sof-Lex disc	- Coarse (100 ㎛) / Medium (29 ㎛) size	St. Paul, MN, U.S.A.

Bis-DMA: bisphenol A dimethacrylate, Bis-GMA: bisphenol A diglycidylmethacrylate

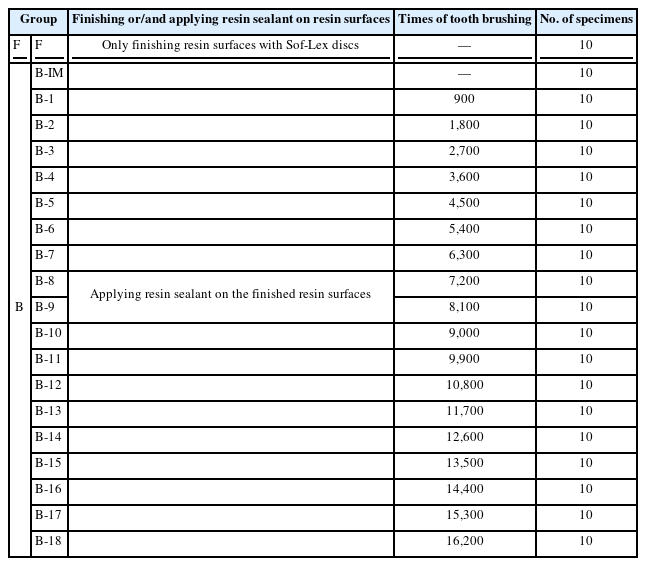

Table 2.

Group classification by finishing of resin surfaces or/and applying resin sealant on resin surfaces

Group		Finishing or/and applying resin sealant on resin surfaces	Times of tooth brushing	No. of specimens
F	F	Only finishing resin surfaces with Sof-Lex discs	—	10
B	B-IM		—	10
	B-1		900	10
	B-2		1,800	10
	B-3		2,700	10
	B-4		3,600	10
	B-5		4,500	10
	B-6		5,400	10
	B-7		6,300	10
	B-8	Applying resin sealant on the finished resin surfaces	7,200	10
	B-9	Applying resin sealant on the finished resin surfaces	8,100	10
	B-10		9,000	10
	B-11		9,900	10
	B-12		10,800	10
	B-13		11,700	10
	B-14		12,600	10
	B-15		13,500	10
	B-16		14,400	10
	B-17		15,300	10
	B-18		16,200	10

F: Finishing, B: BisCover

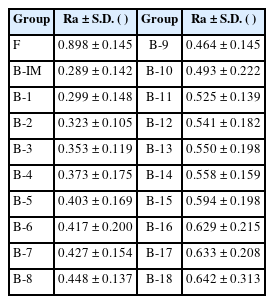

Table 3.

Mean surface roughness value (Ra) of each group

Group	Ra ± S.D. (㎛)	Group	Ra ± S.D. (㎛)
F	0.898 ± 0.145	B-9	0.464 ± 0.145
B-IM	0.289 ± 0.142	B-10	0.493 ± 0.222
B-1	0.299 ± 0.148	B-11	0.525 ± 0.139
B-2	0.323 ± 0.105	B-12	0.541 ± 0.182
B-3	0.353 ± 0.119	B-13	0.550 ± 0.198
B-4	0.373 ± 0.175	B-14	0.558 ± 0.159
B-5	0.403 ± 0.169	B-15	0.594 ± 0.198
B-6	0.417 ± 0.200	B-16	0.629 ± 0.215
B-7	0.427 ± 0.154	B-17	0.633 ± 0.208
B-8	0.448 ± 0.137	B-18	0.642 ± 0.313

S.D.: Standard Deviation

Table 4.

3-mean cluster analysis among cluster 1, 2, and 3

Group	Cluster 1	Cluster 2	Cluster 3	F	p-value
Final cluster centers of Ra	0.361 ㎛	0.511 ㎛	0.624 ㎛	49.705	0.000

Cluster 1: B-IM ~ B-7, Cluster 2: B-8 ~ B-14, Cluster 3: B-15 ~ B-18

Ra: Mean surface roughness value

Table 5.

Paired t-test between Ra of B-IM group and B-1 ~ B-18 groups and Ra of B-8 group and B-9 ~ B-18 groups

Group	p-value	Group	p-value
B-IM		B-8
B-1 ~ B-7	> 0.05	B-9 ~ B-14	> 0.05
B-8 ~ B-18	< 0.05	B-15 ~ B-18	< 0.05

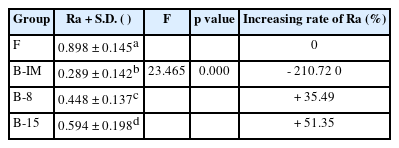

Table 6.

Repeated measure ANOVA and increasing rate of Ra among F, B-IM, B-8, and B-15 group

Group	Ra + S.D. (㎛)	F	p value	Increasing rate of Ra (%)
F	0.898 ± 0.145^a			0
B-IM	0.289 ± 0.142^b	23.465	0.000	- 210.72 0
B-8	0.448 ± 0.137^c			+ 35.49
B-15	0.594 ± 0.198^d			+ 51.35

Superscripts of the other letter indicate values of statistical significant difference.

REFERENCES

참고문헌

1. Hoelscher DC, Neme AML, Pink FE, Hughes PJ. The Effect of three finishing systems on four esthetic restorative materials. Oper Dent 23:36-42. 1998.PubMed
2. Turkun LS, Turkun M. The effect of one-step polishing system on the surface roughness of three esthetic resin composite materials. Oper Dent 29:203-211. 2004.PubMed
3. Joint SB, Gregoire GL, Auther AM, Roques YM. Three-dimensional optical profilometry analysis of surface states obtained after finishing sequences for three composite resins. Oper Dent 25:311-315. 2000.PubMed
4. Yap AUJ, Yap SH, Teo CK, Ng JJ. Comparison of surface finish of new aesthetic restorative materials. Oper Dent 29:100-104. 2004.PubMed
5. 이재 용, 신동 훈. 전∙구치 겸용 혼합형 복합레진의 두 가지 연 마법에 따른 표면조도. 대한치과보존학회지 28:369-377. 2003.
6. Yap AUJ, Yap SH, Teo CK, Ng JJ. Finshing/polishing of composite and compomer restoratives: effectiveness of one-step systems. Oper Dent 29:275-279. 2004.PubMed
7. Fruits TJ, Miranda FJ, Coury TL. Effects of equivalent abrasive grit sizes utilizing different polishing motions on selected restorative materials. Quint Int 27:279-285. 1996.
8. Filho NH, D’Azevedo MTFS, Nagem HD, Marsola FP. Surface roughness of composite resins after finishing and polishing. Braz Dent J 14:37-41. 2003.Article PubMed
9. Roeder LB, Tate WH, Powers JM. Effect of finishing and polishing procedures on the surface roughness of packable composites. Oper Dent 25:534-543. 2000.PubMed
10. Turssi CP, Saad JRC, Duarte SLL, Rodrigues AL. Composite surfaces after finishing and polishing techniques. Am J Dent 13:136-138. 2000.PubMed
11. Lu H, Roeder LB, Powers JM. Effect of polishing systems on the surface roughness of microhybrid composites. J Esthet Restor Dent 15:297-304. 2003.PubMed
12. Ryba TM, Dunn WJ, Murchison DF. Surface roughness of various packable composites. Oper Dent 27:243-247. 2002.PubMed
13. Tate WH, Powers JM. Surface roughness of composites and hybrid ionomers. Oper Dent 21:53-58. 1996.PubMed
14. Reis AF, Giannini M, Lovadino JR, dos Santos Dias CT. The effect of six polishing systems on the surface roughness of two packable resin-based composites. Am J Dent 15:193-197. 2002.PubMed
15. Setcos JC, Tarim B, Suzuki S. Surface finish produced on resin composites by new polishing systems. Quint Int 30:169-173. 1999.
16. Erhardt MCG, Magalhaes CS, Serra MC. The effect of rebonding on microleakage of class V aesthetic restorations. Oper Dent 27:396-402. 2002.PubMed
17. May KN Jr, Swift EJ Jr, Wilder AD, Futrell SC. Effect of a surface sealant on microleakage of Class V restorations. Am J Dent 9:133-136. 1996.PubMed
18. Doray PG, Eldiwany MS, Powers JM. Effect of resin surface sealers on improvement of stain resistance for a composite provisional material. J Esthet Restor Dent 15:244-250. 2003.Article PubMed
19. Kawai K, Leinfelder KF. Effect of surface penetrating sealant on composite wear. Dent Mater 9:103-113. 1993.
20. Ramos RP, Chinelatti MA, Chimello DT, Dibb RGP. Assessing microleakage in resin composite restorations rebonded with a surface sealant and three low-viscosity resin systems. Quint Int 23:450-456. 2002.
21. Ramos RP, Chimello DT, Chinelatti MA, Dibb RGP, Mondelli J. Effect of three surface sealants on marginal sealing of class V composite resin restorations. Oper Dent 25:448-453. 2000.PubMed
22. Dickinson GL, Leinfelder KF. Assessing the long-term effect of a surface penetrating sealant. J Am Dent Assoc 124:68-72. 1993.Article PubMed
23. Garman TA, Fairhurst CW, Heuer GA, Williams HA, Beglau DL. A comparison of glazing materials for composite restorations. J Am Dent Assoc 95:950-956. 1977.PubMed
24. 조영 곤, 최희 영. 복합레진 수복물의 변연 미세누출에 관한 Biscover^TM 전색제의 효과. 대한치과보존학회지 30:355-364. 2005.
25. Barghi N, Alexander C. A new surface sealant for polishing composite resin restorations. Compend Contin Educ Dent 24:30-33. 2003.PubMed
26. Suh BI. A new resin technology: a glaze/composite sealant that cures without forming an oxygen-inhibited layer. Compend Contin Educ Dent 24:27-29. 2003.PubMed
27. Teixeira EC, Thompson JL, Jeffrey RP, Thompson JY. In vitro toothbrush-dentifrice abrasion of two restorative composites. J Esthet Restor Dent 17:172-180. 2005.PubMed
28. Wang L, Garcia FC, Amarante de Araujo P, Franco EB, Mondelli RF. Wear resistance of packable resin composites after simulated toothbrushing test. J Esthet Restor Dent 16(5):303-314. 2004.Article PubMed
29. van Dijiken JW, Ruyter IE. Surface characteristics of posterior composites after polishing and toothbrushing. Acta Odonto Scandia 45:337-346. 1984.Article PubMed
30. van Dijiken JW, Stadigh J, Meurman JH. Appearance of finished and unfinished composite surface after toothbrushing. A scanning electron microscopy study. Acta Odonto Scandia 41:377-383. 1983.
31. Margio L, Rizzi M, La Torre G. 3-D surface profile analysis: different finishing methods for resin composites. Oper Dent 26:562-568. 2001.PubMed
32. Jung M, Voit S, Klinek J. Surface geometry of three packable and one hybrid composite after finishing. Oper Dent 28:53-59. 2003.PubMed
33. Bertrand MF, Leforestier E, Muller M, Lupi-Pegurier L, Bolla M. Effect of surface penetrating sealant on surface texture and microhardness of composite resins. J Biomed Mater Res 53:658-663. 2000.Article PubMed
34. De Wet FA, Ferreira MR. The durability of dental glazes. J Prosthe Dent 44:300-306. 1980.Article PubMed
