Enamel adhesion of light- and chemical-cured composites coupled by two step self-etch adhesives

Sae-Hee Han; Eun-Soung Kim; Young-Gon Cho

doi:10.5395/JKACD.2007.32.3.169

Articles

Page Path: HOME > Restor Dent Endod > Volume 32(3); 2007 > Article

Original Article Enamel adhesion of light- and chemical-cured composites coupled by two step self-etch adhesives: Sae-Hee Han¹, Eun-Soung Kim², Young-Gon Cho²; 2007;32(3):-179.
DOI: https://doi.org/10.5395/JKACD.2007.32.3.169
Published online: May 31, 2007

¹Dental Center, Chung Ang University Hospital, Korea.

²Department of Conservative Dentistry, College of Dentistry, Chosun University, Korea.

Corresponding Author: Young-Gon Cho. Department of Conservative Dentistry, College of Dentistry, Chosun University, 421 Seosuk-dong, Dong-gu, Gwangju, Korea, 501-825. Tel: 82-62-220-3840, 3845, Fax: 82-62-232-9064, ygcho@chosun.ac.kr

• Received: January 3, 2007 • Revised: March 7, 2007 • Accepted: March 15, 2007

209 Views
2 Download
1 Crossref

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

This study was to compare the microshear bond strength (µSBS) of light- and chemically cured composites to enamel coupled with four 2-step self-etch adhesives and also to evaluate the incompatibility between 2-step self-etch adhesives and chemically cured composite resin.

Crown segments of extracted human molars were cut mesiodistally, and a 1 mm thickness of specimen was made. They were assigned to four groups by adhesives used: SE group (Clearfil SE Bond), AdheSE group (AdheSE), Tyrian group (Tyrian SPE/One-Step Plus), and Contax group (Contax). Each adhesive was applied to a cut enamel surface as per the manufacturer's instruction. Light-cured (Filtek Z250) or chemically cured composite (Luxacore Smartmix Dual) was bonded to the enamel of each specimen using a Tygon tube. After storage in distilled water for 24 hours, the bonded specimens were subjected to µSBS testing with a crosshead speed of 1 mm/minute. The mean µSBS (n=20 for each group) was statistically compared using two-way ANOVA, Tukey HSD, and t test at 95% level. Also the interface of enamel and composite was evaluated under FE-SEM.

The results of this study were as follows;

1. The µSBS of the SE Bond group to the enamel was significantly higher than that of the AdheSE group, the Tyrian group, and the Contax group in both the light-cured and the chemically cured composite resin (p < 0.05).

2. There was not a significant difference among the AdheSE group, the Tyrian group, and the Contax group in both the light-cured and the chemically cured composite resin.

3. The µSBS of the light-cured composite resin was significantly higher than that of the chemically cured composite resin when same adhesive was applied to the enamel (p < 0.05).

4. The interface of enamel and all 2-step self-etch adhesives showed close adaptation, and so the incompatibility of the chemically cured composite resin did not show.
Keywords: Microshear bond strength; Self-etch adhesives; Incompatibility; Chemical-cured composites

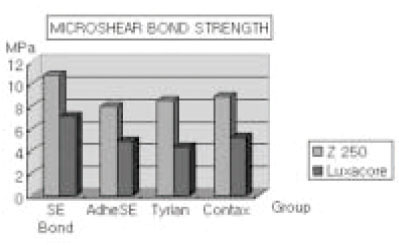

Figure 1

Histogram showing microshear bond strengths of Filtek Z250 and Luxacore Smartmix Dual adhered to enamel by self-etching primer adhesives.

Figure 2

Clearfil SE Bond and Filtek Z250 adhered to enamel.

Figure 3

AdheSE and Filtek Z250 adhered to enamel.

Figure 4

Tyrian SPE/One-Step Plus and Filtek Z250 adhered to enamel.

Figure 5

Contax and Filtek Z250 adhered to enamel.

Figure 6

Clearfil SE Bond and Luxacore Smartmix Dual adhered to enamel.

Figure 7

AdheSE and Luxacore Smartmix Dual adhered to enamel.

Figure 8

Tyrian SPE/One-Step Plus and Luxacore Smartmix Dual adhered to enamel.

Figure 9

Contax and Luxacore Smartmix Dual adhered to enamel.

Table 1

The components of two-step self-etching primer adhesives and pH of primers

MDP = 10-methacryloyloxydecyl dihydrogen phosphate, HEMA = 2 hydroxyethyl methacrylate, DMA = dimethacrylate, BPDM = biphenyl dimethacrylate, Bis-GMA = Bisphenol glycidyl methacrylate

Table 2

Mean microshear bond strength (MP_a) of Filtek Z250 and Luxacore SmartMix Dual to enamel in each group and statistical analysis

Superscripts of the other letter indicate values of statistically significant difference by Tukey HSD (p < 0.01).

Table 3

Statistical comparison between uSBS of Filtek Z250 and Luxacore SmartMix Dual within the same adhesives by t-test

REFERENCES

1. Bouillaguet S, Gysi P, Wataha JC, Ciucchi B, Cattani M, Godin CH, Meyer JM. Bond strength of composite to dentin using conventional, one-step and self-etching adhesive systems. J Dent. 2001;29: 55-61.Article PubMed
2. Miyazaki M, Sato M, Onose H. Durability of enamel bond strength of simplified bonding systems. Oper Dent. 2000;25: 75-80.Article PubMed
3. De Munck J, Van Meerbeek B, Satoshi I, Vargas M, Yoshida Y, Armstrong S, Lambrechts P, Vanherle G. Microtensile bond strengths of one- and two-step self-etch adhesives to bur-cut enamel and dentin. Am J Dent. 2003;16: 414-420.PubMed
4. Miyazaki M, Hinoura K, Honjo G, Onose H. Effect of self-etching primer application method on enamel bond strength. Am J Dent. 2002;15: 412-416.PubMed
5. Inoue S, Vargas MA, Abe Y, Yoshida Y, Lambrechts P, Vanherle G, Sano H, Van Meerbeek B. Microtensile bond strength of eleven contemporary adhesives to enamel. Am J Dent. 2003;16: 329-334.PubMed
6. Toledano M, Osorio R, de Leonardi G, Rosales-Leal JI, Ceballos L, Cabrerizo-Vilchez MA. Influence of self-etching primer on the resin adhesion to enamel and dentin. Am J Dent. 2001;14: 205-210.PubMed
7. Hannig M, Reinhardt KJ, Bott B. Self-etching primer vs phosphoric acid: an alternative concept for composite-to-enamel bonding. Oper Dent. 1999;24: 172-180.PubMed
8. Kanemura N, Sano H, Tagami J. Tensile bond strength to and SEM evaluation of ground and intact enamel surfaces. J Dent. 1999;27: 523-530.Article PubMed
9. Watanabe I, Nakabayashi N, Pashley DH. Bonding to ground dentin by a Phenyl-P self-etching dentin primer. J Dent Res. 1994;73: 1212-1220.PubMed
10. Hayakawa T, Kikutake K, Nemoto K. Influence of self-etching primer treatment on the adhesion of resin composite to polished dentin and enamel. Dent Mater. 1998;14: 99-105.Article PubMed
11. Kiremitci A, Yalcin F, Gokalp S. Bonding to enamel and dentin using self-etching adhesive systems. Quintessence Int. 2004;35: 367-370.PubMed
12. Tay FR, Pashley DH. Aggressiveness of contemporary self-etching systems. I: Depth of penetration beyond dentin smear layers. Dent Mater. 2001;17: 296-308.PubMed
13. Tay FR, Pashley DH, King NM, Carvalho RM, Tsai J, Lai SCN, Marquezini L. Aggressiveness of self-etch adhesives on unground enamel. Oper Dent. 2004;29: 309-316.PubMed
14. Frankenberger R, Kramer N, Petschelt A. Long-term effect of dentin primers on enamel bond strength and marginal adaptation. Oper Dent. 2000;25: 11-19.PubMed
15. Latta MA, Barkmeier WW, Triolo PT, Cavel WT, Blankenau RJ. One year clinical evaluation of the Clearfil Liner Bond 2 system. J Dent Res. 1997;76: 162. Abstract no. 1186.
16. Kubo S, Yokota H, Sata Y, Hayashi Y. Microleakage of self-etching primers after thermal and flexural load cycling. Am J Dent. 2001;14: 163-169.PubMed
17. Cho YG, Cho KC. Marginal microleakage of self-etching primer adhesives and a self-etching adhesive. J Korean Acad Conserv Dent. 2002;27: 493-501.Article
18. Sanares AM, Itthagarun A, King NM, Tay FR. Adverse surface interactions between one-bottle light-cured adhesives and chemical-cured composites. Dent Mater. 2001;17: 542-556.Article PubMed
19. Hu X, Marquis PM, Shortall AC. Two-body in vitro wear study of some current dental composites and amalgam. J Prosthet Dent. 1999;82: 214-220.PubMed
20. Cheong C, King NM, Pashley DH, Ferrari M, Toledano M, Tay FR. Incompatibility of self-etch adhesives with chemical/dual-cured composites: two-step vs one-step systems. Oper Dent. 2003;28: 747-755.PubMed
21. Tay FR, Pashley DH, Peters MC. Adhesive permeability affects composite coupling to dentin treated with a self-etch adhesive. Oper Dent. 2003;28: 610-621.PubMed
22. Tay FR, Pashley DH, Suh BI, Carvalho RM, Miller MB. Single-step self-etch adhesives behave as permeable membranes after polymerization. Part I. Bond strength and morphologic evidence. Am J Dent. 2004;17: 271-278.PubMed
23. Tay FR, Pashley DH, Yiu CK, Sanares AM, Wei SH. Factors contributing to the incompatibility between simplified-step adhesives and chemically-cured or dual-cured composites. Part I. Single-bottle self-etching adhesive. J Adhes Dent. 2003;5: 27-40.PubMed
24. Tay FR, Suh BI, Pashley DH, Prati C, Chuang SF, Li F. Factors contributing to the incompatibility between simplified-step adhesives and self-cured or dual-cured composites. Part II. Single-bottle, total-etch adhesive. J Adhes Dent. 2003;5: 91-105.PubMed
25. Yoshiyama M, Sano H, Ebisu S, Tagami J, Ciucchi B, Cavalho RM, Johnson MH, Pashley DH. Regional strengths of bonding agents to cervical sclerotic dentin. J Dent Res. 1996;75: 1404-1413.Article PubMed PDF
26. Sano H, Shono T, Sonoda H, Takatsu T, Ciucchi B, Carvalho RM, Pashley DH. Relationship between surface area for adhesion and tensile bond strength-evaluation of a microtensile bond test. Dent Mater. 1994;10: 236-240.Article PubMed
27. Cho YG, Kim JJ. Microshear bond strength of adhesives according to the direction of enamel rods. J Korean Acad Conserv Dent. 2005;30: 344-351.Article
28. Cheong C, King NM, Pashley DH, Ferrari M, Toledano M, Tay FR. Incompatibility of self-etch adhesives with chemical/dual-cured composites: two-step vs one-step systems. Oper Dent. 2003;28: 747-755.PubMed
29. Yamauchi J. Study of dental adhesive containing phophoric acid methacrylate monomer. Jap J Dent Mater. 1986;5: 144-154.
30. Lopes GC, Marson FC, Vieira LCC, de Andrada MAC, Baratieri LN. Composite bond strength to enamel with self-etching primers. Oper Dent. 2004;29: 424-429.PubMed
31. Yamada T, Sugizaki J. Basic properties and clinical application of the Clearfil SE Bond. Preceeding of the International Kuraray Symposium. 2000;Osaka: 1-6.
32. Perdigao J, Lopes L, Lambrechts P, Leitao J, Van Meerbeek B. Effects of a self-etching primer on enamel shear bond strengths and SEM morphology. Am J Dent. 1997;10: 141-146.PubMed
33. Reifeis PE, Cochran MA, Moore BK. An in vitro shear bond strength study of enamel/dentin bonding systems on enamel. Oper Dent. 1995;20: 174-179.PubMed
34. Swift EJ Jr, Perdigao J, Heymann HO, Ritter AV. Shear bond strength of one-bottle adhesives to moist enamel. J Esthet Dent. 1999;11: 103-107.PubMed

Tables & Figures

Figure 1

Histogram showing microshear bond strengths of Filtek Z250 and Luxacore Smartmix Dual adhered to enamel by self-etching primer adhesives.

Figure 2

Clearfil SE Bond and Filtek Z250 adhered to enamel.

Figure 3

AdheSE and Filtek Z250 adhered to enamel.

Figure 4

Tyrian SPE/One-Step Plus and Filtek Z250 adhered to enamel.

Figure 5

Contax and Filtek Z250 adhered to enamel.

Figure 6

Clearfil SE Bond and Luxacore Smartmix Dual adhered to enamel.

Figure 7

AdheSE and Luxacore Smartmix Dual adhered to enamel.

Figure 8

Tyrian SPE/One-Step Plus and Luxacore Smartmix Dual adhered to enamel.

Figure 9

Contax and Luxacore Smartmix Dual adhered to enamel.

Table 1

The components of two-step self-etching primer adhesives and pH of primers

MDP = 10-methacryloyloxydecyl dihydrogen phosphate, HEMA = 2 hydroxyethyl methacrylate, DMA = dimethacrylate, BPDM = biphenyl dimethacrylate, Bis-GMA = Bisphenol glycidyl methacrylate

Table 2

Mean microshear bond strength (MP_a) of Filtek Z250 and Luxacore SmartMix Dual to enamel in each group and statistical analysis

Superscripts of the other letter indicate values of statistically significant difference by Tukey HSD (p < 0.01).

Table 3

Statistical comparison between uSBS of Filtek Z250 and Luxacore SmartMix Dual within the same adhesives by t-test
