Correlation between Linear polymerization shrinkage & tooth cuspal deflection

Soon-Young Lee; Sung-Ho Park

doi:10.5395/JKACD.2005.30.6.442

Articles

Page Path: HOME > Restor Dent Endod > Volume 30(6); 2005 > Article

Original Article Correlation between Linear polymerization shrinkage & tooth cuspal deflection: Soon-Young Lee¹, Sung-Ho Park^1,2; Journal of Korean Academy of Conservative Dentistry 2005;30(6):442-449.
DOI: https://doi.org/10.5395/JKACD.2005.30.6.442
Published online: November 30, 2005

¹Department of Conservative Dentistry, College of Dentistry, Yonsei University, Korea.

²Department of Oral Science Research Center & Brain Korea 21 Project for Medical Science, College of Dentistry, Yonsei University, Korea.

Corresponding author: Sung-Ho Park. Department of Conservative Dentistry, Yonsei University, 134 Shinchon-Dong, Seodaemun-Gu, Seoul, Korea, 120-752. Tel: 82-2-361-8709, Fax: 82-2-313-7575, sunghopark@yumc.yonsei.ac.kr

• Received: May 23, 2005 • Revised: September 2, 2005 • Accepted: October 7, 2005

20 Views
0 Download

prev next

Full Article

Download PDF

Abstract
I. INTRODUCTION
II. MATERIALS AND METHODS
III. RESULTS
IV. DISCUSSION
V. CONCLUSION
ARTICLE INFORMATION
REFERENCES

Abstract

The purpose of the present study was to evaluate the relationship between the amount of cuspal deflection and linear polymerization shrinkage in resin composite and polyacid modified resin composite. For cuspal defelction and shrinkage measurement, Dyract AP, Compoglass F, Z100, Surefil, Pyramid, Synergy Compact, Heliomolar and Heliomolar HB were used.

For measuring polymerization shrinkage, a custom made linometer (R&B, Daejon, Korea) was used. The amount of shrinkage among materials was compared using One-way ANOVA analysis and Tukey's test at the 95% of confidence level.

For measuring cuspal deflection of teeth, standardized MOD cavities were prepared in extracted maxillary premolars. After a self-etching adhesive was applied, cavities were bulk filled with one of the filling materials.Fifteen teeth were used for each material. Cuspal deflection was measured by a custom made cuspal-deflection measuring device. One-way ANOVA analysis and Tukey's test were used to determine differences between the materials at the 95% of confidence level.

Correlation of polymerization shrinkage and cuspal deflection were analyzed by regression analysis.

The amount of polymerization shrinkage from least to greatest was Heliomolar, Surefil < Heliomolar HB < Z100, Synergy Compact < Dyract AP < Pyramid, Compoglass F (p < 0.05).

The amount of cuspal deflection from least to greatest was Z100, Heliomolar, Heliomolar HB, Synergy Compact Surefil < Compoglass F < Pyramid, Dyract AP (p < 0.05).

The amount of polymerization shrinkage and cuspal deflection showed a correlation (p < 0.001).
Keywords: Cuspal deflection; Polymerization shrinkage; Composite; Dentin adhesive

I. INTRODUCTION

Dental resin composite shrinks by 1 - 5vol% during polymerization. Due to the polymerization shrinkage, clinical problems such as postoperative sensitivity, secondary caries, and cracks can occur1-3). In addition, microcracks in the composite body can occur which lead to higher wear of the composite4).

The influence of polymerization shrinkage on cavities can be affected by restoration size, cavity configuration, placement technique and curing mode5-11). It has been reported that placing composite in Class II cavities leads to inward deformation of the cusps and the amount of deformation has been observed to vary from 15 to 50 µm12).

Although it is accepted that polymerization shrinkage of the composite induces cuspal deflection, it is not yet clear whether variation occurs among materials or varying degrees of polymerization, polymerization shrinkage stress and modulus of elasticity. Lee & Park (2004)13) reported that there was no correlation between polymerization shrinkage stress and cuspal deflection of teeth. There was also no correlation found between the amount of linear polymerization shrinkage and shrinkage stress14).

The purpose of the present study was to evaluate the relationship between amount of polymerization shrinkage and cuspal deflection. A null hypothesis is there is no correlation between them.

II. MATERIALS AND METHODS

A. Linear shrinkage measurement

Six brands of light cured composites and two brands of polyacid modified resin composite were used (Table 1). Specimens were transferred to a Teflon mold to ensure that the same amount of composite and polyacid modified resin composite was used for each linometer sample. Specimens were transferred to the disk in the custom-made linometer (R & B, Daejeon, Korea) which had been previously coated with a separating glycerin gel and then covered with a glass slide and loaded under constant pressure. The surface of the glass slide facing the specimen was also coated with the separating gel. Specimens were light cured with a quartz tungsten halogen curing unit (XL3000, 3M Dental Product, St. Paul, USA), with a power density of 730 mW/cm² when measured with a Coltolux Light Meter (Coltene, Altstätten, Switzerland). The tip of the curing light was positioned 2 mm above the slide glass and specimens were light cured for 60s. As the composite under the slide glass was cured, it shrank toward the light source and the aluminum disk under the composite moved upward. The amount of disk displacement, which was caused by the linear shrinkage of the resin composite, was measured using an eddy current sensor. The digital data were recorded on a computer for 60s using Microsoft Excel 2002 program. Ten measurements were made for each group and the amount of linear shrinkage occurring in 60s was statistically compared by an one-way ANOVA test and we used a Tukey's test as a post hoc test at the 95% confidence level.

B. Cuspal deflection measurement

Recently extracted upper premolars which had no cracks, caries or any other defect were used. Special care was taken to control the tooth shape and size; bucco-lingual diameter, and crown height. Modified MOD cavities were prepared 3 mm deep, and 3.5 mm wide (Figure 1). After cleansing the cavity and tooth with fluoride-free pumice, a self-etching primer system (SE-bond, Kuraray, Okayama, Japan) was applied according to the manufacturer's instructions. The teeth were weighed. Using the Teflon mold, the same volume of composite or polyacid modified resin composite (Table 1) was measured and transferred to the cavities and bulk filled. Before and after the cavities were filled, the weight of the tooth specimens were also measured. The specimens were then positioned in the custom-made cuspal deflection measuring system (R & B Inc., Daejon, Korea) using the screw and pin. The point where the pin was positioned on the tooth surface was controlled through the specimens. When the specimens were positioned using the screw on one cusp tip, the pin, which was positioned in the other cusp tip, was pushed back. The change in the position of the pin was transferred to the floating lever and the movement of floating lever was detected by a Linear scale sensor (Lie5, Numerik Jena Gmbh, Jena, Germany). When the specimen was positioned, the intercuspal distance was set at zero point. The specimens were light cured from the occlusal, mesial and distal surface for 60s each. The inward cuspal movement changed the position of the pin and floating lever. As the degree of lever movement, where the pin was positioned, was multiplied 6 times at the other end of the lever arm, where the Linear scale sensor was positioned, the resolution of the sensor was increased by 6 times. Data were stored in computer simultaneously for 10 minutes (Figure 2 & 3). Fifteen specimens were used for each material. The amount of cusp movement was compared among materials by one-way ANOVA and Tukey's test at the 95% confidence level.

C. Correlation between amount of linear shrinkage & cuspal deflection

Using the data in experiments A and B, a regression analysis was performed between the amount of cuspal deflection and linear shrinkage.

III. RESULTS

1. Measurement of linear polymerization shrinkage

The average thickness of the samples was 1.60 ± 0.04. The amount of linear polymerization shrinkage is summarized in Table 2. The amount of linear polymerization shrinkage from least to greatest is Surefil, Heliomolar < Heliomolar HB < Synergy Compact, Z100 < Dyract AP < Pyramid, Compoglass F (p < 0.05), and ranged from 8.6 ± 4 µm to 10.9 ± 1 µm.

The pattern of linear polymerization shrinkage for the materials is shown in Figure 4. In all groups, the slope of curve is steep in the first 20s and thereafter it becomes more gradual.

2. Measurement of cuspal deflection

The amount of cuspal deflection is summarized in Table 3. The amount of cuspal deflection in ascending order is Z100, Heliomolar, Heliomolar HB, Synergy Compact, Surefil, < Compoglass F < Pyramid, Dyract (p < 0.05) and ranged from 14.63 ± 2.32 µm to 22.75 ± 3.36 µm.

The degree of cuspal deflection versus time is shown in Figure 5. In all groups, the slope of curve is steep in the first 300s and thereafter it becomes more gradual. In all groups, there is a slight jump in the slope in 180s.

3. Correlation between polymerization shrinkage amount versus cuspal deflection

The amount of the polymerization shrinkage and cuspal deflection were correlated (p < 0.001, Pearson Correlation Constant 0.54076) (Figure 6).

IV. DISCUSSION

The results of this study indicate that the amount of polymerization shrinkage and cuspal deflection were highly correlated. The materials that showed a lower shrinkage value also demonstrated lower cuspal deflection. As cuspal deflection increases, the chances of crack formation in a tooth would also increase and may also cause clinical symptoms such as temperature sensitivity and pain on biting. Therefore, in large class II cavities, resin composite with a low polymerization shrinkage value should be used to reduce cuspal deflection.

Lee and Park13) indicated that there were no correlation between amount of polymerization shrinkage stress and cuspal deflection. Even though one material has a low shrinkage value, it may have a high shrinkage stress depending on the modulus of elasticity of the material14). For example, in their study, Surefil, which showed the lowest shrinkage value in the present study was reported to have the highest shrinkage stress value when the same materials were compared for shrinkage stress value. The polymerization shrinkage stress of a material may have a greater effect on the marginal integrity of a cavosurface margin rather than cuspal deflection. It has been reported that polymerization shrinkage stress of composites has a different effect on the cavity depending on the configuration factor7). It was reported that leakage results correlated with stress values, i.e. composites with higher contraction stress showed more extensive marginal leakage.15). Whereas Lutz et al.11) reported that both quality and stress resistance of marginal adaptation were inversely correlated to intercuspal narrowing caused by the polymerization contraction of bonded and a well adapted resin restoration. According to their work, the most effective factors that can optimize marginal quality include: guidance of shrinkage vectors, reducing the ratio of bonded to free unbonded restoration surfaces, and minimizing the mass of in situ-cured composite. The relationship between amount of polymerization shrinkage, polymerization shrinkage stress, marginal adaptation needs further study.

In this study, most of the polymerization shrinkage of composites and polyacid modified resin composite occurred within the first 20s and reached a plateau even though a slight increase continued. This is consistent with the results of previous studies16,17). However, cuspal deflection was slower and longer than polymerization shrinkage of composites and compomers and reached a plateau between 300 - 500s. The remaining tooth structure seems to resist flexure in the early phase of the polymerization process. The time delay may be dependent on the remaining tooth structure, but it needs further investigation.

In the present study, modified MOD cavities, 3.5 mm wide and 3 mm deep, were prepared instead of conventional MOD cavities. This was to simplify and standardize the cavity design. As the amount of cuspal deflection was relatively small and we had to compare the data between materials, it was particularly important to minimize the variability and control error. A conventional MOD cavity is more complex in design and small variations in cavity preparation might have influenced the results of cuspal deflection. Therefore, a simpler cavity design was applied.

Abbas et al.18) reported that type of curing light (halogen or plasma arc curing) and curing method, bulk or incremental could affect the amount of cuspal deflection and microleakage. They reported that cuspal deflection was the highest, whereas the microleakage was lowest when the composites were incrementally cured using a halogen lamp. According to this study, bulk curing using a plasma arc lamp induced insufficient composite cure and resulted in lesser cuspal deflection and more leakage. In the present study, the composites were bulk cured for 180s (occlusal 60s, mesial 60s, distal 60s) using a halogen lamp. In the pilot of this study, we compared bulk and incremental curing methods for determining cuspal deflection. Even though there was no difference in the average between the two methods when the composite were sufficiently cured, there were more deviations in cuspal deflection data when incremental curing was used. The movement of cusps during composite manipulation with the incremental technique was considered to induce more deviations, therefore, bulk curing was used.

Heliomolar showed the lowest shrinkage value and was one of the materials which showed lowest inter-cuspal deflection. Park et al.14) and Lim et al.19) reported that it showed also the lowest shrinkage stress value. Some of the resin matrix in Heliomolar is in the form of prepolymerized particles that do not contribute to polymerization shrinkage. The characteristics of Heliomolar that have a low amount of shrinkage, low shrinkage stress and low cuspal deflection might be the reason for the long term clinical success of this material20).

Chung and Roh21) reported that SE Bond recorded higher bond strengths to tooth structure when different resin composites and bonding agents were compared. They also indicated that the combination of resin composite and dentin adhesive system recommended by the manufacturer did not always result in a positive effect. If sufficient bond strength was not produced, gaps may be formed between the filling material and tooth, that may influence cuspal deflection. This is the reason why the same bonding system (SE Bond) was used for the different restorative materials.

Table 4 shows the wt % of filler contents of the tested materials, which was provided by the manufacturers. When we compare the filler content of the materials in Table 4 and shrinkage data of present study, it can be seen that high filler content of a filling material does not always guarantee low polymerization shrinkage. The lower the initial viscosity of the material, the more monomer must be converted into polymer chains and networks. Although the space occupied by the filler particles does not participate in curing contraction, high filler loads require low molecular weight monomers to ensure proper handling viscosity. Within certain limits, polymerization shrinkage is not dependent on filler load. The lower molecular weight monomers in packable composites and polyacid modified resin composite which is added to control the handling viscosity may be responsible for the higher shrinkage value.

V. CONCLUSION

Most of the linear polymerization shrinkage occurred in the first 20s and the amount was different between materials. In cuspal deflection, it occurred more slowly than the polymerization shrinkage and the amount was different between materials. The amount of linear polymerization shrinkage and cuspal deflection were highly correlated and the null hypothesis was rejected.

ARTICLE INFORMATION

This research is in part supported by the grant of College of Dentistry of Yonsei University 2003.

REFERENCES

1. Eick JD, Welch FH. Polymerization shrinkage of posterior composite resins and its possible influence on postoperative sensitivity. Quintessence Int. 1986;17: 103-111.PubMed
2. Kemp-Scholte CM, Davidson CL. Marginal sealing of curing contraction gaps in class V composite resin restorations. J Dent Res. 1988;67: 841-845.Article PubMed PDF
3. Söderholm KJ. Correlation of in vivo and in vitro performance of adhesive restorative materials: a report of the ASCDM156 Task Group on Test Methods for Adhesion of Restorative Materials. Dent Mater. 1991;7: 74-83.PubMed
4. Roberts JC, Powers JM, Craig RG. Fracture toughness of composite and unfilled restorative resins. J Dent Res. 1977;56: 748-753.Article PubMed PDF
5. Hansen EK. Effect of cavity depth and application technique on marginal adaptation of resins in dentin cavities. J Dent Res. 1986;65: 1319-1321.PubMed
6. Krejci I, Sperr D, Lutz F. A three-sited light curing technique for conventional Class II composite restorations. Quintessence Int. 1987;18: 125-131.
7. Feilzer AJ, De Gee AJ, Davidson CL. Setting stress in composite resin in relation to configuration of the restoration. J Dent Res. 1987;66: 1636-1639.Article PubMed PDF
8. Ernst CP, Kurschner R, Rippin G, Willershausen B. Stress reduction in resin-based composites cured with a two-step light-curing unit. Am J Dent. 2000;13: 69-72.PubMed
9. Causton BE, Miller B, Softon J. The deformation of cusps by bonded posterior composite restorations: an in vitro study. Brit Dent J. 1985;159: 397-400.Article PubMed PDF
10. Pearson GJ, Hegarty SM. Cusp movement in molar teeth using dentine adhesives and composite filling materials. Biomaterials. 1987;8: 473-476.Article PubMed
11. Lutz F, Krejci I, Barbakow F. Quality and durability of marginal adaptation in bonded composite restorations. Dent Mater. 1991;7: 107-113.Article PubMed
12. Suliman AA, Boyers DB, Lakes RS. Cusp movement in premolars resulting from composite polymerization shrinkage. Dent Mater. 1993;9: 6-10.Article PubMed
13. Lee SY, Park SH. Measurements of shrinkage stress and reduction of inter-cuspal distance in maxillary premolars resulting from polymerization of composites and compomers. J Korean Acad Conserv Dent. 2004;29: 346-352.
14. Park SH, Lee SY, Cho YS, Kim SS. Amount of polymerization shrinkage stress in composites and compomers for posterior restoration. J Korean Acad Conserv Dent. 2003;28: 348-353.Article
15. Ferracane JL, Mitchem JC. Relationship between composite contraction stress and leakage in class V cavities. Am J Dent. 2003;16: 239-243.PubMed
16. Park SH, Krejci I, Lutz F. Consistency in the amount of linear polymerization shrinkage in syringe-type composites. Dent Mater. 1999;15: 442-446.Article PubMed
17. Park SH, Krejci I, Lutz F. Microhardness of resin composites polymerized by plasma arc or conventional visible light curing. Oper Dent. 2002;27: 30-37.PubMed
18. Abbas G, Fleming GJP, Harrington E, Shortall ACC, Burke FJT. Cuspal movement and microleakage in premolar teeth restored with a packable composite cured in bulk or in increments. J Dent. 2003;31: 437-444.Article PubMed
19. Lim BS, Ferracane JL, Sakaguchi RL, Condon JR. Reduction of polymerization contraction stress for dental composites by two-step light activation. Dent Mater. 2002;18: 436-444.Article PubMed
20. Christensen GJ. Tooth colored posterior restoration. Oper Dent. 1997;22: 146-148.PubMed
21. Chung JH, Roh BD. In vitro microshear bond strength of five composite resins to dentin with five different dentin adhesives. J Korean Acad Conserv Dent. 2004;29: 353-364.

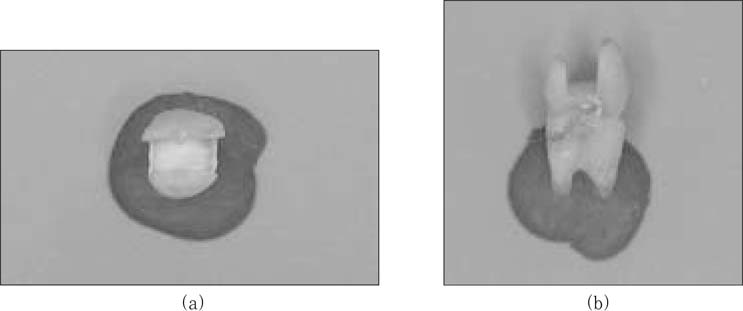

Figure 1

Cavity preparation. Upper view (a), Side view (b)

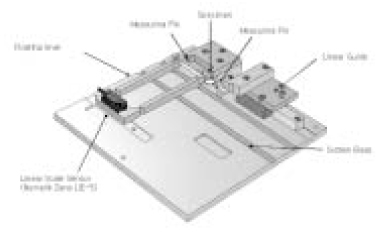

Figure 2

Schematic drawing of cuspal deflection measuring machine.

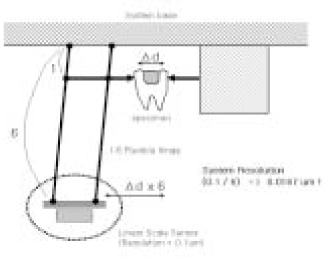

Figure 3

Role of flexible lever.

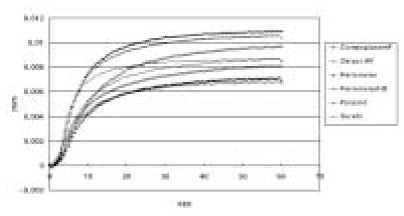

Figure 4

Linear polymerization shrinkage versus time.

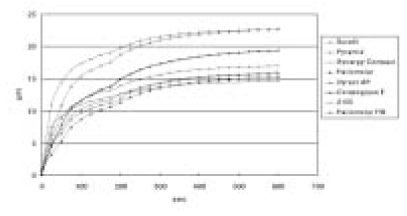

Figure 5

Amount of cuspal deflection versus time in MOD upper premolar.

Figure 6

Scatter plot of the relationship between amount of polymerization shrinkage (PS) amount and cuapal deflection (CD).

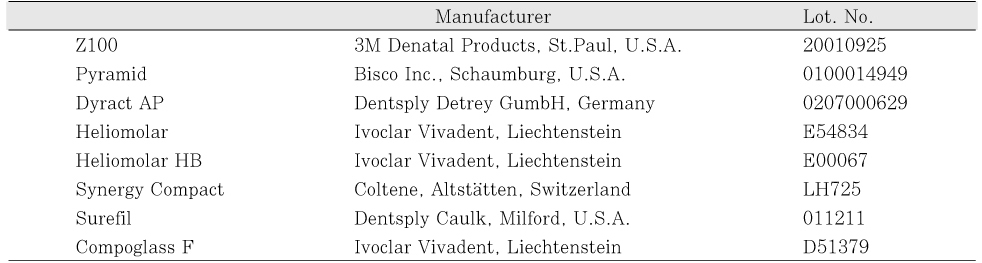

Table 1

Restorative materials used in this study

The percentage of linear polymerization shrinkage (lin%) was calculated by:

lin% = ΔL/(L + ΔL) × 100

ΔL: Recorded displacement

L: Thickness of the sample after polymerization

The thickness of the light cured samples were measured to 0.01 mm.

Table 2

Amount of linear shrinkage & standard deviation (µm)

Table 3

Mean value of cuspal deflection & standard deviation (µm)

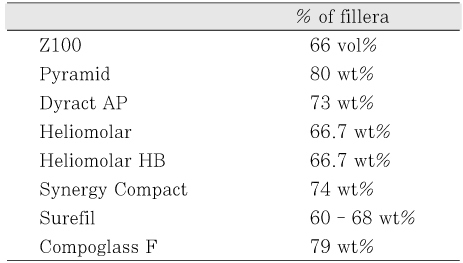

Table 4

Filler contents of posterior composites

a: obtained from manufactures' technical manual and home page
