Effect of internal stress on cyclic fatigue failure in .06 taper ProFile

Hye-Rim Jung; Jin-Woo Kim; Kyung-Mo Cho; Se-Hee Park

doi:10.5395/rde.2012.37.2.79

Articles

Page Path: HOME > Restor Dent Endod > Volume 37(2); 2012 > Article

Research Article Effect of internal stress on cyclic fatigue failure in .06 taper ProFile: Hye-Rim Jung, DDS, MSD, Jin-Woo Kim, DDS, PhD, Kyung-Mo Cho, DDS, PhD, Se-Hee Park, DDS, PhD; Restorative Dentistry & Endodontics 2012;37(2):79-83.
DOI: https://doi.org/10.5395/rde.2012.37.2.79
Published online: May 18, 2012

Department of Conservative Dentistry, Gangneung-Wonju National University School of Dentistry, Gangneung, Korea.

Correspondence to Se-Hee Park, DDS, PhD. Assistant Professor, Department of Conservative Dentistry, Gangneung-Wonju National University School of Dentistry, Gangneung Daehangno 120, Gangneung, Korea 210-702. TEL, +82-33-640-2760; FAX, +82-33-640-3103; drendo@gwnu.ac.kr

• Received: December 20, 2011 • Revised: February 15, 2012 • Accepted: February 24, 2012

©Copyights 2012. The Korean Academy of Conservative Dentistry.

21 Views
0 Download

prev next

Full Article

Download PDF

Abstract
ARTICLE INFORMATION
REFERENCES

Abstract

Objectives
The purpose of this study was to evaluate the relation between intentionally induced internal stress and cyclic fatigue failure of .06 taper ProFile.
Materials and Methods
Length 25 mm, .06 taper ProFile (Dentsply Maillefer), and size 20, 25, 30, 35 and 40 were used in this study. To give the internal stress, the rotary NiTi files were put into the .02 taper, Endo-Training-Bloc (Dentsply Maillefer) until auto-stop by torque controlled motor. Rotary NiTi files were grouped by the number of induced internal stress and randomly distributed among one control group and three experimental groups (n = 10, Stress 0 [control], Stress 1, Stress 2 and Stress 3). For cyclic fatigue measurement, time for separation of the rotary NiTi files was recorded. The fractured surfaces were observed by field emission scanning electron microscope (FE-SEM, SU-70, Hitachi). The time for separation was statistically analyzed using two-way ANOVA and post-hoc Scheffe test at 95% level.
Results
In .06 taper ProFile size 20, 25, 30, 35 and 40, there were statistically significant difference on time for separation between control group and the other groups (p < 0.05).
Conclusion
In the limitation of this study, cyclic fatigue failure of .06 taper ProFile is influenced by internal stress accumulated in the files.
Keywords: Auto-reverse; Auto-stop; Cyclic fatigue failure; Internal stress; Separation; .06 tper ProFile

ARTICLE INFORMATION

No potential conflict of interest relevant to this article was reported.

REFERENCES

1. Walia HM, Brantley WA, Gerstein H. An initial investigation of bending and torsional properties of Nitinol root canal files. J Endod. 1988;14: 346-351.PubMed
2. Ayar LR, Love RM. Shaping ability of ProFile and K3 rotary Ni-Ti instruments when used in a variable tip sequence in simulated curved root canals. Int Endod J. 2004;37: 593-601.Article PubMed
3. Al-Sudani D, Al-Shahrani S. A comparison of the canal centering ability of ProFile, K3 and RaCe Nickel Titanium rotary systems. J Endod. 2006;32: 1198-1201.Article PubMed
4. Canalda-Sahli C, Brau-Aguadé E, Berástegui-Jimeno E. A comparison of bending and torsional properties of K-files manufactured with different metallic alloys. Int Endod J. 1996;29: 185-189.Article PubMed
5. Haapasalo M, Udnæs T, Endal U. Persistent, recurrent, and acquired infection of the root canal system post-treatment. Endod Topics. 2003;6: 29-56.
6. Parashos P, Messer HH. Rotary NiTi instrument fracture and its consequences. J Endod. 2006;32: 1031-1043.Article PubMed
7. Sattapan B, Nervo GJ, Palamara JE, Messer HH. Defects in rotary nickel-titanium files after clinical use. J Endod. 2000;26: 161-165.Article PubMed
8. Ullmann CJ, Peters OA. Effect of cyclic fatigue on static fracture loads in ProTaper nickel-titanium rotary instruments. J Endod. 2005;31: 183-186.Article PubMed
9. Peters OA. Current challenges and concepts in the preparation of root canal systems: a review. J Endod. 2004;30: 559-567.PubMed
10. Parashos P, Gordon I, Messer HH. Factors influencing defects of rotary nickel-titanium endodontic instruments after clinical use. J Endod. 2004;30: 722-725.Article PubMed
11. Park SH, Seo HW, Hong CU. An evaluation of rotational stability in endodontic electronic motors. J Korean Acad Conserv Dent. 2010;35: 246-256.Article
12. Berutti E, Negro AR, Lendini M, Pasqualini D. Influence of manual preflaring and torque on the failure rate of ProTaper rotary instruments. J Endod. 2004;30: 228-230.Article PubMed
13. Li UM, Lee BS, Shih CT, Lan WH, Lin CP. Cyclic fatigue of endodontic nickel titanium rotary instruments: static and dynamic tests. J Endod. 2002;28: 448-451.PubMed
14. Schneider SW. A comparison of canal preparations in straight and curved root canals. Oral Surg Oral Med Oral Pathol. 1971;32: 271-275.Article PubMed
15. Plotino G, Grande NM, Cordaro M, Testarelli L, Gambarini G. A review of cyclic fatigue testing of nickel-titanium rotary instruments. J Endod. 2009;35: 1469-1476.Article PubMed
16. Bahia MG, Martins RC, Gonzalez BM, Buono VT. Physical and mechanical characterization and the influence of cyclic loading on the behaviour of nickel-titanium wires employed in the manufacture of rotary endodontic instruments. Int Endod J. 2005;38: 795-801.Article PubMed
17. Yared G, Kulkarni GK, Ghossayn F. An in vitro study of the torsional properties of new and used K3 instruments. Int Endod J. 2003;36: 764-769.PubMed
18. Lee JK, Kim ES, Kang MW, Kum KY. The effect of surface defects on the cyclic fatigue fracture of HEROShaper Ni-Ti rotary files in a dynamic model: a fractographic analysis. J Korean Acad Conserv Dent. 2007;32: 130-137.Article
19. Yared GM, Dagher FE, Machtou P, Kulkarni GK. Influence of rotational speed, torque and operator proficiency on failure of Greater Taper files. Int Endod J. 2002;35: 7-12.Article PubMed
20. Yared GM, Bou Dagher FE, Machtou P. Influence of rotational speed, torque and operator's proficiency on ProFile failures. Int Endod J. 2001;34: 47-53.Article PubMed PDF
21. Kim TO, Lee CJ, Kim BM, Park JK, Hur B, Kim HC. Stress distribution of three NiTi rotary files under bending and tortional conditions using 3-dimensional finite element analysis. J Korean Acad Conserv Dent. 2008;33: 323-331.
22. Camps JJ, Pertot WJ. Machining efficiency of nickel-titanium K-type files in a linear motion. Int Endod J. 1995;28: 279-284.Article PubMed
23. Berutti E, Chiandussi G, Gaviglio I, Ibba A. Comparative analysis of torsional and bending stresses in two mathematical models of nickel-titanium rotary instruments: ProTaper versus ProFile. J Endod. 2003;29: 15-19.Article PubMed

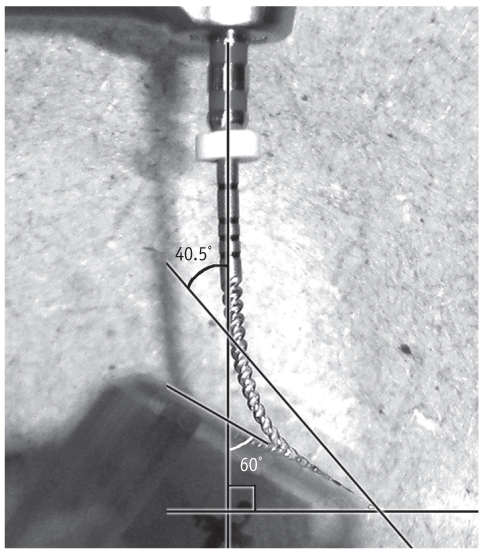

Figure 1

Representative image of cyclic fatigue testing using inclined glass plane.

Figure 2

FE-SEM micrographs of separated surface of .06 taper ProFile. The surfaces in all experimental groups showed same patterns of cyclic fatigue fracture. There is no circular abrasion mark which is feature of surface of torsional fracture. (a) #30 Stress 3 group (×200); (b) #35 Stress 3 group (×200). Black arrow, initiation zone; white arrow, overload zone. FE-SEM, Field emission scanning electron microscope.

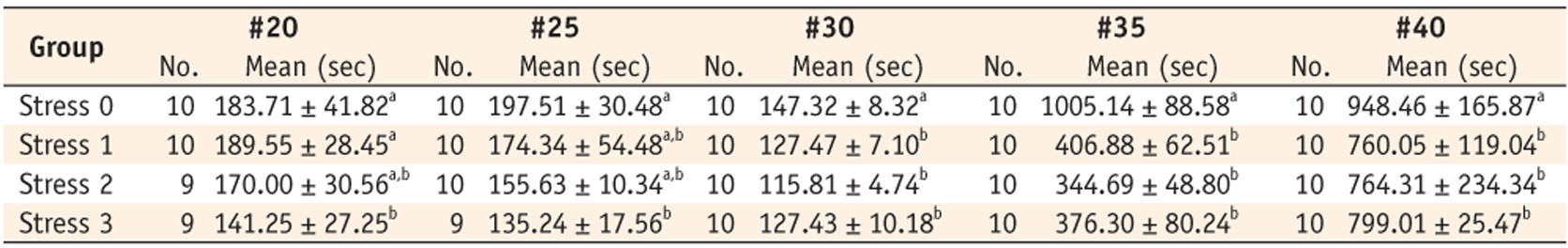

Table 1

Time for separation of .06 taper ProFile

Same superscripts shows no statistically significant difference in same size.

Stress0, Stress1, Stress2 and Stress3 are grouped by the number of induced internal stress.
