How do imaging protocols affect the assessment of root-end fillings?

Fernanda Ferrari Esteves Torres; Reinhilde Jacobs; Mostafa EzEldeen; Karla de Faria-Vasconcelos; Juliane Maria Guerreiro-Tanomaru; Bernardo Camargo dos Santos; Mário Tanomaru-Filho

doi:10.5395/rde.2022.47.e2

Articles

Page Path: HOME > Restor Dent Endod > Volume 47(1); 2022 > Article

Research Article How do imaging protocols affect the assessment of root-end fillings?: Fernanda Ferrari Esteves Torres¹, Reinhilde Jacobs^2,3, Mostafa EzEldeen², Karla de Faria-Vasconcelos², Juliane Maria Guerreiro-Tanomaru¹, Bernardo Camargo dos Santos⁴, Mário Tanomaru-Filho¹; DOI: https://doi.org/10.5395/rde.2022.47.e2
Published online: December 15, 2021

¹Department of Restorative Dentistry, São Paulo State University (UNESP), School of Dentistry, Araraquara, SP, Brazil.

²OMFS IMPATH Research Group, Department of Imaging & Pathology, Faculty of Medicine, KU Leuven and Oral and Maxillofacial Surgery, University Hospitals Leuven, Leuven, Belgium.

³Department of Dental Medicine, Karolinska Institute, Stockholm, Sweden.

⁴Department of Nuclear Energy, Federal University of Rio de Janeiro (UFRJ), Rio de Janeiro, RJ, Brazil.

Correspondence to Mario Tanomaru-Filho, DDS, PhD. Full Professor, Department of Restorative Dentistry, School of Dentistry, São Paulo State University (UNESP), Rua Humaitá, 1680, CEP Araraquara, SP 14801-903, Brazil. tanomaru@uol.com.br

• Received: August 17, 2020 • Revised: September 29, 2020 • Accepted: November 11, 2020

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (https://creativecommons.org/licenses/by-nc/4.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

20 Views
1 Download
2 Web of Science

prev next

Full Article

Download PDF

Abstract
INTRODUCTION
MATERIALS AND METHODS
RESULTS
DISCUSSION
CONCLUSIONS
ARTICLE INFORMATION
REFERENCES

Abstract

Objectives
This study investigated the impact of micro-computed tomography (micro-CT)-based voxel size on the analysis of material/dentin interface voids and thickness of different endodontic cements.
Materials and Methods
Following root-end resection and apical preparation, maxillary premolars were filled with mineral trioxide aggregate (MTA), Biodentine, and intermediate restorative material (IRM) (n = 24). The samples were scanned using micro-CT (SkyScan 1272; Bruker) and the cement/dentin interface and thickness of materials were evaluated at voxel sizes of 5, 10, and 20 µm. Analysis of variance and the Tukey test were conducted, and the degree of agreement between different voxel sizes was evaluated using the Bland and Altman method (p < 0.05).
Results
All materials showed an increase in thickness from 5 to 10 and 20 µm (p < 0.05). When evaluating the interface voids, materials were similar at 5 µm (p > 0.05), while at 10 and 20 µm Biodentine showed the lowest percentage of voids (p < 0.05). A decrease in the interface voids was observed for MTA and IRM at 20 µm, while Biodentine showed differences among all voxel sizes (p < 0.05). The Bland-Altman plots for comparisons among voxel sizes showed the largest deviations when comparing images between 5 and 20 µm.
Conclusions
Voxel size had an impact on the micro-CT evaluation of thickness and interface voids of endodontic materials. All cements exhibited an increase in thickness and a decrease in the void percentage as the voxel size increased, especially when evaluating images at 20 µm.
Keywords: Dental materials; Endodontics; Methods; X-ray microtomography

INTRODUCTION

Mineral trioxide aggregate (MTA) is widely indicated in dentistry for several clinical applications due to its successful long-term results [1]. However, to overcome its drawbacks, such as a long setting time, tooth discoloration, and handling properties, bioactive endodontic cements, such as Biodentine (Septodont, Saint Maur des Fossés, France) have been developed [1,2]. Intermediate restorative material (IRM; Dentsply DeTrey, Konstanz, Germany) is a zinc oxide-eugenol–based cement that is generally used as a comparator when evaluating new root-end filling materials [3,4].

The potential of the root-end filling materials to adhere to the surrounding dental tissue is desirable to provide sealing and avoid bacterial leakage and contamination [5]. Therefore, it is important to evaluate the interactions between teeth and materials in dentistry, since gaps between the dentin and material could promote poor sealing [6,7]. The selection of an appropriate material is a challenge in clinical practice, mainly because there is little information about the adaptation of materials to dentin [8], which is critical for achieving favorable treatment outcomes.

Micro-computed tomography (micro-CT) is a 3-dimensional (3D) nondestructive and reproducible tool that is highly accurate for the evaluation of root canal filling quality and the presence of voids [3,9,10,11]. Many studies have focused on evaluating the material/dentin using 3D information using micro-CT, but have presented significant variation in the reported voxel sizes used for scanning [3,5,12,13,14]. Voxel size is a factor that can impact image quality [15]. Consequently, the quality of the image could affect the segmentation technique, and therefore quantitative and qualitative measurements [16]. Low-resolution scanning can cause an underestimation of material density due to the partial-volume effect and an overestimation of object thickness [15]. Moreover, high resolution is crucial for obtaining accurate results in the calculation of voids, which can be underestimated at higher voxel sizes [10]. Although the smallest possible voxel size should be chosen for most studies, higher-resolution scans require longer acquisition times and generate large data sets [15].

There is a lack of information on the evaluation of endodontic materials and factors involved in micro-CT image postprocessing, such as resolution variables [17,18]. Therefore, the aim of this study was to use micro-CT to evaluate the material/dentin interface voids and thickness of different endodontic cements at voxel sizes of 5, 10, and 20 µm. The null hypothesis was that there would be no difference between the different voxel sizes in the evaluation of the materials.

MATERIALS AND METHODS

Specimen selection and preparation

After approval by the Institutional Ethics Committee (#CAAE: 79779617.5.0000.5416), 12 extracted 2-rooted maxillary premolars were selected. Any teeth with previous root canal treatments, cracks, or perforations were excluded from the experiment. A digital radiography system (Kodak RVG 6100; Carestream, Rochester, NY, USA) was used to confirm the inclusion criteria of teeth with similar morphology and to obtain a homogeneous distribution of the samples. The initial sample selection was performed using G* Power (3.1.7 for Windows; Heinrich Heine, Universität Dusseldorf, Germany). The t-test for 2 independent groups was used with an alpha-type error of 0.05 and beta power of 0.95, based on a previous study [12]. The teeth were randomly assigned to 3 groups according to the root-end filling materials (n = 24).

Root-end resections were performed at 90° to the long axis for both roots of the selected premolars, using a high-speed hand-piece under constant water spray irrigation. To standardize the length of the root end resection, the teeth were fixed in condensation silicone (Oranwash; Zhermack SpA, Badia Polesine, Italy), and efforts were made to use the burs exactly 3 mm from the apex. After apicectomy, 3.0-mm-deep cavities were prepared using a P1 ultrasonic retrotip (0.5 mm in diameter; Helse Ultrasonic, Santa Rosa de Viterbo, SP, Brazil) and an ultrasound device (Ultrawave XS; Ultradent, South Jordan, UT, USA) at 50% power and using irrigation with distilled water. The movement of introduction and removal was performed with slight pressure in the direction of the long axis of the root canal.

MTA (Angelus, Londrina, PR, Brazil), Biodentine (Septodont) and IRM (Dentsply DeTrey) were mixed according to the manufacturers' instructions and the cavities were filled with the materials. The samples were kept in an oven at 37°C and 95% relative humidity for 24 hours. All procedures were performed with the aid of magnifying glass under ×3.5 magnification (Bio-Art, Sao Carlos, SP, Brazil), by a single operator who was previously trained and calibrated.

Image acquisition and reconstruction

All samples were scanned using SkyScan 1272 micro-CT system (SkyScan; Bruker, Kontich, Belgium). The parameters for image acquisition and correction settings during reconstruction of the images using NRecon software (V1.6.10.4; Bruker) are described in Table 1. All data sets were exported using the Digital Imaging and Communications in Medicine file format with an isotropic voxel size of 5 µm [18].

Table 1

Parameters for micro-computed tomography acquisition and reconstruction of the samples

Parameters	Values
Voxel size	5 µm
Source voltage	100 kV
Source current	100 µA
Rotation	180°
Frame averaging	4
Rotation step	0.2
Ring artifact correction	5
Beam hardening correction	25
Smoothing	4

Image segmentation and analysis

For the evaluation of voids, the reconstructed images were segmented, differentiating material and dentin using CTAn software (V1.15.4.0; Bruker) at 5 µm, and after resizing the images isotropically [18]. The percentage of voids at the interface between the dentin surface of the root canal walls and the filling materials was evaluated based on the method described in a previous study [12]. The 3D distribution of the interface voids in a pre-defined volume of interest was calculated at 5, 10, and 20 μm using CTAn software. Three-dimensional models of the voids were created and exported to Materialise 3-matic (Materialise, Leuven, Belgium) to show the voids’ thickness.

Data sets were also imported for segmentation at 5, 10, and 20 µm into a dedicated tool developed in MeVisLab (MeVis Research, Bremen, Germany) in order to quantify the thickness of the materials [18,19]. After segmentation using MeVisLab, morphological analysis was performed in Materialise 3-matic and the thickness of all materials was measured.

Statistical analysis

All data were analyzed with statistical software package GraphPad Prism 7.00 (GraphPad Software, La Jolla CA, USA). The normality of the data was tested using the D'Agostino and Pearson test. One-way analysis of variance and the Tukey test were used to test the statistical significance of differences between the materials and voxel sizes. The degree of agreement between the different voxel sizes was evaluated using the Bland and Altman method (MedCalc Software, Ostend, Belgium). Bland and Altman analysis is based on quantifying the agreement between 2 quantitative measurements, achieved by analyzing the bias between the mean differences, and estimating an agreement interval [20]. The level of significance was set at 5%.

RESULTS

A box plot graph representing the materials’ thickness is presented in Figure 1. All materials showed an increase in their thickness from 5 to 10 and 20 µm (p < 0.05). The evaluation of materials using the 3-matic software can be visualized in Figure 2.

Figure 1

Box-plot graph representing the material’s thickness (µm) at 5 (small cube representing the smaller voxel size), 10 (medium cube representing the medium voxel size), and 20 µm (large cube representing the larger voxel size) for MTA, Biodentine, and IRM. Different letters (a, b, c) represent statistically significant difference among voxel sizes. Statistically significant differences were observed in the thickness of all materials from 5 to 10 and 20 µm.

MTA, mineral trioxide aggregate; IRM, intermediate restorative material.

Figure 2

Three-dimensional models presenting the wall thickness analysis using 3-matic software for mineral trioxide aggregate (A), Biodentine (B), and intermediate restorative material (C) at 5 µm. The color map shows the thickness (mm) of the materials.

When evaluating the material/dentin interface, the cements showed a decrease in the percentage of voids when a greater voxel size was used (Table 2 and Figure 3). The percentage of interface voids was similar between the materials at 5 µm, while at 10 and 20 µm Biodentine showed lower values than MTA and IRM (p < 0.05). There was no significant difference between 5 and 10 µm for MTA and IRM (p > 0.05), while the voxel size of 20 µm was significantly different (p < 0.05). Biodentine showed statistically significant differences among all resolutions (p < 0.05). The Bland-Altman plots for comparison among voxel sizes showed the largest deviation when comparing images with 5 and 20 µm voxel sizes (Figures 4 and 5).

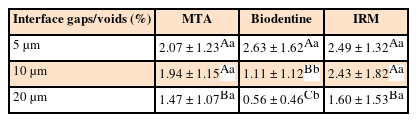

Table 2

Interface void values (%) using different voxel sizes observed in endodontic materials

Interface gaps/voids (%)	MTA	Biodentine	IRM
5 µm	2.07 ± 1.23^Aa	2.63 ± 1.62^Aa	2.49 ± 1.32^Aa
10 µm	1.94 ± 1.15^Aa	1.11 ± 1.12^Bb	2.43 ± 1.82^Aa
20 µm	1.47 ± 1.07^Ba	0.56 ± 0.46^Cb	1.60 ± 1.53^Ba

The values are mean ± standard deviation.

MTA, mineral trioxide aggregate; IRM, intermediate restorative material.

^*Different capital letters in the same column represent statistically significant differences among voxel sizes. Different lowercase letters in the same line represent statistically significant differences among materials (p < 0.05) (1-way analysis of variance and the Tukey test).

Figure 3

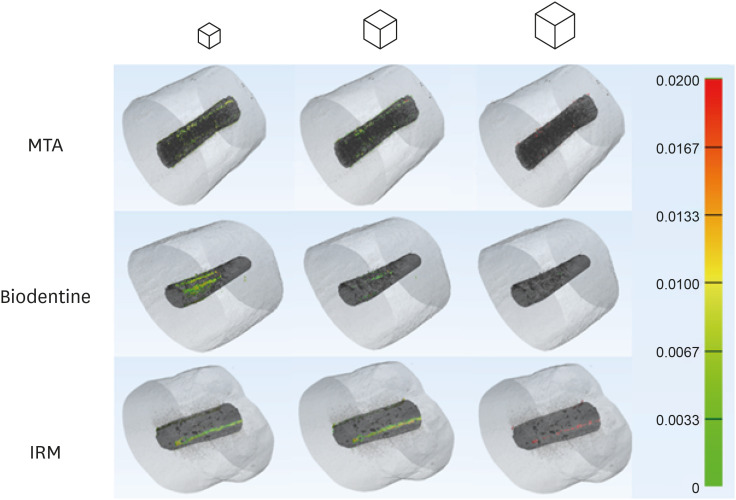

Three-dimensional models representing the interface gaps/voids of the MTA, Biodentine, and IRM cements at 5 (small cube representing the smaller voxel size), 10 (medium cube representing the medium voxel size), and 20 µm (large cube representing the larger voxel size). The color map shows the thickness (mm) of the voids.

MTA, mineral trioxide aggregate; IRM, intermediate restorative material.

Figure 4

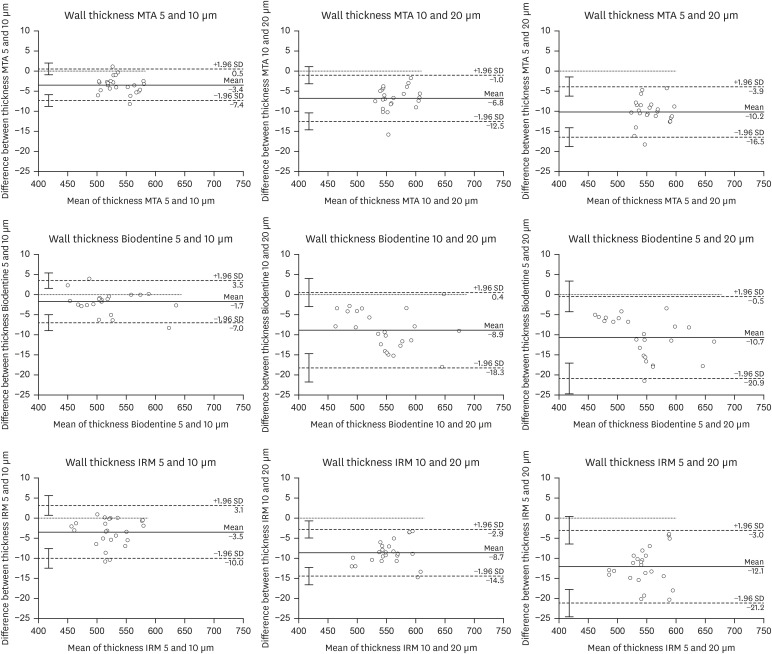

Bland-Altman plots for comparisons of agreement regarding wall thickness analysis according to voxel size. The difference between the measurements is plotted against their mean. The graphs represent MTA, Biodentine, and IRM, with comparisons between 5 and 10 µm, 10 and 20 µm, and 5 and 20 µm, respectively.

MTA, mineral trioxide aggregate; SD, standard deviation; IRM, intermediate restorative material.

Figure 5

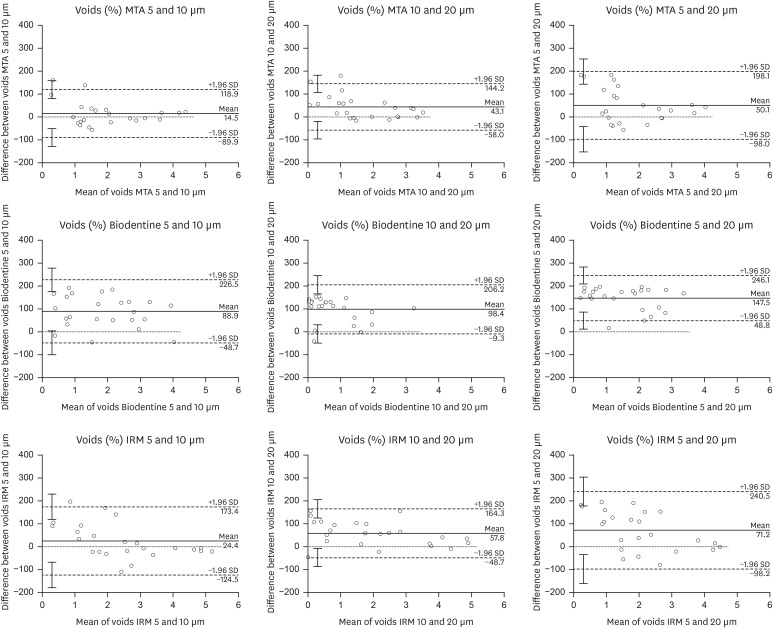

Bland-Altman plots for comparisons of agreement regarding interface gaps/voids of the cements according to voxel size. The difference between the measurements is plotted against their mean. The graphs represent MTA, Biodentine, and IRM, with comparisons between 5 and 10 µm, 10 and 20 µm, and 5 and 20 µm, respectively.

MTA, mineral trioxide aggregate; SD, standard deviation; IRM, intermediate restorative material.

DISCUSSION

Although micro-CT has been extensively used to characterize dental materials, specific guidelines for image acquisition, processing, and analysis have not been defined yet [18,21]. Since the voxel size can have a significant impact on quantitative analyses using micro-CT, studies of image parameter dependency are essential to provide background information to support the choice of scan protocols and allow inter-study comparisons [18,22]. Therefore, the current study was undertaken to determine the voxel size dependency in the accurate evaluation of the material/dentin interface and thickness of endodontic materials using 3D micro-CT imaging. A Bland and Altman plot was used to compare voxel sizes in regard to correlation and differences, by analysis of the same variable. The Bland and Altman analysis defines only the intervals of agreement, without determining whether or not the limits are acceptable [20]. However, the differences observed in the current study may highlight the effects of decreasing resolution on the accuracy of micro-CT quantification [17].

The wall thickness of the materials was evaluated using the 3-matic program (Materialise). According to the manufacturer, this analysis refers to the distance between a surface of the material and its opposite sheer surface. The wall thickness analysis takes a voxel-based approach. It is comparable to pixels in 2D, but it is used in 3D space and represented by a cube volume. The analysis tool splits up the 3D model into a series of voxel or cube-shaped volumes. The 3D triangulated surfaces are used to generate a finite element mesh, which is a commonly used method in the medical field in studies aiming to develop and validate a workflow to simulate treatment prior to an intervention [23]. Our results showed that the thickness of the materials increased when we increased the voxel size. This probably occurred because a lower spatial resolution induces errors in the calculation of the 3D images, creating an overestimation of some parameters and increasing the percent volume [24]. When the resolution of the image decreases, the partial-volume effect is expected, which is an inevitable phenomenon that occurs when neighboring voxels include multiple materials. The partial volume does not have the same attenuation value as any of the individual materials inside the voxel, and voxels at the external surface of the sample can contain volumes occupied by both materials. Therefore, completely accurate object volume measurements are not possible [25,26]. The partial-volume effect depends on the size of the target object, the contrast between the object and background, the spatial resolution, the reconstruction method, and the smoothing filters used [27].

Unlike what occurred in the analysis of thickness, the assessment of the interface voids generally showed decreasing values when we increased the voxel size. Our findings showed no significant differences among the materials regarding their interface voids when evaluating images at 5 µm, in agreement with previous studies [28,29,30]. However, at 10 and 20 µm, Biodentine showed lower void values than MTA and IRM. These values occurred since the micro-CT images are limited by the dimensions of the target object. If the resolution exceeds the dimensions of micropores or very thin structures, they are not correctly visualized [31].

When reducing the spatial resolution from 5 to 10 and 20 μm, our results showed a decrease in percentage of interface voids of 6% and 29% for MTA, 42% and 78% for Biodentine, and 2% and 35% for IRM, respectively. One explanation for the highest values of Biodentine may be the smaller voids present in its interface, as observed in Figure 3. This finding could be justified since MTA has difficult handling characteristics as a direct result of its granular consistency, while Biodentine has a hydro-soluble polymer incorporated into the water, which improves its handling properties [32,33]. Moreover, the Biodentine powder presents a small and optimized particle size distribution [33]. Therefore, these characteristics could explain the low diameter of pores or voids in the cement-dentin interface for Biodentine [5]. A previous study compared different voxel sizes using nano-CT (1.5 and 5.0 μm) and micro-CT (5.2, 8.1, 11.2, and 16.73 μm) for the evaluation of root canal filling voids [10]. The authors suggested a voxel resolution of 11.2 μm as a cut-off value in micro-CT and nano-CT imaging, corroborating another study stating that 9.52 μm could be considered the optimal micro-CT-based resolution for the quantification of porosity in different materials [21]. These findings are in agreement with our results for MTA and IRM. The reliability of the evaluation using smaller voxel sizes when evaluating dental materials was shown with similar methodology [18].

A limitation of the current study is that the samples were digitized with a voxel size of 5 µm and the reconstructed images were resized to acquire images with larger voxel sizes. Although this method may overestimate the quality of the image, the voxel size was the only variable evaluated, allowing accurate comparisons between the same regions of interest [26,34]. This method does not require a new scan, and the smaller voxel size used during the scan can be considered the gold standard for comparing other images with lower resolution [35,36]. In addition, our results showed that smaller voxel sizes are preferable for assessing the thickness of materials and interface voids of cement, rejecting our null hypothesis. Even if a lower resolution makes these assessments possible, it is important to consider that the measures are approximations of the real values [22].

CONCLUSIONS

All cements evaluated showed an increase in their thickness and a decrease in the void percentage as the voxel size increased (especially at 20 µm). To assess the thickness and interface voids of root-end filling materials, micro-CT images with small voxel sizes are preferred.

ARTICLE INFORMATION

Funding: This work was supported in part by the Coordenação de Aperfeiçoamento de Pessoal de Nível Superior, Brasil (CAPES) Finance Code 001, and was fully supported by the São Paulo Research Foundation – FAPESP (grant numbers 2016/00321-0, 2017/22481-1, and 2017/19049-0).

Conflict of Interest: No potential conflict of interest relevant to this article was reported.

REFERENCES

1. Parirokh M, Torabinejad M, Dummer PM. Mineral trioxide aggregate and other bioactive endodontic cements: an updated overview - part I: vital pulp therapy. Int Endod J 2018;51:177-205. Article PubMed PDF
2. Raina A, Sawhny A, Paul S, Nandamuri S. Comparative evaluation of the bond strength of self-adhering and bulk-fill flowable composites to MTA Plus, Dycal, Biodentine, and TheraCal: an in vitro study. Restor Dent Endod 2020;45:e10. PubMed PMC
3. Torres FF, Jacobs R, EzEldeen M, Guerreiro-Tanomaru JM, Dos Santos BC, Lucas-Oliveira É, Bonagamba TJ, Tanomaru-Filho M. Micro-computed tomography high resolution evaluation of dimensional and morphological changes of 3 root-end filling materials in simulated physiological conditions. J Mater Sci Mater Med 2020;31:14. Article PubMed PDF
4. Torres FF, Guerreiro-Tanomaru JM, Chavez-Andrade GM, Pinto JC, Berbert FL, Tanomaru-Filho M. Micro-computed tomographic evaluation of the flow and filling ability of endodontic materials using different test models. Restor Dent Endod 2020;45:e11. PubMed PMC
5. Biočanin V, Antonijević Đ, Poštić S, Ilić D, Vuković Z, Milić M, Fan Y, Li Z, Brković B, Đurić M. Marginal gaps between 2 calcium silicate and glass ionomer cements and apical root dentin. J Endod 2018;44:816-821. Article PubMed
6. Ozlek E, Gündüz H, Akkol E, Neelakantan P. Dentin moisture conditions strongly influence its interactions with bioactive root canal sealers. Restor Dent Endod 2020;45:e24. Article PubMed PMC PDF
7. Aksel H, Arslan E, Puralı N, Uyanık Ö, Nagaş E. Effect of ultrasonic activation on dentinal tubule penetration of calcium silicate-based cements. Microsc Res Tech 2019;82:624-629. Article PubMed PDF
8. Karadas M, Atıcı MG. Bond strength and adaptation of pulp capping materials to dentin. Microsc Res Tech 2020;83:514-522. PubMed
9. Kim K, Kim DV, Kim SY, Yang S. A micro-computed tomographic study of remaining filling materials of two bioceramic sealers and epoxy resin sealer after retreatment. Restor Dent Endod 2019;44:e18. Article PubMed PMC PDF
10. Orhan K, Jacobs R, Celikten B, Huang Y, de Faria Vasconcelos K, Nicolielo LF, Buyuksungur A, Van Dessel J. Evaluation of threshold values for root canal filling voids in micro-CT and nano-CT images. Scanning 2018;2018:9437569. Article PubMed PMC PDF
11. Yanpiset K, Banomyong D, Chotvorrarak K, Srisatjaluk RL. Bacterial leakage and micro-computed tomography evaluation in round-shaped canals obturated with bioceramic cone and sealer using matched single cone technique. Restor Dent Endod 2018;43:e30. Article PubMed PMC PDF
12. Gandolfi MG, Parrilli AP, Fini M, Prati C, Dummer PM. 3D micro-CT analysis of the interface voids associated with Thermafil root fillings used with AH Plus or a flowable MTA sealer. Int Endod J 2013;46:253-263. PubMed
13. Almeida LJ, Penha KJ, Souza AF, Lula EC, Magalhães FC, Lima DM, Firoozmand LM. Is there correlation between polymerization shrinkage, gap formation, and void in bulk fill composites? A μCT study. Braz Oral Res 2017;31:e100. PubMed
14. Križnar I, Zanini F, Fidler A. Presentation of gaps around endodontic access cavity restoration by phase contrast-enhanced micro-CT. Clin Oral Investig 2019;23:2371-2381.Article PubMed PDF
15. Bouxsein ML, Boyd SK, Christiansen BA, Guldberg RE, Jepsen KJ, Müller R. Guidelines for assessment of bone microstructure in rodents using micro-computed tomography. J Bone Miner Res 2010;25:1468-1486. Article PubMed PDF
16. Maret D, Peters OA, Galibourg A, Dumoncel J, Esclassan R, Kahn JL, Sixou M, Telmon N. Comparison of the accuracy of 3-dimensional cone-beam computed tomography and micro-computed tomography reconstructions by using different voxel sizes. J Endod 2014;40:1321-1326. PubMed
17. Jiřík M, Bartoš M, Tomášek P, Malečková A, Kural T, Horáková J, Lukáš D, Suchý T, Kochová P, Hubálek Kalbáčová M, Králíčková M, Tonar Z. Generating standardized image data for testing and calibrating quantification of volumes, surfaces, lengths, and object counts in fibrous and porous materials using X-ray microtomography. Microsc Res Tech 2018;81:551-568. Article PubMed PDF
18. Torres FF, Jacobs R, EzEldeen M, de Faria-Vasconcelos K, Guerreiro-Tanomaru JM, Dos Santos BC, Tanomaru-Filho M. How image-processing parameters can influence the assessment of dental materials using micro-CT. Imaging Sci Dent 2020;50:161-168. Article PubMed PMC PDF
19. EzEldeen M, Van Gorp G, Van Dessel J, Vandermeulen D, Jacobs R; EzEldeen M. 3-dimensional analysis of regenerative endodontic treatment outcome. J Endod 2015;41:317-324. Article PubMed
20. Giavarina D. Understanding bland altman analysis. Biochem Med (Zagreb) 2015;25:141-151. PubMed PMC
21. De Souza ET, Nunes Tameirão MD, Roter JM, De Assis JT, De Almeida Neves A, De-Deus GA. Tridimensional quantitative porosity characterization of three set calcium silicate-based repair cements for endodontic use. Microsc Res Tech 2013;76:1093-1098. Article PubMed
22. Cooper D, Turinsky A, Sensen C, Hallgrimsson B. Effect of voxel size on 3D micro-CT analysis of cortical bone porosity. Calcif Tissue Int 2007;80:211-219. Article PubMed PDF
23. Bosmans B, Famaey N, Verhoelst E, Bosmans J, Vander Sloten J. A validated methodology for patient specific computational modeling of self-expandable transcatheter aortic valve implantation. J Biomech 2016;49:2824-2830. Article PubMed
24. Kim JE, Yi WJ, Heo MS, Lee SS, Choi SC, Huh KH. Three-dimensional evaluation of human jaw bone microarchitecture: correlation between the microarchitectural parameters of cone beam computed tomography and micro-computer tomography. Oral Surg Oral Med Oral Pathol Oral Radiol 2015;120:762-770. PubMed
25. Choi JC, Choi CA, Yeo IL. Spiral scanning imaging and quantitative calculation of the 3-dimensional screw-shaped bone-implant interface on micro-computed tomography. J Periodontal Implant Sci 2018;48:202-212. Article PubMed PMC PDF
26. Marinozzi F, Bini F, Marinozzi A, Zuppante F, De Paolis A, Pecci R, Bedini R. Technique for bone volume measurement from human femur head samples by classification of micro-CT image histograms. Ann Ist Super Sanita 2013;49:300-305. PubMed
27. Ferretti A, Bellan E, Gava M, Chondrogiannis S, Massaro A, Nibale O, Rubello D. Phantom study of the impact of reconstruction parameters on the detection of mini- and micro-volume lesions with a low-dose PET/CT acquisition protocol. Eur J Radiol 2012;81:3363-3370. Article PubMed
28. Küçükkaya Eren S, Aksel H, Askerbeyli Örs S, Serper A, Koçak Y, Ocak M, Çelik HH. Obturation quality of calcium silicate-based cements placed with different techniques in teeth with perforating internal root resorption: a micro-computed tomographic study. Clin Oral Investig 2019;23:805-811.PubMed
29. Ozturk TY, Guneser MB, Taschieri S, Maddalone M, Dincer AN, Venino PM, Del Fabbro M. Do the intracanal medicaments affect the marginal adaptation of calcium silicate-based materials to dentin? J Dent Sci 2019;14:157-162. Article PubMed PMC
30. Küçükkaya Eren S, Görduysus MO, Şahin C. Sealing ability and adaptation of root-end filling materials in cavities prepared with different techniques. Microsc Res Tech 2017;80:756-762. PubMed
31. Kerckhofs G, Schrooten J, Van Cleynenbreugel T, Lomov SV, Wevers M. Validation of x-ray microfocus computed tomography as an imaging tool for porous structures. Rev Sci Instrum 2008;79:013711. Article PubMed PDF
32. Ber BS, Hatton JF, Stewart GP. Chemical modification of proroot mta to improve handling characteristics and decrease setting time. J Endod 2007;33:1231-1234. PubMed
33. Camilleri J, Sorrentino F, Damidot D. Investigation of the hydration and bioactivity of radiopacified tricalcium silicate cement, Biodentine and MTA Angelus. Dent Mater 2013;29:580-593. Article PubMed
34. Isaksson H, Töyräs J, Hakulinen M, Aula AS, Tamminen I, Julkunen P, Kröger H, Jurvelin JS. Structural parameters of normal and osteoporotic human trabecular bone are affected differently by microCT image resolution. Osteoporos Int 2011;22:167-177. Article PubMed PDF
35. Kim DG, Christopherson GT, Dong XN, Fyhrie DP, Yeni YN. The effect of microcomputed tomography scanning and reconstruction voxel size on the accuracy of stereological measurements in human cancellous bone. Bone 2004;35:1375-1382. Article PubMed
36. Sode M, Burghardt AJ, Nissenson RA, Majumdar S. Resolution dependence of the non-metric trabecular structure indices. Bone 2008;42:728-736. PubMed

Tables & Figures

REFERENCES

Citations

Citations to this article as recorded by

ePub Link

Cite

CITE: export Copy Download Format; Close

Download Citation

Download a citation file in RIS format that can be imported by all major citation management software, including EndNote, ProCite, RefWorks, and Reference Manager.
