Spectrophotometric evaluation of sealing effects of several root-end filling materials

Jin-Gyu Yi; Sang-Jin Park; Kyung-Kyu Choi; Gi-Woon Choi

doi:10.5395/JKACD.2003.28.6.449

Articles

Page Path: HOME > Restor Dent Endod > Volume 28(6); 2003 > Article

Original Article Spectrophotometric evaluation of sealing effects of several root-end filling materials: Jin-Gyu Yi, Sang-Jin Park, Kyung-Kyu Choi, Gi-Woon Choi; 2003;28(6):-456.
DOI: https://doi.org/10.5395/JKACD.2003.28.6.449
Published online: November 30, 2003

Department of Conservative Dentistry, College of Dentistry, Kyunghee University, Korea.

Corresponding author (gwchoi@khu.ac.kr)

129 Views
1 Download

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

The purpose of this study is to evaluate the sealing effect of several root-end filling materials using spectrophotometric analysis. 180 single root teeth with one canal were instrumented and canal filled. Root resected and root end preparation was made. Teeth were randomly classified to 5 experimental group(MTA, EBA, IRM, TCP, ZOE) and 1 control group according to root-end filling material MTA group used PRO ROOT MTA, EBA group used Super EBA, TCP group used NEW APATITE LINER TYPE II main component of which is α-tricalcium phosphate(TCP). According to manufacture's instruction experimental material was mixed and retrfilled. After 2% methylene blue solution penetration absorbance for each test sample was measured with spectrophotometer (JASCO UV-530, Japan).

The mean absorbance of control and experimental group was as follows;

MTA : 0.092, IRM : 0.226, Super EBA : 0.255, ZOE : 0.374, Control : 0.425, TCP : 0.501 and the result analyzed by Turkey test at P=0.05 level.

Conclusions of this study are as follows;
1. The absorbance increase in follwing sequence MTA, IRM, Super EBA, ZOE, Control, TCP.
2. MTA showed the least leakage but was not significant with IRM or Super EBA and was significant with control or TCP(p<0.05).
3. TCP had the most leakage and was not significant with control group.
Keywords: Sealing effect; Root-end filling materials; Spectrophotometric analysis; Absorbance; MTA; TCP

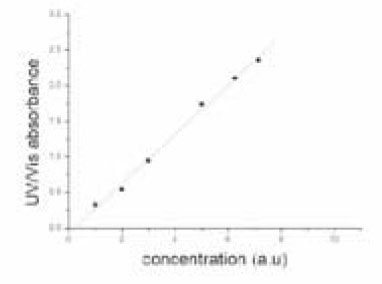

Fig. 1

Authorized line of 2% methylene blue

Fig. 2

UV/Vis absorbance of Control

Fig. 3

UV/Vis absorbance of MTA

Fig. 4

UV/Vis absorbance of Super EBA

Fig. 5

UV/Vis absorbance of IRM

Fig. 6

UV/Vis absorbance of TCP

Fig. 7

UV /Vis absorbance of ZOE

Fig. 8

Mean UV/Vis absorbance of control and expeimental groups

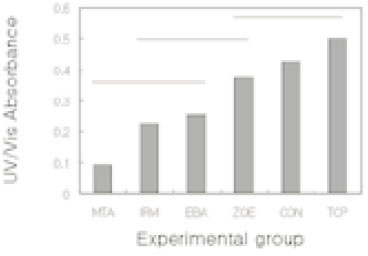

Fig. 9

Comparison of mean UV/Vis absorbance

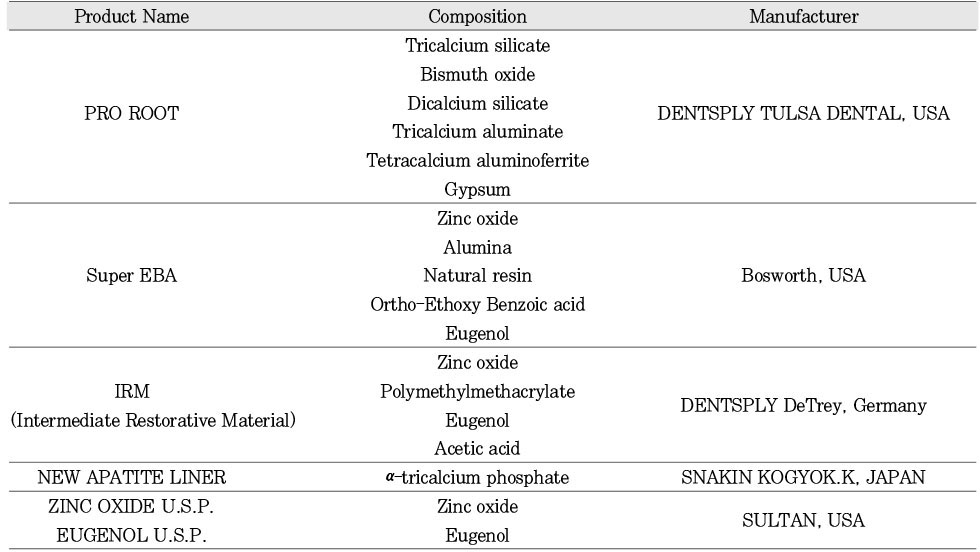

Table 1

Root-end filling materials used in this study

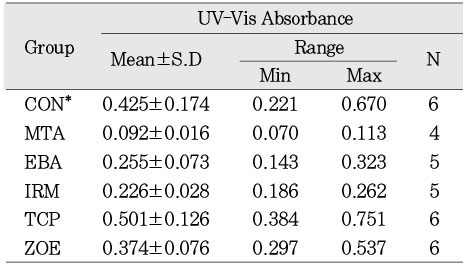

Table 2

Mean UV/Vis Absorbance of Control and Experimental Group

^*: control group

REFERENCES

1. Torabinejad M, Watson TF, Pitt Ford TR. Sealing ability of a mineral trioxide aggregate when used as a root end filling material. J Endod. 1993;19(12):591-595.Article PubMed
2. Rapp EL, Brown CE Jr, Newton CW. An analysis of success and failure of apicoectomies. J Endod. 1991;17(10):508-512.Article PubMed
3. Kaplan SD, Tanzilli JP, Raphael D, Moodnik RM. A comparison of the marginal leakage of retrograde techniques. Oral Surg. 1982;54(5):583-585.Article PubMed
4. Bramwell JD, Hicks ML. Sealing ability of four retrofilling techniques. J Endod. 1986;12(3):95-100.Article PubMed
5. Carr GB, Bentkover SB. In: Cohen S, Burns RC, editors. Surgical endodontics. Pathways of the pulp. 1998;St Louis: CV Mosby Co; 608-656.
6. King KT, Anderson RW, Pashley DH, Pantera EA Jr. Longitudinal evaluation of the seal of endodontic retrofillings. J Endod. 1990;16(7):307-310.Article PubMed
7. Tuggle ST, Anderson RW, Pantera EA Jr, Neaverth EJ. A dye penetration study of retrofilling materials. J Endod. 1989;15(3):122-124.Article PubMed
8. Vertucci FJ, Beatty RG. Apical leakage associated with retrofilling techniques: a dye study. J Endod. 1986;12(8):331-336.Article PubMed
9. Johnson BR. Considerations in the selection of a root-end filling material. Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 1999;87(4):398-404.Article PubMed
10. Fogel HM. Microleakage of root-end filling materials. J Endod. 2001;27(7):456-458.Article PubMed
11. Gartner AH, Dorn SO. Advances in endodontic surgery. Dent Clin North Am. 1992;36(2):357-378.Article PubMed
12. Pitt Ford TR, Andreasen JO, Dorn SO, Kariyawasam SP. Effect of various zinc oxide materials as root-end fillings on healing after replantation. Int Endod J. 1995;28(6):273-278.Article PubMed
13. Wu MK, Kontakiotis EG, Wesselink PR. Long-term seal provided by some root-end filling materials. J Endod. 1998;24(8):557-560.Article PubMed
14. Zhu Q, Safavi KE, Spangberg LS. Cytotoxic evaluation of root-end filling materials in cultures of human osteoblast-like cells and periodontal ligament cells. J Endod. 1999;25(6):410-412.Article PubMed
15. Fischer EJ, Arens DE, Miller CH. Bacterial leakage of mineral trioxide aggregate as compared with zincfree amalgam, intermediate restorative material, and Super-EBA as a root-end filling material. J Endod. 1998;24(3):176-179.Article PubMed
16. Torabinejad M, Higa RK, McKendry DJ, Pitt Ford TR. Dye leakage of four root end filling materials: effects of blood contamination. J Endod. 1994;20(4):159-163.Article PubMed
17. Torabinejad M, Hong CU, Pitt Ford TR, Kettering JD. Cytotoxicity of four root end filling materials. J Endod. 1995;21(10):489-492.Article PubMed
18. Torabinejad M, Pitt Ford TR, McKendry DJ, Abedi HR, Miller DA, Kariyawasam SP. Histologic assessment of mineral trioxide aggregate as a root-end filling in monkeys. J Endod. 1997;23(4):225-228.Article PubMed
19. Zhu Q, Haglund R, Safavi KE, Spangberg LS. Adhesion of human osteoblasts on root-end filling materials. J Endod. 2000;26(7):404-406.Article PubMed
20. Barkhordar RA, Meyer JR. Histologic evaluation of a human periapical defect after implantation with tricalcium phosphate. Oral Surg Oral Med Oral Pathol. 1986;61(2):201-206.Article PubMed
21. Himel VT, Brady J Jr, Weir J Jr. Evaluation of repair of mechanical perforations of the pulp chamber floor using biodegradable tricalcium phosphate or calcium hydroxide. J Endod. 1985;11(4):161-165.Article PubMed
22. Dorn SO, Gartner AH. Retrograde filling materials: a retrospective success-failure study of amalgam, EBA, and IRM. J Endod. 1990;16(8):391-393.Article PubMed
23. Szeremeta-Browar TL, VanCura JE, Zaki AE. A comparison of the sealing properties of different retrograde techniques: an autoradiographic study. Oral Surg Oral Med Oral Pathol. 1985;59(1):82-87.Article PubMed
24. Fitzpatrick EL, Steiman HR. Scanning electron microscopic evaluation of finishing techniques on IRM and EBA retrofillings. J Endod. 1997;23(7):423-427.Article PubMed
25. Torabinejad M, Falah Rastergar A, Kettering JD, Pitt Ford TR. Bacterial leakage of mineral trioxide aggregate as a root and filling material. J Endod. 1995;21(3):109-112.PubMed
26. Goodell GG, Mork TO, Hutter JW, Nicoll BK. Linear dye penetration of a calcium phosphate cement apical barrier. J Endod. 1997;23(3):174-177.Article PubMed
27. Harbert H. One-step apexification without calcium hydroxide. J Endod. 1996;22(12):690-692.PubMed
28. Chong BS, Pitt Ford TR, Watson TF. The adaptation and sealing ability of light-cured glass ionomer retrograde root fillings. Int Endod J. 1991;24(5):223-232.Article PubMed
29. Oliver CM, Abbott PV. Correlation between clinical success and apical dye penetration. Int Endod J. 2001;34(8):637-644.Article PubMed PDF
30. Ahlberg KM, Assavanop P, Tay WM. A comparison of the apical dye penetration patterns shown by methylene blue and india ink in root-filled teeth. Int Endod J. 1995;28(1):30-34.Article PubMed
31. Antonopoulos KG, Attin T, Hellwig E. Evaluation of the apical seal of root canal fillings with different methods. J Endod. 1998;24(10):655-658.Article PubMed
32. Goldman M, Simmonds S, Rush R. The usefulness of dye-penetration studies reexamined. Oral Surg Oral Med Oral Pathol. 1989;67(3):327-332.Article PubMed
33. Spangberg LS, Acierno TG, Yongbum Cha B. Influence of entrapped air on the accuracy of leakage studies using dye penetration methods. J Endod. 1989;15(11):548-551.Article PubMed
34. Oliver CM, Abbott PV. Entrapped air and its effects on dye penetration of voids. Endod Dent Traumatol. 1991;7(3):135-138.Article PubMed
35. Peters LB, Harrison JW. A comparison of leakage of filling materials in demineralized and non-demineralized resected root ends under vacuum and non-vacuum conditions. Int Endod J. 1992;25(6):273-278.Article PubMed
36. Wu MK, Kontakiotis EG, Wesselink PR. Decoloration of 1% methylene blue solution in contact with dental filling materials. J Dent. 1998;26(7):585-589.Article PubMed
37. Torabinejad M, Smith PW, Kettering JD, Pitt Ford TR. Comparative investigation of marginal adaptation of mineral trioxide aggregate and other commonly used root-end filling materials. J Endod. 1995;21(6):295-299.Article PubMed
38. Fogel HM, Peikoff MD. Microleakage of root-end filling materials. J Endod. 2001;27(7):456-458.Article PubMed
39. Wu MK, Wesselink PR. Endodontic leakage studies reconsidered. Part I. Methology, application and relevance. Int Endod J. 1993;26: 37-43.PubMed
40. Veis A, Lambrianidies T, Nicolaou A. Area-metric analysis of dye leakage for evaluation of sealing ability of root canal obturation techniques. Endod Dent Traumatol. 1996;12: 222-226.Article PubMed
41. Brown WE, Chow LC. A new calcium phosphate settinh cement. J Dent Res. 1983;62: 672.
