- Research Article Effects of the endodontic access cavity on apical debris extrusion during root canal preparation using different single-file systems
-
Pelin Tüfenkçi
, Koray Yılmaz, Mehmet Adigüzel -
Restor Dent Endod 2020;45(3):e33.
DOI: https://doi.org/10.5395/rde.2020.45.e33
Published online: June 4, 2020
Department of Endodontics, Faculty of Dentistry, Hatay Mustafa Kemal University, Hatay, Turkey. JFIF d d Ducky d qhttp://ns.adobe.com/xap/1.0/ |er˭|I|-fGK.rΛp8XV1%K6mvG+tc+qE &ǸC_Nm:l=_/m5^[dߌڇ.c<%:)tQ$Ow~-aY;UJ >=F)2[nk؆?훐 M=l6[4(O.]2#-H^n#->&mp5~Fӛ+|| S,xag% qkEUzUgæBhߕP(7]kFnq?֖Cpru Z6*rEڊtS|*tI*E}7R<,nUU֫^I7Q*mSly%rdȓd8hE<9oHhMfNSRj[i7D[Rj݊+kდq{"$$H?p \̅S?㭻;t~ R߁ )^/>Qj`yt[w ԛ;² ~+ ߔ_ YW~|o] ?x^ᯛ `ʼn;g)T@vWn]>&4l p+$D̢1l|ȨF%-} .9[}w~
ԠLM9hСablfe&QoW !s ?wjLK?s7yO>(=C~_nyǜu? v 3vyo oI@qV-jeES^[9WoSܝh"l2C1a͔CiJ@3:Pճw= /7ovuk+\V;lDgն <[A+r X~d;m!_s8ݖ;;.0llUC+?i#_crʙ1~C.\q u l8Hܶ2m`ܻM3Tov|Bs rɵ"oLS-
DКw=Tv@f '6|YlD͓Y%-#Ѯo%:&!3o%\J<02;K87>^vgƓ# ;ݝmz^Y6=PS39U%~
&f#
}o!muH; ʲŇ˷yvP+&.7e[3'vR4Yj̗IZ`e˽3o[WU{
m[sUbۋZǾۆl6~9'V*.\S2<Sd*zY[aŶ`]C$n.v^Ʌ
dng>ەZ,Mmϑ :n6nϦezW qUJ4! ۇ4R! =>>F n|Q[{pRO 17ƕ~._I ''00k=b՛o}Osðc2'o\3}ݭQ^ 2 . R1yKȣtAݿ-u ܾw!`?1Whn|gzU o[ECWwjUIן)^h#1ɭ!/Z
np;o;ΗŻkXs."6E`Z1
עӐ9Kl8qd q} 2Stt;#j>;խabONŗ=fwP1j)l6J̶|gV 2`y/0E˛6+ԫ1?
6}KW c\KoKͨ2ۅFws*TԞLיuDx .kCzWXhy۶gLu|%TnupǺl-S* P RaLnT+c+*xl.v!.U=|; !_L̎뱚U=4hm:ٯ"y)$:>%(n}X'p[ȴ
^˒4kƓmzDx
\
'Nq amP7nyN݅=
- Correspondence to Koray Yılmaz, DDS, MSc. Associate Professor, Department of Endodontics, Faculty of Dentistry, Hatay Mustafa Kemal University, Alahan Street, Antakya, Hatay 31001, Turkey. koray1903@hotmail.com
• Received: October 1, 2019 • Revised: December 23, 2019 • Accepted: January 8, 2020
Copyright © 2020. The Korean Academy of Conservative Dentistry
This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (https://creativecommons.org/licenses/by-nc/4.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.
- 2,128 Views
- 22 Download
- 19 Crossref
Abstract
-
Objectives This study was conducted to evaluate the effects of traditional and contracted endodontic cavity (TEC and CEC) preparation with the use of Reciproc Blue (RPC B) and One Curve (OC) single-file systems on the amount of apical debris extrusion in mandibular first molar root canals.
-
Materials and Methods Eighty extracted mandibular first molar teeth were randomly assigned to 4 groups (n = 20) according to the endodontic access cavity shape and the single file system used for root canal preparation (reciprocating motion with the RCP B and rotary motion with the OC): TEC-RPC B, TEC-OC, CEC-RPC B, and CEC-OC. The apically extruded debris during preparation was collected in Eppendorf tubes. The amount of extruded debris was quantified by subtracting the weight of the empty tubes from the weight of the Eppendorf tubes containing the debris. Data were analyzed using 1-way analysis of variance with the Tukey post hoc test. The level of significance was set at p < 0.05.
-
Results The CEC-RPC B group showed more apical debris extrusion than the TEC-OC and CEC-OC groups (p < 0.05). There were no statistically significant differences in the amount of apical debris extrusion among the TEC-OC, CEC-OC, and TEC-RPC B groups.
-
Conclusions RPC B caused more apical debris extrusion in the CEC groups than did the OC single-file system. Therefore, it is suggested that the RPC B file should be used carefully in teeth with a CEC.
INTRODUCTION
Even when the working length is controlled during root canal preparation, the undesirable extrusion of dentin chips, pulpal residue, microorganisms, and irrigation solution into the periradicular tissue may occur. This extruded debris may cause inflammation, postoperative pain, flare-ups, and delayed periapical recovery [1,2]. The incidence of such complications has been reported to be between 1.4% and 16% in the literature [2]. All instrumentation techniques and file systems seem to force intracanal debris into the periapical tissues [3,4]. Most root canal instrumentation techniques involve nickel-titanium (NiTi) instruments because of their flexibility.
A straight access path with coronal flaring facilitates the early access of irrigants and allows rotary instruments to prepare the apical portion with less wall contact [5]. Therefore, increasing the coronal space for debris and creating a straight access path may reduce the amount of apically extruded debris. Access cavity preparation is one of the most important steps of root canal treatment [6]. In a traditional endodontic cavity (TEC) procedure, the aim is to have the pulpal chamber and pulpal horns in the access cavity to increase the efficiency of preparation, to establish a straight access path to the root canals, and to ensure effective preparation of coronal sections of root canals [5,7,8]. In a contracted endodontic cavity (CEC) procedure; however, the aim is to maintain the mechanical stability of the tooth. The latter was introduced as an alternative to the TEC procedure [9,10]. The CEC technique results in less dentin loss by protecting the pericervical dentin and by limiting the size of the cavity. Thus, this type of cavity positively contributes to the mechanical stability of the tooth [8,9].
In recent years, a number of NiTi single-file systems with different designs, alloy characteristics, heat treatments, and kinematics were developed for root canal preparation. The Reciproc Blue (RPC B; VDW, Munich, Germany) single-file system is an updated version of the Reciproc (RPC; VDW) single-file system. The RPC B has an S-shaped horizontal cross-section and 2 cutting edges, similar to the design properties of the RPC, and is used with a reciprocating motion. It is manufactured using a new heat treatment technology named the “blue treatment,” which was developed in order to increase the flexibility of the file's structure [11,12]. Another single-file system, One Curve (OC; MicroMega, Besançon, France), was recently introduced to the market. OC files are made using C-wire heat-treated NiTi material and are used with a continuous rotary motion. The OC instruments have a variable cross-section along the blade for better centering ability and cutting efficiency.
Previous studies reported that all root canal preparation methods and file systems caused different levels of debris extrusion from the apical foramen [4,13]. These differences were attributed to variations in the file design (radial area, flute depth, taper, and cross-section), kinematics, and operational principles [13].
No study has yet investigated the effect of the shape of the access cavity on the amount of apical extrusion during canal shaping procedures. Thus, the present study aimed to evaluate the effects of the TEC and CEC preparation methods with the use of RPC B and OC single-file systems on the amount of apical extrusion in mandibular first molar root canals.
MATERIALS AND METHODS
Approval for this study was obtained from the Ethical Committee of Hatay Mustafa Kemal University, Hatay, Turkey (2018/181). Based on a similar study carried out previously [14], the sample size was calculated using G*Power 3.1 software (Heinrich Heine University, Dusseldorf, Germany), assuming α to be 0.05 and power to be 80%. The calculated sample size was 20 for each group.
In total, 80 mature and intact mandibular first molar teeth extracted for periodontal reasons and having no caries were used. The teeth were all stored in physiological saline solution until use. All the teeth were checked using a stereomicroscope (Olympus BX43; Olympus Co., Tokyo, Japan) under ×20 magnification to determine whether there were any root fractures, cracks, or fusion in the mesial and distal roots. Periapical radiographs of each tooth were taken from the mesiodistal and buccolingual angles, digitized, and stored. The root canal curvature was determined based on the angle of curvature starting at the coronal aspect of the apical third of the root using Schneider's method (Figure 1) [15,16]. Only roots with an angle of curvature ranging between 10° and 20° were selected. Teeth with 2 canals in the mesial root and a single canal in the distal root and with similar mesiodistal and buccolingual dimensions of the pulp chamber were selected for inclusion in the study. Teeth with a root canal treatment history, internal or external root resorption, or pulpal calcification were excluded. The crown-to-apical length of the teeth was measured using a digital caliper (Digimess, São Paulo, Brazil), and teeth with similar length (20 ± 1 mm) were chosen in order to ensure standardization. All residual soft and hard tissue on the teeth were mechanically removed.
A single endodontist performed all the endodontic procedures in all groups. The teeth were randomly divided into the following 4 groups, with 20 teeth in each group: TEC-OC, CEC-OC, TEC-RPC B, and CEC-RPC B.
The access cavity was opened using an diamond bur with water cooling at high speed. The access cavities in the TEC group were prepared as described in previous studies [5,17] (Figure 2A). The access cavities of the teeth in the CEC group were opened at the mesial quarter of the central fossa by partially retaining and enlarging the roof of the pulp chamber in the apical and distal directions. In the CEC groups, a very small portion of dentin was removed from the mesiodistal, buccolingual, and circumferential pericervical areas, and part of the pulp chambers' roof was retained [7,8,18]. The locations of the root canal orifices could be seen. In all cavities, the enamel was beveled using angle diameter burs (Figure 2B).

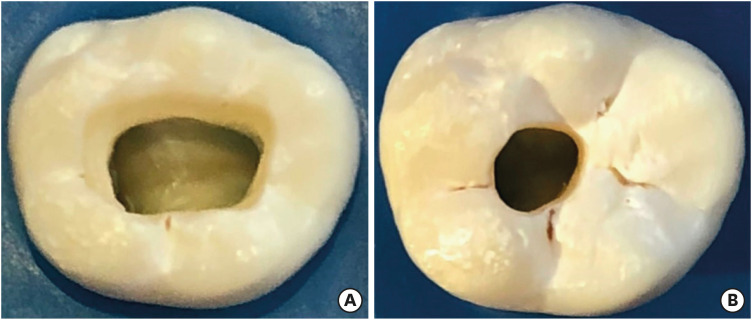

Figure 2
Photographs of mandibular first molars showing access outlines. (A) TEC. (B) CEC.
TEC, traditional endodontic cavity; CEC, contracted endodontic cavity.
After opening the access cavity, the apical patency of the root canal was checked using a size 10 K-file (Dentsply Maillefer, Ballaigues, Switzerland). Teeth with a root canal greater than size 15 were discarded. The size 10 K-file was pushed forward until it could be seen from the major apical foramen, and the working length was determined to be 1 mm shorter than this length.
The method described by Bürklein et al. [19] was used to assess apical debris extrusion in all groups (Figure 3). The teeth were placed in a rubber stopper and fixed with cyanoacrylate cement. Eppendorf tubes, in which the teeth were placed at the cementoenamel junction point, were placed in a glass bottle. Prior to placing each tooth in the tube, the weight of each tube was measured 3 times using an electronic scale (Pioneer, Ohaus Corp., Parsippany, NJ, USA) with 10−4 g sensitivity, and the average value of these measurements was calculated. A 25-gauge syringe was added to the rubber stopper in the bottle to equalize the internal and external air pressures.
In order to prevent the operator from viewing the debris extrusion during the preparation, the Eppendorf tubes were wrapped with aluminum foil. The debris that was extruded from the apex while shaping the root canal was collected in the Eppendorf tubes.
The root canal preparation procedures of the teeth in the TEC-OC and CEC-OC groups were performed using an OC file (size 25/0.06) and an endodontic motor (X-Smart Plus; Dentsply Maillefer) with a continuous rotation motion at 300 rpm and 2.5 N·cm of torque.
The canals in the TEC-RPC B and CEC-RPC B groups were prepared using an RPC B R25 (size 25/0.08) file in the Reciproc All mode with a Silver Reciproc endodontic motor (VDW).
In root canal preparation, all files were used with an in-and-out pecking motion at a 3-mm amplitude limit, with slow and light movements. The files were removed from the canal and checked after every 3 pecking motions. The grooves of the file were cleaned, and the preparation was continued until the working length in the root canal was reached.
The canals of the teeth in all the groups were irrigated using a total of 20 mL of distilled water by a side-vented needle (#27 gauge) during root canal preparation. Each file was used to prepare the root canals of only 1 tooth.
After completing the root canal preparation, the Eppendorf tubes were removed from the glass bottle. Before taking the teeth out of the tubes, the roots of the teeth were washed inside the Eppendorf tube with 1 mL of distilled water in order to collect the debris residue on the outer surface of the apex. Before weighing the extruded debris, the tubes were kept in an incubator at 70°C for 5 days in order to vaporize the distilled water in the tube [13].
Each of the tubes was weighed 3 times consecutively using an electronic scale, and the average values were recorded. The amount of extruded debris was calculated by subtracting the empty weight of the tube from the value measured after root canal preparation. A second independent operator measured the apical debris extrusion and the 2 sets of measurements were compared.
The statistical analyses were performed using SPSS version 24.0 (IBM Corp., Armonk, NY, USA). After statistically analyzing the amount of debris extruded from the apical foramen using 1-way analysis of variance, Tukey's post hoc test for multiple comparisons was performed. The level of significance was set at p < 0.05.
RESULTS
The minimum, maximum, and mean values with standard deviations of apical debris extrusion are presented in Table 1. No statistically significant difference was found in the amount of apical debris extrusion among the TEC-OC, CEC-OC, and TEC-RPC B groups. However, there was a statistically significant difference between the CEC-RPC B group and the TEC-OC groups and CEC-OC groups (p < 0.05).

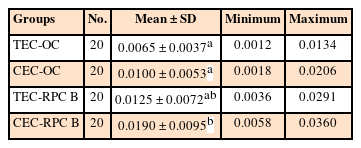

Table 1
The median, minimum, and maximum values of apically extruded debris in grams
DISCUSSION
The debris extruded from the apical foramen during the root canal preparation may initiate an inflammatory reaction in the periapical region. As a result, postoperative pain and swelling may occur, both of which may have negative effects on the prognosis of root canal treatment [20]. In a previous study, the authors reported an association between the severity of inflammatory reactions during root canal preparation and the amount of apical debris extrusion, with more severe reactions occurring in the presence of greater amounts of debris extrusion [21].
Various factors affect the amount of apical extrusion, including the apical size, curvature length, and degree of the root canal of a prepared tooth, in addition to the tip size, taper, movement kinematics, design of the file used in root canal preparation, irrigation solution, and amount of irrigation solution [22]. A correctly opened access cavity offers many advantages, such as optimal preparation and sufficient irrigation of the root canal system, both of which may have positive effects on the success of root canal treatment [23].
The TEC preparation is a method in which the root canal orifices can be clearly located when looking from the occlusal side, and the cavity can be opened in a way that provides a straight path to the root canals [24]. The CEC method was developed as an alternative to the TEC. It is a modern operative approach, which aims to remove less dentin than in the TEC approach, thereby minimizing the effects of the procedure on the tooth's mechanical resistance and ensuring optimal preparation. Despite its advantages, the CEC method has some disadvantages, including the difficulty in locating the root canals and challenges during root canal preparation and cleaning [25]. Based on a literature search, no study has yet compared the amount of apical debris extrusion in teeth according to the shape of the access cavity (i.e., TEC vs. CEC). Thus, the present study compared the amount of apical debris extrusion during root canal preparation of mandibular first molar teeth according to whether a TEC or CEC procedure was performed.
The results of the present study showed that both the OC rotary single-file system and the RPC B reciprocating single-file system caused apical debris extrusion. There was no statistically significant difference among the TEC-OC, CEC-OC, and TEC-RPC B groups in terms of apical debris extrusion values. However, there was a statistically significant difference between the apical debris extrusion values of the CEC-RPC B group and those of the TEC-OC and CEC-OC groups. In the literature, there are no similar studies with which the results the present study can be directly compared.
In a study of mandibular incisors, Topçuoğlu et al. [26] compared the amount of apical debris extrusion using RPC, WaveOne (WO, Dentsply Maillefer), and One Shape (OS, MicroMega) files. They reported that the least amount of apical debris extrusion occurred in the OS rotary file group, and there was no statistically significant difference in the amount of apical debris extrusion between the RPC and WO groups. The authors attributed this result to the fact that rotary single-file systems transport more debris in the coronal direction in the canal than reciprocating single-file systems do. De-Deus et al. [27] applied the TEC procedure to mandibular molar teeth and compared the amounts of apical debris extrusion generated using 3 rotary file systems(RPC, WO, ProTaper) and a manual file (Flexo Files, Dentsply Maillefer) in mesial canals. The most apical debris extrusion was found in the manual file group, and the ProTaper conventional multifile system caused more apical debris extrusion than the RPC and WO file systems did. The authors attributed their findings to the following factors: single-file systems have fewer instruments than conventional multifile systems, single-file systems are made from advanced alloys, and the cutting efficiency of single-file systems is better than that of the conventional files. In the present study, there was no significant difference in the amount of apical debris extrusion between the rotary and reciprocating file systems in the TEC groups, whereas there was a significant difference between the 2 CEC groups. In the literature, many studies have reported different results regarding this issue. Some researchers reported that rotational movement caused more extrusion, while others reported that reciprocating movement caused more extrusion [26,27]. We believe that this discrepancy is due to the different alloy and design properties of the files tested, as well as tooth selection, the shape of the cavity, and coronal flaring in their methodologies. The amount of apical debris extrusion in the CEC groups in the present study was greater than that in the TEC groups in both the OC and RPC B groups, but the difference was not statistically significant. In their micro-computed tomography (CT) study of mandibular molar teeth, Marchesan et al. [28] prepared 2 types of access cavities (TEC and CEC] and then compared the integrity of the original canal curvature and the total preparation time using Profile Vortex files (Dentsply Tulsa Dental Specialties, Tulsa, OK, USA) in mesial canals. The authors reported differences between the radii and angle values of the canal curvatures of the 2 groups. Furthermore, the total preparation time was longer in the CEC group than in the TEC group. They attributed these differences to having direct access to the canals in the TEC group and the requirement of a higher number of pecking motions in the CEC group for the files to reach the apical foramen, which extended the preparation time. In another micro-CT study on mandibular molar teeth, Krishan et al. [18] compared the total volume of dentin removed after canal preparation in groups in which a TEC and CEC were prepared using the WO system. They reported that much higher volumes of dentin were removed in the TEC group than in the CEC group. In the present study, in both the CEC-OC and CEC-RPC B groups, higher numbers of pecking motions were required to reach the apex. However, the volume of debris extruded from the apical foramen in both CEC groups was not as high as expected. We think that the reason for this difference related to the flexibility of the files that we used and the ability to release debris from the coronal part of the tooth.
In the present study, the RPC B single-file system caused more debris extrusion from the apical foramen in the CEC groups than did the OC single-file system. This may be because the OC single-file system is manufactured using C-wire heat treatment technology, which offers enhanced flexibility and easier access to canals. Additional factors that may explain the amount of debris extrusion using the single-file systems in the present study are the controlled memory alloy used in their production and their pre-bendability when compared to earlier versions of the files. However, since there is no study in the literature comparing C-wire and Blue Wire technologies in terms of a comprehensive range of metallurgical properties, further studies are needed to make a definitive judgment. In addition, due to the different taper of the files (RPC B, 0.08; OC, 0.06) used in our study, it is possible that the amount of debris formed during root canal preparation may be different, potentially affecting the amount of apical extrusion.
Changing the access cavity shape for both the RPC B and OC files did not result in a statistically significant increase in the amount of apical debris extrusion caused by these files. The reason for this is that the amount of extruded debris from the apex may be very low, which may have been affected by the sample size in the study. However, it is more likely that the alloy properties of the files can tolerate a disadvantageous cavity shape. In previous studies on apical debris extrusion, similar sample sizes were used based on the results of power analysis [26,27].
The highest incidence of caries is seen in molar teeth, and the molar teeth are the reason for most patients’ first visit to a clinic for endodontic treatment [29]. As reported in similar studies in the literature, if sodium hypochlorite is used as a root canal irrigation solution, then the sodium crystals that form after vaporization cannot be distinguished from the extruded debris [21,30]. This can make it difficult to determine the amount of apical debris extrusion accurately. Thus, distilled water was used as an irrigation solution in the present study.
Hülsmann and Hahn [31] reported that a file used with apical pressure in root canal shaping could cause debris extrusion from the apical foramen. Single- or multiple-file systems can be used in root canal preparation, as well as files with different movement kinematics (e.g., rotation or reciprocation). Thus, the present study compared the effects of OC and RPC B files with different kinematics on apical debris extrusion.
Finally, the cavity shape and the file system used are not the only factors affecting the amount of apical debris extrusion. Clinicians should consider all relevant factors in order to decrease apical debris extrusion.
CONCLUSIONS
Within the limitations of the present study, the RPC B and OC single-file systems tested using mandibular first molar teeth caused apical extrusion in all groups, and the RPC B system caused more apical extrusion in the CEC groups than did the OC single-file system. Therefore, it is suggested to use the RPC B file carefully in teeth with a CEC.
-
Conflict of Interest: No potential conflict of interest relevant to this article was reported.
-
Author Contributions:
Conceptualization: Yılmaz K.
Data curation: Tüfenkçi P.
Formal analysis: Adıgüzel M.
Funding acquisition: Yılmaz K.
Investigation: Tüfenkçi P.
Methodology: Yılmaz K.
Supervision: Yılmaz K.
Validation: Tüfenkçi P.
Writing - original draft: Yılmaz K.
Writing - review & editing: Tüfenkçi P, Yılmaz K, Adıgüzel M.
- 1. Seltzer S, Naidorf IJ. Flare-ups in endodontics: I. Etiological factors. J Endod 1985;11:472-478.ArticlePubMed
- 2. Siqueira JF Jr, Rôças IN, Favieri A, Machado AG, Gahyva SM, Oliveira JC, Abad EC. Incidence of postoperative pain after intracanal procedures based on an antimicrobial strategy. J Endod 2002;28:457-460.ArticlePubMed
- 3. Tinaz AC, Alacam T, Uzun O, Maden M, Kayaoglu G. The effect of disruption of apical constriction on periapical extrusion. J Endod 2005;31:533-535.ArticlePubMed
- 4. Tanalp J, Kaptan F, Sert S, Kayahan B, Bayirl G. Quantitative evaluation of the amount of apically extruded debris using 3 different rotary instrumentation systems. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 2006;101:250-257.ArticlePubMed
- 5. Patel S, Rhodes J. A practical guide to endodontic access cavity preparation in molar teeth. Br Dent J 2007;203:133-140.ArticlePubMedPDF
- 6. Christie WH, Thompson GK. The importance of endodontic access in locating maxillary and mandibular molar canals. J Can Dent Assoc 1994;60:527-532.PubMed
- 7. Clark D, Khademi J. Modern endodontic access and dentin conservation, part 1. Dent Today 2009;28:86-90.
- 8. Clark D, Khademi J. Modern molar endodontic access and directed dentin conservation. Dent Clin North Am 2010;54:249-273.ArticlePubMed
- 9. Clark D, Khademi JA. Case studies in modern molar endodontic access and directed dentin conservation. Dent Clin North Am 2010;54:275-289.PubMed
- 10. Zelic K, Vukicevic A, Jovicic G, Aleksandrovic S, Filipovic N, Djuric M. Mechanical weakening of devitalized teeth: three-dimensional Finite Element Analysis and prediction of tooth fracture. Int Endod J 2015;48:850-863.ArticlePubMed
- 11. De-Deus G, Silva EJ, Vieira VT, Belladonna FG, Elias CN, Plotino G, Grande NM. Blue thermomechanical treatment optimizes fatigue resistance and flexibility of the Reciproc files. J Endod 2017;43:462-466.ArticlePubMed
- 12. Gündoğar M, Özyürek T. Cyclic fatigue resistance of OneShape, HyFlex EDM, WaveOne Gold, and Reciproc Blue nickel-titanium instruments. J Endod 2017;43:1192-1196.ArticlePubMed
- 13. Koçak S, Koçak MM, Sağlam BC, Türker SA, Sağsen B, Er Ö. Apical extrusion of debris using self-adjusting file, reciprocating single-file, and 2 rotary instrumentation systems. J Endod 2013;39:1278-1280.ArticlePubMed
- 14. Lu Y, Wang R, Zhang L, Li HL, Zheng QH, Zhou XD, Huang DM. Apically extruded debris and irrigant with two Ni-Ti systems and hand files when removing root fillings: a laboratory study. Int Endod J 2013;46:1125-1130.PubMed
- 15. Schneider SW. A comparison of canal preparations in straight and curved root canals. Oral Surg Oral Med Oral Pathol 1971;32:271-275.ArticlePubMed
- 16. Schäfer E, Diez C, Hoppe W, Tepel J. Roentgenographic investigation of frequency and degree of canal curvatures in human permanent teeth. J Endod 2002;28:211-216.ArticlePubMed
- 17. Ingle JI. Endodontic cavity preparation. In: Ingle J, Tamber J, editors. Endodontics. 3rd ed. Philadelphia, PA: Lea & Febiger; 1985. p. 102-167.
- 18. Krishan R, Paqué F, Ossareh A, Kishen A, Dao T, Friedman S. Impacts of conservative endodontic cavity on root canal instrumentation efficacy and resistance to fracture assessed in incisors, premolars, and molars. J Endod 2014;40:1160-1166.ArticlePubMed
- 19. Bürklein S, Benten S, Schäfer E. Quantitative evaluation of apically extruded debris with different single-file systems: Reciproc, F360 and OneShape versus Mtwo. Int Endod J 2014;47:405-409.PubMed
- 20. Ruiz-Hubard EE, Gutmann JL, Wagner MJ. A quantitative assessment of canal debris forced periapically during root canal instrumentation using two different techniques. J Endod 1987;13:554-558.ArticlePubMed
- 21. Tanalp J, Güngör T. Apical extrusion of debris: a literature review of an inherent occurrence during root canal treatment. Int Endod J 2014;47:211-221.ArticlePubMed
- 22. Üstün Y, Çanakçi BC, Dinçer AN, Er O, Düzgün S. Evaluation of apically extruded debris associated with several Ni-Ti systems. Int Endod J 2015;48:701-704.ArticlePubMed
- 23. Bóveda C, Kishen A. Contracted endodontic cavities: the foundation for less invasive alternatives in the management of apical periodontitis. Endod Topics 2015;33:169-186.Article
- 24. Wilcox LR, Walton RE, Case WB. Molar access: shape and outline according to orifice locations. J Endod 1989;15:315-318.ArticlePubMed
- 25. Rover G, Belladonna FG, Bortoluzzi EA, De-Deus G, Silva EJNL, Teixeira CS. Influence of access cavity design on root canal detection, instrumentation efficacy, and fracture resistance assessed in maxillary molars. J Endod 2017;43:1657-1662.ArticlePubMed
- 26. Topçuoğlu HS, Üstün Y, Akpek F, Aktı A, Topçuoğlu G. Effect of coronal flaring on apical extrusion of debris during root canal instrumentation using single-file systems. Int Endod J 2016;49:884-889.ArticlePubMedPDF
- 27. De-Deus G, Neves A, Silva EJ, Mendonça TA, Lourenço C, Calixto C, Lima EJ. Apically extruded dentin debris by reciprocating single-file and multi-file rotary system. Clin Oral Investig 2015;19:357-361.ArticlePubMedPDF
- 28. Marchesan MA, Lloyd A, Clement DJ, McFarland JD, Friedman S. Impacts of contracted endodontic cavities on primary root canal curvature parameters in mandibular molars. J Endod 2018;44:1558-1562.ArticlePubMed
- 29. Zhao D, Shen Y, Peng B, Haapasalo M. Root canal preparation of mandibular molars with 3 nickel-titanium rotary instruments: a micro-computed tomographic study. J Endod 2014;40:1860-1864.ArticlePubMed
- 30. Huang X, Ling J, Wei X, Gu L. Quantitative evaluation of debris extruded apically by using ProTaper Universal Tulsa rotary system in endodontic retreatment. J Endod 2007;33:1102-1105.ArticlePubMed
- 31. Hülsmann M, Hahn W. Complications during root canal irrigation--literature review and case reports. Int Endod J 2000;33:186-193.ArticlePubMed
REFERENCES
Tables & Figures
REFERENCES
Citations
Citations to this article as recorded by
- Comparative Evaluation of Periapical Expulsion Using Manual, Rotary, and Reciprocating Instrumentation With EndoVac Irrigation: An In Vitro Study
Sachin Metkari, Sanpreet S Sachdev, Pravin Patil, Manoj Ramugade, Kishor D Sapkale, Kulvinder S Banga, Dinesh Rao
Cureus.2025;[Epub] CrossRef - Comparison of Debris Extrusion and Preparation Time by Traverse, R‐Motion Glider C, and Other Glide Path Systems in Severely Curved Canals
Taher Al Omari, Layla Hassouneh, Khawlah Albashaireh, Alaa Dkmak, Rami Albanna, Ali Al-Mohammed, Ahmed Jamleh, Lucas da Fonseca Roberti Garcia
International Journal of Dentistry.2025;[Epub] CrossRef - Minimal İnvaziv Giriş Kavitelerinin Alt Kesici Dişlerdeki Apikal Ekstrüzyona Etkisi
İrem Haskarabağ, Cangül Keskin
Türk Diş Hekimliği Araştırma Dergisi.2025; 4(2): 75. CrossRef - Evaluation of apically extruded debris from root canal filling removal of the mesiobuccal canal of maxillary molars using XP shaper and protaper with two different irrigation
Sanaz Mirsattari, Maryam Zare Jahromi, Masoud Khabiri
Dental Research Journal.2024;[Epub] CrossRef - The Impact of Minimum Invasive Access Cavity Design on the Quality of Instrumentation of Root Canals of Maxillary Molars Using Cone-Beam Computed Tomography: An in Vitro Study
Fahad H Baabdullah, Samia M Elsherief , Rayan A Hawsawi, Hetaf S Redwan
Cureus.2024;[Epub] CrossRef - Assessment of Bacterial Load and Post-Endodontic Pain after One-Visit Root Canal Treatment Using Two Types of Endodontic Access Openings: A Randomized Controlled Clinical Trial
Ahmed M. Al-Ani, Ahmed H. Ali, Garrit Koller
Dentistry Journal.2024; 12(4): 88. CrossRef - The effect of different kinematics on apical debris extrusion with a single-file system
Taher M. N. Al Omari, Giusy Rita Maria La Rosa, Rami Haitham Issa Albanna, Abedelmalek Tabnjh, Flavia Papale, Eugenio Pedullà
Odontology.2023; 111(4): 910. CrossRef - The effects of laser and ultrasonic irrigation activation methods on smear and debris removal in traditional and conservative endodontic access cavities
Hüseyin Gündüz, Esin Özlek
Lasers in Medical Science.2023;[Epub] CrossRef - Influence of access cavity design, sodium hypochlorite formulation and XP‐endo Shaper usage on apical debris extrusion – A laboratory investigation
Jerry Jose, Aishuwariya Thamilselvan, Kavalipurapu Venkata Teja, Giampiero Rossi–Fedele
Australian Endodontic Journal.2023; 49(1): 6. CrossRef - Apically extruded debris, canal transportation, and shaping ability of nickel-titanium instruments on contracted endodontic cavities in molar teeth
Qinqin Zhang, Jingyi Gu, Jiadi Shen, Ming Ma, Ying Lv, Xin Wei
Journal of Oral Science.2023; 65(4): 203. CrossRef - Impact of contracted endodontic cavities on instrumentation efficacy—A systematic review
Manan Shroff, Karkala Venkappa Kishan, Nimisha Shah, Purnima Saklecha
Australian Endodontic Journal.2023; 49(1): 202. CrossRef - Present status and future directions – Minimal endodontic access cavities
Emmanuel João Nogueira Leal Silva, Gustavo De‐Deus, Erick Miranda Souza, Felipe Gonçalves Belladonna, Daniele Moreira Cavalcante, Marco Simões‐Carvalho, Marco Aurélio Versiani
International Endodontic Journal.2022; 55(S3): 531. CrossRef - Effect of guided conservative endodontic access and different file kinematics on debris extrusion in mesial root of the mandibular molars: An in vitro study
Sathish Sundar, Aswathi Varghese, KrithikaJ Datta, Velmurugan Natanasabapathy
Journal of Conservative Dentistry.2022; 25(5): 547. CrossRef - A critical analysis of research methods and experimental models to study apical extrusion of debris and irrigants
Jale Tanalp
International Endodontic Journal.2022; 55(S1): 153. CrossRef - Current strategies for conservative endodontic access cavity preparation techniques—systematic review, meta-analysis, and decision-making protocol
Benoit Ballester, Thomas Giraud, Hany Mohamed Aly Ahmed, Mohamed Shady Nabhan, Frédéric Bukiet, Maud Guivarc’h
Clinical Oral Investigations.2021; 25(11): 6027. CrossRef - Extrusion of debris with and without intentional foraminal enlargement – A systematic review and meta‐analysis
Ricardo Machado, Gislayne Vigarani, Tainara Macoppi, Ajinkya Pawar, Stella Maria Glaci Reinke, Ana Cristina Kovalik Gonçalves
Australian Endodontic Journal.2021; 47(3): 741. CrossRef - Apical debris extrusion of single-file systems in curved canals
Ecehan Hazar, Olcay Özdemir, Mustafa Murat Koçak, Baran Can Sağlam, Sibel Koçak
Endodontology.2021; 33(3): 128. CrossRef - Quantitative Evaluation of Apically Extruded Debris in Root Canals prepared by Single-file Reciprocating and Single File Rotary Instrumentation Systems: A Comparative In vitro Study
Sonal Sinha, Konark Singh, Anju Singh, Swati Priya, Avanindra Kumar, Sahil Kawle
Journal of Pharmacy and Bioallied Sciences.2021; 13(Suppl 2): S1398. CrossRef - THE INFLUENCE OF DIFFERENT PECKING DEPTH ON AMOUNT OF APICALLY EXTRUDED DEBRIS DURING ROOT CANAL PREPARATION
Fatih ÇAKICI, Busra UYSAL, Elif Bahar CAKİCİ, Adem GUNAYDIN
Atatürk Üniversitesi Diş Hekimliği Fakültesi Dergisi.2021; : 1. CrossRef
ePub Link
Cite
XML DownloadEffects of the endodontic access cavity on apical debris extrusion during root canal preparation using different single-file systems

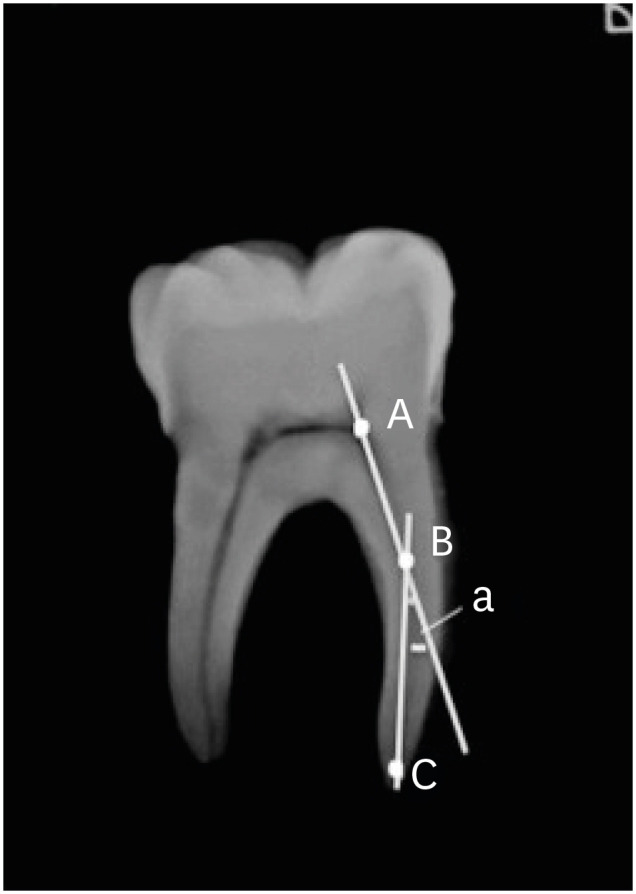

Figure 1 Diagrammatic representation of Schneider's method.
Figure 2 Photographs of mandibular first molars showing access outlines. (A) TEC. (B) CEC.TEC, traditional endodontic cavity; CEC, contracted endodontic cavity.

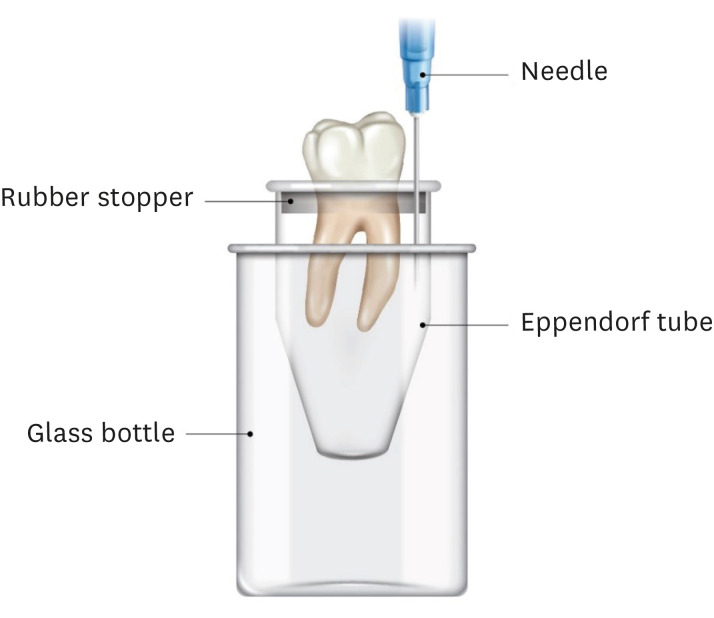

Figure 3 A schematic presentation of the test model.
