- Research Article A study on the compatibility between one-bottle dentin adhesives and composite resins using micro-shear bond strength
-
Minju Song1
, Yooseok Shin2, Jeong-Won Park1, Byoung-Duck Roh, DDS, MSD, PhD2 -
Restorative Dentistry & Endodontics 2015;40(1):30-36.
DOI: https://doi.org/10.5395/rde.2015.40.1.30
Published online: September 26, 2014
1Department of Conservative Dentistry Gangnam Severance Dental Hospital, Seoul, Korea.
2Department of Conservative Dentistry and Oral Science Research Center, Yonsei University College of Dentistry, Seoul, Korea.
- Correspondence to Byoung-Duck Roh, DDS, MSD, PhD. Professor, Department of Conservative Dentistry and Oral Science Research Center, Yonsei University College of Dentistry, 50 Yonsei-ro, Seodaemun-gu, Seoul, Korea 120-752. TEL, +82-2-2228-3146; FAX, +82-2-313-7575;OPERATYS16@yuhs.ac
• Received: May 21, 2014 • Accepted: August 12, 2014
©Copyrights 2015. The Korean Academy of Conservative Dentistry.
This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.
- 31 Views
- 0 Download
Abstract
-
Objectives This study was performed to determine whether the combined use of one-bottle self-etch adhesives and composite resins from same manufacturers have better bond strengths than combinations of adhesive and resins from different manufacturers.
-
Materials and Methods 25 experimental micro-shear bond test groups were made from combinations of five dentin adhesives and five composite resins with extracted human molars stored in saline for 24 hr. Testing was performed using the wire-loop method and a universal testing machine. Bond strength data was statistically analyzed using two way analysis of variance (ANOVA) and Tukey's post hoc test.
-
Results Two way ANOVA revealed significant differences for the factors of dentin adhesives and composite resins, and significant interaction effect (p < 0.001). All combinations with Xeno V (Dentsply De Trey) and Clearfil S3 Bond (Kuraray Dental) adhesives showed no significant differences in micro-shear bond strength, but other adhesives showed significant differences depending on the composite resin (p < 0.05). Contrary to the other adhesives, Xeno V and BondForce (Tokuyama Dental) had higher bond strengths with the same manufacturer's composite resin than other manufacturer's composite resin.
-
Conclusions Not all combinations of adhesive and composite resin by same manufacturers failed to show significantly higher bond strengths than mixed manufacturer combinations.
Introduction
Dentin adhesives for dental restorations have been developed for generations with an emphasis on adhesion to dentin.1,2 In the late 90s, the one-step self-etch adhesive (two bottles) was developed by the functional combination between the self-etching primer and bonding resin, which was suitable for conditioning enamel and dentin as well.3,4 However, mixing two solutions is a cumbersome process. Today a one-step self-etch adhesive (one bottle) is available that also has the merits of simplifying the adhesion procedure, reducing chair time, reducing differences between operators, and relieving postoperative sensitivity.5
The first one-bottle self-etch adhesive, iBond, was introduced in late 2000. It consists of hydrophilic and hydrophobic substances, water, and solvent, and differs from previous dentin adhesives in terms of its chemical composition.2 iBOND has its own functional monomer, which characterizes chemical bond to dentin and determines the bond strength of the adhesive.6,7,8 Furthermore, it is similar to the one-step self-etch adhesive (two bottles) in bond strength and border seal characteristics.9
Bond strengths of dentin adhesives are also affected by mechanical properties of composite resins. Leirskar et al. suggested that the bond strengths of dentin adhesives might depend on the choice of restorative material based on an evaluation of shear bond strengths to dentin of five different dentin adhesives in combination with two resin-based composites.10 They recommended using composite resin and dentin adhesive from the same manufacturer, but little information is available in the literature regarding the adhesive performance of these mixed manufacturer systems. Roh also analyzed the bond strengths of combinations of total etch adhesive systems and two-step self-etching systems made by respective manufacturers, and suggested combinations based on same manufacturers did not unduly increase bond strengths, but that the characteristics of dentin adhesive and composite resin had greatest effect on bond strength.11
This study was performed to determine whether the combined use of one-bottle self-etch adhesives and composite resins from same manufacturers has better bond strength than combinations of adhesive and resins from different manufacturers. We hypothesized that bond strengths would be better for combinations from same manufacturers.
Materials and Methods
Five dentin adhesives and five composite resins from 5 manufacturers were used (Table 1). Recently produced dentin adhesives were selected, and the composite resins used were recommended by manufacturers or released around the same time.
Human molars, put in saline solution within 1 month after extraction, were used to make tooth slices. Using a low-speed diamond wheel saw (Struers Minitom, DK-2610 Rodǿvre, Ballerup, Denmark), molars were cut into 2 mm-thick slices parallel with the occlusal surface under water irrigation. The dentin surface was ground with 220 grit sandpaper (Figure 1a).
Two stacked post-it notes (3M, Seoul, Korea) were punched and then stuck onto each tooth slice to expose the dentin surface through the hole (Figure 1b). In accordance with the manufacturer's manual, dentin adhesive was applied to the slice and polymerized using a light curing unit (Elipar FreeLight, 3M ESPE, St. Paul, MN, USA). After removing one of two stacked post-it notes, a 0.7 mm-diameter and 0.4 mm-high tube (Tygon, Norton Performance Plastic Co., Akron, OH, USA) was situated at the hole (Figures 1c and 1d) and filled with composite resin, which was then polymerized. Each dentin adhesive was used in combination with the 5 composite resins to produce 25 combinations and 15 specimens were prepared per combination (375 specimens in total). After the tube and post-it note had been removed, excessive adhesive was removed using a blade (Figure 1e). Specimens were then placed in saline solution at room temperature for 24 hours.
Testing was conducted as follows. A specimen that had been kept in saline solution for 24 hours was hung on a universal testing machine (EZ Test, Shimadzu, Kyoto, Japan) and its lower part was looped with wire (the wire-loop method). Force was applied at a cross-head speed of 0.5 mm/min until the bond was broken (Figure 1f).12 Bond strength was measured using the WinAGSLite program (Shimadzu).
Data were analyzed using two-way analysis of variance (ANOVA) with Tukey's post hoc test. The analysis was conducted using SAS version 9.1 (SAS Institute Inc., Cary, NC, USA).
Results
ANOVA results are presented in Table 2. Evaluation with two-way ANOVA revealed significant differences for the following factors; dentin adhesives and composite resins, and significant interaction effect (p < 0.001). The Tukey test was then applied for dentin adhesives and it showed that Xeno V (XV, 16.0 ± 3.5 MPa), G-Bond (GB, 14.7 ± 3.4 MPa), Clearfil S3 Bond (CS, 14.6 ± 3.5 MPa) had higher bond strengths than iBond (IB, 12.0 ± 4.4 MPa) and BondForce (BF, 11.7 ± 4.2 MPa, p < 0.05). For composite resins, Ceram X Duo (CD, 16.2 ± 4.2 MPa) showed the highest bond strength, and Estelite Quick (EQ, 14.6 ± 4.0 MPa) had the next highest (p < 0.05). The bond strengths of each dentin adhesive and composite resin combination are listed in Table 3.
Figure 2 shows the results of the Tukey test for interactions between dentin adhesives and composite resins. All combinations of XV and CS adhesives showed no significant difference in micro-shear bond strength (p < 0.05), while other adhesives showed significant differences depending on the composite resin. Not all combinations of dentin adhesives and composite resins from same manufacturers failed to show significantly higher bond strengths than mixed manufacturer combinations (Figure 2).
XV and BF tended to show higher bond strengths with same manufacturer's composite resins than with other companies' composite resins. On the other hand, the IB-CH combination showed lower bond strength than other combinations, but the IB-EQ and IB-CD combinations showed higher bond strength (p < 0.05). Combinations with CD showed the highest bond strength in the all dentin adhesives group, except BF-CD (Figure 2). The EQ composite group did not show significant differences in bond strength when used in combination with any the five dentin adhesives (p > 0.05). GD showed similar bond strengths when used in combination with four dentin adhesives, except IB.
Discussion
Several studies have analyzed the bond strengths of self-etch adhesives/total-etch adhesives and composite resins combinations made by respective manufacturers.5,11,13 In a previous study, we found that combinations of products of same manufacturers did not exert a crucial influence on bond strength, and that bond strength depended on the characteristics of dentin adhesives and composite resins.11 Micro-shear bond strength depends on the type of resin-based composites used when a total-etch adhesive is used, whereas the type of adhesive plays an important role in bond strength when a self-etch adhesive is used.11
Unlike etch and rinse system, self-etch adhesive systems demineralize the dentin superficially, so that hydroxyapatite rests between collagen fibrils. Hydroxyapatite interacts with dentin adhesive chemically, and thus, improve bond strength.14 The chemical interaction is dependent on the functional monomers present, and the adhesive strength depends on the hydrolytic stability of Ca2+-monomers.15 Self-etch adhesives contain carboxyl- or phosphate-based monomers, and are characterized by such functional monomers. Yoshida et al. analyzed energy changes caused by exposing demineralized hydroxyapatite to functional monomers by using X-ray photoelectron spectroscopy (XPS).6 Of the functional monomers examined, 10-methacryloxydecyl dihydrogen phosphate (10-MDP) and 4-methacryloxyethyl trimellitic acid (4-MET) showed the highest bond strengths. In particular, in addition to high bond strength, 10-MDP reached a sufficient level of adhesion faster. Thus, it might be suitable for the clinical environment because of a shorter chair time.
Actually in the case of the two-step self-etch adhesive system, bond strength is higher in 10-MDP-bearing Clearfil SE Bond (Kuraray, Tokyo, Japan) than in 4-MET-bearing Unifil Bond (GC America Inc., Alsip, IL USA).16 In this study, however, 10-MDP-bearing CS and 4-MET-bearing GB did not show significant differences in shear bond strength. Besides, 4-META (a precursor of 4-MET)-bearing IB showed a significantly lower bond strength in CH, CM, and GD resin composite groups, which suggests that the chemical interaction caused by functional monomers is not enough to explain the bond strength of dentin adhesives.
The characteristics of self-etch adhesive systems might depend upon their acidity. Most one-step self-etch adhesives (one bottle) on the market have low acidity (> pH 2) and form the 1 µm-thick hybrid layer.17 However, even though a resin can easily permeate into demineralized collagen, nanoleakage is also observed in the hybrid layer. The higher the acidity of dentin adhesive becomes, the less likely resin permeates.18,19 Also when its pH is below pH 2, chemical adhesion is less likely to be resistant to hydrolytic degradation due to insufficient HA.19,20 Regarding the dentin adhesives used in this study, only IB showed moderate acidity (pH 1.6), which could have contributed to lower bond strengths.
For combinations of self-etch adhesives and composite resins from same manufacturers, XV-CD (Dentsply, Radolfzell, Germany) and BF-EQ (Tokuyama Dental, Tokyo, Japan) tended to show the highest bond strengths, but these were without statistical significance. Other same manufacturer combinations did not show the compatibility between same manufacturer's products. Combinations with XV dentin adhesive or CD composite resin, for example, showed higher bond strengths than other combinations except BF-CD. The hypothesis of this study was rejected, as some of same manufacturer combinations failed to show significantly higher bond strengths.
In the present study, XV showed the highest bond strength (16.0 ± 3.5 MPa) among dentin adhesives. XV contains acrylic amide resin and inverse functionalized phosphoric acid ester as functional monomers. Monomers reserve a polymerizable functional group even after hydrolysis, and thus, dentin adhesives tend to continue the polymerization mechanism during storage, which increases bond strength.21 All composite resins combined with XV showed high bond strengths.
CD is a nanohybrid-type composite resin and contains organically modified ceramic nano-particles mixed with conventional glass fillers. Nano-particles in CD contain methacrylic group linked to polysiloxane backbone.22 Siloxanes, which are chemically similar to glass and ceramic, increase bond strengths. In the present study, combination with CD composite resin showed the highest bond strength (16.2 ± 4.2MPa) in the composite resin groups. Furthermore, CD showed the highest bond strength in combination with all dentin adhesives except BF. This is not consistent with the findings of a previous study, in which it was found that the type of adhesive played an important role in bond strength when combined with self-etch adhesives and composite resins.11 Other studies reported that the physical characteristics of composite resins depend upon the quantity of filler or monomers and that these significantly dictate the physical characteristics of composite resins and bond strengths.23 However, in this study, consistent pattern was not observed in relation to the filler content or constituent ingredients.
Remarkably, the IB-CH combination (Heraeus Kulzer) showed lower bond strength in the IB adhesive group and the CH resin composite group. IB when combined with CD or EQ showed high bond strength regardless of manufacturer (p < 0.05). Likewise, in the CH composite group, combinations with XV showed the highest bond strengths. It seems that combination of dentin adhesive and composite resin influence each other to some extent and combinations of same manufacturer's products do not produce higher bond strengths.
Conclusions
In their instructions to users, manufacturers' usually recommend the use of their own dentin adhesives and composites to achieve maximum bond strength because differences in chemical composition might lead to unexpected chemical reactions that adversely affect bonding. However, within the limitations of this study, no specific advantages in the bond strength could be attributed to same manufacturer combinations.
- 1. Asmussen E, Uno S. Adhesion of restorative resins to dentin: chemical and physicochemical aspects. Oper Dent 1992;(Suppl 5):68-74. PubMed
- 2. Van Landuyt KL, De Munck J, Snauwaert J, Coutinho E, Poitevin A, Yoshida Y, Inoue S, Peumans M, Suzuki K, Lambrechts P, Van Meerbeek B. Monomer-solvent phase separation in one-step self-etch adhesives. J Dent Res 2005;84:183-188. ArticlePubMedPDF
- 3. Kugel G, Ferrari M. The science of bonding: from first to sixth generation. J Am Dent Assoc 2000;131(Suppl):20S-25S. PubMed
- 4. Perdigao J. New concepts in dental adhesion. Northwest Dent 2000;79:29-33.
- 5. Freedman G, Leinfelder K. Seventh-generation adhesive systems. Dent Today 2002;21:106-111.
- 6. Yoshida Y, Nagakane K, Fukuda R, Nakayama Y, Okazaki M, Shintani H, Inoue S, Tagawa Y, Suzuki K, De Munck J, Van Meerbeek B. Comparative study on adhesive performance of functional monomers. J Dent Res 2004;83:454-458. ArticlePubMedPDF
- 7. Van Landuyt KL, Yoshida Y, Hirata I, Snauwaert J, De Munck J, Okazaki M, Suzuki K, Lambrechts P, Van Meerbeek B. Influence of the chemical structure of functional monomers on their adhesive performance. J Dent Res 2008;87:757-761. ArticlePubMedPDF
- 8. Perdigão J, Ramos JC, Lambrechts P. In vitro interfacial relationship between human dentin and one-bottle dental adhesives. Dent Mater 1997;13:218-227. ArticlePubMed
- 9. Van Meerbeek B, Van Landuyt K, De Munck J, Inoue S, Yoshida Y, Perdigao J, Lambrechts P, Peumans M. Bonding to Enamel and Dentin. In: Summitt James B., Robins J. William, Hilton Thomas J., Schwartz Richard S., editors. Fundamentals of operative dentistry. 3rd ed. Hanover Park, IL: Quintessence Publishing co, Inc.; 2006. p. 193-260.
- 10. Leirskar J, Oilo G, Nordbø H. In vitro shear bond strength of two resin composites to dentin with five different dentin adhesives. Quintessence Int 1998;29:787-792. PubMed
- 11. Roh BD, Chung JH. Micro-shear bond strength of five resin-based composites to dentin with five different dentin adhesives. Am J Dent 2005;18:333-337. PubMed
- 12. Pashley DH, Sano H, Ciucchi B, Yoshiyama M, Carvalho RM. Adhesion testing of dentin bonding agents: a review. Dent Mater 1995;11:117-125. ArticlePubMed
- 13. Tanumiharja M, Burrow MF, Tyas MJ. Microtensile bond strengths of seven dentin adhesive systems. Dent Mater 2000;16:180-187. ArticlePubMed
- 14. Yoshida Y, Nagakane K, Fukuda R, Nakayama Y, Okazaki M, Shintani H, Inoue S, Tagawa Y, Suzuki K, De Munck J, Van Meerbeek B. Comparative study on adhesive performance of functional monomers. J Dent Res 2004;83:454-458. ArticlePubMedPDF
- 15. Van Meerbeek B, Van Landuyt K, De Munck J, Hashimoto M, Peumans M, Lambrechts P, Yoshida Y, Inoue S, Suzuki K. Technique-sensitivity of contemporary adhesives. Dent Mater J 2005;24:1-13. ArticlePubMed
- 16. Inoue S, Vargas MA, Abe Y, Yoshida Y, Lambrechts P, Vanherle G, Sano H, Van Meerbeek B. Microtensile bond strength of eleven contemporary adhesives to dentin. J Adhes Dent 2001;3:237-245. PubMed
- 17. Perdigão J. New developments in dental adhesion. Dent Clin North Am 2007;51:333-357. ArticlePubMed
- 18. Koshiro K, Sidhu SK, Inoue S, Ikeda T, Sano H. New concept of resin-dentin interfacial adhesion: the nanointeraction zone. J Biomed Mater Res B Appl Biomater 2006;77:401-408. PubMed
- 19. Van Meerbeek B, De Munck J, Yoshida Y, Inoue S, Vargas M, Vijay P, Van Landuyt K, Lambrechts P, Vanherle G. Buonocore memorial lecture. Adhesion to enamel and dentin: current status and future challenges. Oper Dent 2003;28:215-235. PubMed
- 20. De Munck J, Van Landuyt K, Peumans M, Poitevin A, Lambrechts P, Braem M, Van Meerbeek B. A critical review of the durability of adhesion to tooth tissue: methods and results. J Dent Res 2005;84:118-132. ArticlePubMedPDF
- 21. Poptani B, Gohil KS, Ganjiwale J, Shukla M. Microtensile dentin bond strength of fifth with five seventh-generation dentin bonding agents after thermocycling: An in vitro study. Contemp Clin Dent 2012;3:S167-S171. ArticlePubMedPMC
- 22. Hegde MN, Hegde P, Bhandary S, Deepika K. An evalution of compressive strength of newer nanocomposite: an in vitro study. J Conserv Dent 2011;14:36-39. ArticlePubMedPMC
- 23. Willems G, Lambrechts P, Braem M, Vanherle G. Composite resins in the 21st century. Quintessence Int 1993;24:641-658. PubMed
REFERENCES

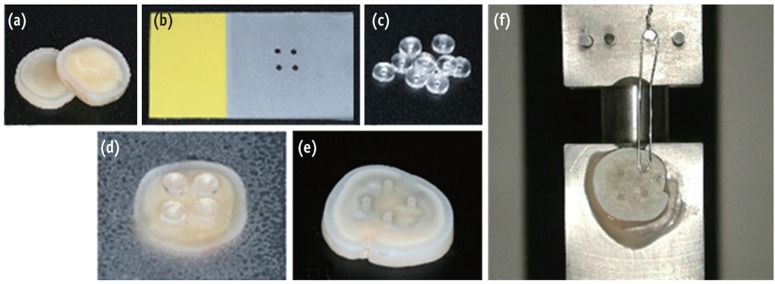

Figure 1
Preparation of specimens for Micro-Shear Bond Strength Tests. (a) Tooth slice; (b) Post-it note placement; (c) Tube; (d) Composite resin filled in the tube; (e) Specimen for micro-shear bond test; (f) Wire-Loop Method (EZ Test, Shimadzu, Kyoto, Japan).

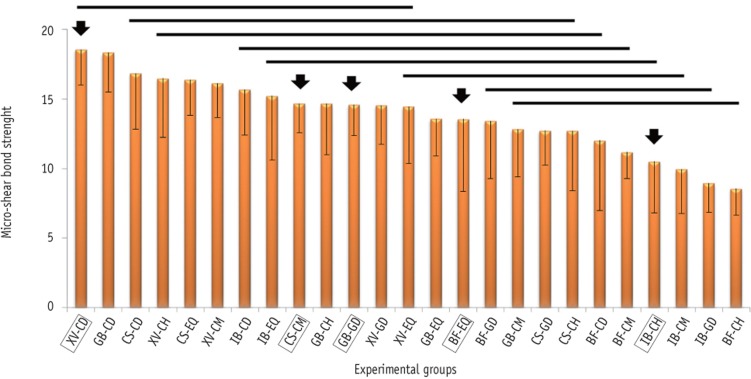

Figure 2
Micro-shear bond strength plots for the experimental groups and Tukey test results for the interaction between dentin adhesives and composite resins. Horizontal bars indicate that there is no significant difference. (Black arrow) The material groups designated in the box were the combination of the adhesive and the composite resin supplied by the same manufacturer. XV, Xeno V; CD, Ceram X Duo; GB, G-Bond; CS, Clearfil S3 Bond; CH, Charisma; EQ, Estelite Quick; CM, Clearfil Majesty; IB, iBond; GD, Gradia Direct; BF, BondForce.

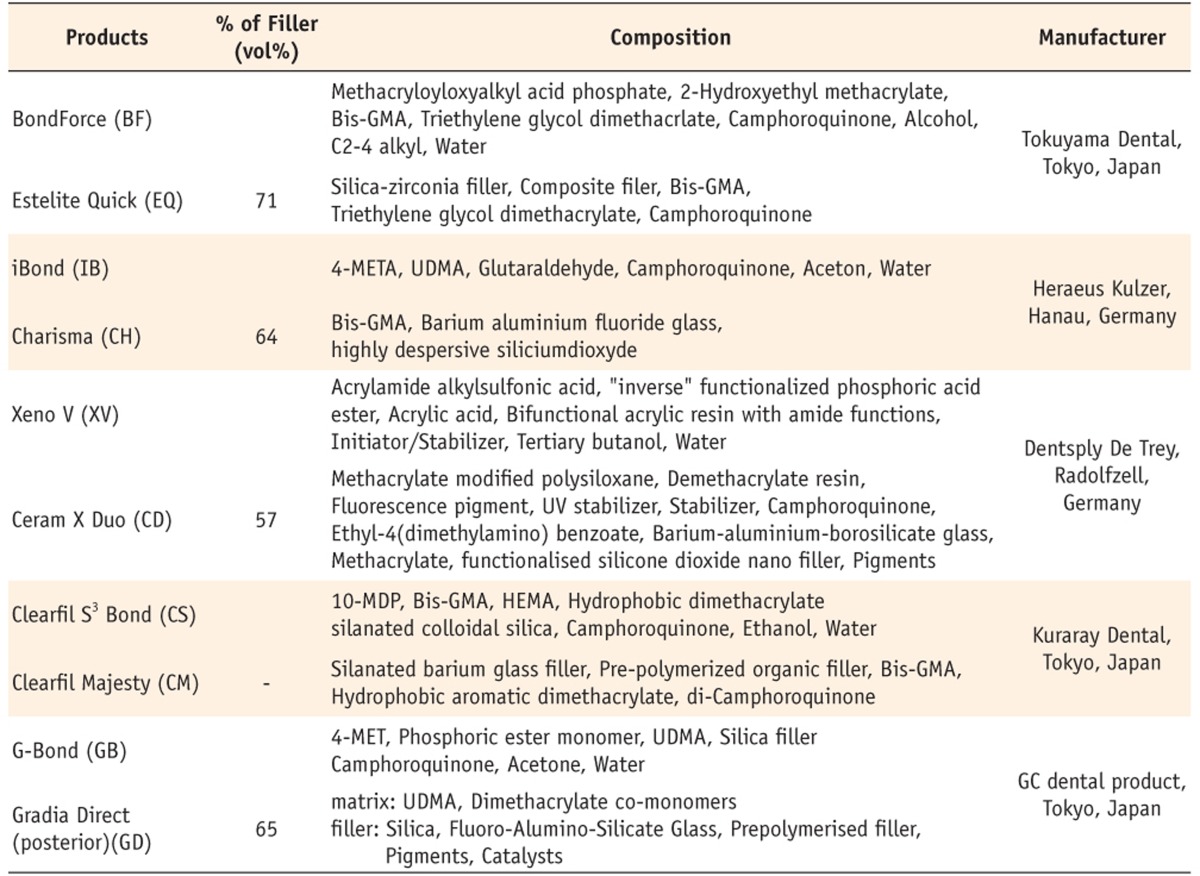

Table 1
Composition of dentin adhesive systems and composite resins used in this study
Bis-GMA, bisphenol-A-diglycidyl methacrylate; 4-META, 4-methacryloyloxyethy trimellitate anhydride; UDMA, urethanedimethacrylate; UV, ultra-violet; 10-MDP, 10-methacryloxydecyl dihydrogen phosphate; HEMA, 2-hydroxyethyl methacrylate; 4-MET, 4-methacryloxyethyl trimellitic acid.

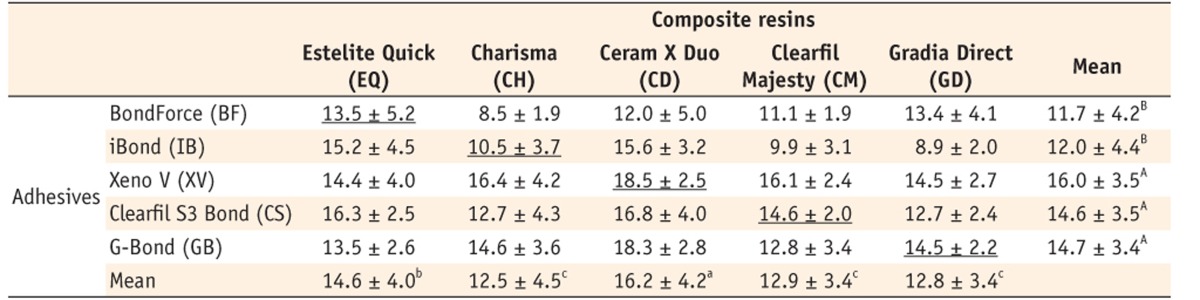

Table 3
Micro-shear bond strength of various combinations of self-etch adhesives and composite resins from same and different manufacturers
Means within each group with same superscript letter are not significantly different by Tukey test (small letter, row; capital letter, column); Underlines indicate same manufacturer.
Tables & Figures
REFERENCES
Citations
Citations to this article as recorded by
ePub Link
Cite
XML DownloadA study on the compatibility between one-bottle dentin adhesives and composite resins using micro-shear bond strength
Figure 1 Preparation of specimens for Micro-Shear Bond Strength Tests. (a) Tooth slice; (b) Post-it note placement; (c) Tube; (d) Composite resin filled in the tube; (e) Specimen for micro-shear bond test; (f) Wire-Loop Method (EZ Test, Shimadzu, Kyoto, Japan).
Figure 2 Micro-shear bond strength plots for the experimental groups and Tukey test results for the interaction between dentin adhesives and composite resins. Horizontal bars indicate that there is no significant difference. (Black arrow) The material groups designated in the box were the combination of the adhesive and the composite resin supplied by the same manufacturer. XV, Xeno V; CD, Ceram X Duo; GB, G-Bond; CS, Clearfil S3 Bond; CH, Charisma; EQ, Estelite Quick; CM, Clearfil Majesty; IB, iBond; GD, Gradia Direct; BF, BondForce.
Figure 1
Figure 2
A study on the compatibility between one-bottle dentin adhesives and composite resins using micro-shear bond strength
Composition of dentin adhesive systems and composite resins used in this study
Bis-GMA, bisphenol-A-diglycidyl methacrylate; 4-META, 4-methacryloyloxyethy trimellitate anhydride; UDMA, urethanedimethacrylate; UV, ultra-violet; 10-MDP, 10-methacryloxydecyl dihydrogen phosphate; HEMA, 2-hydroxyethyl methacrylate; 4-MET, 4-methacryloxyethyl trimellitic acid.

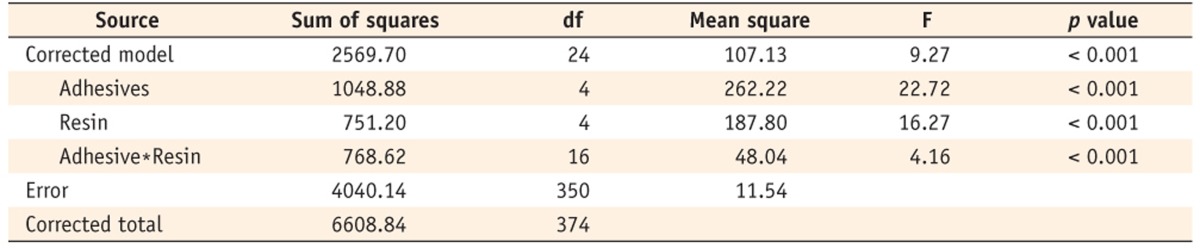

Two-way ANOVA results according to adhesive systems and composite resins
Micro-shear bond strength of various combinations of self-etch adhesives and composite resins from same and different manufacturers
Means within each group with same superscript letter are not significantly different by Tukey test (small letter, row; capital letter, column); Underlines indicate same manufacturer.
Table 1 Composition of dentin adhesive systems and composite resins used in this study
Bis-GMA, bisphenol-A-diglycidyl methacrylate; 4-META, 4-methacryloyloxyethy trimellitate anhydride; UDMA, urethanedimethacrylate; UV, ultra-violet; 10-MDP, 10-methacryloxydecyl dihydrogen phosphate; HEMA, 2-hydroxyethyl methacrylate; 4-MET, 4-methacryloxyethyl trimellitic acid.
Table 2 Two-way ANOVA results according to adhesive systems and composite resins
Table 3 Micro-shear bond strength of various combinations of self-etch adhesives and composite resins from same and different manufacturers
Means within each group with same superscript letter are not significantly different by Tukey test (small letter, row; capital letter, column); Underlines indicate same manufacturer.
