Effect of a rewetting agent on dentin adhesion

Young-Gon Cho; Yil-Yoon Park; Young-Gon Lee

doi:10.5395/JKACD.2003.28.1.011

Articles

Page Path: HOME > Restor Dent Endod > Volume 28(1); 2003 > Article

Original Article Effect of a rewetting agent on dentin adhesion: Young-Gon Cho, Yil-Yoon Park, Young-Gon Lee; Journal of Korean Academy of Conservative Dentistry 2003;28(1):11-22.
DOI: https://doi.org/10.5395/JKACD.2003.28.1.011
Published online: January 31, 2003

Department of Conservative Dentistry, College of Dentistry, Chosun University, Korea.

Corresponding author (ygcho@mail.chosun.ac.kr)

18 Views
0 Download

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

This study compared the dentin adhesion to composite resin according to air-dry, blot dry, application of rewetting agent on air-dry or blot dry dentin surface by microleakag test and SEM observation.

For microleakage test, class V cavity preparations with dentinal margins were prepared on both buccal and lingual surfaces of 40 extracted human molars. For SEM observation, occlusal dentin of 20 extracted human molars were exposed.

After etched the dentin, prepared teeth were randomly divided into four groups;

D group: air dry for 10-15 sec., B group: blot dry with moist cotton pellet, D-R group: air dry and rewet with Aqua-Prep F for 20 sec., B-R group: blot dry and rewet with Aqua-Prep F for 20 sec.

Treated cavities and surfaces were filled or constructed using One-Step adhesives and Aelitefil composite resins. Specimens were stored in distilled water for 24 hours. For microleakage test, the specimens were thermocycled and soaked into 2% methylene blue. The specimens were sectioned longitudinally and evaluated for microleakage under steromicroscope. The data were statistically analysed by Kruskal-Wallis Test, Mann-Whitney and Wilcoxon signed ranked tests. For SEM observation, the specimens were bisectioned mesiodiatally. After decalcified and deproteinized, specimens were observed under SEM.

The results of this study were as follows;

1. The microleakges on dentinal margin were the highest in D group compared with B group, D-R group, and B-R group(p<0.05). But there was no significant difference between B group, D-R group and B-R group.

2. D group showed gap and a few resin tags between dentin and composite resin.

3. B group, D-R group, and B-R groups showed close adaptation between dentin and composite resin. It showed that resin rags in B group were numerous and long, in D-R group were few and short, in B-R group were numerous and short or long.

4. Adhesive layer showed in D-R group (10 µm) and B-R group (3 µm)

In conclusion, use of rewetting agent to dry dentin was efficient to dentin adhesion, also it did not provide reverse effect on blot dry dentin.
Keywords: Dentin adhesion; Air-dry; Blot dry; Rewetting agent; Microleakage; SEM

REFERENCES

1. Applequist EA, Meiers JC. Effect of bulk insertion, prepolymerized resin composite restorations. Quintessence Int. 1996;27: 253-258.PubMed
2. Mehl A, Hickel R, Kunzelmann KH. Physical properties and gap formation of light-cured comlpposites with and without sofstart polymerization. J Dent. 1997;25: 321-330.PubMed
3. Taylor MJ, Lynch E. Microleakage: Review. J Dent. 1992;20: 3-10.PubMed
4. Prati C, Tao L, Simpson M. Permeability and microleakage of class II resin composite resin restorations. J Dent. 1994;22: 49-56.PubMed
5. Bauer JF, Henson JL. Microleakage: a measure of the performance of direct filling materials. Oper Dent. 1984;9: 2-9.PubMed
6. Kidd EAM. Microleakage: a review. J Dent. 1976;4: 199-205.Article PubMed
7. Santini A, Plasschaert AJM, Mitchell S. Marginal leakage of filled dentin adhesives used with wet and dry bonding techniques. Am J Dent. 2000;13(2):93-97.PubMed
8. Amaral CM, Hara AT, Pimenta LAF, Rodrigues Jr. AL : Microleakage of hydrophillic systems in class V composite restorations. Am J Dent. 2001;14(1):31-34.PubMed
9. Nakajima M, Sano H, Urabe I. Bond strength of single bottle dentin adhesives to caries-affected dentin. Oper Dent. 2000;25: 2-10.PubMed
10. Nakabayashi N, Kojima K, Masuhara E. The promotion of adhesion by infiltratrion of monomers into tooth substrates. J Biomed Mater Res. 1982;16: 265-273.Article PubMed
11. Pioch T, Staehle HJ, Schneider H, Duschner H, Dörfer CE. Effect of intrapulpal pressure simulation in vitro on shear bond strenghts and hybrid layer formation. Am J Dent. 2001;14(5):319-323.PubMed
12. Gallo JR, Henderson M, Burgess JO. Shear bond strength to moist and dry dentin of four dentin bonding systems. Am J Dent. 2000;13(5):267-270.PubMed
13. Tay FR, Gwinnett AJ, Wei SHY. Micromorphological spectrum from overdrying to overwetting acid-conditioned dentin in water-free, acetone-based, single-bottle primer-adhesives. Dent Mater. 1996;12: 236-244.PubMed
14. Kanca J. Effect of drying on bonding strength. J Dent Res. 1991;70: 304. (Abstract 1029).
15. Gwinnett AJ. Moist versus dry dentin: its effect on shear bond strength. Am J Dent. 1992;5: 127-129.PubMed
16. Gwinnett AJ. Dentin bond strength after air drying and rewetting. Am J Dent. 1994;7(3):144-148.PubMed
17. Gwinnett AJ, Kanca J. Micromorphology of the bonded dentin interface and its relationship to bond strength. Am J Dent. 1992;5: 73-77.PubMed
18. Kanca J. Resin bonding to wet substrate. I. bonding to dentin. Quintessence Int. 1992;23(1):39-41.PubMed
19. Kanca J. Effect of resin primer solvents and surface wetness on resin composite bond strength to dentin. Am J Dent. 1992;5: 213-215.PubMed
20. Kanca J. Wet bonding: Effect of drying time and distance. Am J Dent. 1996;9: 273-276.PubMed
21. Kanca J, Sandrik J. Bonding to dentin, clues to the mechanism of adhesion. Am J Dent. 1998;11: 154-159.PubMed
22. Perdigao J, Swift EJ, Cloe BC. Effects of etchants, surface moisture, and resin composite on dentin bond strength. Am J Dent. 1993;6: 61-64.PubMed
23. Perdigão J, Swift EJ, Heymann HO, Malek MA. Effect of a re-wetting agent on the performance of acetone-based dentin adhesives. Am J Dent. 1998;11: 207-213.PubMed
24. Miears JR, Charlton DG, Hermesch CB. Effect of dentin moisture and storage time on resin bonding. Am J Dent. 1995;8: 80-82.PubMed
25. Perdigao J, Geraldeli S, Carmo ARP, Dutra HR. In vivo influence of residual moisture on microtensile bond strength of one-bottle adhesives. J Esthet Restor Dent. 2002;14(1):31-38.PubMed
26. Tay FR, Gwinnett AJ, Wei SHY. Micromorphological spectrum of acid conditioned dentin following the application of a water-based adhesive. Dent Mater. 1998;14: 329-338.Article PubMed
27. Perdigao J, Van Meerbeek B, Lopes MM, Ambrose WW. The effect of a re-wetting agent on dentin bonding. Dent Mater. 1999;15: 282-295.Article PubMed
28. Saunders WP, Saunders EM. Microleakage of bonding agents with wet versus dry bonding techniques. Am J Dent. 1996;9: 34-36.PubMed
29. Santini A, Mitchell S. Effect of wet and dry bonding techniques on marginal leakage. Am J Dent. 1998;11: 219-224.PubMed
30. Santini A, Mitchell S. Microleakage of composite restorations bonded with three new bonding agents. J Esthet Dent. 1998;10: 296-304.PubMed
31. Ritter AV. Re-wetting agents for dentin bonding. J Esthet Restor Dent. 2001;13(6):387-395.Article
32. Swift EJ. Resin desensitizers. J Esthet Dent. 1999;11(6):289-290.
33. Gwinnett AJ. Chemically conditioned dentin: a comparison of conventional and environmental scanning electron microscopy findings. Dent Mater. 1994;10: 150-155.PubMed
34. Peschke A, Blunck U, Roulet JF. Influence of incorrect application of a water-based adhesive system on the marginal adaptation of class V restorations. Am J Dent. 2000;13(5):239-244.PubMed
35. Tay FR, Gwinnett AJ, Wei SHY. Ultrastructure of the resin-dentin interface following reversible and irreversible re-wetting. Am J Dent. 1997;10: 77-82.PubMed
36. Ritter AV, Heymann HO, Swift EJ Jr, Perdigao J, Rosa BT. Effects of different re-wetting techniques on dentin shear bond strengths. J Esthet Dent. 2000;12(2):85-96.Article PubMed
37. Van Meerbeek B, Peumans M, Verschueren M. Clinical status of ten dentin adhesive systems. J Dent Res. 1994;73: 1690-1702.PubMed
38. Alani AH, Toh CG. Detection of microleakage around dental restoration: a review. Oper Dent. 1997;22: 173-185.PubMed
39. Dietschi D, De Siebenthal G, Neveu-Rosenstand L. Influence of the restorative technique and new adhesives on the dentin marginal seal and adaptation of resin composite class II restoration: an in vitro evaluation. Quintessence Int. 1995;26: 717-727.PubMed
40. Mangum FI, Berry EA, DeSchepper E. Microleakage of incremental versus compression matrix bulk filling of cervical resin composite restorations. Gen Dent. 1994;42: 304-308.PubMed
41. Rossomando JJ, Wendt SLJ. Thermocycling and dwell times in microleakage evaluation for bonded restorations. Dent Mater. 1995;11: 47-51.PubMed
42. Gladys S, Van Meerbeek B, Lambrechets P, Vanherle G. Microleakage of adhesive restorative materials. Am J Dent. 2001;14(3):170-176.PubMed
43. Setien VJ, Cobb D, Denehy GE, Vargas M. Cavity preparation devices: Effect on microleakage of class V resin-based composite restorations. Am J Dent. 2001;14(3):157-162.PubMed
44. Barnes DM, McDonald NJ, Thompson VP, et al. Microleakage in facial and lingual Class 5 composite restorations: A comparison. Oper Dent. 1994;19: 133-137.PubMed
45. Maciel KT, Carvalho RM, Ringle RD, Preston CD, Russell CM, Pashley DH. The effects of acetone, ethanol, HEMA, and air on the stiffness of human decalcified dentin matrix. J Dent Res. 1996;75: 1851-1858.PubMed
46. Santini A. Microleakage of resin-based composite restorations using different solvent-based bonding agents and methods of drying acid-etched dentin. Am J Dent. 1999;12(4):194-200.PubMed
47. Nakajima M, Kanemura N, Pereira PNR, Tagami J, Pashley DH. Comparative microtensile bond strength and SEM analysis of bonding to wet and dry dentin. Am J Dent. 2000;13(6):324-328.PubMed
48. Inokoshi S, Hosoda H, Harnirattisai C. Interfacial structure between dentin and seven dentin bonding systems revealed using argon ion beam etching. Oper Dent. 1993;18: 8-16.PubMed
49. Sugizaki J. The effects of various primers on dentin adhesion of resin composites. SEM and TEM observation of the resin impregnated layer and adhesion promoting effect of the primer. Jpn J Conserv Dent. 1991;34: 228-265.
50. Watanabe I, Takarada K, Nakabayashi N. Adhesion of 4-META/MMA-TBB resin to dentin pretreated with phosphoric acid. J Jpn Dent Mater. 1997;10: 671-677.
51. Xu J, Stangel I, Butler IS, Gilson DFR. An FT-Raman spectroscopic investigation of dentin and collagen surface modified by 2-hydroxyethyl methacrylate. J Dent Res. 1997;76: 596-601.Article PubMed PDF
52. Di Renzo M, Ellis T, Domingue A, Bertrand L, Sacher E, Stangel I. Chemical reactions between dentin and bonding agents. J Adhes Dent. 1994;47: 115-121.Article
53. Harashima I, Hirasawa T. Adsorption of 2-hydroxyethyl methacrylate on dentin from aqueous solution. Dent Mater J. 1990;9: 36-46.PubMed
54. Munksgaard EC, Asmussen E. Bond strength between dentin and restorative resins mediated by mixtures of HEMA and glutaraldehyde. J Dent Res. 1984;63: 1087-1089.Article PubMed PDF
55. Nakabayashi N, Watanae A, Gendusa NJ. Dentin adhesion of modified 4-META/MMA-TBB resin : function of HEMA. Dent Mater. 1992;8: 259-264.Article PubMed
56. Suzuke K, Takahashi M, Nakai H. Treatment of dentin by aqueous solution of amino acid derivatives : HEMA. J Adhes Dent. 1990;8: 43-51.
57. Itoh K, Wakumoto S. Momentary pretreatment by 35% HEMA solution combined with five marketed bonding agents. Dent Mater J. 1987;6: 28-31.PubMed
58. Pilo R, Cardash HS, Oz-Ari B, Ben-Amar A. Effect of preliminary treatment of the dentin surface on the shear bond strength of resin composite to dentin. Oper Dent. 2001;26: 569-575.PubMed

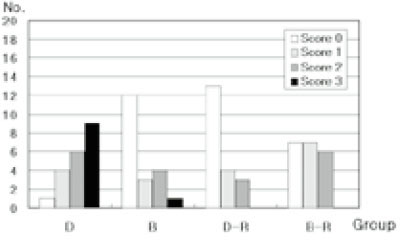

Fig. 1

Numbers of leakage scores of each group at dentin margin

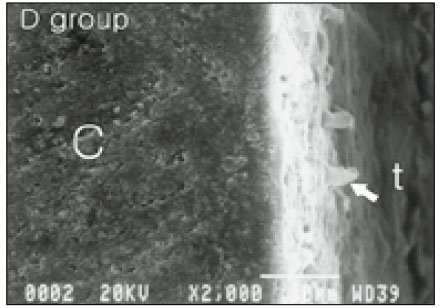

Fig. 2

Resin-dentin interface produced using One-Step on dry dentin (D group). There is 10 µm thick gap (g) between composite (C) and dentin (D) and no discernible hybrid layer. (SEM×500)

Fig. 3

Higher magnification of D group (SEM×2,000). A few and short resin tags (t) of about 3-4 µm length protruded from composite (C) showed.

Fig. 4

Resin-dentin interface produced using One-Step on blot dry dentin (B group). Resin (C)-dentin (D) interface showed close adaptation and hybrid layer (h). A numerous 10-40 µm long resin tags showed from hybrid layer to dentin. (SEM×500)

Fig. 5

Higher magnification of B group (SEM×2,000). Hybrid layer (h) and funnel shaped resin tags (t) showed between composite (C) and dentin (D).

Fig. 6

Resin-dentin interface produced using One-Step on dry dentin rewetted with Aqua-Prep F (D-R group). Resin (C)-dentin (D) interface showed close adaptation and hybrid layer. Adhesive layer (a) of 10 µm thickness showed between composite (C) and hybrid layer (h). (SEM×500)

Fig. 7

Higher magnification of D-R group (SEM×2,000). Adhesive layer (a), short (about 10 µm long) and less profound resin tags (t), and hybrid layer (h) showed.

Fig. 8

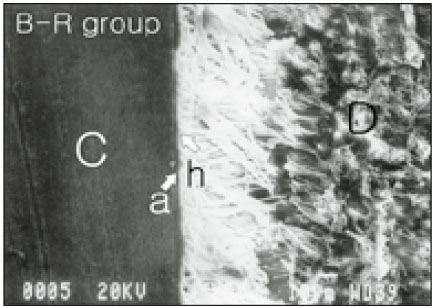

Resin-dentin interface produced using One-Step on blot dry dentin rewetted with Aqua-Prep F (B-R group). Resin-dentin interface showed close adaptation and hybrid layer. Adhesive layer (a) of 3 µm thickness showed between composite (C) and hybrid layer (h). A numerous 10-40 µm long resin tags showed from hybrid layer to dentin (D). (SEM×500)

Fig. 9

Higher magnification of B-R group (SEM×2,000). Short and long resin tags (about 10-40 µm long) showed from hybrid layer (h) to dentin (D).

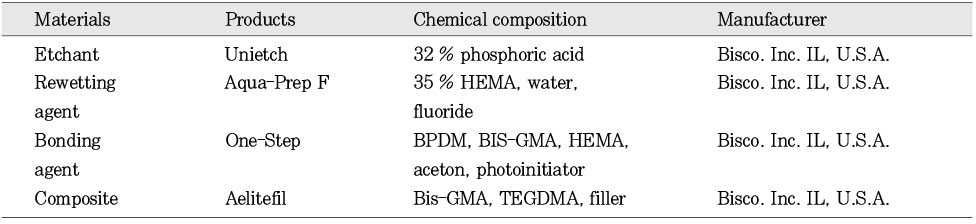

Table 1

Materials used in this study and chemical composition

Table 2

Group classification according to dry, blot dry, and rewetting procedures of dentin surface

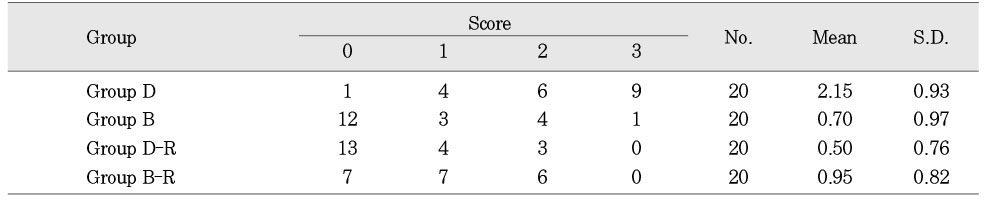

Table 3

Distribution of microleakage scores and means at dentin margin

Table 4

Statistical analysis of microleakage at dentin margin between each group by Kruskal-Wallis test and Mann-Whitney test

^*: significant differences (p<0.05)

Tables & Figures

REFERENCES

Citations

Citations to this article as recorded by

ePub Link

Cite

CITE: export Copy Download Format; Close

Download Citation

Download a citation file in RIS format that can be imported by all major citation management software, including EndNote, ProCite, RefWorks, and Reference Manager.

Format:

RIS — For EndNote, ProCite, RefWorks, and most other reference management software
BibTeX — For JabRef, BibDesk, and other BibTeX-specific software

Include:

Citation for the content below
Citation and abstract for the content below

Effect of a rewetting agent on dentin adhesion

J Korean Acad Conserv Dent. 2003;28(1):11-22. Published online January 31, 2003

DOI: https://doi.org/10.5395/JKACD.2003.28.1.011

XML Download

Figure

Related articles

Effect of a rewetting agent on dentin adhesion

Fig. 1 Numbers of leakage scores of each group at dentin margin

Fig. 2 Resin-dentin interface produced using One-Step on dry dentin (D group). There is 10 µm thick gap (g) between composite (C) and dentin (D) and no discernible hybrid layer. (SEM×500)

Fig. 3 Higher magnification of D group (SEM×2,000). A few and short resin tags (t) of about 3-4 µm length protruded from composite (C) showed.

Fig. 4 Resin-dentin interface produced using One-Step on blot dry dentin (B group). Resin (C)-dentin (D) interface showed close adaptation and hybrid layer (h). A numerous 10-40 µm long resin tags showed from hybrid layer to dentin. (SEM×500)

Fig. 5 Higher magnification of B group (SEM×2,000). Hybrid layer (h) and funnel shaped resin tags (t) showed between composite (C) and dentin (D).

Fig. 6 Resin-dentin interface produced using One-Step on dry dentin rewetted with Aqua-Prep F (D-R group). Resin (C)-dentin (D) interface showed close adaptation and hybrid layer. Adhesive layer (a) of 10 µm thickness showed between composite (C) and hybrid layer (h). (SEM×500)

Fig. 7 Higher magnification of D-R group (SEM×2,000). Adhesive layer (a), short (about 10 µm long) and less profound resin tags (t), and hybrid layer (h) showed.

Fig. 8 Resin-dentin interface produced using One-Step on blot dry dentin rewetted with Aqua-Prep F (B-R group). Resin-dentin interface showed close adaptation and hybrid layer. Adhesive layer (a) of 3 µm thickness showed between composite (C) and hybrid layer (h). A numerous 10-40 µm long resin tags showed from hybrid layer to dentin (D). (SEM×500)

Fig. 9 Higher magnification of B-R group (SEM×2,000). Short and long resin tags (about 10-40 µm long) showed from hybrid layer (h) to dentin (D).

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Effect of a rewetting agent on dentin adhesion

Table 1

Materials used in this study and chemical composition

Table 2

Group classification according to dry, blot dry, and rewetting procedures of dentin surface

Table 3

Distribution of microleakage scores and means at dentin margin

Table 4

Statistical analysis of microleakage at dentin margin between each group by Kruskal-Wallis test and Mann-Whitney test

^*: significant differences (p<0.05)

Table 1 Materials used in this study and chemical composition

Table 2 Group classification according to dry, blot dry, and rewetting procedures of dentin surface

Table 3 Distribution of microleakage scores and means at dentin margin

Table 4 Statistical analysis of microleakage at dentin margin between each group by Kruskal-Wallis test and Mann-Whitney test
