Response characteristics of ventral posteromedial thalamic nociceptive neurons in the anesthetized rat

Hyung-Il Lee; Soo-Joung Park

doi:10.5395/JKACD.2002.27.6.587

Articles

Page Path: HOME > Restor Dent Endod > Volume 27(6); 2002 > Article

Original Article Response characteristics of ventral posteromedial thalamic nociceptive neurons in the anesthetized rat: Hyung-Il Lee, Soo-Joung Park^*; Journal of Korean Academy of Conservative Dentistry 2002;27(6):587-599.
DOI: https://doi.org/10.5395/JKACD.2002.27.6.587
Published online: November 30, 2002

Department of Conservative Dentistry, College of Dentistry, Chonbuk National University, Korea.

^*Department of Oral Physiology and Institute of Oral Bioscience, College of Dentistry, Chonbuk National University, Korea.

17 Views
0 Download

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

Extracellular single unit recordings were made from the ventral posteromedial thalamic (VPM) nociceptive neurons to determine mechanoreceptive field (RF) and response properties. A total of 44 VPM thalamic nociceptive neurons were isolated from rats anesthetized with urethane-chloralose.

Based on responses to various mechanical stimuli including touch, pressure and pinch applied to the RF, 32 of 44 neurons were classified as nociceptive specific (NS) neuron. The other 12 neurons, classified as wide dynamic range (WDR), showed a graded response to increasingly intense stimuli, with a maximum discharge to noxious pinch.

The VPM nociceptive neurons showed various spontaneous activity ranged from 0-6 Hz. They were located throughout the VPM, and had an contralateral RF including mainly intraoral (and perioral) regions. The RF size was relatively small, and very few neurons had a receptive field involving 3 trigeminal divisions. The NS neurons activated only by pressure and pinch stimuli had high mechanical thresholds compared to WDR neurons activated also by touch stimuli. The VPM nociceptive neurons were tested with suprathershold graded mechanical stimuli. Most of 21 NS and 8 WDR neurons showed a progressive increase in number of spikes as mechanical stimulus intensity was increased. In some neurons, the responses reached a peak before the highest intensity was given. Application of 5 mM CoCl₂ (10 µl) solution to the trigeminal subnucleus caudalis did not produce any significant changes in the spontaneous activity, RF size, mechanical threshold, and response to suprathresold mechanical stimuli of 9 VPM nociceptive neurons tested.

17 of 33 VPM nociceptive neurons responded to noxious heat as well as noxious mechanical stimuli applied to their RF. Application of the mustard oil, a small-fiber excitant and inflammatory irritant, to the right maxillary first molar tooth pulp induced an immediate but short-lasting neuronal discharges upto approximately 4 min in 16 of 42 VPM nociceptive neurons.

These results suggest that VPM thalamic nucleus may contribute to the sensory discriminative aspect of orofacial nociception.
Keywords: VPM; orofacial nociception; rat

REFERENCES

1. Albe-Fessard D, Berkley KJ, Kruger L, Ralston HJ, Willis WD. Diencephalic mechanisms of pain sensation. Brain Res. 1985;356: 217-296.PubMed
2. Craig AD, Dostrovsky JO. In: Wall PD, Melzack R, editors. Medulla to Thalamus. Textbook of Pain. 1999;Edinburgh: Churchill-Livingstone; 183-214.
3. Sessle BJ. Acute and chronic craniofacial pain: brainstem mechanisms of nociceptive transmission and neuroplasticity, and their clinical correlates. Crit Rev Oral Biol Med. 2000;11: 57-91.Article PubMed PDF
4. Apkarian AV, Hodge CJ. Primate spinothalamic pathways: III. Thalamic terminations of the dorsolateral and ventral spinothalamic pathways. J Comp Neurol. 1989;288: 493-511.Article PubMed
5. Craig AD, Linington AJ, Kniffki KD. Cells of origin of spinothalamic tract projections to the medial and lateral thalamus in the cat. J Comp Neurol. 1989;289: 568-585.Article PubMed
6. Ganchrow D. Intratrigeminal and thalamic projections of nucleus caudalis in the squirrel monkey (Saimiri sciureus): a degeneration and autoradiographic study. J Comp Neurol. 1978;178: 281-312.Article PubMed
7. Casey KL, Morrow TJ. Ventral posterior thalamic neurons differentially responsive to noxious stimulation of the awake monkey. Science. 1983;221: 675-677.Article PubMed
8. Chung JM, Lee KH, Surmeier DJ, Sorkin LS, Kim J, Willis WD. Response characteristics of neurons in the ventral posterior lateral nucleus of the monkey thalamus. J Neurophysiol. 1986;56: 370-390.Article PubMed
9. Kenshalo DR, Giesler GJ, Leonard RB, Willis WD. Responses of neurons in primate ventral posterior lateral nucleus to noxious stimuli. J Neurophysiol. 1980;43: 1594-1614.Article PubMed
10. Brinkhus HB, Carstens E, Zimmermann M. Encoding of graded noxious skin heating by neurons in posterior thalamus and adjacent areas in the cat. Neurosci Lett. 1979;15: 37-42.Article PubMed
11. Honda CN, Mense S, Perl ER. Neurons in ventrobasal region of cat thalamus selectively responsive to noxious mechanical stimulation. J Neurophysiol. 1983;49: 662-673.Article PubMed
12. Yokota T, Asato F, Koyama N, Masuda T, Taguchi H. Nociceptive body representation in nucleus ventralis posterolateralis of cat thalamus. J Neurophysiol. 1988;60: 1714-1727.Article PubMed
13. Simone DA, Hanson ME, Bernau NA, Pubols BH. Nociceptive neurons of the raccoon lateral thalamus. J Neurophysiol. 1993;69: 318-328.Article PubMed
14. Benoist JM, Kayser V, Gautron M, Guilbaud G. Low dose of morphine strongly depresses responses of specific nociceptive neurones in the ventrobasal complex of the rat. Pain. 1983;15: 333-344.Article PubMed
15. Guilbaud G, Peschanski M, Gautron M, Binder D. Neurones responding to noxious stimulation in VB complex and caudal adjacent regions in the thalamus of the rat. Pain. 1980;8: 303-318.Article PubMed
16. Mitchell D, Hellon RF. Neuronal and behavioural responses in rats during noxious stimulation of the tail. Proc R Soc Lond B Biol Sci. 1977;197: 169-194.Article PubMed PDF
17. Peschanski M, Guilbaud G, Gautron M, Besson JM. Encoding of noxious heat messages in neurons of the ventrobasal thalamic complex of the rat. Brain Res. 1980;197: 401-413.Article PubMed
18. Yokota T, Matsumoto N. Location and functional organization of trigeminal wide dynamic range neurons within the nucleus ventralis posteromedialis of the cat. Neurosci Lett. 1983;39: 231-236.Article PubMed
19. Yokota T, Matsumoto N. Somatotopic distribution of trigeminal nociceptive specific neurons within the caudal somatosensory thalamus of cat. Neurosci Lett. 1983;39: 125-130.PubMed
20. Yokota T, Koyama N, Matsumoto N. Somatotopic distribution of trigeminal nociceptive neurons in ventrobasal complex of cat thalamus. J Neurophysiol. 1985;53: 1387-1400.Article PubMed
21. Bushnell MC, Duncan GH. Mechanical response properties of ventroposterior medial thalamic neurons in the alert monkey. Exp Brain Res. 1987;67: 603-614.Article PubMed PDF
22. Iwata K, Kenshalo DR, Dubner R, Nahin RL. Diencephalic projections from the superficial and deep laminae of the medullary dorsal horn in the rat. J Comp Neurol. 1992;321: 404-420.Article PubMed
23. Peschanski M. Trigeminal afferents to the diencephalon in the rat. Neuroscience. 1984;12: 465-487.Article PubMed
24. Barnett EM, Evans GD, Sun N, Perlman S, Cassell MD. Anterograde tracing of trigeminal afferent pathways from the murine tooth pulp to cortex using herpes simplex virus type 1. J Neurosci. 1995;15: 2972-2984.Article PubMed PMC
25. Hu JW. Response properties of nociceptive and nonnociceptive neurons in the rat's trigeminal subnucleus caudalis (medullary dorsal horn) related to cutaneous and deep craniofacial afferent stimulation and modulation by diffuse noxious inhibitory controls. Pain. 1990;41: 331-345.Article PubMed
26. Vahle-Hinz C, Gottschaldt KM. Macchi G, Rustiont A, Spreafico R. Principal differences in the organization of the thalamic face representation in rodents and felids. Somatosensory integration in the thalamus. 1983;Amsterdam: Elsevier Science; 125-145.
27. Vos BP, Benoist JM, Gautron M, Guilbaud G. Changes in neuronal activities in the two ventral posterior medial thalamic nuclei in an experimental model of trigeminal pain in the rat by constriction of one infraorbital nerve. Somatosens Mot Res. 2000;17: 109-122.Article PubMed
28. Dallel R, Raboisson P, Auroy P, Woda A. The rostral part of the trigeminal sensory complex is involved in orofacial nociception. Brain Res. 1988;448: 7-19.Article PubMed
29. Shigenaga Y, Matano S, Okada K, Sakai A. The effects of tooth pulp stimulation in the thalamus and hypothalamus of the rat. Brain Res. 1973;63: 402-407.Article PubMed
30. Yokota T, Nishikawa Y, Koyama N. Tooth pulp input to the shell region of nucleus ventralis posteromedialis of the cat thalamus. J Neurophysiol. 1986;56: 80-98.Article PubMed
31. Allen GV, Pronych SP. Trigeminal autonomic pathways involved in nociception-induced reflex cardiovascular responses. Brain Res. 1997;754: 269-278.PubMed
32. Hochstenbach SL, Ciriello J. Medullary pathways mediating depressor responses from Na+-sensitive sites in nucleus of the solitary tract. Am J Physiol. 1997;272: R126-R133.Article PubMed
33. Lee C, Malpeli JG. Somata-selective lesions induced by cobaltous chloride: a parametric study. Brain Res. 1986;364: 396-399.Article PubMed
34. Paxinos G, Watson C. The rat brain in stereotaxic coordinates. 1998;New York: Academic.
35. Dallel R, Raboisson P, Woda A, Sessle BJ. Properties of nociceptive and non-nociceptive neurons in trigeminal subnucleus oralis of the rat. Brain Res. 1990;521: 95-106.Article PubMed
36. Park SJ, Chiang CY, Hu JW, Sessle BJ. Neuroplasticity induced by tooth pulp stimulation in trigeminal subnucleus oralis involves NMDA receptor mechanisms. J Neurophysiol. 2001;85: 1836-1846.Article PubMed
37. Cliffer KD, Burstein R, Giesler GJ. Distributions of spinothalamic, spinohypothalamic, and spinotelencephalic fibers revealed by anterograde transport of PHA-L in rats. J Neurosci. 1991;11: 852-868.Article PubMed PMC
38. Willis WD. In: Steriade M, Jones EG, McCormick DA, editors. Nociceptive functions of thalamic neurons. Thalamus, experimental and clinical aspects, Vol. II. 1997;Amsterdam: Elsevier Science; 373-424.
39. Gingold SI, Greenspan JD, Apkarian AV. Anatomic evidence of nociceptive inputs to primary somatosensory cortex: relationship between spinothalamic terminals and thalamocortical cells in squirrel monkeys. J Comp Neurol. 1991;308: 467-490.Article PubMed
40. Jones EG, Friedman DP. Projection pattern of functional components of thalamic ventrobasal complex on monkey somatosensory cortex. J Neurophysiol. 1982;48: 521-544.Article PubMed
41. Bushnell MC, Duncan GH, Tremblay N. Thalamic VPM nucleus in the behaving monkey I Multimodal and discriminative properties of thermosensitive neurons. J Neurophysiol. 1993;69: 739-752.Article PubMed
42. Friedberg MH, Lee SM, Ebner FF. Modulation of receptive field properties of thalamic somatosensory neurons by the depth of anesthesia. J Neurophysiol. 1999;81: 2243-2252.Article PubMed
43. Kniffki KD, vahle-Hinz C. Besson JM, Guilbaud G, Peschanski M. The periphery of the cat's ventroposteromedial nucleus (VPMp): nociceptive neurones. Thalamus and Pain. 1987;Amsterdam: Elsevier; 245-257.
44. Emmers R. Stimulation of the periaqueductal gray subdues sensitized pain in morphine- and meperidinedependent rats. Exp Neurol. 1985;88: 405-417.Article PubMed
45. Yoshida A, Dostrovsky JO, Sessle BJ, Chiang CY. Trigeminal projections to the nucleus submedius of the thalamus in the rat. J Comp Neurol. 1991;307: 609-625.Article PubMed
46. Mendell LM. Physiological properties of unmyelinated fiber projection to the spinal cord. Exp Neurol. 1966;16: 316-332.Article PubMed
47. Woolf CJ. Windup and central sensitization are not equivalent. Pain. 1996;66: 105-108.Article PubMed
48. Li J, Simone DA, Larson AA. Windup leads to characteristics of central sensitization. Pain. 1999;79: 75-82.Article PubMed
49. Georgopoulos AP. Stimulus-response relations in high-threshold mechanothermal fibers innervating primate glabrous skin. Brain Res. 1977;128: 547-552.Article PubMed
50. Gybels J, Handwerker HO, Van Hees J. A comparison between the discharges of human nociceptive nerve fibres and the subject's ratings of his sensations. J Physiol. 1979;292: 193-206.Article PubMed PMC
51. Chiang CY, Park SJ, Kwan CL, Hu JW, Sessle BJ. NMDA receptor mechanisms contribute to neuroplasticity induced in caudalis nociceptive neurons by tooth pulp stimulation. J Neurophysiol. 1998;80: 2621-2631.Article PubMed
52. Naftel JP, Bernanke JM, Qian XB. Quantitative study of the apical nerve fibers of adult and juvenile rat molars. Anat Rec. 1994;238: 507-516.Article PubMed
53. Giesler GJ, Nahin RL, Madsen AM. Postsynaptic dorsal column pathway of the rat. I. Anatomical studies. J Neurophysiol. 1984;51: 260-275.Article PubMed
54. Cervero F, Iggo A, Molony V. Responses of spinocervical tract neurones to noxious stimulation of the skin. J Physiol. 1977;267: 537-558.Article PubMed PMC
55. Al-Chaer ED, Lawand NB, Westlund KN, Willis WD. Visceral nociceptive input into the ventral posterolateral nucleus of the thalamus: a new function for the dorsal column pathway. J Neurophysiol. 1996;76: 2661-2674.Article PubMed
56. Fukushima T, Kerr FW. Organization of trigeminothalamic tracts and other thalamic afferent systems of the brainstem in the rat: presence of gelatinosa neurons with thalamic connections. J Comp Neurol. 1979;183: 169-184.PubMed
57. Mantle-St John LA, Tracey DJ. Somatosensory nuclei in the brainstem of the rat: independent projections to the thalamus and cerebellum. J Comp Neurol. 1987;255: 259-271.Article PubMed
58. Bruce LL, McHaffie JG, Stein BE. The organization of trigeminotectal and trigeminothalamic neurons in rodents: a double-labeling study with fluorescent dyes. J Comp Neurol. 1987;262: 315-330.Article PubMed
59. Hagiwara S, Byerly L. Calcium channel. Annu Rev Neurosci. 1981;4: 69-125.Article PubMed
60. Marfurt CF, Turner DF. The central projections of tooth pulp afferent neurons in the rat as determined by the transganglionic transport of horseradish peroxidase. J Comp Neurol. 1984;223: 535-547.Article PubMed
61. Broton JG, Rosenfeld JP. Effects of trigeminal tractotomy on facial thermal nociception in the rat. Brain Res. 1985;333: 63-72.Article PubMed
62. Ikegami S, Kawamura H. Avoidance conditioning to tooth pulp stimulation in the cat after bulbar transection. Physiol Behav. 1979;23: 593-596.Article PubMed
63. Young RF. Effect of trigeminal tractotomy on dental sensation in humans. J Neurosurg. 1982;56: 812-818.Article PubMed
64. Young RF, Oleson TD, Perryman KM. Effect of trigeminal tractotomy on behavioral response to dental pulp stimulation in the monkey. J Neurosurg. 1981;55: 420-423.Article PubMed

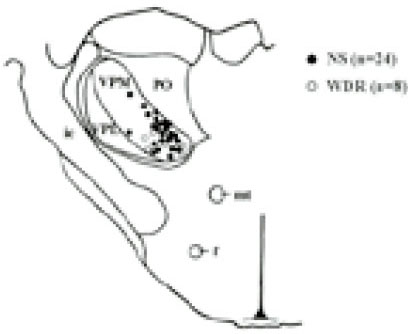

Fig. 1

Location of the histologically confirmed recording sites plotted on the diagram of ventral posteromedial thalamic (VPM) nucleus. Coronal section of rat brain at 3.3 mm posterior to the Bregma (Paxinos and Watson, 1998). Filled circles show the location of nociceptive specific neurons, whereas open circles show the location of wide dynamic range neurons. VPM, ventral posteromedial thalamic nucleus; VPL, ventral posterolateral thalamic nucleus; PO, posterior thalamic nuclei; ic, internal capsule; mt, mammillothalamic tract; f, fornix.

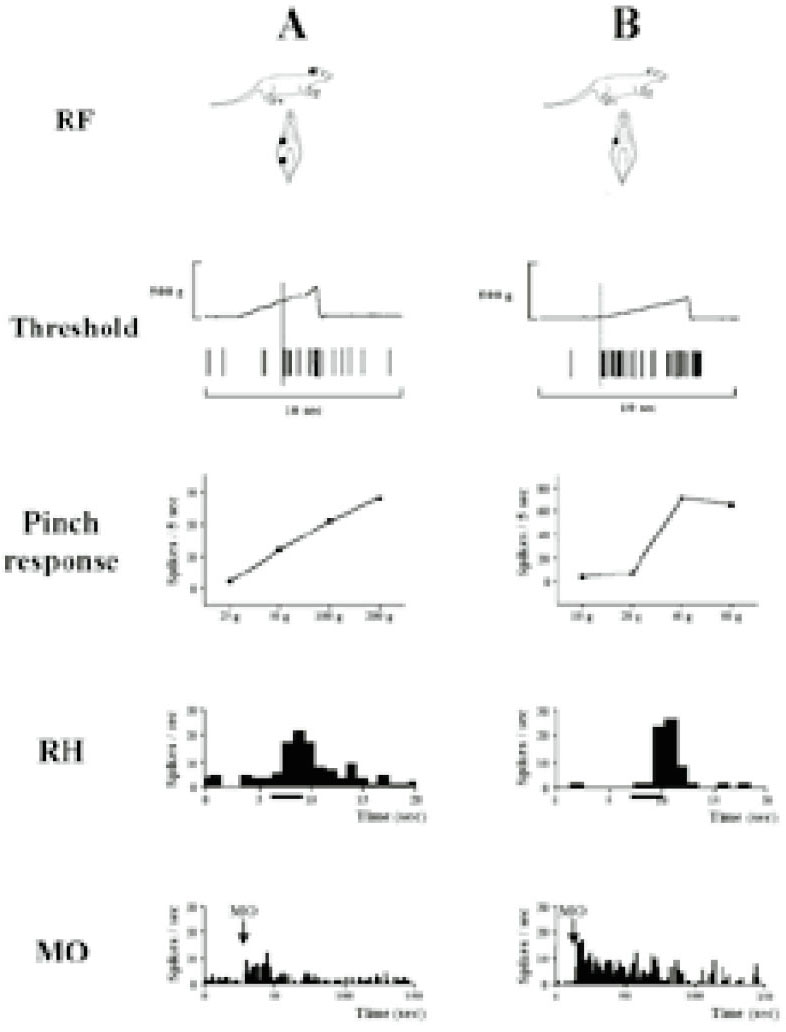

Fig. 2

Example of receptive field (RF) and response properties of VPM nociceptive neuron. A: nociceptive specific neuron, B: wide dynamic range neuron. RF: The dot represents the spot from which the neuron could be activated. Threshold: Line over the action potentials showing the mechanical force applied to the RF. Pinch response: The stimulus-response curve (force vs firing rate) of neuron. RH: Peristimulus time histogram (PSTH) showing the response to radiant heat applied to the RF. The bar indicates the duration (3 sec) of the stimulus. MO: PSTH showing the response to mustard oil (MO) applied into the right maxillary first molar pulp. The arrow indicates the time of MO application.

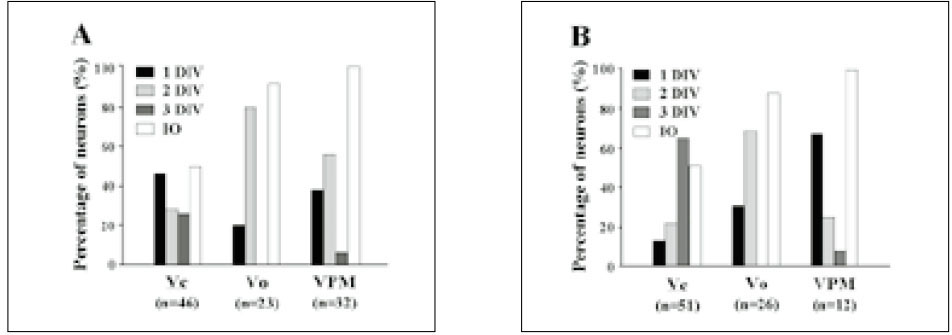

Fig. 3

Histogram showing percentage of ventral posteromedial thalamic (VPM), trigeminal subnucleus caudalis (Vc) and oralis (Vo) nociceptive neurons having a mechanoreceptive field limited within one V division (1 DIV) or involving two (2 DIV) or all three trigeminal divisions (3 DIV), and a mechanoreceptive field involving intraoral (IO) region. A: NS neuron, B: WDR neuron. Vc data reported by Hu, J.W., Pain, 1990. Vo data reported by Park et al., J. Neurophysiol. 2001.

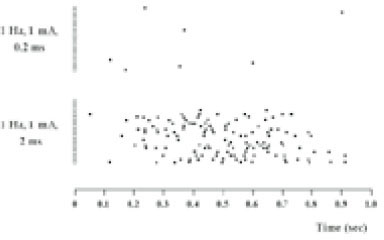

Fig. 4

The dot raster display showing response of a VPM WDR neuron to repetitive (1 Hz, 1 mA, 0.2 ms or 2 ms) electrical stimulation of its receptive field. A single dot represents the occurrence of a single action potential; rows represent successive responses shown from top (first stimulus) to bottom (20th stimulus). Note the "wind-up" of the neuron's C fiber evoked responses to successive electrical stimuli in lower trace.

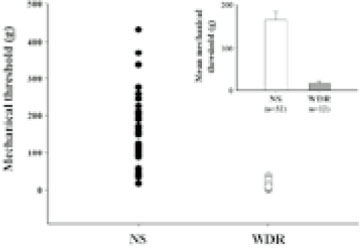

Fig. 5

Distribution of mechanical threshold of individual VPM nociceptive neurons. A: NS neuron (n=32), B: WDR neuron (n=12). Inset shows mean mechanical threshold ± S.E.

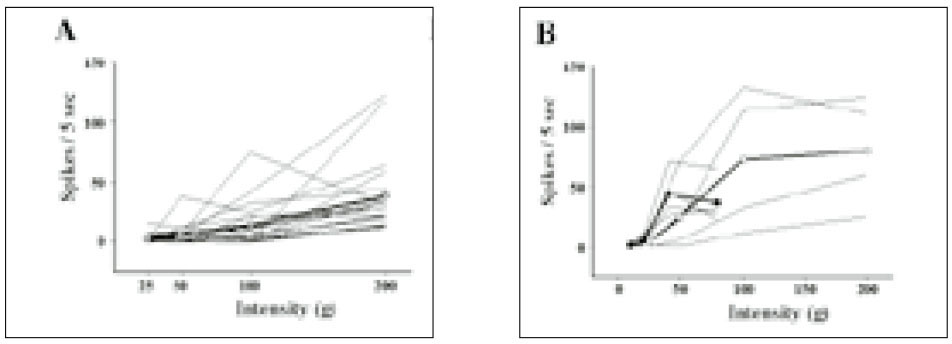

Fig. 6

Stimulus-response curve of individual VPM nociceptive neuron to graded mechanical stimuli. A: NS neuron (n=21), B: WDR neuron (n=8). Mean stimulus-response curve is drawn with the thick line. Note that WDR and NS neurons showed a progressive increase in number of spikes as mechanical stimulus intensity was increased.

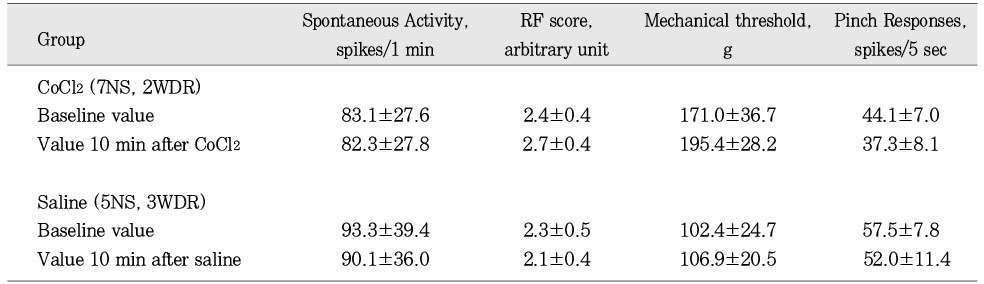

Table 2

Changes in RF and neuronal response properties of VPM nociceptive neurons following application of CoCl₂ or saline to trigeminal subnucleus caudalis in adult rats

All values are shown as mean ± S.E. Note that RF and neuronal response properties are not significantly changed after CoCl₂ or saline application (Wilcoxon signed rank test).
