Shear bond strength of repaired composite resin restorations

Soo-young Choi; Sun-Wa Jeong; Yun-Chan Hwang; Sun-Ho Kim; Chang Yun; Won-Mann Oh; In-Nam Hwang

doi:10.5395/JKACD.2002.27.6.569

Articles

Page Path: HOME > Restor Dent Endod > Volume 27(6); 2002 > Article

Original Article Shear bond strength of repaired composite resin restorations: Soo-young Choi, Sun-Wa Jeong^*, Yun-Chan Hwang, Sun-Ho Kim, Chang Yun, Won-Mann Oh, In-Nam Hwang; Journal of Korean Academy of Conservative Dentistry 2002;27(6):569-576.
DOI: https://doi.org/10.5395/JKACD.2002.27.6.569
Published online: November 30, 2002

Department of Conservative Dentistry, College of Dentistry, DSRI, Chonnam National University, Korea.

^*Department of Dentistry, College of Medicine, Seonam University, Korea.

20 Views
0 Download

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

This study was performed to evaluate the interfacial shear bond strength of base (direct and indirect) and repair composites with aging and surface treatment methods.

Direct composite resin specimens (Charisma®, Heraeus Kulzer, Germany) were aged for 5 min, 1 hour, 24 hours, and 1 week in 37℃ distilled water before surface treatment, and then divided into five groups: Group 1, grinding; Group 2, grinding and application of bonding agent; Group 3, grinding, etching with 37% phosphoric acid for 30sec, and application of bonding agent; Group 4, grinding, etching with 37% phosphoric acid for 30sec, silane treatment, and application of bonding agent; Group 5, grinding, etching with 4% hydrofluoric acid for 30sec, silane treatment, and application of bonding agent.

Indirect composite resin specimens (Artglass®, Heraeus Kulzer, Germany) were aged for 1 week in 37℃ distilled water and divided into seven groups: Group 1 - Group 5, equal to Charisma specimens; Group 6, grinding, etching with 37% phosphoric acid for 60sec, silane treatment, and application of bonding agent; Group7, grinding, etching with 4% hydrofluoric acid for 60 sec, silane treatment, and application of bonding agent.

The repair material(Charisma®) was then added on the center of the surface (5 mm in diameter, 5 mm in height). The shear bond strength was tested and the data was analyzed using one-way ANOVA and the Student-Newman-Keuls test.

The following conclusions were drawn.

1. The shear bond strength of Charisma® specimens aged for 1 hour was significantly higher in Group 2 and Group 5 than in Group 1 (p<0.05), and that of Charisma® specimens aged for 1 week was significantly higher in Group 3 and Group 5 than in Group 1 (p<0.05). No significant difference was found in the bond strength of specimens aged for 5 min and 24 hours.

2. In Group 2 of the Charisma® specimens, there was significant difference between the bond strength of 24 hours and that of 1 week (p<0.05).

3. In Group 4 of the Charisma® specimens, the shear bond strength of specimens aged for 24 hours was significantly higher than the others(p<0.05).

4. There was no significant difference between the shear bond strength of the Artglass® specimens.

5. Most of the Charisma® specimens showed cohesive fractures. Artglass® specimens that were etched with acid (phosphoric or hydrofluoric) for 30 sec showed more cohesive fractures.
Keywords: Shear bond strength; repaired resin; Indirect resin restorations

REFERENCES

1. Chan DCN, Lemake KC, Howell ML, Barghi N. The effect of microabrasion on restorative materials and tooth surface. Oper Dent. 1996;21: 63-68.PubMed
2. Shahdad SA, Kennedy JG. Bond strength of repaired anterior composite resins: an in vitro study. J Dent. 1997;26: 685-694.
3. Lewis G, Johnson W, Martin W, Canerdy A, Claburn C, Collier M. Shear bond strength of immediately repaired light-cured composite resin restorations. Oper Dent. 1998;23: 121-127.PubMed
4. Miranda FJ, Duncanson MG, Dilts WE. Interfacial bonding strengths of paired composite systems. J Prosthet Dent. 1984;51: 29-32.Article PubMed
5. Davis BR, Millar BJ, Wood DJ, Budd NL. Strength of secondary-cured resin composite inlay repairs. Quintessence Int. 1997;28: 415-419.PubMed
6. Kang HS, Choi HY. A Study on the Bond Strength of Repair Resin to the Surface Treated Composite Resins. J Korean Acad Conserv Dent. 1995;20: 487-507.
7. Boyer DB, Chan KC, Reinhardt JW. Build-up and repair of light-cured composites: bond strength. J Dent Res. 1984;63: 1241-1244.Article PubMed PDF
8. Vankerckhoven H, Lambrechts P, Van Beylen M, Davidson CL, Vanherle G. Unreacted methacrylate groups on the surfaces of composite resins. J Dent Res. 1982;61: 791-795.Article PubMed PDF
9. Lloyd CH, Baigrie DA, Jeffrey IW. The tensile strength of composite repairs. J Dent. 1980;8: 171-177.Article PubMed
10. Forsten L, Valiaho ML. Transverse and bond strengths of restorative resins. Acta Odontol Scand. 1971;29: 527-537.PubMed
11. Reisbick MH, Brodsky BA. Strength parameters of composite resins. J Prosthet Dent. 1971;26: 178-185.Article PubMed
12. Boyer DB, Chan KC, Torney DL. The strength of multilayer and repaired composite resin. J Prosthet Dent. 1978;39: 63-67.Article PubMed
13. Chiba K, Hosoda H, Fusayama T. The addition of an adhesive composite resin to the same material: bond strength and clinical techniques. J Prosthet Dent. 1989;61: 669-675.PubMed
14. Turner CW, Meiers JC. Repair of an aged, contaminated indirect composite resin with a direct, visible light-cured composite resin. Oper Dent. 1993;18: 187-194.PubMed
15. Brosh T, Pilo R, Bichacho N, Blutstein R. Effect of combination of surface treatments and bonding agents on the bond strength of repaired composites. J Prosthet Dent. 1997;77: 122-126.PubMed
16. Puckett AD, Holder R, O'Hara JW. Strength of posterior composite repairs using different composite/bonding agent combinations. Oper Dent. 1991;16: 136-140.PubMed
17. Swift EJ Jr, LeValley BD, Boyer DB. Evaluation of new methods for composite repair. Dent Mater. 1992;8: 362-365.PubMed
18. Soderholm KJ, Roberts MJ. Variables influencing the repair strength of dental composites. Scand J Dent Res. 1991;99: 173-180.Article PubMed
19. Swift EJ, Wilder AD, May KN, Waddell SL. Shear bond strengths of one-bottle dentin adhesives using multiple applications. Oper Dent. 1997;22: 194-199.PubMed
20. Barkmeier WW, Erickson RL. Shear bond strength of composite to enamel and dentin using Scotchbond Multi-Purpose. Am J Dent. 1994;7: 175-179.PubMed
21. Gwinnett AJ, Yu S. Shear bond strength, microleakage and gap formation with fourth generation dentin bonding agents. Am J Dent. 1994;7: 312-314.
22. Kanca J III. Resin bonding to wet substrate. I. Bonding to dentin. Quintessence Int. 1991;23: 39-41.
23. Crumpler DC, Bayne SC, Sockwell S, Brunson D, Roberson TM. Bonding to resurfaced posterior composites. Dent Mater. 1989;5: 417-424.Article PubMed
24. Pounder B, Gregory WA, Powers JM. Bond strenths of repaired composite resins. Oper Dent. 1987;12: 127-131.PubMed
25. Eli I, Liberman R, Levi N, Haspel Y. Bond strength of joined posterior light-cured composites: comparison of surface treatments. J Prosthet Dent. 1988;60: 185-189.Article PubMed
26. Eliades GC, Caputo AA. The strength of layering technique in visible light-cured composites. J Prosthet Dent. 1989;61: 31-38.Article PubMed
27. Azarbal P, Boyer DB, Chan KC. The effect of bonding agents on the interfacial bond strength of repaired composites. Dent Mater. 1986;2: 153-155.Article PubMed
28. Saunders WP. Effect of fatigue upon the interfacial bond strength of repaired composite resins. J Dent. 1990;18: 158-162.Article PubMed
29. Bouschlicher MR, Reinhardt JW, Vargas MA. Surface treatment techniques for resin composite repair. Am J Dent. 1997;10: 279-283.PubMed
30. Matsumura H, Hisamatsu N, Atsuta M. Effect of unfilled resins and a silane primer on bonding between layers of a light-activated composite resin veneering material. J Prosthet Dent. 1995;73: 386-391.Article PubMed
31. Kula K, Nelson S, Thompson V. In vitro effect of APF gel on three composite resins. J Dent Res. 1983;62: 846-849.Article PubMed PDF
32. Kula K, Nelson S, Kula T, Thompson V. In vitro effect of acidulated phosphate fluoride gel on the surface of composites with different filler particles. J Prosthet Dent. 1986;56: 161-169.Article PubMed
33. Aschheim KW, Dale BG. Composite resin: indirect technique restorations. Esthetic Dentistry. 2001;2nd ed. St. Louis: Mosby Co.; 97-111.

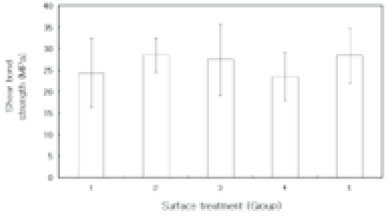

Fig. 1

The shear bond strength of Charism® specimens aged for 5 min.

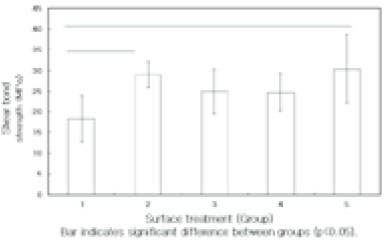

Fig. 2

The shear bond strength of Charisma® specimens aged for 1 hr.

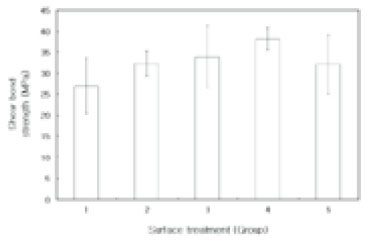

Fig. 3

The shear bond strength of Charisma® specimens aged for 24 hrs.

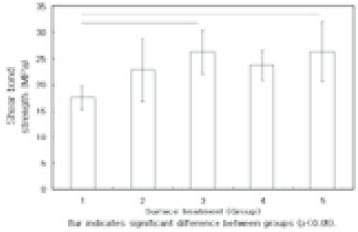

Fig. 4

The shear bond strength of Charisma® specimens aged for 1 wk.

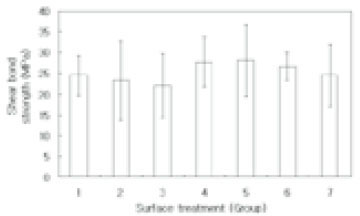

Fig. 5

The shear bond strength of Artglass® specimens.

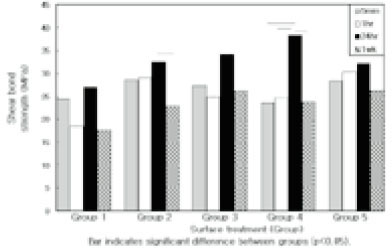

Fig. 6

Comparison of the shear bond strength of Charisma® specimens.

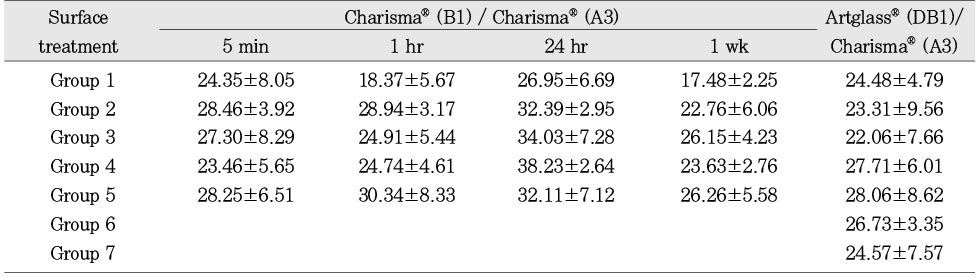

Table 1

The shear bond strength (MPa) of composite resin. (mean±S.D., n=5)

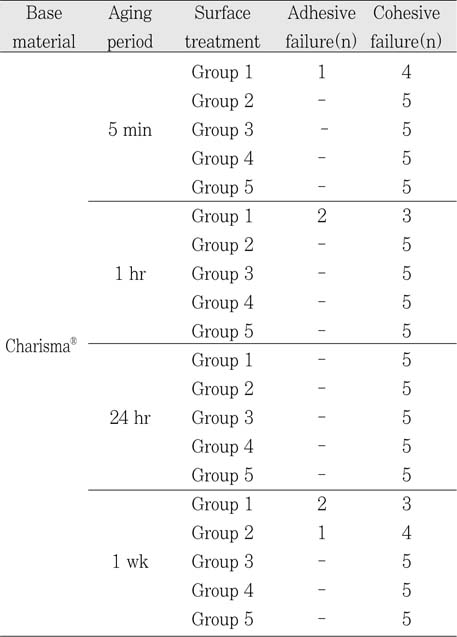

Table 2-1

Failure mode of Charisma® specimens.

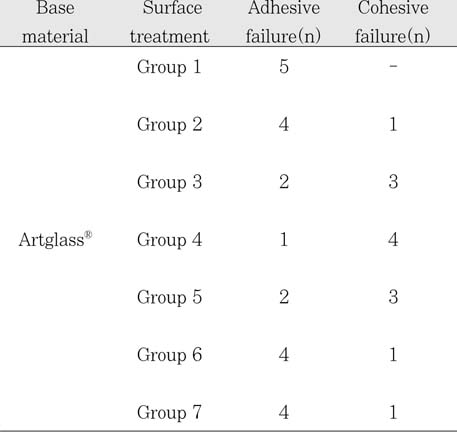

Table 2-2

Failure mode of Artglass® specimens.

Tables & Figures

REFERENCES

Citations

Citations to this article as recorded by

ePub Link

Cite

CITE: export Copy Download Format; Close

Download Citation

Download a citation file in RIS format that can be imported by all major citation management software, including EndNote, ProCite, RefWorks, and Reference Manager.

Format:
