Effect of the difference in spectral outputs of the single and dual-peak LEDs on the microhardness and the color stability of resin composites

Hye-Jung Park; Sung-Ae Son; Bock Hur; Hyeon-Cheol Kim; Yong-Hoon Kwon; Jeong-Kil Park

doi:10.5395/JKACD.2011.36.2.108

Articles

Page Path: HOME > Restor Dent Endod > Volume 36(2); 2011 > Article

Basic Research Effect of the difference in spectral outputs of the single and dual-peak LEDs on the microhardness and the color stability of resin composites: Hye-Jung Park, DDS¹, Sung-Ae Son, DDS, MSD¹, Bock Hur, DDS, PhD¹, Hyeon-Cheol Kim, DDS, PhD¹, Yong-Hoon Kwon, PhD², Jeong-Kil Park, DDS, PhD¹; Journal of Korean Academy of Conservative Dentistry 2011;36(2):108-113.
DOI: https://doi.org/10.5395/JKACD.2011.36.2.108
Published online: March 31, 2011

¹Department of Conservative Dentistry, Pusan National University School of Dentistry, Yangsan, Korea.

²Department of Dental Materials, Pusan National University School of Dentistry and Medical Research Institute, Yangsan, Korea.

Correspondence to Jeong-Kil Park, DDS, PhD. Associate professor, Department of Conservative Dentistry, Pusan National University School of Dentistry, 3-3 Beomeo-ri, Mulgeum, Yangsan, Korea 626-810. TEL, +82-55-360-5210; FAX, +82-55-360-5214; jeongkil@pusan.ac.kr

• Received: September 21, 2010 • Revised: October 20, 2010 • Accepted: November 1, 2010

16 Views
0 Download

prev next

Full Article

Download PDF

Abstract
INTRODUCTION
MATERIALS AND METHODS
RESULTS
DISCUSSION
ARTICLE INFORMATION
REFERENCES

Abstract

Objectives
To determine the effect of the spectral output of single and dual-peak light emitting diode (LED) curing lights on the microhardness and color stability of commercial resin composites formulated with camphorquinone and alternative photoinitiators in combination.
Materials and Methods
Three light-polymerized resin composites (Z100 (3M ESPE), Tetric Ceram (Ivoclar Vivadent) and Aelite LS Posterior (Bisco)) with different photoinitiator systems were used. The resin composites were packed into a Teflon mold (8 mm diameter and 2 mm thickness) on a cover glass. After packing the composites, they were light cured with single-peak and dual-peak LEDs. The Knoop microhardness (KHN) and color difference (ΔE) for 30 days were measured. The data was analyzed statistically using a student's t-test (p < 0.05).
Results
All resin composites showed improved microhardness when a third-generation dual-peak LED light was used. The color stability was also higher for all resin composites with dual-peak LEDs. However, there was a significant difference only for Aelite LS Posterior.
Conclusions
The dual-peak LEDs have a beneficial effect on the microhardness and color stability of resin composites formulated with a combination of camphorquinone and alternative photoinitiators.
Keywords: Alternative photoinitiators; Camphorquinone; Color stability; Dual-peak light emitting diode (LED); Microhardness; Spectral outputs

INTRODUCTION

The degree of resin polymerization achieved during a restoration placement is a major factor in the success and predictability of resin composite restorations. The polymerization of resin composite depends on many intrinsic conditions, such as the type of the photoinitiator, composition of filler particles, shade and degree of translucency of the materials. In addition, the effective spectral output and irradiance of the light curing unit are needed for adequate polymerization.1,2

Camphorquinone (CQ) has been largely used as a photoinitiator since the introduction of visible-light activated resin composites. However, alternative photoinitiators have been studied because the intense yellow hue of CQ can affect resin esthetics.3-5 Compounds derived from acylphosphine oxides (MAPO-Lucirin TPO and BAPO-Irgacure 819) and phenyl-propanedione (PPD) have been suggested as photoinitiators for applications in adhesives and resin composites to reduce the photoyellowing effect.3,4,6

Unlike the conventional composite resins (which contain CQ only), the absorption peak of newly developed composite resins (which contain an alternative photoinitiator) is in the near Ultraviolet (UV) region and extends slightly into the visible wavelengths (< 420 nm).3 However, to date, the conventional light emitting diode (LED) lights currently used have been unsuitable for curing these alternative initiators due to the narrow emission spectrum. These LED lights have a peak wavelength in the 470 nm range, which is ideal for curing traditional resin composite using CQ as an activator. Therefore, the degree of conversion of these resins will be inadequate if a single peak LED light is used,7 which may result in decreased physical properties,8 color stability9 and biocompatibility.8,10 The degree of monomer conversion of resin composites can be measured by indirect methods, such as surface hardness test11 and intrinsic color shifting test.12,13

Dual peak and polywave third generation LED curing lights have been introduced to overcome this problem. These LEDs deliver light in both the 450-470 nm and 395-410 nm ranges. The manufacturers claim that the new polywave LED is suitable for different photoinitiators and can be used with any dental materials. However, few studies have evaluated the performance of single-and dual-peak LEDs on the market with commercial resin composites. Furthermore, previous reports14-16 showed that resin composites that use alternative photoinitiators were inadequately polymerized using single-peak LED curing lights.

Therefore, the present study examined the effect of the difference in spectral output of single-and dual-peak LEDs on the microhardness and color stability of commercial resin composites formulated with CQ and alternative photoinitiators (e.g., PPD and lucirin TPO) in combination.

MATERIALS AND METHODS

In this study, three light-polymerized resin composites with different photoinitiator systems were used. Z100 (3M ESPE, St Paul, MN, USA) use only CQ as the photoinitiator, whereas Tetric Ceram (Ivoclar Vivadent, Schaan, Liechtenstein) and Aelite LS Posterior (Bisco, Schaumburg, IL, USA) appear to use two photoinitiator systems, most likely CQ and an alternative initiator (e.g., PPD or lucirin TPO).17 All resin composites were packed into a Teflon mold (8 mm diameter and 2 mm thickness) on a cover glass. After packing the composites, they were light cured with the single-peak LEDs (Bluephase, Ivoclar Vivadent, Amherst, NY, USA) and dual-peak LEDs (Bluephase G2, Ivoclar Vivadent) to an equivalent energy density (Table 1).

1. Knoop microhardness (KHN) measurement

After light curing, the specimens (n = 5) were stored in the dark at 37℃ with 100% relative humidity for 24 hours. The Knoop microhardness was measured at the top and bottom composite surfaces using a Knoop hardness Tester (MMT-7, MATSUZAWA, Tokyo, Japan). The Knoop diamond indenter applied a 25 g load for 15 seconds at three points, all within 1 mm of the center of the composites. For each surface, a total of 15 hardness recordings were made and the mean was calculated.

2. Color difference (ΔE) measurement

The specimens (n = 5) were stored in the dark at room temperature for 24 hours. The measurements were made according to CIE L^*a^*b^* color scale relative to the CIE standard illuminant D65 over a white background on a reflection spectrophotometer (CM-3600d, Minolta, Tokyo, Japan) with specular component excluded (SCE) geometry. The illuminating and viewing configuration was CIE diffuse/8° geometry.

After the measurements, the samples were immersed for 30 days in a water bath at 60℃. After immersion, the color measurements were performed again under the same conditions using the same procedures.

By applying the formula, ΔE =[(ΔL^*)²+(Δa^*)² +(Δb^*)²]^1/2, it was possible to calculate ΔE and compare the values before and after the aging treatment.

3. Statistical analysis

The student's t-test was used to analyze the differences in the KHN values and ΔE values achieved with the single- and dual-peak LEDs for all resin composites (p = 0.05).

RESULTS

Tables 2 and 3 show the means and standard deviations of the KHNs at the top and bottom surfaces of the resin composites with the single-and dual-peak LEDs. The student's t-test indicated significant differences in mean hardness achieved with the single- and dual-peak LEDs for all resin composites tested (p < 0.05). The microhardness was higher for all materials cured with the dual-peak LED. The difference was greatest for Aelite LS Posterior, followed by Tetric Ceram and Z100. The microhardness was lower at the bottom than at the top for all composites tested, particularly for Aelite LS Posterior.

Table 4 lists the difference in the color after 1 month of water aging. All resin composite showed a certain degree of discoloration due to aging in water. The color stability between products was different. The student's t-test showed a significantly different color change between the single- and dual-peak LEDs for Aelite LS Posterior (p < 0.05). However, there was no significant difference between the LEDs for Z100 and Tetric Ceram.

DISCUSSION

To produce a sufficient amount of free radicals for adequate polymerization, resin composites must receive sufficient total energy in the appropriate wavelength range.18 The polymerization process may be adversely affected if the LCU does not emit enough light at the wavelengths absorbed by the photoinitiators,17 which may result in reduced hardness,8 decreased biocompatibility8,10 and decreased color stability.9

Most traditional LED curing lights have a single peak wavelength in the 470 nm range, which is ideal for curing resin composites using CQ as a photoinitiator. However, some commercial composites employ alternative photoinitiators, which respond to wavelengths < 420 nm. Therefore, these resin composites might have incompatibility problems with single-peak LED curing light.15,16 Accordingly, it is important to determine the effect of the difference in spectral output of the LEDs on the polymerization of resin composites initiated with CQ and alternative photoinitiators in combination.

In this study, all resin composites showed improved microhardness when a third-generation dual peak LED light was used compared to those cured with a single-peak LED cuing light. This may be because the dual-peak LED curing lights deliver light in both the 450-470 nm and the 395-410 nm ranges. With the additional output in the 395-410 nm range, the dual-peak LED curing lights polymerize resins to a greater extent than the single-peak LED curing lights at similar irradiance.15,16 The increase in microhardness with the dual-peak LEDs using Tetric Ceram and Aelite LS Posterior, which appear to employ an alternative photoinitiator, was lower at the bottom surface than at the top surface. This suggests that the shorter wavelengths needed to activate the alternative photoinitiator in these resins did not reach a depth of 2 mm. This is probably due to Rayleigh scattering of light. Shorter wavelengths are scattered much more than longer wavelengths and may not reach the bottom of the restoration.19 The intrinsic color change of resin composites is resulted from the alteration of resin matrix as well as the interface between the matrix and fillers.20 In addition the degree of conversion was reported to correlate with the discoloration.9

Three different intervals were used to distinguish the color differences because the ability of the human eye to appreciate the differences in color differs from individual to individual. ΔE values < 1 were regarded as undetectable by the human eye. Values of 1 < ΔE < 3.3 were considered detectable by skilled operators but clinically acceptable, whereas ΔE values > 3.3 were considered detectable by non-skilled persons and were clinically unacceptable for that reason.21

All resin composites tested in this study were within this limit when ΔE < 3.3 was used as the clinically acceptable standard. In this study, the color stability was higher for all resin composites cured with the dual-peak LEDs. However, only Aelite LS Posterior showed a significant difference. This can be explained by the greater polymerization of the resin composites with the dual-peak LEDs.

This study had some limitations. The type and amount of alternative photoinitiators included in resin composites tested were not known precisely because manufacturers considered it to be commercially sensitive. Therefore, further studies will be needed to determine the performance of single-and dual-peak LEDs on experimental resins formulated with different concentrations and ratios of CQ and alternative photoinitiators.

Under the conditions of the current study, it can be concluded that the dual-peak LEDs produce significantly beneficial effect on the microhardness and color stability of resin composites formulated with CQ and alternative photoinitiators in combination.

ARTICLE INFORMATION

This work was supported for two years by Pusan National University Research Grant.

REFERENCES

1. Fan PL, Schumacher RM, Azzolin K, Geary R, Eichmiller FC. Curing-light intensity and depth of cure of resin-based composites tested according to international standards. J Am Dent Assoc. 2002;133: 429-434.PubMed
2. Yap AU, Soh MS, Han TT, Siow KS. Influence of curing lights and modes on cross-link density of dental composites. Oper Dent. 2004;29: 410-415.PubMed
3. Park YJ, Chae KH, Rawls HR. Development of a new photoinitiation system for dental light-cure composite resins. Dent Mater. 1999;15: 120-127.Article PubMed
4. Tak HS, Park SJ. Influences of camphoroquinone on the properties of composites. J Korean Acad Conserv Dent. 2001;26: 41-50.
5. Neumann MG, Schmitt CC, Ferreira GC, Corrêa IC. The initiating radical yields and the efficiency of polymerization for various dental photoinitiators excited by different light curing units. Dent Mater. 2006;22: 576-584.PubMed
6. Burtscher P, Rheinberger V. Efficiency of various light initiators after curing with different light-curing units. J Dent Res. 2003;Abstract #0042.
7. Neumann MG, Miranda WG Jr, Schmitt CC, Rueggeberg FA, Correa IC. Molar extinction coefficients and the photon absorption efficiency of dental photoinitiators and light curing units. J Dent. 2005;33: 525-532.Article PubMed
8. de Souza Costa CA, Hebling J, Hanks CT. Effects of light-curing time on the cytotoxicity of a restorative resin composite applied to an immortalized odontoblast-cell line. Oper Dent. 2003;28: 365-370.PubMed
9. Imazato S, Tarumi H, Kobayashi K, Hiraguri H, Oda K, Tsuchitani Y. Relationship between the degree of conversion and internal discoloration of light-activated composite. Dent Mater J. 1995;14: 23-30.PubMed
10. Roh BD, Park SH, Lee CS. An experimental study of the degree of conversion and cytotoxicity of dual cure resin cements. J Korean Acad Conserv Dent. 1995;20: 33-53.
11. Ferracane JL. Correlation between hardness and degree of conversion during the setting reaction of unfilled dental restorative resins. Dent Mater. 1985;1: 11-14.Article PubMed
12. Asmussen E. An accelerated test for color stability of restorative resins. Acta Odontol Scand. 1981;39: 329-332.Article
13. Cho YG, Kim MC. Color changes in composites according to various light curing sources. J Korean Acad Conserv Dent. 2002;27: 87-94.
14. Uhl A, Sigusch BW, Jandt KD. Second generation LEDs for the polymerization of oral biomaterials. Dent Mater. 2004;20: 80-87.Article PubMed
15. Price RB, Felix CA, Andreou P. Third-generation vs a second-generation LED curing light: effect on Knoop microhardness. Compend Contin Educ Dent. 2006;27: 490-496.PubMed
16. Price RB, Felix CA, Andreou P. Evaluation of a dual peak third generation LED curing light. Compend Contin Educ Dent. 2005;26: 331-332.PubMed
17. Schneider LF, Pfeifer CS, Consani S, Prahl S, Ferracane JL. Influence of photoinitiator type on the rate of polymerization, degree of conversion, hardness and yellowing of dental resin composites. Dent Mater. 2008;24: 1169-1177.PubMed
18. Nomoto R. Effect of light wavelength on polymerization of light-cured resins. Dent Mater J. 1997;16: 60-73.Article PubMed
19. Arikawa H, Fujii K, Kanie T, Inoue K. Light transmittance characteristics of light-cured composite resins. Dent Mater. 1998;14: 405-411.Article PubMed
20. Oysaed H, Ruyter IE. Water sorption and filler characteristic of composites for use in posterior teeth. J Dent Res. 1986;65: 1315-1318.Article PubMed PDF
21. Inokoshi S, Burrow MF, Kataumi M, Yamada T, Takatsu T. Opacity and color changes of tooth-colored restorative materials. Oper Dent. 1996;21: 73-80.PubMed

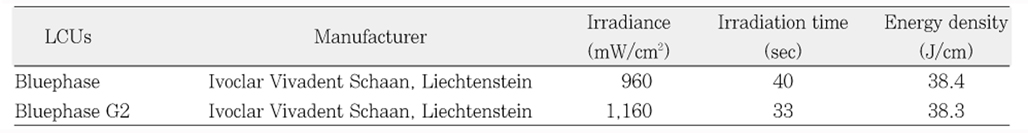

Table 1

The light curing units (LCUs) used in this study

LCUs, light curing units.

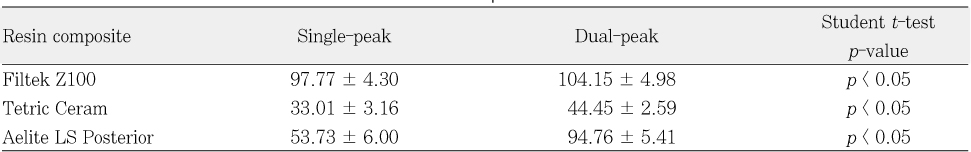

Table 2

Means ± SDs of KHNs for each material at the top surface

SD, standard deviation; KHN, Knoop hardness number.

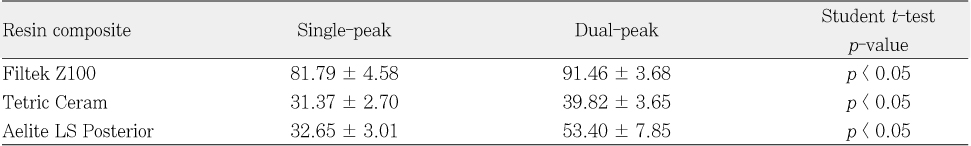

Table 3

Means ± SDs of KHNs for each material at the bottom surface

SD, standard deviation; KHN, Knoop hardness number.

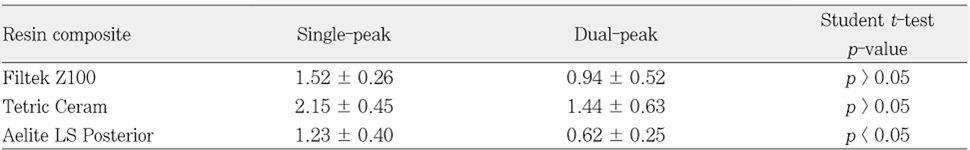

Table 4

Difference in color (ΔE) after 1 month of water aging
