The Effect of canal obturation according to the depth of the System B Plugger tip in the Type IV canal

Hee-Won Choi; Soo-Mee Kim; Ho-Keel Hwang

doi:10.5395/JKACD.2008.33.6.518

Articles

Page Path: HOME > Restor Dent Endod > Volume 33(6); 2008 > Article

Original Article The Effect of canal obturation according to the depth of the System B Plugger tip in the Type IV canal: Hee-Won Choi¹, Soo-Mee Kim², Ho-Keel Hwang¹; 2008;33(6):-525.
DOI: https://doi.org/10.5395/JKACD.2008.33.6.518
Published online: November 30, 2008

¹Department of Conservative Dentistry, College of Dentistry, Chosun University, Korea.

²Department of Dentistry, College of Medicine, Seonam University, Korea.

Corresponding Author: Ho-Keel Hwang. Department of Conservative Dentistry, College of Dentistry, Chosun University, 421 Seosuk-dong, Dong-gu, Gwangju, 501-825, Korea. Tel: 82-62-220-3840, Fax: 82-62-223-9064, rootcanal@hanmail.net

• Received: August 8, 2008 • Revised: September 1, 2008 • Accepted: September 4, 2008

116 Views
0 Download

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

The purpose of this study was to evaluate the effect of the apical sealing according to the depth of the System B Plugger tip when root canal was filled with gutta-percha and sealer by Continuous Wave of Condensation technique in the Type IV canal.

50 simulated resin blocks with J-shaped curvature canals were instrumented by ProTaper (Dentsply Maillefer, Ballagiues, Switzerland) Ni-Ti files using the crown-down technique. Type IV canals were made using a broken ProTaper F3 Ni-Ti file for making a ledge at 3mm short from the working length. And ProTaper F1 Ni-Ti file was used for perforating resin block.

The prepared Type IV canals were randomly divided into three experimental groups of 15 each according to the depth of System B Plugger tip.

All of experimental groups were obturated with Continuous Wave of Condensation technique. The length of gutta-percha and sealer in lingual of the Type IV canals was measured with a measuring digital calliper under magnifying glass (× 2.3).
The results are as follows :
1. In control group, there was no gutta-percha and sealer in lingual canal.
2. 3 mm group showed relatively more gutta-percha than 5mm or 7 mm group (p<0.05).
3. 7 mm group did not showed gutta-percha and relatively more void were observed than 3mm or 5 mm group. (p<0.05)
In conclusion, within the limits of the results of this experiment, the 3 mm depth of System B Plugger tip was acceptable for obturating the Type IV canal.
Keywords: Depth of the System B Plugger tip; Type IV canal; Obturation; Continuous Wave of Condensation technique

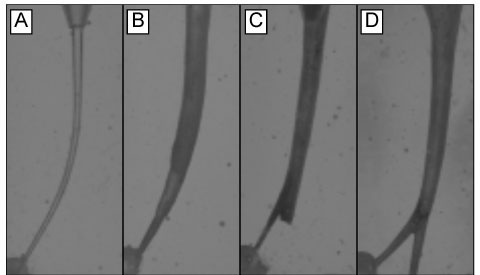

Figure 1

Fabrication of Type IV canal

A. Original canal, B. Enlarged Canal, C. Legde fabrication, D. Type IV canal

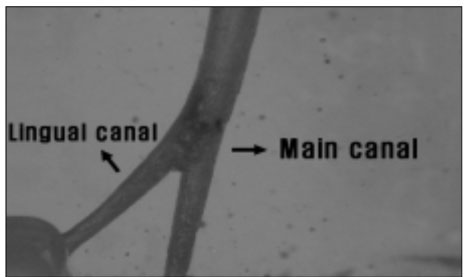

Figure 2

Main canal and lingual canal of Type IV canal

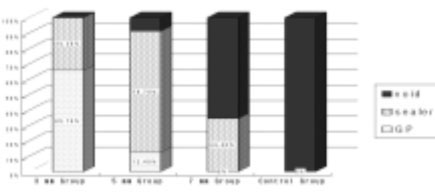

Figure 3

Distribution of gutta-percha, sealer and void in lingual canal

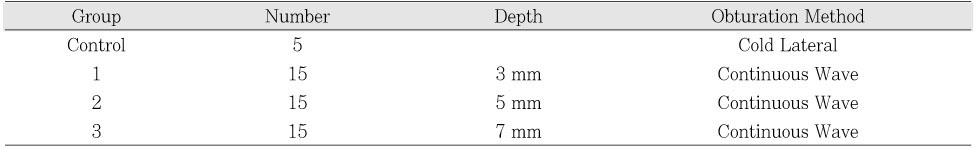

Table 1

Group classification according to depth of System B Plugger tip from the root apex

Table 2

Mean ± SD (mm) of GP cone + Sealer length in each group
