- Original Article Comparison of apical sealing ability of continuous wave of obturation technique using EndoTwinn and System B
- Hyun-Ju Shin, Jeong-Kil Park, Bock Hur, Hyeon-Cheol Kim
-
2007;32(6):-529.
DOI: https://doi.org/10.5395/JKACD.2007.32.6.522
Published online: November 30, 2007
Department of Conservative Dentistry, School of Dentistry, Pusan National University, Busan, Korea. JFIF d d Ducky d qhttp://ns.adobe.com/xap/1.0/ |er˭|I|-fGK.rΛp8XV1%K6mvG+tc+qE &ǸC_Nm:l=_/m5^[dߌڇ.c<%:)tQ$Ow~-aY;UJ >=F)2[nk؆?훐 M=l6[4(O.]2#-H^n#->&mp5~Fӛ+|| S,xag% qkEUzUgæBhߕP(7]kFnq?֖Cpru Z6*rEڊtS|*tI*E}7R<,nUU֫^I7Q*mSly%rdȓd8hE<9oHhMfNSRj[i7D[Rj݊+kდq{"$$H?p \̅S?㭻;t~ R߁ )^/>Qj`yt[w ԛ;² ~+ ߔ_ YW~|o] ?x^ᯛ `ʼn;g)T@vWn]>&4l p+$D̢1l|ȨF%-} .9[}w~
ԠLM9hСablfe&QoW !s ?wjLK?s7yO>(=C~_nyǜu? v 3vyo oI@qV-jeES^[9WoSܝh"l2C1a͔CiJ@3:Pճw= /7ovuk+\V;lDgն <[A+r X~d;m!_s8ݖ;;.0llUC+?i#_crʙ1~C.\q u l8Hܶ2m`ܻM3Tov|Bs rɵ"oLS-
DКw=Tv@f '6|YlD͓Y%-#Ѯo%:&!3o%\J<02;K87>^vgƓ# ;ݝmz^Y6=PS39U%~
&f#
}o!muH; ʲŇ˷yvP+&.7e[3'vR4Yj̗IZ`e˽3o[WU{
m[sUbۋZǾۆl6~9'V*.\S2<Sd*zY[aŶ`]C$n.v^Ʌ
dng>ەZ,Mmϑ :n6nϦezW qUJ4! ۇ4R! =>>F n|Q[{pRO 17ƕ~._I ''00k=b՛o}Osðc2'o\3}ݭQ^ 2 . R1yKȣtAݿ-u ܾw!`?1Whn|gzU o[ECWwjUIן)^h#1ɭ!/Z
np;o;ΗŻkXs."6E`Z1
עӐ9Kl8qd q} 2Stt;#j>;խabONŗ=fwP1j)l6J̶|gV 2`y/0E˛6+ԫ1?
6}KW c\KoKͨ2ۅFws*TԞLיuDx .kCzWXhy۶gLu|%TnupǺl-S* P RaLnT+c+*xl.v!.U=|; !_L̎뱚U=4hm:ٯ"y)$:>%(n}X'p[ȴ
^˒4kƓmzDx
\
'Nq amP7nyN݅=
- Corresponding Author: Hyeon-Cheol Kim. Department of Conservative Dentistry, School of Dentistry, Pusan National University, 10, 1ga, Ami-Dong, Seo-Gu, Busan, 602-739, Korea. Tel: 82-51-240-7454, Fax: 82-51-528-8105, golddent@pusan.ac.kr
• Received: August 14, 2007 • Revised: September 30, 2007 • Accepted: October 10, 2007
Copyright © 2007 Korean Academy of Conservative Dentistry
- 770 Views
- 1 Download
Abstract
-
The purpose of this study was to compare the apical leakage of the root canal filled with the System B and the EndoTwinn (the combined application of heat and ultrasonic vibration).Sixty extracted premolars with straight root were cleaned and shaped to size 35. Group SB was obturated using System B and Group ET was filled with EndoTwinn. A size 35 of 0.06 tapered gutta-percha and Adseal were used and the plugger which could be introduced to 4 mm short of working length was selected in the obturation procedure. As the positive control, Group PC was not filled. In Group SB, ET and PC, all external surfaces of each tooth were coated with nail varnish leaving only 1 mm area around the apical foramen. In the negative control of Group NSB and Group NET, all of external tooth surface including apical foramen was coated with the nail varnish. The specimens were immersed in methylene blue dye solution for 2 days. Then the specimens were sectioned at each 1 mm from apex to 5 mm level. The final score of one specimen was given by summing up of the points at all levels.The dye leakage of Group ET was significantly less than that observed in Group SB (p < 0.05). And the frequency of gutta-percha pulling out from root canal when the plugger was removed was more often with the System B than with EndoTwinn but there was no significant difference.
I. INTRODUCTION
The role of obturation in root canal treatment, although considered secondary to debridement and disinfection, still remains a critical stage for a successful outcome1). The aim of obturation is to seal the periradicular tissues from the residual microorganisms left in the root canal system after chemomechanical debridement.
Obturation of the root canal space has been performed using various techniques. The most commonly used and tested technique is cold lateral condensation. But cold lateral condensation offers the disadvantage of lacking of homogeneity and relying on spreader to fill the voids between the individual cones2,3).
The technique of vertically compacting warm gutta-percha in the root canal had been found superior adaptation of gutta-percha to that provided by the cold lateral compaction4,5).
The System B heat source (Analytic Technology, Redmond, WA, USA) was developed for use with a modified vertical condensation technique called the 'continuous wave of condensation', which was designed to simplify the vertical condensation technique6). It is claimed by the manufacturer that the System B heat source allows sufficient heat for the apical gutta-percha to be softened and adapted to the irregularities of the intracanal anatomy. However, some studies have found poor adaptation of gutta-percha to the canal wall in the important apical part of the canal7,8). And clinically, it sometimes happens for the apical gutta-percha to be pulled out from the canal when removing the plugger from the canal.
Some devices used in continuous wave technique had been introduced into the market. In addition to System B and Obtura II (Obtura Corporation, Fenton, MO, USA) which are the best known devices for warm gutta-percha filling techniques with vertical condensation, Duo-Alpha (B&L Biotech, Gunpo, Korea), Duo-Beta (B&L Biotech, Gunpo, Korea), E & Q Plus (Meta Biomed, Chungju, Korea) and Elements Obturation Unit (Sybron Endo, Orange, CA, USA) are used in clinics. The EndoTwinn (EndoTwinn, Amsterdam, Netherlands) which can apply both of heat and ultrasonic vibration simultaneously has introduced recently.
In endodontics, ultrasonic technique is used to remove post or broken instruments, to expose any missed or hidden canals and to irrigate the debris. Within the field of canal obturation, the ultrasonically energized spreader as an aid for lateral condensation of gutta-percha cones had been introduced to the market, but it is not used currently9).
There were few reports which compare the apical leakage of the root canal filled with the EndoTwinn and former equipments. The purpose of this study was to compare the apical sealing ability and the frequency of gutta-percha pulling out between the System B and the EndoTwinn unit used in the continuous wave of obturation technique.
II. MATERIALS AND METHODS
Sixty extracted human premolars with mature apex and straight root were used in this study. Soft tissue tags, attached bone, and calculus were removed and the teeth were stored in a 2.5% sodium hypochlorite. After preparing a conventional access cavity preparation, a K-type file of size 10 was inserted into the canal until it was just visible at the apical foramen. Working length was determined by subtracting 0.5 mm from this length. The root canal of each tooth was cleaned and shaped to apical size 35 using rotary 0.06 taper Ni-Ti files (ProFile and ProTaper; Dentsply Maillefer, Ballaigues, Switzerland) with 16 : 1 reduction handpiece powered by X-Smart (Dentsply Maillefer, Ballaigues, Switzerland) at 300 rpm following the manufacture's recommendation in the presence of RC-Prep (Premier Dental, Plymouth Meeting, PA, USA).
The root canals were irrigated with 1 ml of 2.5% sodium hypochlorite as irrigant between instrumentations and a K-type file of size 15 was used to maintain the apical patency. Each canal was then rinsed with 1 ml of 17% EDTA solution (MD-cleanser; Meta Biomed, Chungju, Korea) for 3 min to remove smear layer, followed by flushing again with 2 ml of sodium hypochlorite. The root canals were dried with paper point.
The prepared specimens were randomly divided into five groups. Group SB (n = 20) and Group NSB (n = 5) were obturated with System B. Group ET (n = 20) and Group NET (n = 5) were obturated with EndoTwinn. Group NSB and Group NET were defined as negative control groups and the Group PC (n = 10) was defined as positive control group which was not filled.
A size 35/.06 tapered gutta-percha cones(Diadent, Chungju, Korea) were trimmed and fitted to obtain tug-back at the 0.5 mm shorter than working length. The heat source plugger was selected which introduced to the distance 4 mm short of working length. The Adseal (Meta bio-med, Chungju, Korea) was used as a sealer to be introduced into designated canals with a lightly coated master cone. Then the coronal end of the cone was removed by activating the heat source plugger at the orifice. The tip of heat source plugger was inserted to the predetermined length using steady pressure. Once at the proper depth, the heat was removed and apical pressure was maintained for 10s. A short burst of heat was used to separate the tip from the apical guttapercha plug and the tip was removed. The remaining apical gutta-percha was compacted with hand plugger (S-Kondenser; Obtura Corporation, Spartan, USA). The needle of the Obtura II was placed immediately over the apical mass of gutta-percha and the canal was backfilled. The filled gutta-percha was compacted again for 20s using the hand plugger.
During the filling procedure, the frequency of pulling-out of the gutta-percha was counted.
All procedures had been practiced extensively beforehand and all specimens were prepared and filled by a 2-year endodontic resident. The filling procedures were done by turns to exclude the influence of experience between System B and EndoTwinn.
After canals were filled with gutta-percha using tested units, the access cavities were sealed with light-cure glass-ionomer cement (Fuji II LC; GC, Tokyo, Japan). The specimens were stored in 100% humidity at 37℃ for 48hr for sealer setting. In Groups SB, ET and PC, the external surface of all teeth were coated with multi-layer of nail varnish leaving only 1 mm area around the apical foramen2). In negative control group (Group NSB and Group NET), all external surface including apical foramen was coated with nail varnish. Each specimen was immersed in a 2% methylene blue dye solution for 2 days10).
Then the specimens were sectioned at every 1 mm from apex to 5 mm level with diamond disk (Horico, Berlin, Germany) using the low speed handpiece under water cooling. Each sectioned surface was photographed using a digital camera (EOS350D; CANON, Japan) attached to the operative microscope (OPMI pico; Carl Zeiss, Oberkochen, Germany) at 12.5 × 2.5 fold magnification. The captured images were investigated by two independent, calibrated examiners using a five-point scoring system (Table 1, Figure 1). At each level, sectioned root surface was divided into quadrant and if there was dye penetration in each quadrant, 0.25 point was given. The final score of each specimen was given by summing up the point at each level from 1 mm to 5 mm of apical root.
Student unpaired t-test was done to determine statistical difference between two tested groups in the dye penetration. Chi-squared test was used to see if there was an overall difference in the frequency of the gutta-percha pulling out. All the statistical tests were done by SPSS version 12.0 (SPSS Inc., Chicago, IL, USA) at 5% significance level.
III. RESULT
The samples of each point were represented at Figure 2.
The dye leakage of Group ET was significantly less than that of Group SB (p < 0.05, Table 2). Group PC (positive control group) showed whole dye penetration into the root canals and dentinal tubules to be scored 5 point. Group NSB and NET (negative control groups) showed no dye penetration into the canal space.
The frequency of gutta-percha pulled out from the root canal is showed in Table 3. In Group SB and Group NSB, gutta-percha was pulled out in 4 among 25 teeth. In Group ET and Group NET, gutta-percha was pulled out in only one tooth. However, the chi-squared test indicated that frequency of pulling out of the gutta-percha is not significantly different between System B and EndoTwinn.
IV. DISCUSSION
Apical periodontitis is caused by intracanal bacteria11,12). Prevention or healing of apical periodontitis involves a combination of disinfection of the root canal space through chemomechanical means13,14) and sealing both of the root canal and access cavity with the materials that will prevent reinfection15,16). Even if voids were filled with sealer, it could be potentially broken down if it is exposed to oral or tissue fluids3), and provide a path for bacteria to reach the periapical area. Therefore three-dimensional filling of the root canal system is the aim of root canal treatment with the goal to maximize the amount of solid core material and minimize the amount of sealer17).
Although the continuous wave of obturation technique has been known to show thermal irritability to periradicular tissue, simultaneously, it has been found superior to some other canal filling techniques in terms of less apical leakage and procedural time4,5,18,19). However Silver et al.7) reported the distribution of gutta-percha using the continuous wave of obturation technique did not achieve 90%. Similarly, Wu et al.17) found that the apical gutta-percha ratio was low in some specimens and the sealer was too thick. Kececi et al.20) reported that insufficient softening of the gutta-percha by heat was thought to be responsible for low gutta-percha adaptation.
On the other hand, the use of ultrasonically energized spreader as an aid for lateral condensation technique has been proposed. In a few studies, the ultrasonically energized spreader that vibrate linearly and produce heat could improve the traditional lateral condensation technique by thermo-plasticizing the gutta-percha to achieve a more homogeneous mass with decreased number and size of voids, producing a more complete three-dimensional obturation of the root canal system21,22).
The EndoTwinn which is a new device recently introduced has the same handling with System B and additionally has special ability of ultrasonic vibration of 100 Hz.
Under the condition of this study, although the data had big standard deviations, the EndoTwinn showed lesser apical leakage than the System B. The reduced apical microleakage by EndoTwinn probably is related to the ultrasonic energy to soften the gutta-percha thermo-mechanically and simultaneously the ultrasonic vibration might be expected to help the compaction of softened gutta-percha to the canal walls.
Some authors have shown that the penetration depth of the plugger is significantly related to the quality of the vertically compacted filling4,23,24). Because deeper penetration of the heated plugger in the root canal allows better heating of the gutta-percha, which facilitates closer adaptation of gutta-percha to the root canal walls and their irregularities. To subtract the factor of depth, the plugger which expended 4 mm shorter than the working length was selected. In addition to the plugger penetration depth, the set temperature of a heat source may also be related to the obturation. The EndoTwinn heat source was fixed at 200℃. So in the present study, the temperature of system B was set at 200℃. The condition of heat application time in each tooth was same. But there was still insufficient information available on the effect of thermal conductivity of plugger and discrepancy between the set temperature and the real temperature at the tip of a heated plugger.
The EndoTwinn allowed definite severance of the coronal surplus of gutta-percha from apical mass, and the plugger was withdrawn with the entire coronal gutta-percha surplus. According to the manufacturer, the tip size of four pluggers in EndoTwinn system is 0.5 mm. Although the pluggers fitted apically were selected, the pluggers in EndoTwinn system could move more actively with ultrasonic vibration than System B to severe the gutta-percha.
The use of plugger activated ultrasonically as an aid for lateral condensation of gutta-percha cones did not appear to predispose for overfilling9). However, a few previous investigations have shown that warm gutta-percha techniques frequently lead to extrusion of the filling material through the apical foramen25-27). Because the EndoTwinn is used as warm vertical technique, there is some possibility of extruding of gutta-percha. Adequate fitting of the master gutta-percha cone to obtain tug-back and proper use of ultrasonically activated plugger provided good control of the gutta-percha to limit in root canal. Clinician should remember that the use of any new instrument and/or technique always requires training. However a certain device to show the better result with minimal training is preferable in clinics and that might pass current as better device.
This in vitro study may not be extrapolated into the clinical conditions but it showed a certain implication of superior sealing ability of EndoTwinn than the System B. Other investigation with regard to case result will be needed to see if there is any in vivo benefit. Additionally, a certain quantitative analysis of leakage or adaptation of the gutta-percha to the canal walls would strengthen our conclusion.
V. CONCLUSION
Under the condition of this study, the EndoTwinn which has specific function of ultrasonic vibration might improve the conventional continuous wave of obturation technique by thermo-plasticizing the gutta-percha to achieve a lesser leak obturation, producing a more complete three-dimensional obturation of the root canal system with ultrasonic vibration.
- 1. Katebzadeh N, Sigurdsson A, Trope M. Radiographic evaluation of periapical healing after obturation of infected root canals: an in vivo study. Int Endod J. 2000;33(1):60-66.ArticlePubMed
- 2. Brayton SM, Davis SR, Goldman M. Gutta-percha root canal fillings, an in vitro analysis. Part I. Oral Surg Oral Med Oral Pathol. 1973;35(2):226-231.PubMed
- 3. Peters DD. Two-year in vitro solubility evaluation of four gutta-percha sealer obturation techniques. J Endod. 1986;12(4):139-145.ArticlePubMed
- 4. Smith RS, Weller RN, Loushine RJ, Kimbrough WF. Effect of varying the depth of heat application on the adaptation on the adaptability of gutta-percha during warm vertical compaction. J Endod. 2000;26(11):668-672.PubMed
- 5. DuLac KA, Nielsen CJ, Tomazic TJ, Ferrillo PJ JR, Hatton JF. Comparison of the obturation of lateral canals by six techniques. J Endod. 1999;25(5):376-380.ArticlePubMed
- 6. Buchanan LS. Continuous wave of obturation technique. Endod Prac. 1998;1(4):7-10. 13-16. 18.PubMed
- 7. Silver GK, Love RM, Purton DG. Comparison of two vertical condensation obturation techniques: Touch'n Heat modified and System B. Int Endod J. 1999;32(4):287-295.ArticlePubMed
- 8. Wu MK, Özok AR, Wesselink PR. Sealer distribution in root canals obturated by three techniques. Int Endod J. 2000;33(4):340-345.ArticlePubMed
- 9. Zmener O, Banegas G. Clinical experience of root canal filling by ultrasonic condensation of gutta-percha. Endod Dent Traumatol. 1999;15(2):57-59.ArticlePubMed
- 10. Ahlberg KM, Assavanop P, Tay WM. A Comparison of the apical dye penetration patterns shown by methylene blue and India ink in root-filled teeth. Int Endod J. 1995;28(1):30-34.ArticlePubMed
- 11. Bailey GC, Ng YL, Cunnington SA, Barber P, Gulabivala K, Setchell DJ. Root canal obturation by ultrasonic condensation of gutta-percha. Part II: an in vitro investigation of the quality of obturation. Int Endod J. 2004;37(10):694-698.ArticlePubMed
- 12. Aqrabawi JA. Outcome of endodontic treatment of teeth filled using lateral condensation versus vertical compaction (Schilder's technique). J Contemp Dent Pract. 2006;7(1):17-24.Article
- 13. Byström A, Sundqvist G. Bacteriologic evaluation of the effect of 0.5 percent solution sodium hypochlorite in endodontic therapy. Oral Surg Oral Med Oral Pathol. 1983;55(3):307-312.PubMed
- 14. Byström A, Sundqvist G. The antibacterial action of sodium hypochlorite and EDTA in 60 cases of endodontic therapy. Int Endod J. 1985;18(1):35-40.ArticlePubMed
- 15. Madison S, Wilcox LR. An evaluation of coronal microleakage in endodontically treated teeth. Part III. In vivo study. J Endod. 1988;14(9):455-458.ArticlePubMed
- 16. Ray HA, Trope M. Periapical status of endodontically treated teeth in relation to the technical quality of the root filling and the coronal restoration. Int Endod J. 1995;28(1):12-18.ArticlePubMed
- 17. Wu MK, Kastakova A, Wesselink PR. Quality of cold and warm gutta-percha fillings in oval canals in mandibular premolar. Int Endod J. 2001;34(6):485-491.PubMed
- 18. Kim YJ, Hwang YC, Kim SH, Hwang IN, Choi BY, Jeong YJ, Juhng WN, Oh WM. Analysis of temperature rise on the root surface during continuous wave of condensation technique. J Korean Acad Conserv Dent. 2003;28(4):341-347.Article
- 19. Buchanan LS. The continuous wave of obturation technique: 'centered' condensation of warm gutta-percha in 12 seconds. Dent Today. 1996;15(1):60-62. 64-67.
- 20. Kececi AD, Unal GC, Sen BH. Comparison of cold lateral compaction and continuous wave of obturation techniques following manual or rotary instrumentation. Int Endod J. 2005;38(6):381-388.ArticlePubMed
- 21. Baumgardner KR, Krell KV. Ultrasonic condensation of gutta-percha: an in vitro dye penetration and scanning electron microscopic study. J Endod. 1990;16(6):253-259.ArticlePubMed
- 22. Deitch AK, Liewehr FR, West LA, Patton WR. A comparison of fill dentistry obtained by supplementing cold dentistry with ultrasonic condensation. J Endod. 2002;28(9):665-667.PubMed
- 23. Yared GM, Bou Dagher FE. Influence of plugger penetration on the sealing ability of vertical condensation. J Endod. 1995;21(3):152-153.ArticlePubMed
- 24. Smith RS, Weller RN, Loushine RJ, Kimbrough WF. Effect of varying the depth of heat application on the adaptability of gutta-percha during warm vertical compaction. J Endod. 2000;26(11):668-672.ArticlePubMed
- 25. Kersten HW. Evaluation of three thermoplasticized gutta-percha filling techniques using a leakage model in vitro. Int Endod J. 1988;21(6):353-360.ArticlePubMed
- 26. ElDeeb ME. The sealing ability of injection molded thermoplasticized gutta-percha. J Endod. 1985;11(2):84-86.ArticlePubMed
- 27. Gutmann JL, Saunders WP, Saunders EM, Nquyen L. An assessment of the plastic Thermafil obturation technique. Part 1: radiographic evaluation of adaptation and placement. Int Endod J. 1993;26(3):173-178.PubMed
REFERENCES
Tables & Figures
REFERENCES
Citations
Citations to this article as recorded by
ePub Link
Cite
XML DownloadComparison of apical sealing ability of continuous wave of obturation technique using EndoTwinn and System B
Figure 1

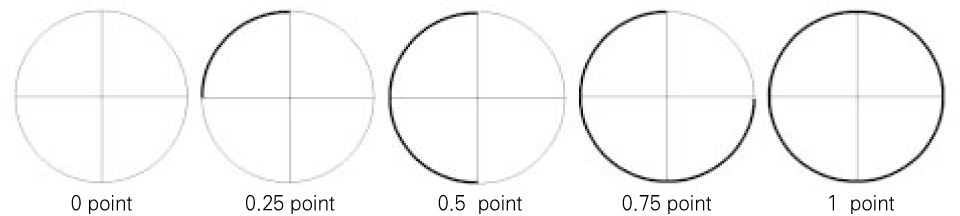

Schematic diagram for five-point scoring system.
Figure 2
Representative sample of each point.

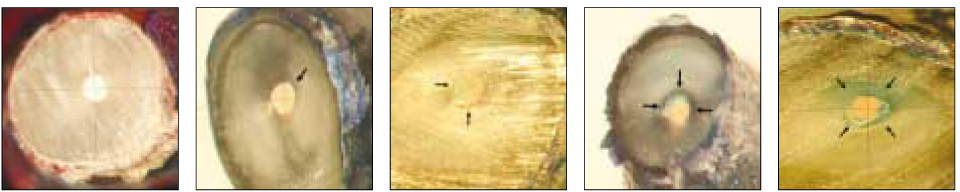

A; 0 point from 1 mm level of Group NSB, B; 0.25 point from 2 mm level of Group ET, C; 0.5 point from 1 mm level of Group SB, D; 0.75 point from 1 mm level of Group SB, E; 1 point from 1 mm level of Group SB
Figure 1
Figure 2
Comparison of apical sealing ability of continuous wave of obturation technique using EndoTwinn and System B

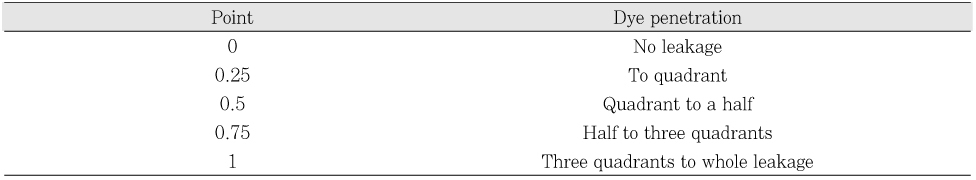

Criteria for five-point scoring system
