Infrared thermographic analysis of temperature rise on the surface of buchanan plugger

Sung-A Choi; Sun-Ho Kim; Yun-Chan Hwang; Chang Youn; Byung-Ju Oh; Bo-Young Choi; Woo-Nam Juhng; Sun-Wa Jeong; In-Nam Hwang; Won-Mann Oh

doi:10.5395/JKACD.2002.27.4.370

Articles

Page Path: HOME > Restor Dent Endod > Volume 27(4); 2002 > Article

Original Article Infrared thermographic analysis of temperature rise on the surface of buchanan plugger: Sung-A Choi, Sun-Ho Kim, Yun-Chan Hwang, Chang Youn, Byung-Ju Oh, Bo-Young Choi^*, Woo-Nam Juhng^*, Sun-Wa Jeong^**, In-Nam Hwang, Won-Mann Oh; Journal of Korean Academy of Conservative Dentistry 2002;27(4):370-381.
DOI: https://doi.org/10.5395/JKACD.2002.27.4.370
Published online: July 31, 2002

Department of Conservative Dentistry, College of Dentistry, DSRI, Chonnam National University, Korea.

^*School of Mechanical Systems Engineering College of Engineering, Chonnam National University, Korea.

^**Department of Dentistry, College of Medicine, Seonam University, Korea.

19 Views
0 Download

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

This study was performed to evaluate the temperature rise on various position of the Buchanan plugger, the peak temperature of plugger's type and the temperature change by its touching time of heat control spring.

The heat carrier system 'System B'(Model 1005, Analytic Technologies, USA) and the Buchanan's pluggers of F, FM, M and ML sizes are used for this study. The temperature was set to 200℃ which Dr. Buchanan's "continuous wave of condensation" technique recommended on digital display and the power level on it was set to 10. In order to apply heat on the Buchanan's pluggers, the heat control spring was touched for 1, 2, 3, 4 and 5 seconds respectively. The temperature rise on the surface of the pluggers were measured at 0.5 mm intervals from tip to 20 mm length of shank using the infrared thermography (Radiation Thermometer-IR Temper, NEC San-ei Instruments, Ltd, Japan) and TH31-702 Data capture software program (NEC San-ei Instruments, Ltd, Japan). Data were analyzed using a one way ANOVA followed by Duncan's multiple range test and linear regression test.

The results as follows.

1. The position at which temperature peaked was approximately at 0.5 mm to 1.5 mm far from the tip of Buchanan's pluggers (p<0.001). The temperature was constantly decreased toward the shank from the tip of it (p<0.001).

2. When the pluggers were heated over 5 seconds, the peak temperature by time of measurement revealed from 253.3±10.5℃ to 192.1±3.3℃ in a touch for 1 sec, from 218.6±5.0℃ to 179.5±4.2℃ in a touch for 2 sec, from 197.5±3.0℃ to 167.6±3.7℃ in a touch for 3 sec, from 183.7±2.5℃ to 159.8±3.6℃ in a touch for 4 sec and from 164.9±2.0℃ to 158.4±1.8℃ in a touch for 5 sec. A touch for 1 sec showed the highest peak temperature, followed by, in descending order, 2 sec, 3 sec, 4 sec. A touch for 5 sec showed the lowest peak temperature (p<0.001).

3. A each type of pluggers showed different peak temperatures. The peak temperature was the highest in F type and followed by, in descending order, M type, ML type. FM type revealed the lowest peak temperature (p<0.001).

The results of this study indicated that pluggers are designed to concentrate heat at around its tip, its actual temperature does not correlate well with the temperature which Buchanan's "continuous wave of condensation" technique recommend, and finally a quick touch of heat control spring for 1sec reveals the highest temperature rise.
Keywords: Infrared thermographic analysis; Buchanan plugger

REFERENCES

1. Schilder H. Filling root canals in three dimensions. Dent Clin North Am. 1967;11: 723-744.Article
2. Nguyen NT. Obturation of the Root Canal System. Pathways of the Pulp. 1994;6th ed. St. Louis: Mosby Co.; 219-271.
3. Hand RE, Hugel EF, Tsaknis PJ. Effect of a warm gutta-percha technique on the lateral periodontium. Oral Surg. 1976;42: 395-401.PubMed
4. Marlin J, Schilder H. Physicial properties of gutta-percha when subjected to heat and vertical condensation. Oral Surg. 1973;36: 872-879.PubMed
5. Barkhordar RA, Goodis HE, Watanabe L, Koundjian J. Evaluation of teeth during root canal obturation technique. Quintessence Int. 1990;21: 585-588.PubMed
6. Eriksson A, Albrektsson T, Grane B, McQueen D. Thermal injury to bone : a vital-microscopic description of heat effect. Int J Oral Surg. 1982;11: 115-121.PubMed
7. Eriksson RA, Albrektsson T. The effect of heat on bone regeneration. J Oral Maxillofac Surg. 1984;42: 705-711.PubMed
8. Eriksson AR, Albrektsson T. Temperature threshold levels for heat-induced bone tissue injury : a vital-microscopic study in the rabbit. J Prosthet Dent. 1983;50: 101-107.Article PubMed
9. Lee FS, Van Cura JE, BeGole E. A comparison of root surface temperatures using different obturation heat sources. J Endod. 1998;24: 617-620.Article PubMed
10. Weller RN, Jurcak JJ, Donley DL, Kulild JC. A new model system for measuring intracanal temperatures. J Endod. 1991;17: 491-494.Article PubMed
11. Floren JW, Weller RN, Pashley DH, Kimbrough WF. Changes in root surface temperatures with in vitro use of the system B HeatSource. J Endod. 1999;25: 593-595.Article PubMed
12. Mc Cullagh JJ, Setchell DJ, Gulabivala K, Hussey DL, Biagioni P, Lamey PJ, Bailey G. A comparison of thermocouple and infrared thermographic analysis of temperature rise on the root surface during the continuous wave of condensation technique. Int Endod J. 2000;33: 326-332.PubMed
13. Biagioni PA, Longmore RB, McGimpsey JG, Lamey P-J. Infrared thermography - its role in dental research with particular reference to craniomandibular disorders. Dentomaxillofac Radiol. 1996;25: 119-124.Article PubMed
14. Buchanan LS. Continuous wave technique. Dent Today. 1996;1: 60-64.
15. Analytic Technology Corp. Instruction guidelines for system B HeatSource model 1005. 1997;Redmond, WA: Analytic Technology Corp..
16. Jurcak JJ, Weller RN, Kulild JC, Donley DL. In vitro intracanal temperatures produced during warm lateral condensation of gutta-percha. J Endod. 1992;18: 1-3.Article PubMed

Fig. 1

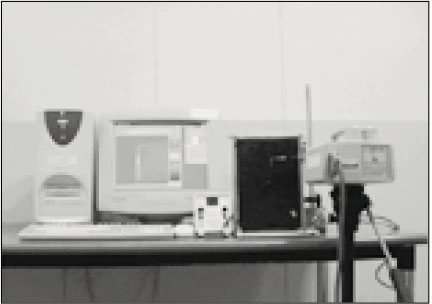

Infrared thermal imaging system.

Fig. 2

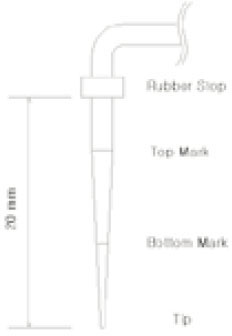

Schematic illustration of Buchanan plugger.

Fig. 3

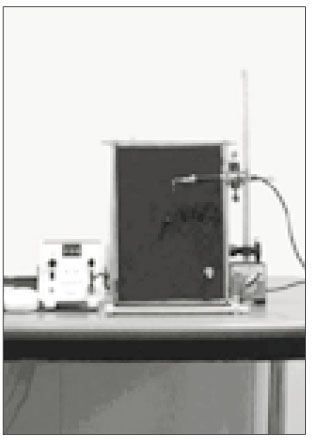

The fixation device of heat carrier of System B HeatSource and System B Heat Source.

Fig. 4

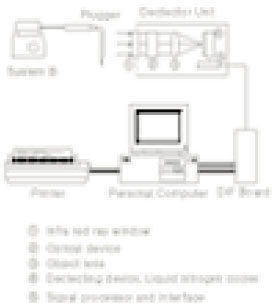

Schematic illustration of the whole system.

Fig. 5

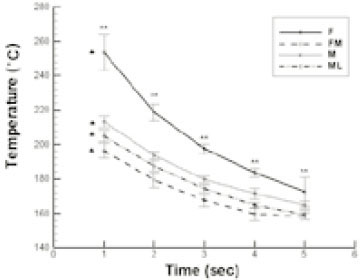

Maximum temperature at time of measurement.

Time(sec):heating time of heat control spring

^**:represents significant difference by plugger type (p<0.001).

♣:represents significant difference by time of measurement(p<0.001).

Fig. 6

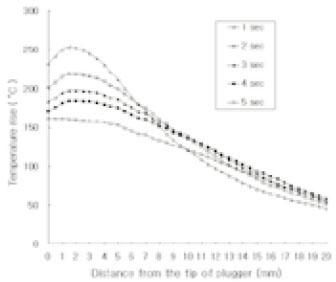

Temperature changes on the surface of Buchanan plugger(F).

(setting temperature: 200℃, power level: 10)

0:Tip of plugger, 20:Shank of plugger

Fig. 7

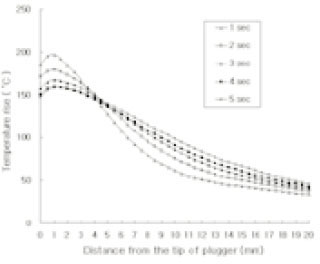

Temperature changes on the surface of Buchanan plugger(FM).

(setting temperature: 200℃, power level: 10)

0:Tip of plugger, 20:Shank of plugger

Fig. 8

Temperature changes on the surface of Buchanan plugger(M).

(setting temperature: 200℃, power level: 10)

0:Tip of plugger, 20:Shank of plugger

Fig. 9

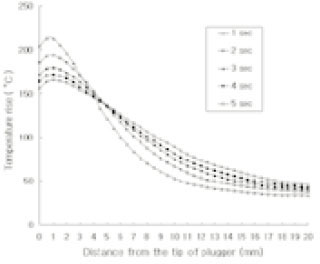

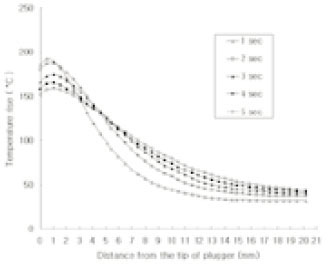

Temperature changes on the surface of Buchanan plugger(ML).

(setting temperature: 200℃, power level: 10)

0:Tip of plugger , 20:Shank of plugger

Fig. 10

Representative thermographic image of F type (1 sec)

Fig. 11

Representative thermographic image of F type (2 sec)

Fig. 12

Representative thermographic image of F type (3 sec)

Fig. 13

Representative thermographic image of F type (4 sec)

Fig. 14

Representative thermographic image of F type (5 sec)

Fig. 15

Representativ thermographic image of FM type (1 sec)

Fig. 16

Representative thermographic image of FM type (2 sec)

Fig. 17

Representative thermographic image of FM type (3 sec)

Fig. 18

Representative thermographic image of FM type (4 sec)

Fig. 19

Representative thermographic image of FM type (5 sec)

Fig. 20

Representative thermographic image of M type (1 sec)

Fig. 21

Representative thermographic image of M type (2 sec)

Fig. 22

Representative thermographic image of M type (3 sec)

Fig. 23

Representative thermographic image of M type (4 sec)

Fig. 24

Representative thermographic image of M type (5 sec)

Fig. 25

Representative thermographic image of ML type (1 sec)

Fig. 26

Representative thermographic image of ML type (2 sec)

Fig. 27

Representative thermographic image of ML type (3 sec)

Fig. 28

Representative thermographic image of ML type (4 sec)

Fig. 29

Representative thermographic image of ML type (5 sec)

Table 1

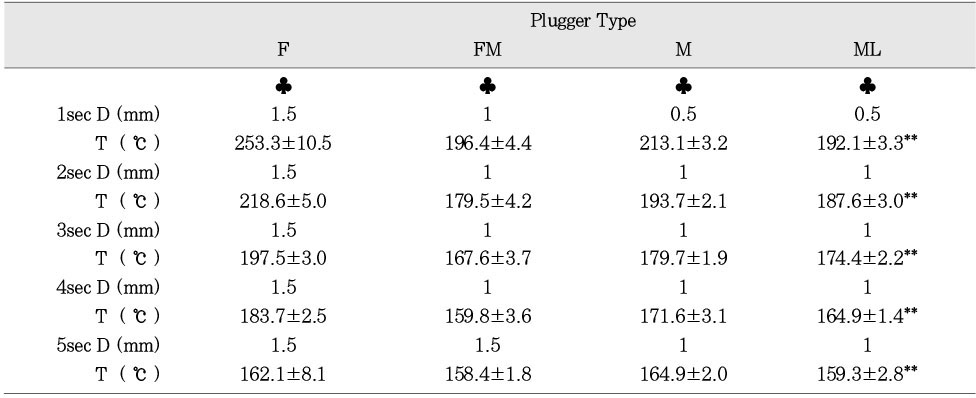

The position at which the temperature peaked on the surface of Buchanan plugger (mm)
