THE EFFECT OF SMEAR LAYER TREATMENT ON THE MICROLEAKAGE

Jung-Min Lee; Sang-Hyuk Park; Gi-Woon Choi

doi:10.5395/JKACD.2006.31.5.378

Articles

Page Path: HOME > Restor Dent Endod > Volume 31(5); 2006 > Article

Original Article THE EFFECT OF SMEAR LAYER TREATMENT ON THE MICROLEAKAGE: Jung-Min Lee, Sang-Hyuk Park, Gi-Woon Choi^,*; Journal of Korean Academy of Conservative Dentistry 2006;31(5):378-389.
DOI: https://doi.org/10.5395/JKACD.2006.31.5.378
Published online: January 14, 2006

Dept. of Conservative Dentistry, Division of Dentistry, Graduate school of KyungHee University

*Corresponding Author: Gi-Woon Choi, Dept. of Conservative Dentistry, Division of Dentistry, Graduate school of KyungHee University, 1, Hoegi Dong, Dongdaemoon Gu, Seoul, 130-702, Korea, Tel: 82-2-958-9336, E-mail: gwchoi@khu.ac.kr

• Received: April 4, 2006 • Revised: September 4, 2006 • Accepted: September 7, 2006

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

21 Views
0 Download

prev next

Full Article

Download PDF

Abstract
REFERENCES
참고문헌

Abstract

The purpose of this study was to compare the sealing ability of root canal obturation with or without the treatment of smear layer. Eighty extracted human teeth with one canal were selected. Instrumentation was performed with crown-down technique. After instrumentation, root canals of the NaOCl group and NaOCl-6 group were irrigated with 3% NaOCl. EDTA group and EDTA-6 group were irrigated with 17% EDTA. Then all teeth were obturated using continuous wave obturation technique.

NaOCl group and EDTA group were immersed in methylene blue solution for 84hours. NaOCl-6 group and EDTA-6 group were immersed in methylene blue solution for 6months. The teeth were sectioned at 1.5 mm (Level 1), 3.0 mm (Level 2) and 4.5 mm (Level 3) from the root apex. The length of dye-penetrated interface and the circumferential length of canal at each level were measured using Sigma-Scan Pro 5.0.
1. The mean leakage ratio was decreased cervically.
2. NaOCl group showed higher mean leakage ratio than EDTA group at each level. But there was significant difference at level 1 only (p < 0.05).
3. NaOCl-6 group showed higher mean leakage ratio than EDTA-6 group at each level. But there was significant difference at level 1 only (p < 0.05).
4. NaOCl-6 group showed higher mean leakage ratio than NaOCl group at each level. But there was significant difference at level 1 only (p < 0.05).
5. EDTA-6 group showed higher mean leakage ratio than EDTA group at each level. But there was no significant difference.
6. In NaOCl group and NaOCl-6 group, scanning electron micrographs of tooth sections generally covered with smear layer. In EDTA group and EDTA-6 group, tooth sections showing the penetration of sealers to opened dentinal tubules. The results suggest that removal of smear layer was effective to reduce the apical microleakage of the root canal.
Keywords: NaOCl; EDTA; Smear layer; Mean leakage; Dentinal tubule

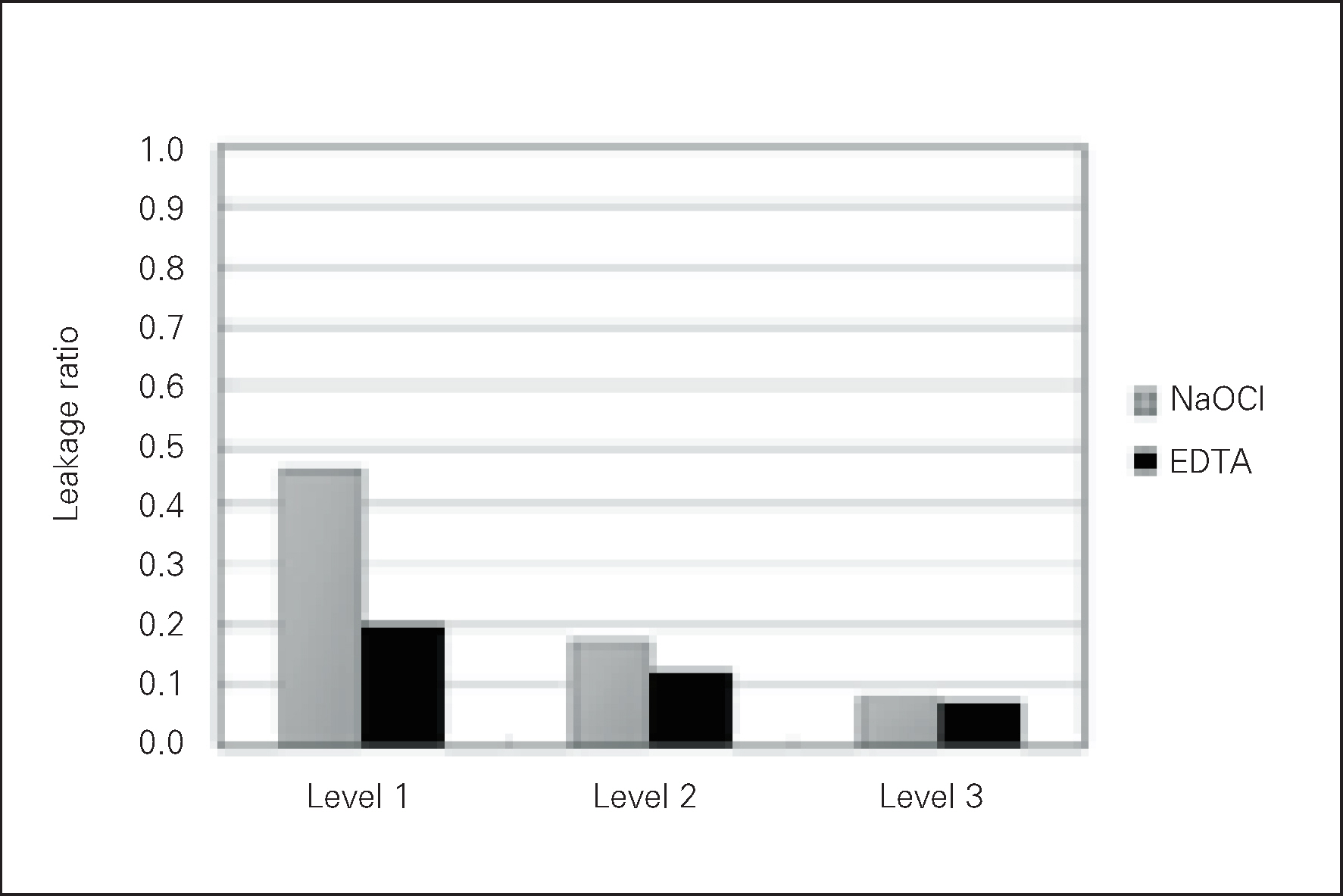

Figure 1.

Mean leakage ratio in NaOCl group and EDTA group.

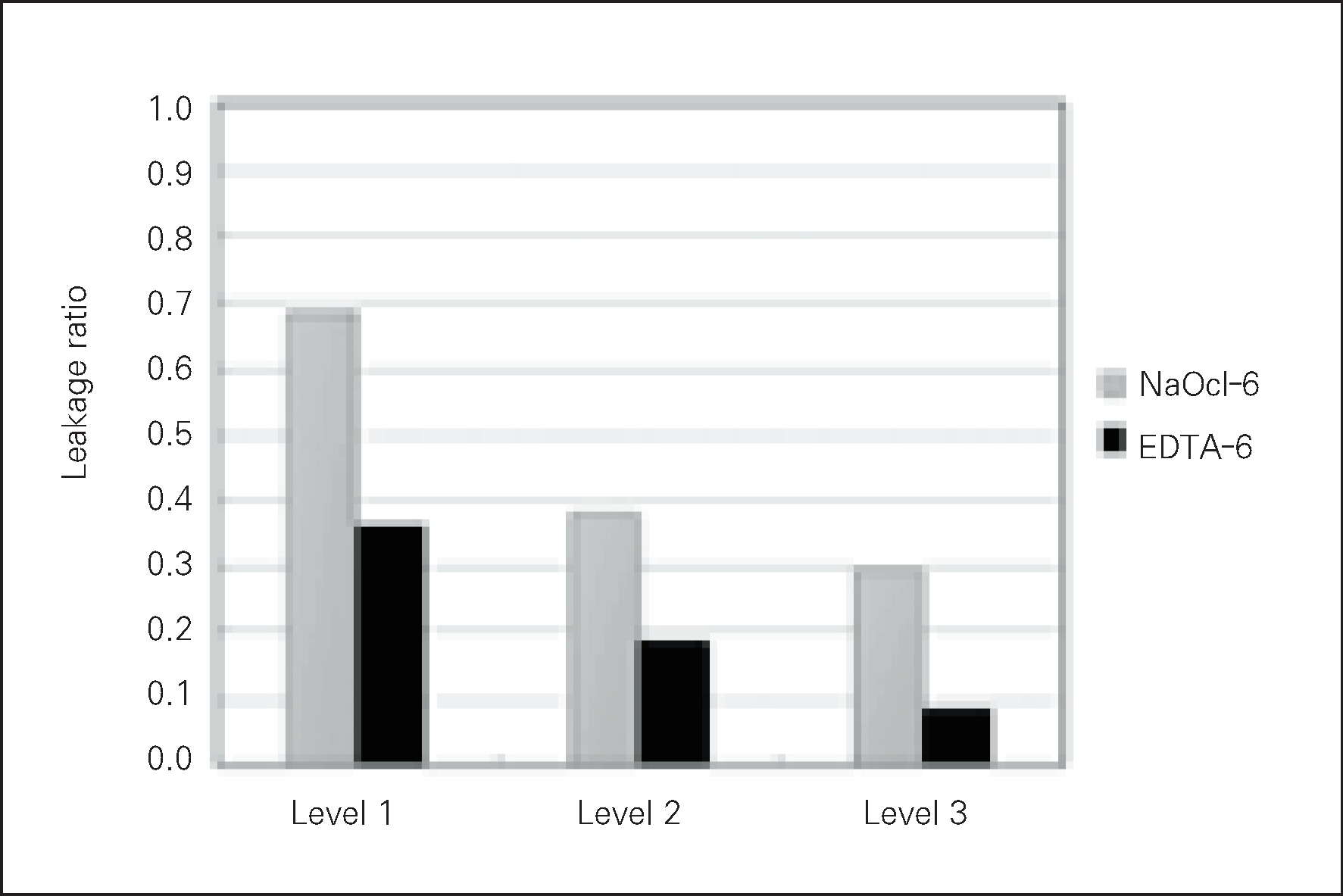

Figure 2.

Mean leakage ratio in NaOCl-6 group and EDTA-6 group.

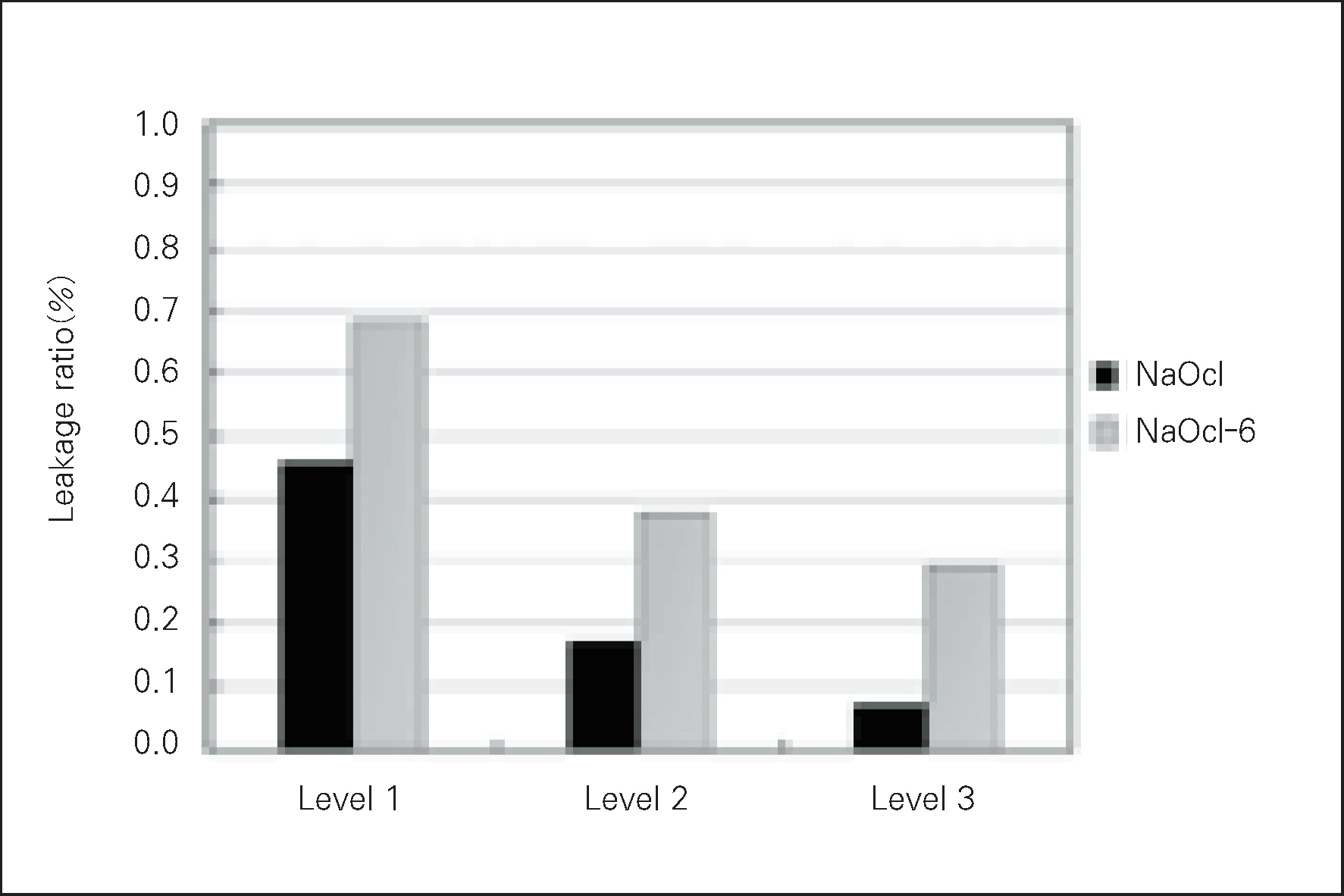

Figure 3.

Mean leakage ratio in NaOCl group and NaOCl-6 group.

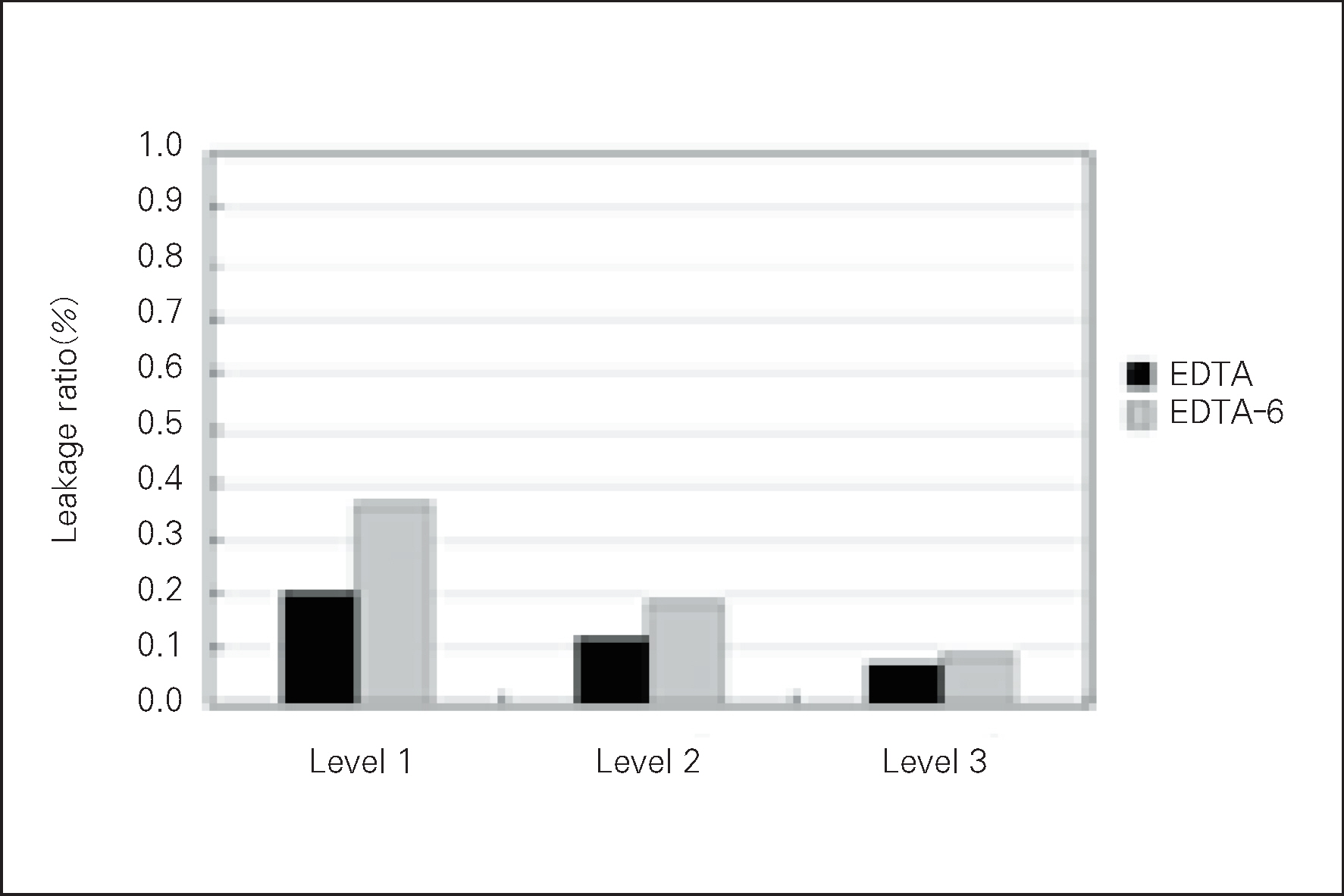

Figure 4.

Mean leakage ratio in EDTA group and EDTA-6 group.

Figure 5.

Photograph of the NaOCl group Level 1 (× 120).

Figure 6.

Photograph of the NaOCl group Level 2 (× 120).

Figure 7.

Photograph of the NaOCl group Level 3 (× 120).

Figure 8.

Photograph of the EDTA group Level 1 (× 120).

Figure 9.

Photograph of the EDTA group Level 2 (× 120).

Figure 10.

Photograph of the EDTA group Level 3 (× 120).

Figure 11.

Photograph of the NaOCl-6 group Level 1 (× 120).

Figure 12.

Photograph of the NaOCl-6 group Level 2 (× 120).

Figure 13.

Photograph of the NaOCl-6 group Level 3 (× 120).

Figure 14.

Photograph of the EDTA-6 group Level 1 (× 120).

Figure 15.

Photograph of the EDTA-6 group Level 2 (× 120).

Figure 16.

Photograph of the EDTA-6 group Level 3 (× 120).

Figure 17.

Photograph of the NaOCl group Level 1 (× 1000); Scanning electron micrographs of tooth sections showing the gaps between gutta-percha and the surface of root canals. Surface generally covered with smear layer. Gaps were occuring between the smear layer and the gutta-percha.

Figure 18.

Photograph of the NaOCl group Level 2 (× 1000); Scanning electron micrographs of tooth sections showing the gap-free region between gutta-percha and the surface of root canals. Surface generally covered with smear layer.

Figure 19.

Photograph of the EDTA group Level 1 (× 1000); Scanning electron micrographs of tooth sections showing the penetration of sealers to opened dentinal tubules. Gap-free region was showing between the sealer and the dentinal tubules. Numerous sealer tags could be seen within the intertubular dentin. But, voids were occuring between the sealer and the gutta-percha.

Figure 20.

Photograph of the EDTA group Level 2 (× 1000); Scanning electron micrographs of tooth sections showing the penetration of sealers to opened dentinal tubules. Gap-free region was showing between the sealer and the dentinal tubules. Numerous sealer tags could be seen within the intertubular dentin.

Figure 21.

Photograph of the NaOCl-6 group Level 1 (× 1000); Scanning electron micrographs of tooth sections showing the gap-free region between gutta-percha and the surface of root canals. Surface generally covered with smear layer.

Figure 22.

Photograph of the NaOCl-6 group Level 2 (× 1000); Scanning electron micrographs of tooth sections showing the gap-free region between gutta-percha and the surface of root canals. Surface generally covered with smear layer.

Figure 23.

Photograph of the EDTA-6 group Level 1 (× 1000); Scanning electron micrographs of tooth sections showing the penetration of sealers to opened dentinal tubules. A few sealer tags could be seen within the intertubular dentin.

Figure 24.

Photograph of the EDTA-6 group Level 2 (× 1000); Scanning electron micrographs of tooth sections showing the penetration of sealers to opened dentinal tubules. A few sealer tags could be seen within the intertubular dentin.

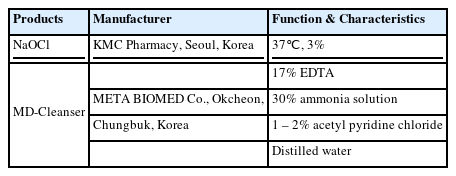

Table 1.

Irrigation solution to treat the smear layer in this study

Products	Manufacturer	Function & Characteristics
NaOCl	KMC Pharmacy, Seoul, Korea	37℃, 3%
MD-Cleanser		17% EDTA
	META BIOMED Co., Okcheon,	30% ammonia solution
	Chungbuk, Korea	1 – 2% acetyl pyridine chloride
		Distilled water

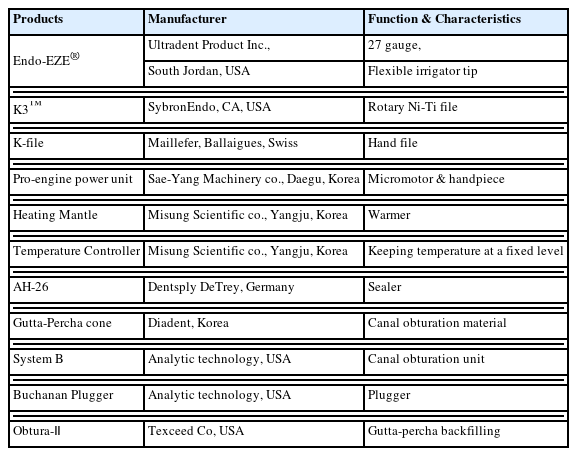

Table 2.

Materials and instruments used in this study

Products	Manufacturer	Function & Characteristics
Endo-EZE^®	Ultradent Product Inc.,	27 gauge,
Endo-EZE^®	South Jordan, USA	Flexible irrigator tip

K3^™	SybronEndo, CA, USA	Rotary Ni-Ti file

K-file	Maillefer, Ballaigues, Swiss	Hand file

Pro-engine power unit	Sae-Yang Machinery co., Daegu, Korea	Micromotor & handpiece

Heating Mantle	Misung Scientific co., Yangju, Korea	Warmer

Temperature Controller	Misung Scientific co., Yangju, Korea	Keeping temperature at a fixed level

AH-26	Dentsply DeTrey, Germany	Sealer

Gutta-Percha cone	Diadent, Korea	Canal obturation material

System B	Analytic technology, USA	Canal obturation unit

Buchanan Plugger	Analytic technology, USA	Plugger

Obtura-Ⅱ	Texceed Co, USA	Gutta-percha backfilling

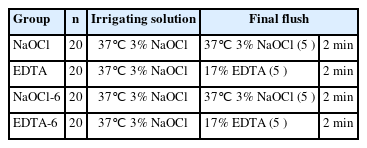

Table 3.

Classification of experimental groups

Group	n	Irrigating solution	Final flush
NaOCl	20	37℃ 3% NaOCl	37℃ 3% NaOCl (5㎖)	2 min
EDTA	20	37℃ 3% NaOCl	17% EDTA (5㎖)	2 min
NaOCl-6	20	37℃ 3% NaOCl	37℃ 3% NaOCl (5㎖)	2 min
EDTA-6	20	37℃ 3% NaOCl	17% EDTA (5㎖)	2 min

Table 4.

Mean leakage ratio at each level (Mean ± SD)

Group	Level 1	Level 2	Level 3
NaOCl	0.46 ± 0.24	0.18 ± 0.28	0.07 ± 0.19
EDTA	0.20 ± 0.26	0.12 ± 0.25	0.07 ± 0.18
NaOCl-6	0.69 ± 0.32	0.38 ± 0.41	0.29 ± 0.37
EDTA-6	0.37 ± 0.39	0.19 ± 0.29	0.09 ± 0.14

REFERENCES

참고문헌

1. Yamada RS, Armas A, Goldman M, Lin PS. A scanning electron microscopic comparison of a high volume flush with several irrigating solutions. Part 3. J Endod 9(4):137-142. 1983.PubMed
2. Gutmann JL, Witherspoon DE. Pathways of the pulp. 7th ed.. Mosby Inc.; St. Louis, Mo: p. p272. 1998.
3. Ingle JI, Backland LK. Endodontics. 5th ed. BC Decker Inc; Loma Linda, California: p. p503-505. 2002.
4. Russell AD, Hugo WB, Ayliffe GAJ. Principles and Practice of Disinfection, Preservation, and Sterilization. 3rd ed. Blackwell Science; Malden, MA: p. p99-100. 1999.
5. Calt S, Serper A. Time-dependent effects of EDTA on dentin structures. J Endod 28(1):17-19. 2002.Article PubMed
6. Lee JK, Choi GW. Time-dependent effects of EDTA on removal of smear layer in the root canal system. J Kor Acad Cons Dent 2006:(In Press).
7. Cergneux M, Ciucchi B, Dietschi JM, Holz J. The influence of the smear layer on the sealing ability of canal obturatiion. Int Endod J 20(5):228-232. 1987.PubMed
8. White RR, Goldman M, Lin P. The influence of the smeared layer upon dentinal tubule penetration by plastic filling materials. J Endod 10(12):558-562. 1984.Article PubMed
9. Drake D R, Wiemann A H, Rivera E M and, Walton R E. Bacterial retention in canal walls in vitro effect of smear layer. J Endod 20(2):78-82. 1994.Article PubMed
10. Goldman LB, Goldman M, Kronman JH, Lin PS. The efficacy of several irrigating solutions for endodontics: A scanning electron microscopic study. Oral Surg Oral Med Oral Pathol 52(2):197-204. 1981.PubMed
11. Walters MJ, Baumgartner JC, Marshall JG. Efficacy of Irrigation with Rotary Instrumentation. J Endod 28(12):837-839. 2002.Article PubMed
12. Cunningham WT, Balekjian AY. Effect of temperature on collagen- dissolving ability of sodium hypochlorite endodontic irrigant. Oral surg Oral Med Oral Pathol 49(2):175-177. 1980.Article PubMed
13. Berutti E, Marini R. A Scanning Electron Microscopic Evaluation of the Debridement Capability of Sodium Hypochlorite at Different Temperatures. J Endod 22(9):467-470. 1996.Article PubMed
14. Baumgartner JC, Mader CL. A scanning electron microscopic evaluation of four oot canal irrigation regimens. J Endod 13(4):147-157. 1987.PubMed
15. Czonstkowsky M, Michanowicz A, Vazquez JA. Evaluation of an injection of thermoplasticized low-temperature gutta-percha using radioactive isotopes. J Endod 11(2):71-74. 1985.Article PubMed
16. Tucker JW, Mizrahi S, Seltzer S. Scanning electron microscopic study of the efficacy of various irrigating solutions: Urea, Tublicid Red, and Tubulicid Blue. J Endod 2(3):71-78. 1976.PubMed
17. Williams S, Goldman M. Penetrability of the smeared layer by strain of proteus vulgaris. J Endod 11(9):385-388. 1985.PubMed
18. Pashley DH. Smear layer: physiological considerations. Oper Dent Suppl 3:13-29. 1984.PubMed
19. Orstavik D, Haapasalo M. Disinfection by endodontic irrigants and dressings or experimentally infected dentinal tubules. Endod Dent Traumatol 6(4):142-149. 1990.PubMed
20. Love RM, Chandler NP, Jenkinson HF. Penetration of smeared or non smeared dentine by Streptococcus gor-donii. Int Endod J 29(1):2-12. 1996.Article PubMed
21. Ruddle CJ. Pathways of the pulp. 8th ed.. Mosby Inc.; St. Louis, Mo: p. p258. 2002.
22. Hand RE, Smith ML, Harrison JW. Analysis of the effect of dilution on the necrotic tissue dissolution property of sodium hypochlorite. J Endod 4(2):60-64. 1978.PubMed
23. Patterson SS. In vivo and in vitro studies of the effect of the disodium salt of ethylenediamine tetra-acetate on human dentine and its endodontic implications. Oral surg Oral Med Oral Pathol 16:83-103. 1963.Article PubMed
24. Goldman M, Goldman LB, Cavaleri R, Bogis J, Lin PS. The efficacy of several endodontic irrigating solutions: a scanning electron microscopic study: part 2. J Endod 8(11):487-492. 1982.Article PubMed
25. Grawehr M, Sener B, Waltimo T, Zehnder M. Interactions of ethylenediamine tetraacetic acid with sodium hypochlorite in aqueous solutions. Int Endod J 36(6):411-415. 2003.Article PubMed PDF
26. Tamse A, Katz A and, Kablan F. Comparison of apical leakage shown by four different dyes with two evaluating methods. Int Endod J 31(5):333-337. 1998.PubMed
27. Madison S, Krell KV. Comparison of EDTA and sodium hypochlirite on the apical seal of endodontically treated teeth. J Endod 10(10):499-503. 1984.PubMed
28. Saunders WP, Saunders EM. The effect of smear layer upon the coronal leakage of gutta-percha root fillings and a glass ionomer sealer. Int Endod J 25(5):145-149. 1992.Article
29. Syngcuk Kim. Pathways of the pulp. 8th ed.. Mosby Inc.; St. Louis, Mo: p. p707-708. 2002.
