KACD
Articles
- Page Path
- HOME > Restor Dent Endod > Volume 31(3); 2006 > Article
- Original Article The influence of AH-26 and zinc oxide-eugenol root canal sealer on the shear bond strength of composite resin to dentin
- Ju-Yeon Cho, Myoung-Uk Jin, Young-Kyung Kim, Sung Kyo Kim
-
Journal of Korean Academy of Conservative Dentistry 2006;31(3):147-152.
DOI: https://doi.org/10.5395/JKACD.2006.31.3.147
Published online: May 31, 2006
Department of Conservative Dentistry, School of Dentistry, Kyungpook National University, Korea.
- Corresponding Author: Sung Kyo Kim. Department of Conservative Dentistry, School of Dentistry, Kyungpook National University, 188-1, Samdeok-Dong 2-Ga, Jung-Gu, Daegu, Republic of Korea, 700-412. Tel: 82-53-420-5935, Fax: 82-53-426-8958, skykim@knu.ac.kr
• Received: July 14, 2005 • Revised: February 28, 2006 • Accepted: March 24, 2006
Copyright © 2006 Korean Academy of Conservative Dentistry
- 19 Views
- 0 Download
Abstract
-
The purpose of this study was to evaluate the influence of the AH-26 root canal sealer on the shear bond strength of composite resin to dentin.One hundred and forty four (144) extracted, sound human molars were used. After embedding in a cylindrical mold, the occlusal part of the anatomical crown was cut away and trimmed in order to create a flat dentin surface. The teeth were randomly divided into three groups; the AH-26 sealer was applied to the AH-26 group, and zinc-oxide eugenol (ZOE) paste was applied to the ZOE group. The dentin surface of the control group did not receive any sealer.A mount jig was placed against the surface of the teeth and the One-step dentin bonding agent was applied after acid etching. Charisma composite resin was packed into the mold and light cured. After polymerization, the alignment tube and mold were removed and the specimens were placed in distilled water at 37℃ for twenty four hours. The shear bond strength was measured by an Instron testing machine. The data for each group were subjected to one-way ANOVA and Tukey's studentized rank test so as to make comparisons between the groups.The AH-26 group and the control group showed significantly higher shear bond strength than the ZOE group (p < 0.05).There were no significant differences between the AH-26 group and the control one (p > 0.05).Under the conditions of this study, the AH-26 root canal sealer did not seem to affect the shear bond strength of the composite resin to dentin while the ZOE sealer did. Therefore, there may be no decrease in bond strength when the composite resin core is built up immediately after a canal filling with AH-26 as a root canal sealer.
I. INTRODUCTION
Successful final restoration is important for the long term success of root canal treatment. A lack of adhesion in a final restoration could result in apical or coronal leakage that causes problems in the root canal treatment1,2). Endodontically-treated teeth frequently require extensive restorations with post-core system3,4).
Since composite resin bonds to the structure of teeth, it can reinforce the structure5), and composite resin, along with the dentin bonding agent, was able to restore the access cavity or build the core in endodontically-treated teeth.
When composite resin is used as a restorative material after root canal filling, the residual sealer may come into contact with the resin adhesive, which may influence its adhesive properties. It has been shown that some endodontic materials can interfere with the adhesion of composite resin6-11). A zinc oxide-eugenol (ZOE)-based sealer reduced post retention whereas a resin-based and a calcium hydroxide-based sealers did not affect post retention significantly, as compared to that without a sealer4). An epoxy resin sealer showed no significant differences when comparing the tensile or compressive strength of composite resin restoration12).
More research is needed regarding the influence of a root canal sealer on the bond strength of composite resin restoration. Therefore, the purpose of this study was to evaluate the influence of root canal sealers on the shear bond strength of composite resin on dentin, after the mechanical removal of the sealer13-15).
II. MATERIALS AND METHODS
One hundred and forty four (144) extracted, sound human molars, that had been stored in isotonic saline at 4℃, were used in this study. The teeth were cleaned with a 1% NaOCl solution, in order to remove soft tissue debris, and the teeth were embedded in cylindrical molds with self-curing acrylic resin (Orthodontic Resin, Dentsply/Caulk, Milford, DE, USA) up to the cementoenamel junction. One-third to one-half of the occlusal part of the anatomical crown was cut away with a low-speed diamond disc, in order to expose the dentin. The exposed dentin was trimmed on a water-cooled model trimming wheel in order to create a flat surface. The trimmed surface was ground with 180- and 400-grit silicon carbide abrasive papers.
The teeth were randomly divided into three groups: the AH-26 sealer group, the ZOE sealer group, and the control group (no sealer). The AH-26 sealer (Dentsply/De Trey, Konstanz, Germany) was mixed according to the instructions by the manufacturing company and the ZOE sealer was made by mixing zinc oxide powder (Duksan Pure Chemical Co. Ltd, Ansan, Korea) with eugenol liquid (Sultan Chemists, Inc. Englewood, NJ, USA, Table 1) on a glass slab, with a weight ratio of 2.07 : 1.00 in order to have a thick creamy consistency16). In the AH-26 group and the ZOE group, a thin layer of the corresponding sealer was applied for 15 min. The sealers were removed by scrubbing the dentin surface with a dry cotton pellet. The dentin surface of the control group was left as is (no sealer).
A mount jig (Ultradent Product Inc., South Jordan, Utah, USA), with an internal ring of 2.3798 mm in diameter and a height of 2.0 mm, was placed against the tooth surface and stabilized by an alignment tube17,18). The dentin surfaces were etched with 32% phosphoric acid for 15 sec, rinsed with water for 15 sec, and blot dried. The One-Step® dentin bonding agent (Bisco, Inc., Schaumburg, USA) was applied twice with light curing for 10 sec each application. This was followed by the packing the Charisma composite resin (Heraeus Kulzer, Inc., Hanau, Germany) and light curing for 20 sec.
After resin polymerization, the alignment tube and mold were removed, and the specimens were placed in distilled water at 37℃ for 24 hours. The specimens in each group were tested in a shear mode by using a chisel-shaped rod in an Instron testing machine (Model 4202, Instron Corp., Canton, Massachusettes, USA) at a crosshead speed of 1 mm/minute19) (Figure 1).
The data for each group were subjected to a one-way ANOVA and Tukey's studentized rank test in order to make comparisons between the groups (p < 0.05).
III. RESULTS
The results of the shear bond strength test are shown in Figure 2.
The AH-26 group and the control group showed significantly higher shear bond strength than the ZOE group (p < 0.05).
There was no significant difference between the control group and the AH-26 group (p > 0.05).
IV. DISCUSSION
The results of the present study showed that canal filling materials can affect the bonding of composite resins and the dentin bonding agent to dentin20-23). It is known that resin polymerization can be affected by reducing agents such as phenolic compounds like eugenol24,25). Reducing agents may inhibit the adhesion of the adhesive restoration system based upon a vinylic polymerization mechanism. In the present study, the ZOE sealer treated-dentin showed a less bond strength than the untreated dentin. The results of the present study support this hypothesis.
Although eugenol does not affect on the bond strength of composites on enamel, contradictory finding exist regarding the effect of eugenol on the bond strength on dentin. While some researches9,11,24,25) have found that pre-treatment with eugenol containing-temporary cements decreases bond strength of composites on dentin, other researches have found otherwise5,6,8,10,11).
In contrast to eugenol, epoxy resin does not interact with the free-radical initiation for the composite resin. As a result, no interruption of the setting reaction occured in the present study. AH-26 has epoxy resin polymer chemistry. For epoxy resin, there is an opening of the epoxy monomer ring that results in a final polymer matrix, which contains free (-OH) groups. Since the final epoxy matrix contains a free hydroxyl group, bonding to the free radical, produced in the initiation stage of the setting reaction for the composite resin, is possible. A review of literature12,26), however, indicates that the opening of the epoxy monomer ring takes many hours, even days, whereas a full cure of the composite resin can be achieved in several minutes. Therefore, by incorporating AH-26 into the final polymer matrix of the composite resin, it does not participate chemically in the setting reaction12).
In the present study, the AH-26 treated dentin showed a similar bond strength to the untreated one, and a higher bond strength than the ZOE sealer-treated one.
It was hypothesized that the current dentinbonding systems effectively remove residual cement and eugenol-contaminated dentin and consequently, are insensitive to pre-treatment with eugenol-containing temporary restorations9). In the case of the AH-26 treated group, we can hypothesize that the effects of AH-26 do not seem to be strong enough to alter tensile strength. One may hypothesize the following: that contaminants remain on the dentin surface after cleansing; that they were soluble in the core material; and that they did not interfere with polymerization. A second possible explanation is that most or all of the contaminants on the surface were removed by the etching and bonding procedures. A third plausible explanation could be that the etchant used by the One-step adhesive system dissolved the remaining contaminants, thus eliminating their potential in reducing bond strength27). The clinical significance of this theory, however, it is questionable.
On the other hand, the AH-26 group showed significantly higher values than the ZOE-treated group. The AH-26 group didn't show any significantly different values as compared to the control group.
These results should be kept in mind when selecting appropriate materials regarding composite resin core build up. Insufficient debridement of a eugenol-based material from the dentinal surfaces may affect the quality, retention, and strength of the composite resin core build-up. In order to avoid these problems, it is better to use a material that does not contain eugenol, such as an epoxy resin root canal sealer.
Therefore, in conclusion, our study showed that the epoxy resin sealer AH-26 seemed to have no significant adverse effect on the shear bond strength of composite resin on dentin, while the ZOE sealer did show such effects.
When composite resin restoration is planned after root canal treatment, it may be desirable to use the AH-26 as a root canal sealer from the standpoint of shear bond strength. Further study is necessary to evaluate the effect of the AH-26 on the dentin bonding within a clinical environment.
- 1. Erdemir A, Ari H, Gungunes H, Belli S. Effect of medications for root canal treatment on bonding to root canal dentin. J Endod. 2004;30: 113-116.ArticlePubMed
- 2. Belli S, Zhang Y, Pereira PN, Pashley DH. Adhesive sealing of the pulp chamber. J Endod. 2001;27: 521-526.ArticlePubMed
- 3. Burns DR, Moon PC, Webster NP, Burns DA. Effect of endodontic sealers on dowels luted with resin cement. J Prosthodont. 2000;9: 137-141.ArticlePubMed
- 4. Hagge MS, Wong RD, Lindemuth JS. Effect of three root canal sealers on the retentive strength of endodontic posts luted with a resin cement. Int Endod J. 2002;35: 372-378.PubMed
- 5. Peters O, Gohring TN, Lutz F. Effect of eugenol-containing sealer on marginal adaptation of dentin-bonded resin fillings. Int Endod J. 2000;33: 53-59.PubMed
- 6. Macchi RL, Capurro MA, Herrera CL, Cebada FR, Kohen S. Influence of endodontic materials on the bonding of composite resin to dentin. Endod Dent Traumatol. 1992;8: 26-29.PubMed
- 7. Woody TL, Davis RD. The effect of eugenol-containing and eugenol-free temporary cements on microleakage in resin bonded restorations. Oper Dent. 1992;17: 175-180.PubMed
- 8. Leirskar J, Nordbo H. The effect of zinc oxide-eugenol on the shear bond strength of a commonly used bonding system. Endod Dent Traumatol. 2000;16: 265-268.PubMed
- 9. Yap AUJ, Shah KC, Loh ET, Sim SS, Tan CC. Influence of eugenol-containing temporary restorations on bonding strength of composite to dentin. Oper Dent. 2001;26: 556-561.PubMed
- 10. Ganss C, Jung M. Effect of eugenol-containing temporary cements on bonding strength of composite to dentin. Oper Dent. 1998;23: 55-62.PubMed
- 11. Powell TL, Huget EF. Effects of cements and eugenol on properties of a visible light-cured composite. Pediatr Dent. 1993;16: 104-107.
- 12. Cohen BI, Volovich Y, Musikant BL, Deutsch AS. The effects of eugenol and epoxy-resin on the strength of a hybrid composite resin. J Endod. 2002;28(2):79-82.PubMed
- 13. McGuckin RS, Powers JM, Li L. Bond strengths of dentinal bonding systems to enamel and dentin. Quintessence Int. 1994;25: 791-796.PubMed
- 14. Lee SY, Suk JK, Kim KN. The physical properties of some root canal sealers. J Korea Res Soc Dent Mater. 1993;29: 133-139.
- 15. Nikaido T, Takano Y, Sasafuchi Y, Burrow MF, Tagami J. Bond strength to endodontically- treated teeth. Am J Dent. 1999;12: 177-180.PubMed
- 16. Bence R. Handbook of clinical endodontics. 1980;2nd ed. St. Louis: CV Mosby Comp; 163.
- 17. Ryu HW, Kim KO, Kim KO. Influence of light irradiation over self-priming adhesive on dentin bonding. J Korean Acad Conserv Dent. 2001;26: 409-417.
- 18. Lim CH, Lee YR, Jeong YH, Song JH, Park YJ. Study on the shear bond strength and dentin-adhesive interface microstructure by the type and application methods of dentin bonding agents. J Korea Res Soc Dent Mater. 2003;30: 69-85.
- 19. Dickens SH, Milos MF. Relationship of dentin shear bond strengths to different laboratory test designs. Am J Dent. 2002;15: 185-192.PubMed
- 20. Capurro MA, Herrera CL, Macchi RL. Influence of endodontic materials on the bonding of glass ionomer cement to dentin. Endod Dent Traumatol. 1993;9: 75-76.ArticlePubMed
- 21. Morris MD, Lee KW, Agee KA, Bouilaguet S, Pashley DH. Effects of sodium hypochlorite and RC-Prep on bond strength of resin cement to endodontic surfaces. J Endod. 2001;27: 753-757.PubMed
- 22. Chung HA, Titley K, Torneck CD, Lawrence HP, Friedman S. Adhesion of glass-ionomer cement sealers to bovine dentin conditioned with intracanal medications. J Endod. 2001;27: 85-88.ArticlePubMed
- 23. Mayhew JT, Windchy AM, Goldsmith LJ, Gettleman L. Effect of root canal sealers and irrigation agents on retention of preformed posts luted with a resin cement. J Endod. 2000;26: 341-344.ArticlePubMed
- 24. Ngoh EC, Pashley DH, Loushine RJ, Weller RN, Kimbrough WF. Effect of eugenol on resin bond strength to root canal dentin. J Endod. 2001;27: 411-414.PubMed
- 25. Al-Wazzan KA, Al-Harbi AA, Hammad IA. The effect of eugenol containing temporary cement on the bond strength of two resin composite core materials to dentin. J Prosthodont. 1997;6: 37-42.PubMed
- 26. Allan NA, Walton RC, Schaeffer MA. Setting times for endodontic sealers under clinical usage and in vitro conditions. J Endod. 2001;27: 421-423.ArticlePubMed
- 27. Al Wazzan KA. Effect of three endodontic materials on the bond strength of two composite core materials to dentin. J Prosthodont. 2002;11: 92-97.ArticlePubMed
REFERENCES
Tables & Figures
REFERENCES
Citations
Citations to this article as recorded by
ePub Link
Cite
XML DownloadThe influence of AH-26 and zinc oxide-eugenol root canal sealer on the shear bond strength of composite resin to dentin
Figure 1
Schematic diagram of the specimen for the shear bond test.

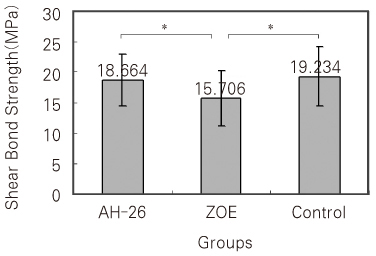

Figure 2
Shear bond strength of composite resin to dentin (Mean ± S.D.).
*Statistically significant (p < 0.05).
Figure 1
Figure 2
The influence of AH-26 and zinc oxide-eugenol root canal sealer on the shear bond strength of composite resin to dentin

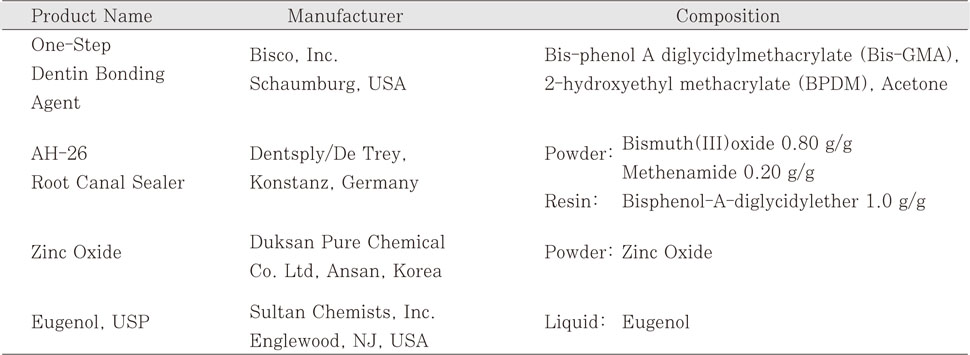

Composition of the materials used in the study
Table 1
Composition of the materials used in the study
