Figure 1

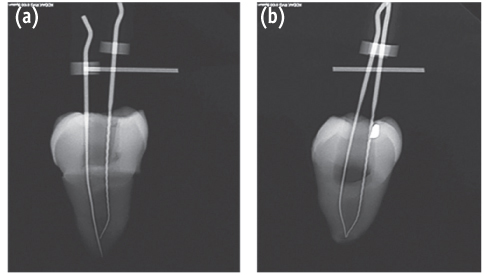

The proximal radiographic views of type II mesial canals of mandibular molar. (a) It shows type IIa mesial canals of mandibular molar; (b) It shows type IIb mesial canals of mandibular molar.

Figure 2

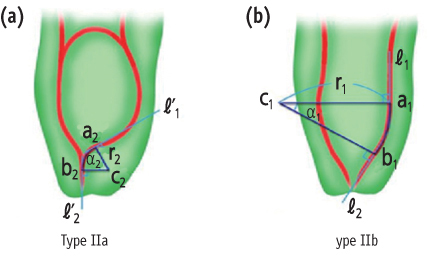

Technique used for determining the radius and angle of curvature in the proximal view. (a) Technique used for determining the radius and angle of curvature in type IIa mesial canals of mandibular molars; (b) Technique used for determining the radius and angle of curvature in type IIb mesial canals of mandibular molars. To determine these parameters, a straight line (l₁ or l'₁) is drawn along the long axis of coronal portion of the canal. A second line (l₂ or l'₂) is drawn along the long axis of the apical portion of the canal. There is a point on each of these lines at which the canal deviates to begin (point a₁ or a₂) or end (point b₁ or b₂) the canal curvature. The curved portion of the canal is represented by a sector with tangents at points a₁ (or a₂) and b₁ (or b₂). The angle of curvature (α₁ and α₂) is angle formed by perpendicular lines drawn from the points a₁ (or a₂) and b₁ (or b₂) that intersect at the center of sector (c₁ or c₂). The radius of curvature (γ₁ and γ₂) is the length of the radius of the sector measured in millimeters.

a₁ or a₂, a point on each of lines at which the canal deviates to begin; b₁ or b₂, a point on each of lines at which the canal deviates to end; c₁ or c₂, center of sector; l₁ or l'₁, line along the long axis of coronal portion of the canal; l₂ or l'₂, line along the long axis of the apical portion of the canal; α₁ and α₂, the angle of curvature; γ₁ and γ₂, the radius of curvature. This figure was partly modified with permission from the original one of Pruett et al.18

Figure 3

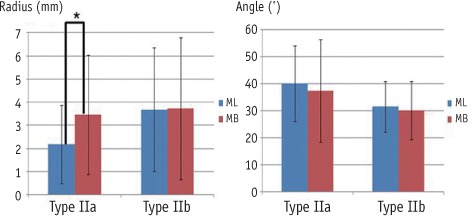

Radius and angle of curvature in Type IIa and IIb. In type IIa, radius of curvature of MLs were significantly smaller than MBs (p < 0.05). However, there were no statistically significant differences in radius of curvature between mesiobuccal and mesiolingual canals in type IIb and there were no significant differences in angle of curvature in type IIa, IIb.

ML, mesiolingual canal; MB, mesiobuccal canal.

^*A significant difference was found between radius of ML and MB (p < 0.05).

Table 1

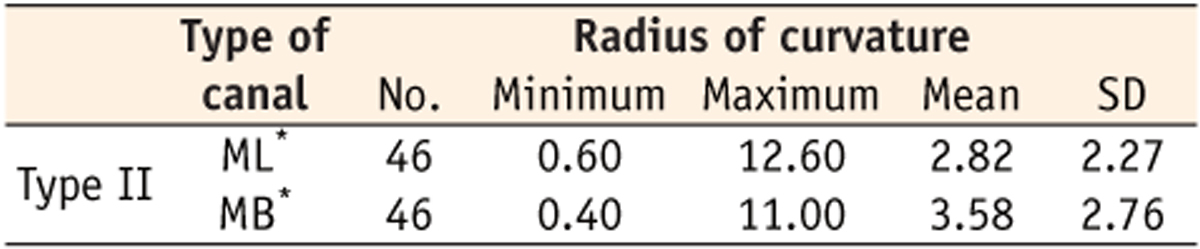

Mean radius (mm) ± SD of ML and MB canals in type II

ML, mesiolingual canal; MB, mesiobuccal canal; No, sample size; SD, standard deviation.

^*A significant difference was found between radius of ML and MB (p < 0.05).

Table 2

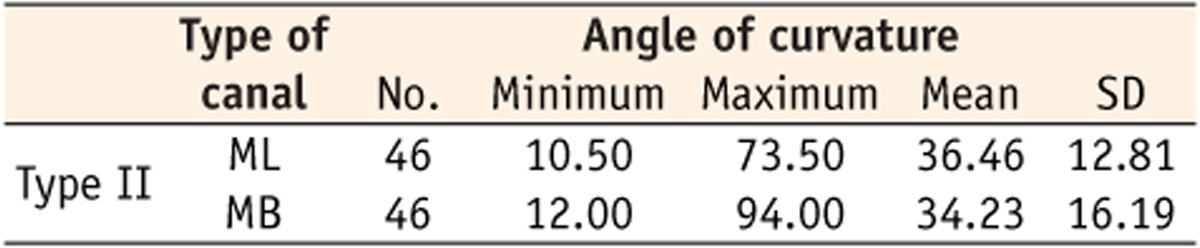

Mean angle (degree) ± SD of ML and MB canals in type II

ML, mesiolingual canal; MB, mesiobuccal canal; No, sample size; SD, standard deviation.

Table 3

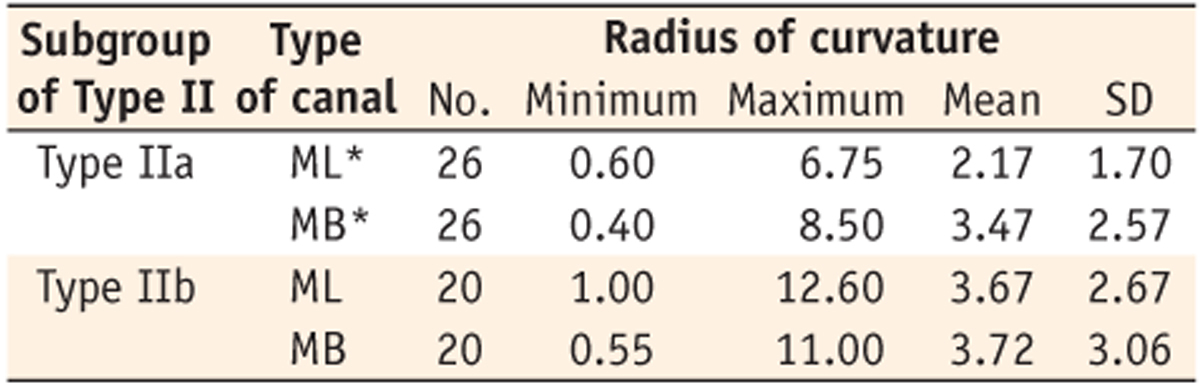

Mean radius (mm) ± SD of ML and MB canals in types IIa and IIb

ML, mesiolingual canal; MB, mesiobuccal canal; No, sample size; SD, standard deviation.

^*A significant difference was found between radius of ML and MB (p < 0.05).

Table 4

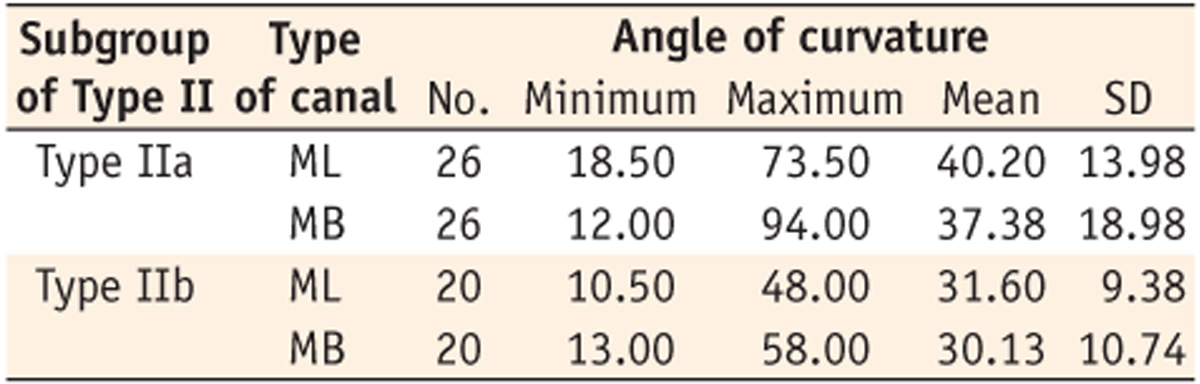

Mean angle (degree) ± SD of ML and MB canals in types IIa and IIb

ML, mesiolingual canal; MB, mesiobuccal canal; No, sample size; SD, standard deviation.

No potential conflict of interest relevant to this article was reported.

Figure 1

The proximal radiographic views of type II mesial canals of mandibular molar. (a) It shows type IIa mesial canals of mandibular molar; (b) It shows type IIb mesial canals of mandibular molar.

Figure 2

Technique used for determining the radius and angle of curvature in the proximal view. (a) Technique used for determining the radius and angle of curvature in type IIa mesial canals of mandibular molars; (b) Technique used for determining the radius and angle of curvature in type IIb mesial canals of mandibular molars. To determine these parameters, a straight line (l₁ or l'₁) is drawn along the long axis of coronal portion of the canal. A second line (l₂ or l'₂) is drawn along the long axis of the apical portion of the canal. There is a point on each of these lines at which the canal deviates to begin (point a₁ or a₂) or end (point b₁ or b₂) the canal curvature. The curved portion of the canal is represented by a sector with tangents at points a₁ (or a₂) and b₁ (or b₂). The angle of curvature (α₁ and α₂) is angle formed by perpendicular lines drawn from the points a₁ (or a₂) and b₁ (or b₂) that intersect at the center of sector (c₁ or c₂). The radius of curvature (γ₁ and γ₂) is the length of the radius of the sector measured in millimeters.

a₁ or a₂, a point on each of lines at which the canal deviates to begin; b₁ or b₂, a point on each of lines at which the canal deviates to end; c₁ or c₂, center of sector; l₁ or l'₁, line along the long axis of coronal portion of the canal; l₂ or l'₂, line along the long axis of the apical portion of the canal; α₁ and α₂, the angle of curvature; γ₁ and γ₂, the radius of curvature. This figure was partly modified with permission from the original one of Pruett et al.18

Figure 3

Radius and angle of curvature in Type IIa and IIb. In type IIa, radius of curvature of MLs were significantly smaller than MBs (p < 0.05). However, there were no statistically significant differences in radius of curvature between mesiobuccal and mesiolingual canals in type IIb and there were no significant differences in angle of curvature in type IIa, IIb.

ML, mesiolingual canal; MB, mesiobuccal canal.

^*A significant difference was found between radius of ML and MB (p < 0.05).

Table 1

Mean radius (mm) ± SD of ML and MB canals in type II

ML, mesiolingual canal; MB, mesiobuccal canal; No, sample size; SD, standard deviation.

^*A significant difference was found between radius of ML and MB (p < 0.05).

Table 2

Mean angle (degree) ± SD of ML and MB canals in type II

ML, mesiolingual canal; MB, mesiobuccal canal; No, sample size; SD, standard deviation.

Table 3

Mean radius (mm) ± SD of ML and MB canals in types IIa and IIb

ML, mesiolingual canal; MB, mesiobuccal canal; No, sample size; SD, standard deviation.

^*A significant difference was found between radius of ML and MB (p < 0.05).

Table 4

Mean angle (degree) ± SD of ML and MB canals in types IIa and IIb

ML, mesiolingual canal; MB, mesiobuccal canal; No, sample size; SD, standard deviation.
