- Case Report Successful nonsurgical treatment of type II dens invaginatus with 5 root canals using a self-adjusting file: a case report
-
George Táccio de Miranda Candeiro1
, Antônio Sérgio Teixeira de Menezes1, Ana Carolina Saldanha de Oliveira2, Flávio Rodrigues Ferreira Alves3,4 -
DOI: https://doi.org/10.5395/rde.2023.48.e17
Published online: April 27, 2023
1Postgraduate Program in Dental Sciences, University Center Christus, Fortaleza, CE, Brazil.
2Postgraduate Program in Dentistry, Estácio de Sá University, Rio de Janeiro, RJ, Brazil.
3Postgraduate Program in Dentistry, University of Grande Rio (UNIGRANRIO), Duque de Caxias, RJ, Brazil.
4Department of Endodontics and Dental Research Group, Iguaçu University (UNIG), Nova Iguaçu, RJ, Brazil.
- Correspondence to Flávio Rodrigues Ferreira Alves, PhD, DDS, MsC. Postgraduate Program in Dentistry, University of Grande Rio (UNIGRANRIO), Rua Professor José de Souza Herdy, 1160, Duque de Caxias, RJ 25071-202, Brazil. flavioferreiraalves@gmail.com
• Received: December 12, 2022 • Revised: January 26, 2023 • Accepted: February 22, 2023
Copyright © 2023. The Korean Academy of Conservative Dentistry
This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (https://creativecommons.org/licenses/by-nc/4.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.
- 18 Views
- 1 Download
Abstract
- The present report describes the endodontic treatment of an Oehlers type II dens invaginatus in a maxillary lateral incisor with 5 root canals, an extremely rare condition. Apical periodontitis and related symptoms were noted. Cone-beam computed tomography was used to aid the diagnosis, reveal tooth morphology, and assist in canal location. The pulp chamber was carefully accessed, and the root canals were explored under magnification. All root canals were prepared with an R25 Reciproc Blue system and sodium hypochlorite (NaOCl) irrigation. After initial preparation, a self-adjusting file (SAF) with NaOCl and ethylenediaminetetraacetic acid was used to complement the disinfection. Additionally, calcium hydroxide medication was applied. Vertical compaction was used to fill the canals with a calcium silicate-based endodontic sealer and gutta-percha. After 12 months, the patient exhibited healing of the periapical region, absence of symptoms, and normal dental function. In conclusion, this nonsurgical treatment protocol was successful in promoting the cure of apical periodontitis. Both complementary disinfection with an SAF and use of calcium hydroxide medication should be considered when choosing the best treatment approach for dens invaginatus with very complex anatomy.
INTRODUCTION
The anatomical complexity of the tooth influences the success of endodontic treatment, since access to and disinfection of the root canal system can be difficult [1,2]. Dens invaginatus is a dental anomaly characterized by the deepening of the enamel organ in the dental papilla during tooth formation, producing substantial variation in the root canal anatomy [3].
Several classifications exist for dens invaginatus, of which the Oehlers classification system is the most popular [4]. According to this system, in type I, enamel invagination is limited to the area of the dental crown, while in type II, invagination extends beyond the cementoenamel junction to the root. In type IIIa, enamel invagination reaches the apical region of the tooth, forming multiple apical foramina. The invagination communicates with the periodontal ligament via a lateral foramen. In type IIIb, the anatomy of the invagination and pulp resembles that of type IIIa; however, the invagination communicates with the periodontal ligament via an apical foramen.
The reported prevalence of dens invaginatus ranges from 0.04% to 10%, and most cases affect the permanent upper lateral incisors [5,6]. Teeth with dens invaginatus often become infected due to oral communication through the opening of the invagination, requiring endodontic treatment or extraction. Endodontic treatment of a tooth with dens invaginatus is a potentially complicated procedure [7].
To overcome the limitations of current instrumentation techniques, the self-adjusting file (SAF) system was introduced to the market. The SAF system consists of a single-use file manufactured from a nickel and titanium alloy, and it differs from rotary systems particularly in its innovative design, operational mode, and irrigation system. The system was designed to adapt to the cross-sectional shape of the root canal and is used by scraping the dentin with low-amplitude in-and-out movements [8].
Cone-beam computed tomography (CBCT) has been used to map the root canal morphology in a way that allows a 3-dimensional assessment of the external and internal anatomy. This feature is especially relevant to the detailed study of dens invaginatus configuration. In a comparison of CBCT images of extracted teeth with routine 2-dimensional radiographic images of the same specimens, the CBCT images consistently showed greater numbers of identified root canals [9].
In the present study, complementary disinfection strategies with an SAF and calcium hydroxide medication are reported for the nonsurgical endodontic treatment of an Oehlers type II dens invaginatus in a maxillary lateral incisor with 5 root canals.
CASE REPORT
This case report was written in compliance with the Preferred Reporting Items for Case Reports in Endodontics 2020 guidelines [10]. A 12-year-old normosystemic female patient presented to the Dentistry School Clinic of Centro Universitário Christus in Fortaleza, Brazil, reporting a history of edema and fistula in the upper right lateral incisor region. The patient’s previous dental history was noncontributory. A clinical examination revealed a groove in the cingulate region and a sinus tract that was tracked with a gutta-percha cone to the apical area of the referred tooth. An unusual volume of enamel was also observed on the palatal side of the crown (Figure 1). Informed consent was obtained from the patient’s parents for the present report.
A periapical radiograph revealed an area of periapical bone rarefaction and type II dens invaginatus (Figure 1). A medium-volume CBCT scan (iCat CBCT, Imaging Sciences International, Hatfield, PA, USA) was performed at 90 kVp and 4 mA. The imaging area was a 12-cm-high and 12-cm-diameter cylinder with 0.10-mm voxel reconstruction. Dens invaginatus and apical periodontitis were confirmed by CBCT (Figure 2). A pulp sensibility test with a cold stimulus using a cotton pellet and refrigerant gas (EndoFrost, Wilcos, Petrópolis, RJ, Brazil) was negative, but the patient reported pain during the apical palpation and vertical percussion. Asymptomatic apical periodontitis was diagnosed, and endodontic treatment was indicated.
First, anesthesia with 3% mepivacaine without vasoconstrictor (Dentsply Sirona, Charlotte, NC, USA) was applied. This substance was chosen to reduce the post-treatment anesthetic effect and to prevent the patient from biting her lips after the consultation. The patient’s parents had reported this occurring at other times. Next, coronal access was gained through the palatal region. Then, a rubber dam was applied, and initial root canal exploration was performed with a size 10 K-file (Dentsply Maillefer, Ballaigues, Switzerland). With a clinical microscope (Alliance, São Carlos, SP, Brazil), 5 root canals were located, one of which was the pseudo-canal associated with the invagination. The invagination was centrally positioned relative to the true root canals, which surrounded most of the invagination perimeter up to an extent in the root, as demonstrated in the access cavity (Figure 3). The 2 true canals in the mesiopalatal position had separate entrances, as did the 2 distopalatal canals. However, each pair was connected in the middle third of the root. All root canals, including the pseudo-canal, were fully accessed during the exploration from the opening to the apex.
Figure 3
Access cavity including both the true root canal and the invagination and root canal exploration (clinical and radiographic views).
The working lengths were confirmed with an electronic apex locator (from the VDW Gold motor, VDW, Munich, Germany), and root canal preparation was performed with a Reciproc Blue R25 instrument (VDW) for all canals using reciprocating movement (VDW Gold motor, VDW). Abundant irrigation with 2.5% sodium hypochlorite (NaOCl, Biodinâmica, São Paulo, SP, Brazil) was performed during root canal preparation, delivered with a 30-G NaviTip needle (UltraDent, Salt Lake City, UT, USA). Furthermore, each canal was irrigated with 17% ethylenediaminetetraacetic acid (EDTA, Biodinâmica) for 3 minutes to facilitate dentinal debris removal. Afterward, a 1.5-mm SAF system (ReDent Nova, Tel Aviv, Israel) was used to complement the root canal disinfection. The SAF instrument was operated with an in-and-out motion to the working length for 1 minute of activation under continuous irrigation with 2.5% NaOCl (flow rate of 5 mL/min, VATEA, ReDent Nova). This procedure was repeated 2 more times, for a total of 3 cycles. Each pair of true canals (2 mesiobuccal and 2 distobuccal) was united during treatment. The canals were washed with 17% EDTA for 3 minutes and dried with paper points. Intracanal medication containing calcium hydroxide (UltraCal, UltraDent) was inserted into the canals, and a periapical radiograph confirmed adequate filling. The crown was provisionally sealed with glass ionomer cement (Biodinâmica).
After 15 days, the patient reported no symptoms, and the sinus tract disappeared. The intracanal medication was removed with NaOCl and EDTA, and the SAF approach was repeated as described previously. The root canals were dried and filled with gutta-percha and bioceramic sealer (EndoSequence BC Sealer, Brasseler, Savannah, GA, USA) using vertical compaction. Permanent coronal restoration was immediately performed with composite resin (Z250, 3M, São Paulo, SP, Brazil) (Figure 4). After 2 years, the patient remained asymptomatic, and the tooth presented normal aesthetic and masticatory functions. Additionally, the periapical lesion was completely healed, as confirmed radiographically (Figure 5).
DISCUSSION
The number and morphology of root canals in dens invaginatus are highly unpredictable and variable. A rare and very complex root canal morphology, with 5 root canals, was observed in the present case. Using CBCT, Capar et al. [11] studied the prevalence of each Oehlers type of dens invaginatus and concluded that type I was the most common (65.9%), type II was found in only 29.5% of cases, and type III was the least common (4.6%) and the most difficult to treat. Those authors also recommended using CBCT to accurately study the anatomy of the dens invaginatus and determine the best treatment approach.
Several treatment options exist for dens invaginatus, depending on its complexity and the pulp diagnosis. In less complex cases, prophylactic sealing of the invagination and constant monitoring are necessary, as in type I dens invaginatus with vital pulp. Endodontic treatment is necessary if the invagination communicates with the root canal with signs of pulp involvement, as in dens invaginatus types II and III. In rare cases, the invagination does not communicate with the root canal, and the sealing of the invagination and the preservation of pulp vitality can be considered [12,13].
The SAF system is highly effective in that it leaves considerably fewer untouched canal areas than conventional rotary or reciprocating systems [14,15]. Two main factors justify this difference. First, the SAF is a hollow, flexible file that adapts 3-dimensionally to the root canal shape. This property is beneficial in flat or oval root canals [15,16]. Second, the system allows continuous and simultaneous irrigation of the root canal throughout the procedure, with additional activation of the irrigant by its vibrating movement. These aspects facilitate better cleaning of the root canal, especially in areas difficult to access with the irrigant [17]. Given the anatomical complexity of the present case, the SAF was used as a complement to root canal disinfection. A previous study also reported the successful endodontic treatment of an Oehlers type III dens invaginatus using the SAF system in a complementary procedure [12]. The main differences between the studies are that in the prior study, the affected tooth was the maxillary central incisor, and the EndoVac System was used as another complementary step. Additionally, intracanal medication seems to have exerted a decisive role in the present case.
As it remains inside the root canal for a relatively long time, intracanal medication with antibacterial action can reach areas unaffected by instrumentation, contributing to maximum microbial reduction and consequently to the repair of periradicular tissues [18,19,20]. Previous studies corroborate the present findings regarding the use of calcium hydroxide as a complementary disinfecting strategy to treat apical periodontitis of teeth with type II dens invaginatus [21,22,23]. For instance, a recent case series demonstrated the successful treatment of 4 patients with dens invaginatus type II using calcium hydroxide. However, no study has presented 5 root canals, as reported in the present case [21]. Another interesting aspect of these studies is the periapical lesion size, which was relatively large in most cases, including the present study. This fact reinforces the antimicrobial potential of calcium hydroxide, since large lesions usually harbor more microorganisms than small lesions [24,25].
CBCT and the operating microscope played a crucial role in the successful management of the aberrant anatomy of the present case. While CBCT helped us better understand the tooth morphology, the surgical microscope enabled more accurate and safe treatment, as demonstrated in previous reports. Nosrat and Schneider [3] reported the success of nonsurgical endodontic treatment of a type IIIb dens invaginatus with 4 root canals using a similar microscope. Agrawal et al. [26] also succeeded in nonsurgical endodontic treatment of a mandibular second premolar with type III dens invaginatus using CBCT for treatment planning.
The strengths and limitations of single reports, such as the present one, should be emphasized. Primary benefits include novelty detection, hypothesis generation, pharmacovigilance, and applicability when other research designs are not feasible. However, the retrospective nature and the inability to establish a cause-and-effect relationship are important limitations. Given these aspects, the present findings cannot be guaranteed in other situations.
CONCLUSIONS
The SAF system and intracanal medication with calcium hydroxide should be considered when choosing the best treatment approach for dens invaginatus with very complex anatomy.
-
Funding: This study was supported by grants from Fundação Carlos Chagas Filho de Amparo à Pesquisa do Estado do Rio de Janeiro (FAPERJ) and Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq).
-
Conflict of Interest: No potential conflict of interest relevant to this article was reported.
-
Author Contributions:
ARTICLE INFORMATION
- 1. Wolcott J, Ishley D, Kennedy W, Johnson S, Minnich S, Meyers J. A 5 yr clinical investigation of second mesiobuccal canals in endodontically treated and retreated maxillary molars. J Endod 2005;31:262-264. ArticlePubMed
- 2. Song M, Kim HC, Lee W, Kim E. Analysis of the cause of failure in nonsurgical endodontic treatment by microscopic inspection during endodontic microsurgery. J Endod 2011;37:1516-1519. PubMed
- 3. Nosrat A, Schneider SC. Endodontic management of a maxillary lateral incisor with 4 root canals and a dens invaginatus tract. J Endod 2015;41:1167-1171. ArticlePubMed
- 4. Oehlers FA. Dens invaginatus (dilated composite odontome). I. Variations of the invagination process and associated anterior crown forms. Oral Surg Oral Med Oral Pathol 1957;10:1204-1218 contd. PubMed
- 5. Rotstein I, Stabholz A, Heling I, Friedman S. Clinical considerations in the treatment of dens invaginatus. Endod Dent Traumatol 1987;3:249-254. ArticlePubMed
- 6. Gonçalves A, Gonçalves M, Oliveira DP, Gonçalves N. Dens invaginatus type III: report of a case and 10-year radiographic follow-up. Int Endod J 2002;35:873-879. PubMed
- 7. Alani A, Bishop K. Dens invaginatus. Part 1: classification, prevalence and aetiology. Int Endod J 2008;41:1123-1136. ArticlePubMed
- 8. Metzger Z, Teperovich E, Zary R, Cohen R, Hof R. The self-adjusting file (SAF). Part 1: respecting the root canal anatomy--a new concept of endodontic files and its implementation. J Endod 2010;36:679-690. PubMed
- 9. Matherne RP, Angelopoulos C, Kulild JC, Tira D. Use of cone-beam computed tomography to identify root canal systems in vitro . J Endod 2008;34:87-89. PubMed
- 10. Nagendrababu V, Chong BS, McCabe P, Shah PK, Priya E, Jayaraman J, Pulikkotil SJ, Setzer FC, Sunde PT, Dummer PM. PRICE 2020 guidelines for reporting case reports in endodontics: a consensus-based development. Int Endod J 2020;53:619-626. PubMed
- 11. Capar ID, Ertas H, Arslan H, Tarim Ertas E. A retrospective comparative study of cone-beam computed tomography versus rendered panoramic images in identifying the presence, types, and characteristics of dens invaginatus in a Turkish population. J Endod 2015;41:473-478. ArticlePubMed
- 12. Koteeswaran V, Chandrasekaran S, Natanasabapathy V. Endodontic management of double dens invaginatus in maxillary central incisor. J Conserv Dent 2018;21:574-577. PMC
- 13. Bishop K, Alani A. Dens invaginatus. Part 2: clinical, radiographic features and management options. Int Endod J 2008;41:1137-1154. PubMed
- 14. Metzger Z. The self-adjusting file (SAF) system: an evidence-based update. J Conserv Dent 2014;17:401-419. PubMedPMC
- 15. Siqueira JF Jr, Alves FR, Almeida BM, de Oliveira JC, Rôças IN. Ability of chemomechanical preparation with either rotary instruments or self-adjusting file to disinfect oval-shaped root canals. J Endod 2010;36:1860-1865. ArticlePubMed
- 16. Paqué F, Peters OA. Micro-computed tomography evaluation of the preparation of long oval root canals in mandibular molars with the self-adjusting file. J Endod 2011;37:517-521. ArticlePubMed
- 17. Metzger Z, Teperovich E, Cohen R, Zary R, Paqué F, Hülsmann M. The self-adjusting file (SAF). Part 3: removal of debris and smear layer-a scanning electron microscope study. J Endod 2010;36:697-702. ArticlePubMed
- 18. Rôças IN, Provenzano JC, Neves MS, Alves FR, Gonçalves LS, Siqueira JF Jr. Effects of calcium hydroxide paste in different vehicles on bacterial reduction during treatment of teeth with apical periodontitis. J Endod 2023;49:55-61. PubMed
- 19. Vera J, Siqueira JF Jr, Ricucci D, Loghin S, Fernández N, Flores B, Cruz AG. One- versus two-visit endodontic treatment of teeth with apical periodontitis: a histobacteriologic study. J Endod 2012;38:1040-1052. ArticlePubMed
- 20. Leonardo MR, Almeida WA, Ito IY, da Silva LA. Radiographic and microbiologic evaluation of posttreatment apical and periapical repair of root canals of dogs’ teeth with experimentally induced chronic lesion. Oral Surg Oral Med Oral Pathol 1994;78:232-238. ArticlePubMed
- 21. Hernández SR, Pérez AR, Baasch AC, Brisson-Suárez K, Sellera DP, Ferrari PH, Alberdi JC, Carreira CM, Gomes-Azevedo S, Alves FR, Rôças IN, Siqueira JF Jr. Management of teeth with dens invaginatus and apical periodontitis: a case series. J Am Dent Assoc 2022;153:470-478. PubMed
- 22. De Rossi A, Carvalho FK, Queiróz AM, Silva RA, Nelson-Filho P, Silva LA. The treatment of a maxillary lateral incisor with unusual morphology with long-term follow-up. Int Endod J 2013;46:1183-1190. PubMed
- 23. Jaramillo A, Fernández R, Villa P. Endodontic treatment of dens invaginatus: a 5-year follow-up. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 2006;101:e15-e21. ArticlePubMed
- 24. Sundqvist G, Figdor D, Persson S, Sjögren U. Microbiologic analysis of teeth with failed endodontic treatment and the outcome of conservative re-treatment. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 1998;85:86-93. ArticlePubMed
- 25. Ricucci D, Siqueira JF Jr. Biofilms and apical periodontitis: study of prevalence and association with clinical and histopathologic findings. J Endod 2010;36:1277-1288. ArticlePubMed
- 26. Agrawal PK, Wankhade J, Warhadpande M. A Rare case of type III dens invaginatus in a mandibular second premolar and its nonsurgical endodontic management by using cone-beam computed tomography: a case report. J Endod 2016;42:669-672. PubMed
REFERENCES
Tables & Figures
REFERENCES
Citations
Citations to this article as recorded by
ePub Link
Cite
XML DownloadSuccessful nonsurgical treatment of type II dens invaginatus with 5 root canals using a self-adjusting file: a case report
Figure 1 Clinical aspect of the tooth crown and initial radiographic image.

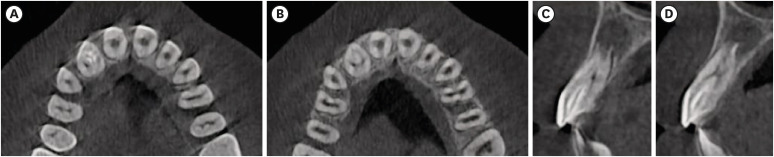

Figure 2 Cone-beam computed tomographic images.
