Effectiveness of customized master cone on apical sealing in various apical size of prepared root canals

Hye-Young Hong; Ho-Young Choi; Gi-Woon Choi

doi:10.5395/JKACD.2002.27.1.066

Articles

Page Path: HOME > Restor Dent Endod > Volume 27(1); 2002 > Article

Original Article Effectiveness of customized master cone on apical sealing in various apical size of prepared root canals: Hye-Young Hong, Ho-Young Choi, Gi-Woon Choi; Journal of Korean Academy of Conservative Dentistry 2002;27(1):66-76.
DOI: https://doi.org/10.5395/JKACD.2002.27.1.066
Published online: January 31, 2002

Department of Conservative Dentistry, College of Dentistry, KyungHee University, Korea.

19 Views
0 Download

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

The purpose of this study is to evaluate the effectiveness of customized master cone on apical sealing in various apical size of prepared root canals, that is MAF(Master Apical File) and to know at which apical size the apical leakage is to be significantly reduced using customized master cone.

120 extracted single rooted premolars were divided into four groups according to their apical size(MAF), #30, 40, 50 and 60. And then, each group was subdivided into three in accordance with three obturation methods, lateral condensation with standardized master cone, lateral condensation with chloroform-dipped customized master cone, and continuous wave of obturation technique.

Resorcinol-formaldehyde resin was used for the microleakage test of this study. Teeth were sectioned horizontally at 1.5mm(Level 1), 2.5mm(Level 2), and 3.5mm(Level 3) from the anatomical root apex using low speed microtome. All sections were examined under ×40 magnification with a stereomicroscope, photographed, and then scanned. With the scanned images, resin-infiltrated area presenting the microleakage was calculated using SigmaScan/Image, and the ratio of leakage to the total root canal area of each group was analyzed statistically(one way ANOVA).

The results were as follows;

1. In groups of MAF #30, there was no significant difference of mean leakage ratio among three obturation methods at all three levels.

2. In groups of MAF #40, the group using lateral condensation with customized master cone had the lowest mean leakage ratio at all three levels, but there was no significant difference among three obturation techniques.

3. In groups of MAF #50, the mean leakage ratio of the group using lateral condensation with standard master cone was the highest among those of three obturation techniques at level 1, and this difference was statistically significant(p<0.05).

4. In groups of MAF #60, the groups using lateral condensation with standard master cone had also the highest mean leakage ratio at all levels, but there was no significant difference at level 1 and 2. At level 3, the leakage of the group using lateral condensation with standard master cone was significantly higher than that of the group using continuous wave of obturation(p<0.05).

The results of this study suggested that the obturation method using customized master cone or the continuous wave of obturation is more effective for apical sealing than that using standardized master cone when MAF is larger than #50.

REFERENCES

1. Schilder H. Cleaning and shaping the root canal. Dent Clin North Am. 1974;18: 269.PubMed
2. Dow PR, Ingle JI. Isotope determination of root canal failure. Oral Surg Oral Med Oral Pathol. 1955;8: 1100-1104.Article PubMed
3. Wein FS. Endodontic Therapy. 1996;5th ed. Mosby; 14. 317. 435-436.
4. Callahan JR. Rosin solution for the sealing of the dentinal tubuli and as an adjuvant in filling the root canals. J Allied Dent Soc. 1914;9: 53.
5. Wong M, Peters DD, Lorton L, Bernier EN. Comparison of gutta-percha filling techniques: three chloroform gutta-percha filling techniques Part 2. J Endod. 1982;8: 4-9.Article PubMed
6. Morse DR, Martell B, Pike GC, Fantasia J, Esposito JV, Furst LM. A Comparative Tissue Toxicity Evaluation of Gutta-Percha Root Canal Sealers. Part I. Six-hour Findings. J Endod. 1984;10: 246-249.Article PubMed
7. Barbosa SV, Burkard DH, Spångberg LSW. Cytotoxic Effects of Gutta-percha Solvents. J Endod. 1994;20: 6-8.Article PubMed
8. Beatty RG, Zakariasen KL. Apical leakage associated with three obturation techniques in large and small root canals. Int Endod J. 1984;17: 67-72.Article PubMed
9. Gutmann JL, Witherspoon DE. In: Cohen S, Burns RC, editors. Obturation of the Cleaned and Shaped Root Canal System. Pathways of the pulp. 1998;7th ed. Mosby; 258-259. 327.
10. Buchanan LS. The continuous wave of obturation technique: 'Centered' condensation of warm gutta-percha in 12 seconds. Dent Today. 1996 Jan;15: 60-62. 64-67.
11. Narracott P. An in vitro comparison of the single cone and lateral condensation techniques using 'friction-fitted' and 'solvent dip-fitted' primary gutta-percha cones. Aust Dent J. 1989;34: 49-51.Article PubMed
12. Metzger Z, Nissan R, Tagger M, Tamse A. Apical Seal by Customized versus Standardized Master Cones: A Comparative Study in Flat and Round Canals. J Endod. 1988;14: 381-384.Article PubMed
13. Christie WH, Peikoff MD. Direct impression technique; Sealing prepared apical foramen. J Can Dent Assoc. 1980;3: 174-180.
14. Zakariasen KL, Stadem PS. Microleakage associated with modified eucapercha and chloropercha root-canal-filling techniques. Int Endod J. 1982;15: 67-70.Article PubMed
15. Keane KM, Harrington GW. The Use of Chloroform-softened Gutta-percha Master Cone and Its Effect on the Apical Seal. J Endod. 1984;10: 57-63.PubMed
16. Metzger Z, Assif O, Tamse A. Residual Chloroform and Plasticity in Customized Gutta-percha Master Cones. J Endod. 1998;14: 546-549.Article PubMed
17. West JD, Roane JB. In: Cohen S, Burns RC, editors. Cleaning and Shaping the Root Canal System. Pathways of the pulp. 1998;7th ed. Mosby; 232.
18. Luiten DJ, Morgan LA, Baumgartner JC, Marshall JG. A Comparison of Four Instrumentation Techniques on Apical Canal Transportation. J Endod. 1995;21: 26-32.Article PubMed
19. Christie WH, Peikoff MD. Conservative treatment of apical foramen; New root canal techniques. J Can Dent Assoc. 1980;46: 183-188.PubMed
20. Shin JH, Choi HY, Park SJ, Choi KK, Choi KW. A study on the apical sealing of obturation techniques in large apical foramen. Kyung Hee Dent J. 1999;21: 1-16.
21. Ingle JI, West JD. In: Ingle JI, Bakland LK, editors. Obturation of the radicular space. Endodontics. 1994;4th ed. A Lea & Febiger Book; 266.
22. Schilder H. Filling root canals in three dimensions. Dent Clin North Am. 1967;11: 723-744.Article
23. Jerome CE. Warm Vertical Gutta-percha Obturation: A Technique Update. J Endod. 1994;20: 97-99.Article PubMed

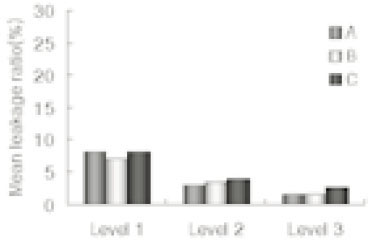

Fig. 1

Mean leakage ratio(%) at 3 Levels (MAF #30)

A: Lateral condensation with standard master cone

B: Lateral condensation with customized master cone

C: Continuous wave of obturation

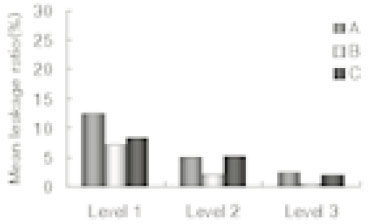

Fig. 2

Mean leakage ratio(%) at 3 Levels (MAF #40)

A: Lateral condensation with standard master cone

B: Lateral condensation with customized master cone

C: Continuous wave of obturation

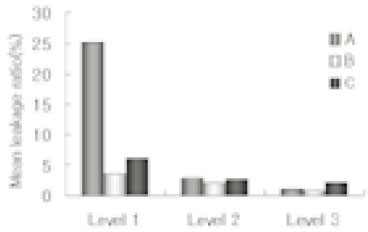

Fig. 3

Mean leakage ratio(%) at 3 Levels (MAF #50)

A: Lateral condensation with standard master cone

B: Lateral condensation with customized master cone

C: Continuous wave of obturation

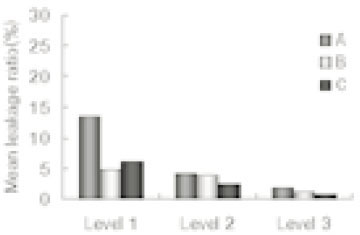

Fig. 4

Mean leakage ratio(%) at 3 Levels (MAF #60)

A: Lateral condensation with standard master cone

B: Lateral condensation with customized master cone

C: Continuous wave of obturation

Fig. 5

Representative photograph of the group using lateral condensation with standard master cone at MAF #30, Level 1 (×40).

Fig. 6

Representative photograph of the group using lateral condensation with customized master cone at MAF #30, Level 1 (×40).

Fig. 7

Representative photograph of the group using continuous wave of obturation at MAF #30, Level 1 (× 40).

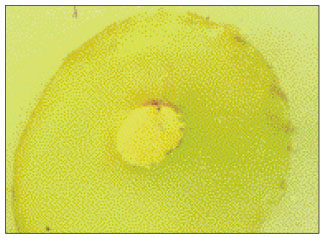

Fig. 8

Representative photograph of the group using lateral condensation with standard master cone at MAF #40, Level 1 (×40).

Fig. 9

Representative photograph of the group using lateral condensation with customized master cone at MAF #40, Level 1 (×40).

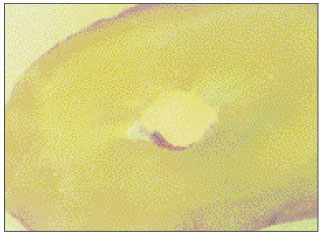

Fig. 10

Representative photograph of the group using continuous wave of obturation at MAF #40, Level 1 (× 40).

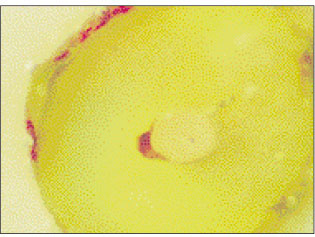

Fig. 11

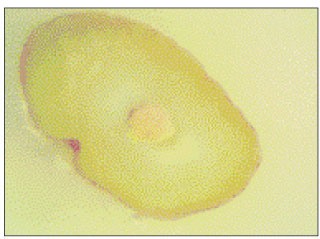

Representative photograph of the group using lateral condensation with standard master cone at MAF #50, Level 1 (×40).

Fig. 12

Representative photograph of the group using lateral condensation with master cone at MAF #50, Level 1 (×40).

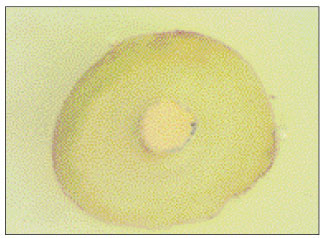

Fig. 13

Representative photograph of the group using continuous wave of obturation at MAF #50, Level 1 (× 40).

Fig. 14

Representative photograph of the group using lateral condensation with standard master cone at MAF #60, Level 1 (×40).

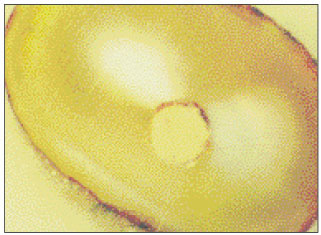

Fig. 15

Representative photograph of the group using lateral condensation with customized master cone at MAF #60, Level 1 (×40).

Fig. 16

Representative photograph of the group using continuous wave of obturation at MAF #60, Level 1 (× 40).

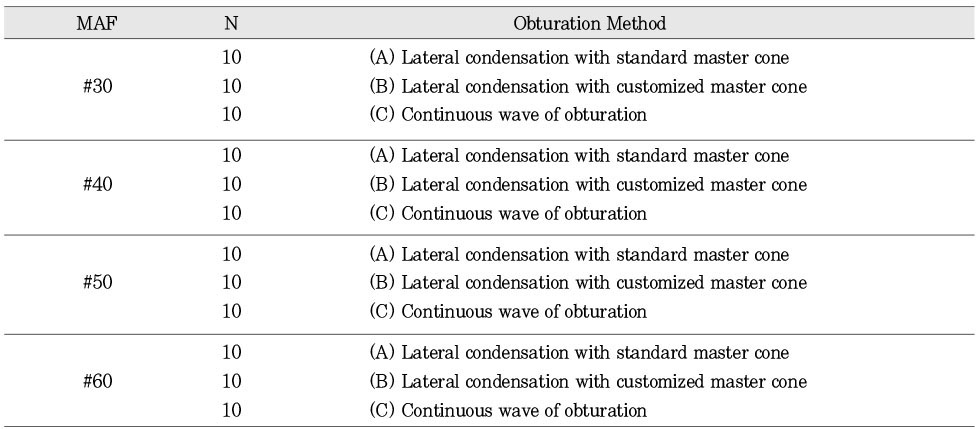

Table 1

Classification of Experimental Groups

^*MAF;Master Apical File

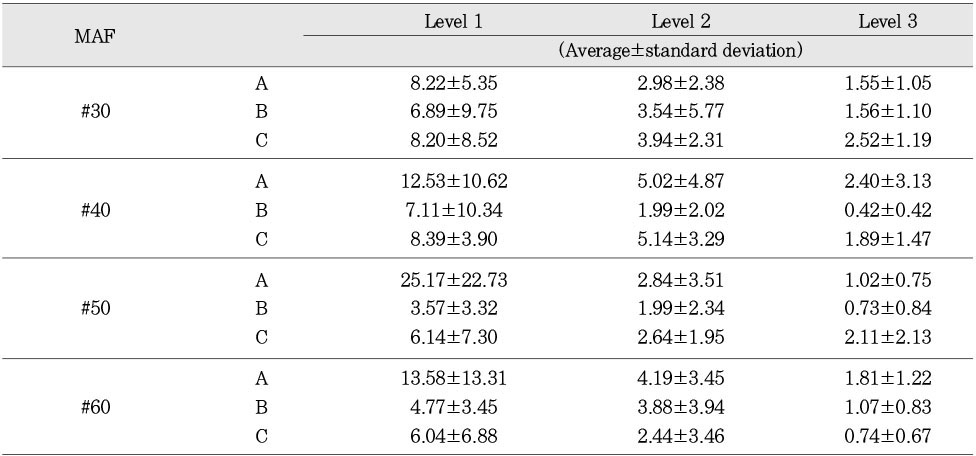

Table 2

Mean leakage ratio (%) at 3 Levels

A: Lateral condensation with standard master cone

B: Lateral condensation with customized master cone

C: Continuous wave of obturation

Level 1: 1.5mm from the apex, Level 2: 2.5mm from the apex, Level 3: 3.5mm from the apex

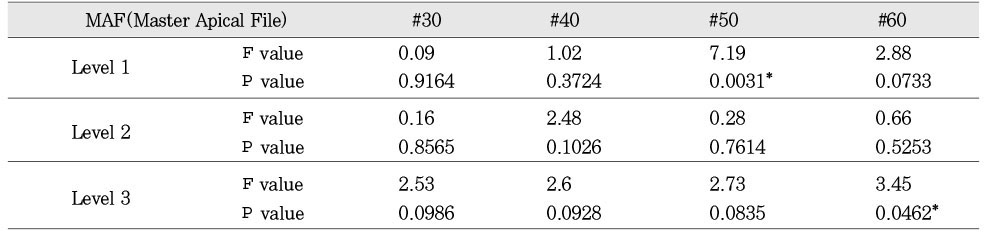

Table 3

Statistical analysis of mean leakage ratio(%) in experimental groups

^*statistically significant at P<0.05

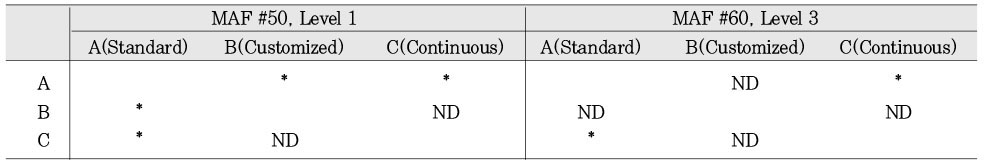

Table 4

Statistical analysis of mean leakage ratio(%) between groups:Newman-Keuls multiple comparisons test

^*statistically significant at P<0.05

ND; no statistical difference
