Effect of calcium hydroxide on bond strength of dentin bonding systems

No-Hoon Park; Sang-Hyuk Park; Gi-Woon Choi; Sang-Jin Park

doi:10.5395/JKACD.2007.32.3.198

Articles

Page Path: HOME > Restor Dent Endod > Volume 32(3); 2007 > Article

Original Article Effect of calcium hydroxide on bond strength of dentin bonding systems: No-Hoon Park, Sang-Hyuk Park, Gi-Woon Choi, Sang-Jin Park; Journal of Korean Academy of Conservative Dentistry 2007;32(3):198-207.
DOI: https://doi.org/10.5395/JKACD.2007.32.3.198
Published online: May 31, 2007

Department of Conservative Dentistry, Division of Dentistry, Graduate of Kyung Hee University, Korea.

Corresponding Author: Sang-Jin Park. Department of Conservative Dentistry, Division of Dentistry, Graduate of Kyung Hee University, 1, Hoegi Dong, Dongdaemun Gu, Seoul, Korea, 130-702. Tel: 82-2-958-9335, psangjin@khu.ac.kr

• Received: March 21, 2007 • Revised: April 4, 2007 • Accepted: April 10, 2007

16 Views
0 Download

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

The purpose of this study was to investigate the effect of calcium hydroxide on dentin bonding strength of various dentin bonding systems as a function of time in composite resin restoration.

Dentin adhesives used in this study were Scotchbond Multipurpose, Single Bond, SE Bond and Prompt L-Pop. Flat dentin surfaces adjacent to pulp chamber were created, then Ca(OH)₂ and saline were mixed and applied on dentin surface of experimental group, then IRM was used to cover the mixture on dentin surface and the specimens were stored at 36.5℃ for experiment period (7 days, 30 days). After removing IRM and Ca(OH)₂, each dentin adhesives were treated on dentin surfaces.

Composite resin (Z-250, 3M) was placed with 5 mm height and was light-cured for 20 seconds. After stored in distilled water for 24 hours, each dentin-composite bonded spicemen was embedded in epoxy resin and sectioned into 1.0 × 1.0 mm² cross section composite-dentin beams. Specimen was mounted on zig of Universal testing machine and µTBS test was performed. SEM analysis was performed to examine the fractured surfaces.

The results suggested that applying calcium hydroxide did not show significant difference in dentin bonding strength.
Keywords: Calcium hydroxide; Dentin bonding systems; Composite resin restoration; Dentin bonding strength; µTBS test; SEM analysis

REFERENCES

1. Orstavik D. Antibacterial properties of endodontic materials. Int Endod J. 1988;21: 161-169.Article PubMed
2. Chong BS, Pitt Ford TR. The role of intracanal medication in root canal treatment. Int Endod J. 1992;25(2):97-106.Article PubMed
3. Unemori M, et al. Composite resin restoration and postoperative sensitivity: clinical follow-up in an undergraduate program. J Dent. 2001;29(1):7-13.Article PubMed
4. Ulusu T, et al. Comparison of the effect of insertion techniques of a resin composite on dentinal adaptation of two visible light-cured bases: direct evaluation versus a replica technique. Quintessence Int. 1996;27(1):63-68.PubMed
5. Cox CF, Suzuki S. Re-evaluating pulp protection: calcium hydroxide liners vs. cohesive hybridization. J Am Dent Assoc. 1994;125(7):823-831.Article PubMed
6. Suliman AA, Chan KC. Microleakage between different types of base materials. J Prosthet Dent. 1992;67(2):153-156.Article PubMed
7. Staehle HJ, et al. The marginal sealing of composite inlays with different cavity liners. Schweiz Monatsschr Zahnmed. 1992;102(10):1189-1194.PubMed
8. Fitzgerald M, Heys RJ. A clinical and histological evaluation of conservative pulpal therapy in human teeth. Oper Dent. 1991;16(3):101-112.PubMed
9. Papadakou M, et al. Adaptation of two different calcium hydroxide bases under a composite restoration. J Dent. 1990;18(5):276-280.Article PubMed
10. Peliz MI, et al. Scanning electron microscope analysis of internal adaptation of materials used for pulp protection under composite resin restorations. J Esthet Restor Dent. 2005;17(2):118-128.Article PubMed
11. Ersin NK, Eronat N. The comparison of a dentin adhesive with calcium hydroxide as a pulp-capping agent on the exposed pulps of human and sheep teeth. Quintessence Int. 2005;36(4):271-280.PubMed
12. Subay RK, Demirci M. Pulp tissue reactions to a dentin bonding agent as a direct capping agent. J Endod. 2005;31(3):201-204.Article PubMed
13. Scarano A, et al. A Direct capping with four different materials in humans: histological analysis of odontoblast activity. J Endod. 2003;29(11):729-734.PubMed
14. Cox CF, et al. Biocompatibility of surface-sealed dental materials against exposed pulps. J Prosthet Dent. 1987;57(1):1-8.Article PubMed
15. Foreman PC, Barnes IE. A review of calcium hydroxide.. Int Endod J. 1990;23: 283-297.PubMed
16. Eidelman E, et al. Remineralization of carious dentin treated with calcium hydroxide. J Dent Child. 1965;32(4):218-225.PubMed
17. Kehoe JC. pH reversal following in vitro bleaching of pulpless teeth. J Endod. 1987;13(1):6-9.Article PubMed
18. de Oliveira LD, et al. Sealing evaluation of the cervical base in intracoronal bleaching. Dent Traumatol. 2003;19(6):309-313.Article PubMed
19. Lambrianidis T, et al. Effect of calcium hydroxide as a supplementary barrier in the radicular penetration of hydrogen peroxide during intracoronal bleaching in vitro. Int Endod J. 2002;35(12):985-990.Article PubMed
20. Andreasen JO, Kristerson L. The effect of extra-alveolar root filling with calcium hydroxide on periodontal healing after replantation of permanent incisors in monkeys. J Endod. 1981;7(8):349-354.Article PubMed
21. Chung HA, et al. Adhesion of glass-ionomer cement sealers to bovine dentin conditioned with intracanal medications. J Endod. 2001;27(2):85-88.Article PubMed
22. Windley W III, et al. The effect short-term calciun hydroxide treatment on dentin bond strength to composite resin. Dent Traumatol. 2003;19(2):79-84.PubMed
23. Shono Y, et al. Regional measurement of resin-dentin bonding as an array. J Dent Res. 1999;78(2):699-705.PubMed
24. Tay FR, Pashley DH. Aggressiveness of contemporary self-etching systems. I: Depth of penetration beyond dentin smear layers. Dent Mater. 2001;17(4):296-308.PubMed
25. Jang YI, Choi KK, Park SJ. Compatibility between two step self-etching adhesives and composites with different curing mode. J Korean Acad Conserv Dent. 2006;31: (in process).
26. Tanumiharja M, et al. Microtensile bond strengths of seven dentin adhesive systems. Dent Mater. 2000;16: 180-187.Article PubMed
27. Andreasen JO, Kristenson L. Long-term calcium hydroxide as a root canal dressing may increase risk of root fracture. Dent Traumatol. 2002;18: 134-137.Article PubMed PDF
28. Pioch T, et al. The nanoleakage phenomenon: influence of moist vs dry bonding. J Adhes Dent. 2002;4: 23-30.PubMed
29. Swift EJ Jr. Dentin bonding: what is the state of the art? Compend Contin Educ Dent. 2001;22: 12 Suppl. 4-7 quiz 18.
30. Perdigao J. Dentin bonding as a function of dentin structure. Dent Clin North Am. 2002;46: 277-301.Article PubMed

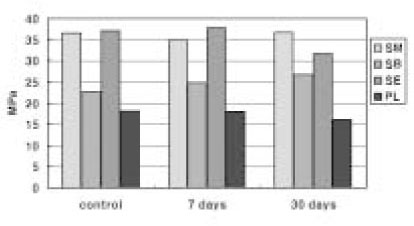

Figure 2

Micro-tensile bond strength of 12 experimental groups.

Figure 3

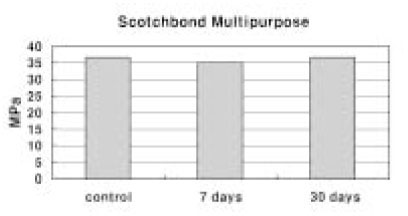

Micro-tensile bond strength in group of SM.

Figure 4

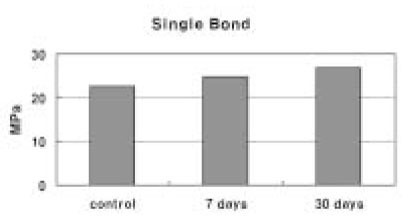

Micro-tensile bond strength in group of SB.

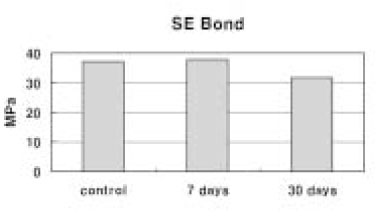

Figure 5

Micro-tensile bond strength in group of SE.

Figure 6

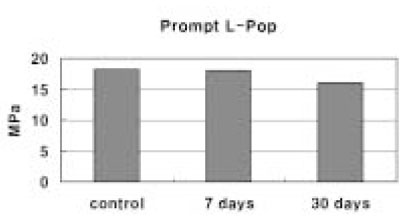

Micro-tensile bond strength in group of PL.

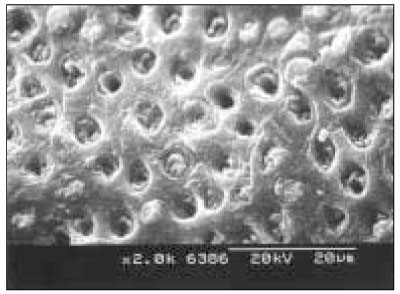

Figure 7

SEM photograph of the fractured surface of SM/C group, showing cohesive failure. The failure occurred at the bottom of the hybrid layer and there are resin tags in the dentinal tubules that fractured at the bottom of the hybrid layer.

Figure 8

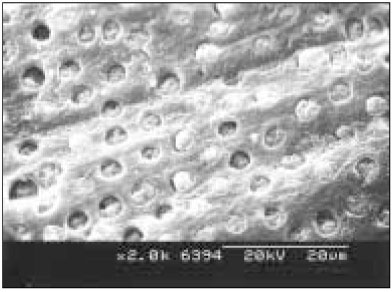

SEM photograph of the fractured surface of SM/30 group, showing cohesive failure. The failure occurred at the bottom of the hybrid layer and there are resin tags in the dentinal tubules that fractured at the bottom of the hybrid layer.

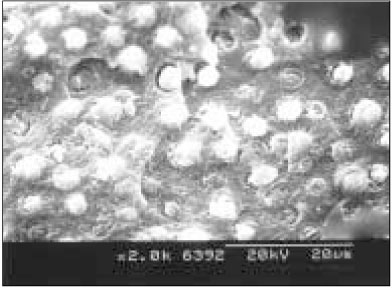

Figure 9

SEM photograph of the fractured surface of SB/C group, showing mixed failure. The failure occurred both at the top of the hybrid layer and in the bottom of the hybrid layer.

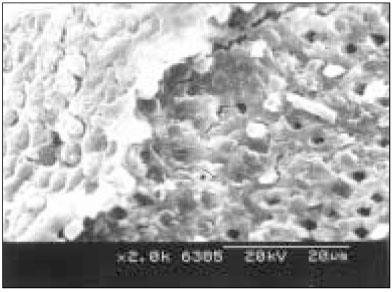

Figure 10

SEM photograph of the fractured surface of SB/30 group, showing mixed failure. The failure occurred both at the top of the hybrid layer and in the bottom of the hybrid layer.

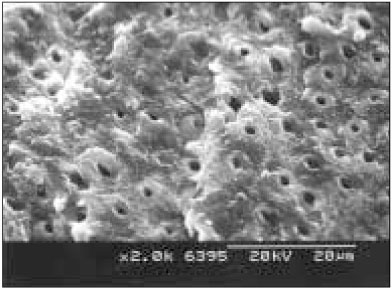

Figure 11

SEM photograph of the fractured surface of SE/C group, showing cohesive failure. The failure occurred at the bottom of the hybrid layer and exposed dentin, which was not enveloped by resin.

Figure 12

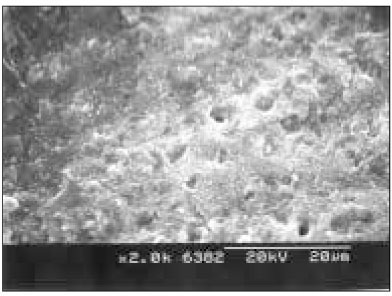

SEM photograph of the fractured surface of SE/30 group, showing cohesive failure. The failure occurred at the bottom of the hybrid layer and exposed dentin, which was not enveloped by resin.

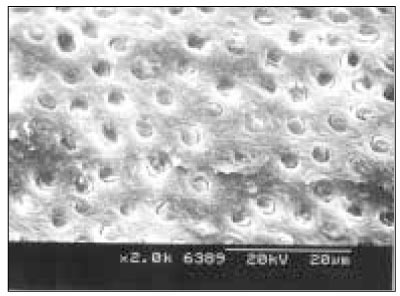

Figure 13

SEM photograph of the fractured surface of PL/C group, showing adhesive failure. The failure occurred between the resin and the top of the hybrid layer.

Figure 14

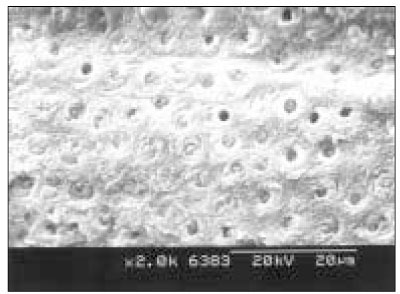

SEM photograph of the fractured surface of PL/30 group, showing adhesive failure. The failure occurred between the resin and the top of the hybrid layer.

Table 1

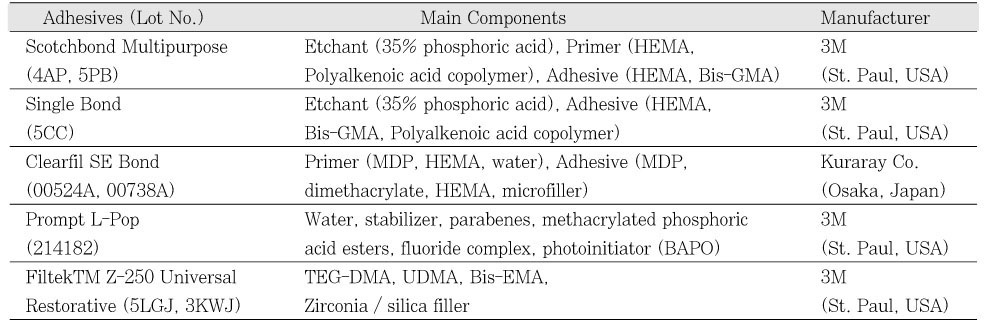

Dentine adhesives and composite resin used in this study

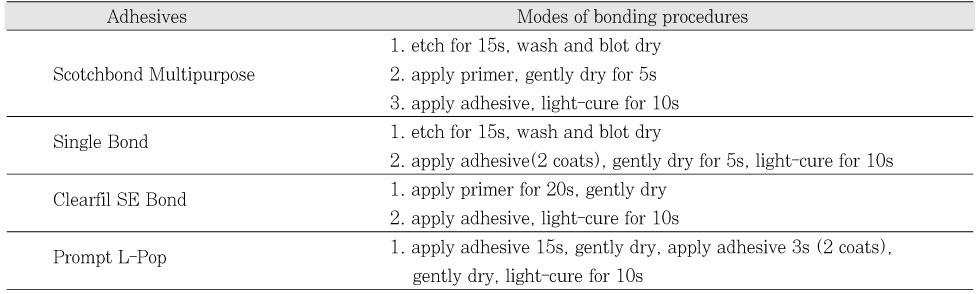

Table 2

Modes of bonding procedure of four adhesives

Table 3

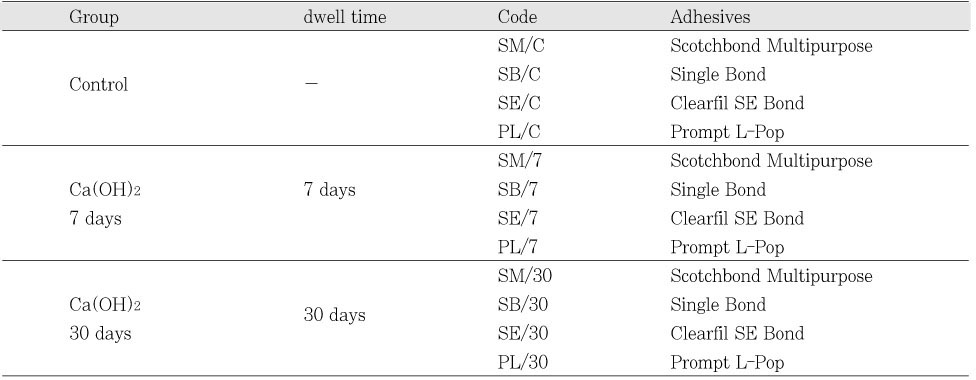

Experimental groups and code by adhesives used in this study

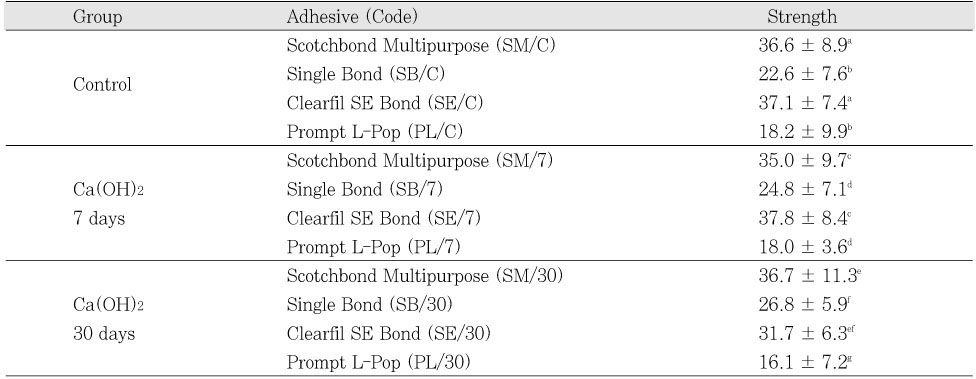

Table 4

Micro-tensile bond strength of 12 experimental groups (MPa ± SD)

^*Same superscript means no statistical difference.

Tables & Figures

REFERENCES

Citations

Citations to this article as recorded by

ePub Link

Cite

CITE: export Copy Download Format; Close

Download Citation

Download a citation file in RIS format that can be imported by all major citation management software, including EndNote, ProCite, RefWorks, and Reference Manager.

Format:

RIS — For EndNote, ProCite, RefWorks, and most other reference management software
BibTeX — For JabRef, BibDesk, and other BibTeX-specific software

Include:

Citation for the content below
Citation and abstract for the content below

Effect of calcium hydroxide on bond strength of dentin bonding systems

J Korean Acad Conserv Dent. 2007;32(3):198-207. Published online May 31, 2007

DOI: https://doi.org/10.5395/JKACD.2007.32.3.198

XML Download

Figure

Related articles

Effect of an aluminum chloride hemostatic agent on the dentin shear bond strength of a universal adhesive

Effect of calcium hydroxide on bond strength of dentin bonding systems

Figure 2 Micro-tensile bond strength of 12 experimental groups.

Figure 3 Micro-tensile bond strength in group of SM.

Figure 4 Micro-tensile bond strength in group of SB.

Figure 5 Micro-tensile bond strength in group of SE.

Figure 6 Micro-tensile bond strength in group of PL.

Figure 7 SEM photograph of the fractured surface of SM/C group, showing cohesive failure. The failure occurred at the bottom of the hybrid layer and there are resin tags in the dentinal tubules that fractured at the bottom of the hybrid layer.

Figure 8 SEM photograph of the fractured surface of SM/30 group, showing cohesive failure. The failure occurred at the bottom of the hybrid layer and there are resin tags in the dentinal tubules that fractured at the bottom of the hybrid layer.

Figure 9 SEM photograph of the fractured surface of SB/C group, showing mixed failure. The failure occurred both at the top of the hybrid layer and in the bottom of the hybrid layer.

Figure 10 SEM photograph of the fractured surface of SB/30 group, showing mixed failure. The failure occurred both at the top of the hybrid layer and in the bottom of the hybrid layer.

Figure 11 SEM photograph of the fractured surface of SE/C group, showing cohesive failure. The failure occurred at the bottom of the hybrid layer and exposed dentin, which was not enveloped by resin.

Figure 12 SEM photograph of the fractured surface of SE/30 group, showing cohesive failure. The failure occurred at the bottom of the hybrid layer and exposed dentin, which was not enveloped by resin.

Figure 13 SEM photograph of the fractured surface of PL/C group, showing adhesive failure. The failure occurred between the resin and the top of the hybrid layer.

Figure 14 SEM photograph of the fractured surface of PL/30 group, showing adhesive failure. The failure occurred between the resin and the top of the hybrid layer.

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

Figure 10

Figure 11

Figure 12

Figure 13

Figure 14

Effect of calcium hydroxide on bond strength of dentin bonding systems

Table 1

Dentine adhesives and composite resin used in this study

Table 2

Modes of bonding procedure of four adhesives

Table 3

Experimental groups and code by adhesives used in this study

Table 4

Micro-tensile bond strength of 12 experimental groups (MPa ± SD)

^*Same superscript means no statistical difference.

Table 1 Dentine adhesives and composite resin used in this study

Table 2 Modes of bonding procedure of four adhesives

Table 3 Experimental groups and code by adhesives used in this study

Table 4 Micro-tensile bond strength of 12 experimental groups (MPa ± SD)

^*Same superscript means no statistical difference.
